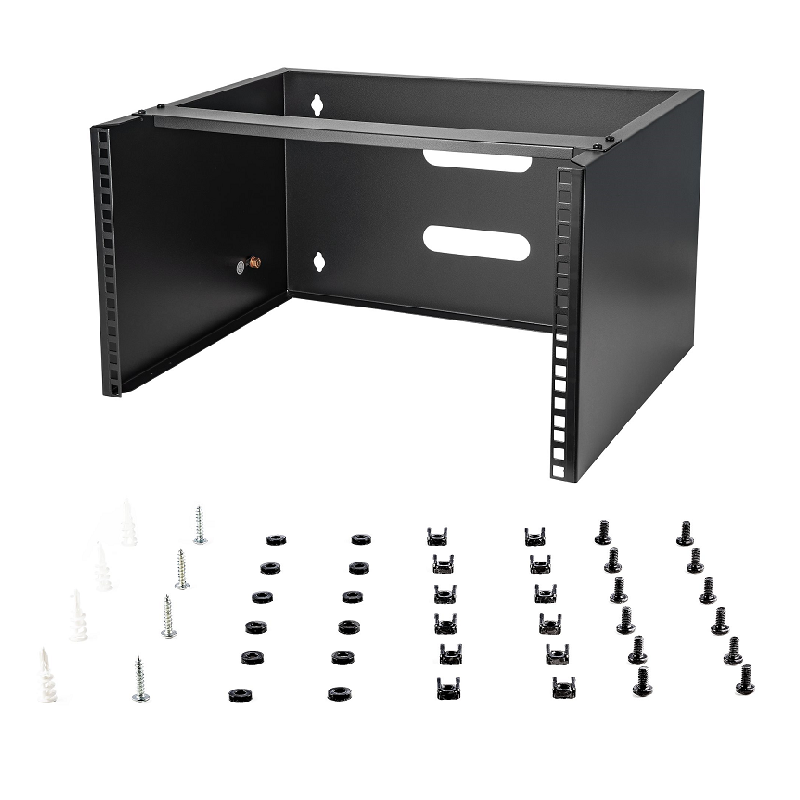

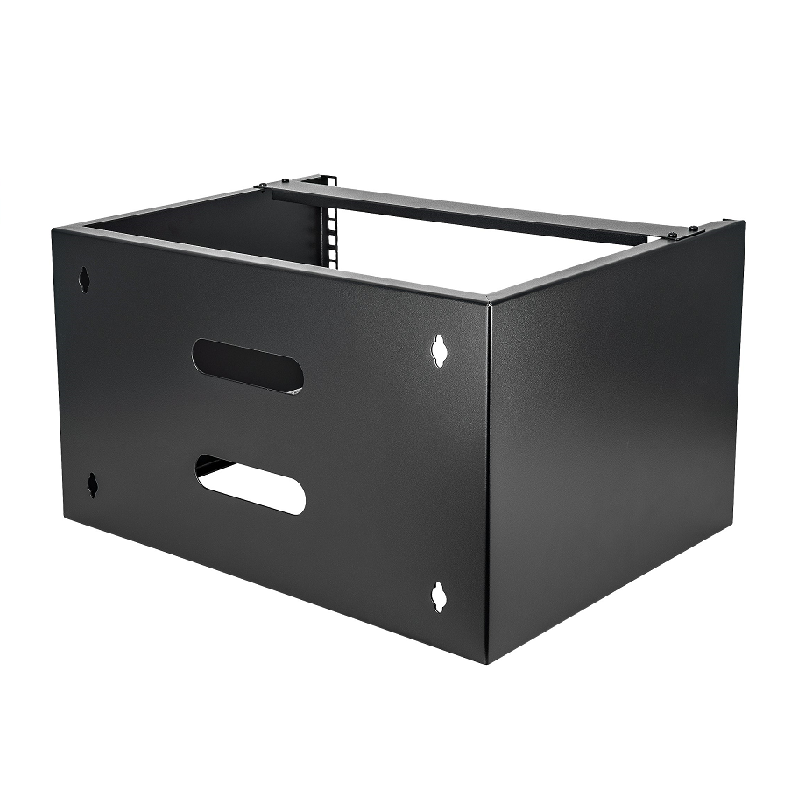

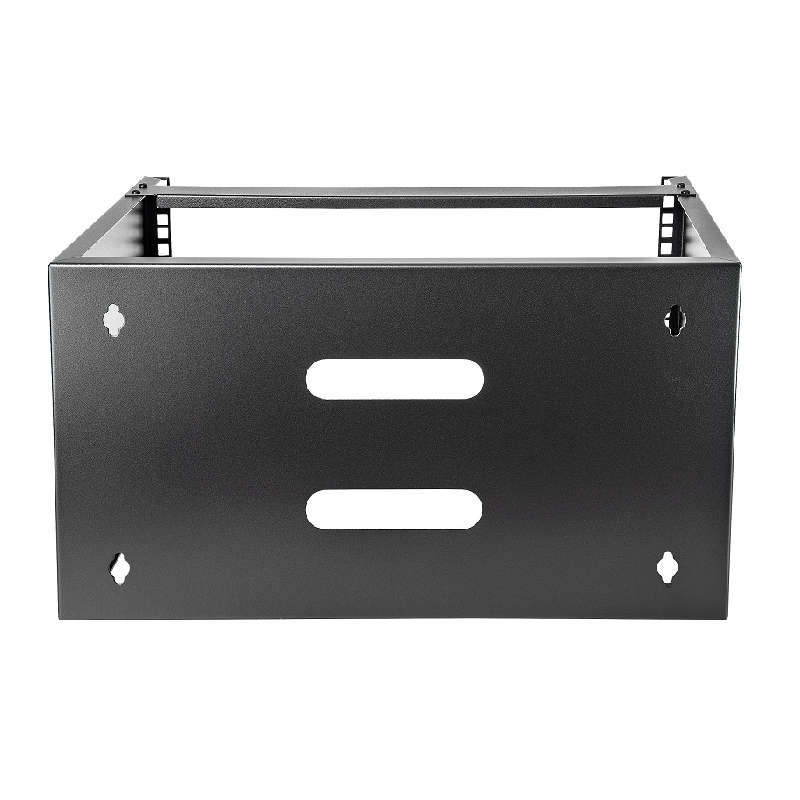

6U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20kg Weight Capacity, Black
Mount networking equipment and shallow rackmount devices with this 6U wall-mountable rack
The WALLMOUNT6 6U 13.78 in. Deep Wall Mounting Bracket for Patch Panel delivers a sturdy and dependable equipment storage option, allowing you to wallmount equipment for a more efficient and accessible operating environment.
The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall.
Backed by a StarTech.com Lifetime warranty.
Features | |
Frame type | Open |
Product design | 2-post |
Rack capacity | 6U |
Castor wheels | No |
Adjustable mounting rails | No |
Cable management | No |
Mounting hole shape | Square |
Type | Wall mounted rack |
Maximum weight capacity | 20 kg |
Material | Steel |
Product colour | Black |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Rack capacity | 6U |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 498 mm |
Height | 273 mm |
Depth | 350 mm |
Weight | 4.5 kg |
Mounting depth (max) | 35 cm |
Maximum weight capacity | 20 kg |
Packaging data | |
Package width | 380 mm |
Package height | 300 mm |
Package depth | 524 mm |
Package weight | 6.3 kg |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 12 |
Screws included | Yes |
Number of screws | 12 |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
A product diagram can be found in the PDF file
