USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45) - Up to 165ft (50m) - High Speed USB Port Extender Adapter Kit - Powered - USB over Ethernet Cable Extender - 480Mbps - Metal
Connect a USB 2.0 device to your computer over long distances, using this single-port USB extender
Here’s a versatile and cost-effective USB 2.0 extender. It gives you the freedom you need to place your USB device further away, making it perfect for the homes, offices, classrooms, and many other environments. Now, you can easily access and use your USB 2.0 device in a remote location, up to 165 ft. (50 m) away, using Cat5 or Cat6 cable.
This USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace.
It’s an inexpensive USB-to-Ethernet solution that’s ideal for virtually any USB 2.0 device. You can connect a webcam at the back of a classroom, or a printer in another room at the office, all up to 50 m away from your host computer.
Plus, with a power adapter included for the remote unit, you can connect power-hungry USB devices such as external hard drives.
Unlike other USB extenders that feature a plastic housing, this extender offers a metal casing that offers rugged durability. Whether the extender is installed in a permanent location, or will be moved from place to place, it gives you the peace of mind that your USB peripheral remains connected and accessible, right where you need it.
The USB 2.0-over-Cat5-or-Cat6 extender is OS independent, so it supports a variety of operating systems. Setup is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Technical details | |
Type | Console transmitter & reciever |
Rubber feet | Yes |

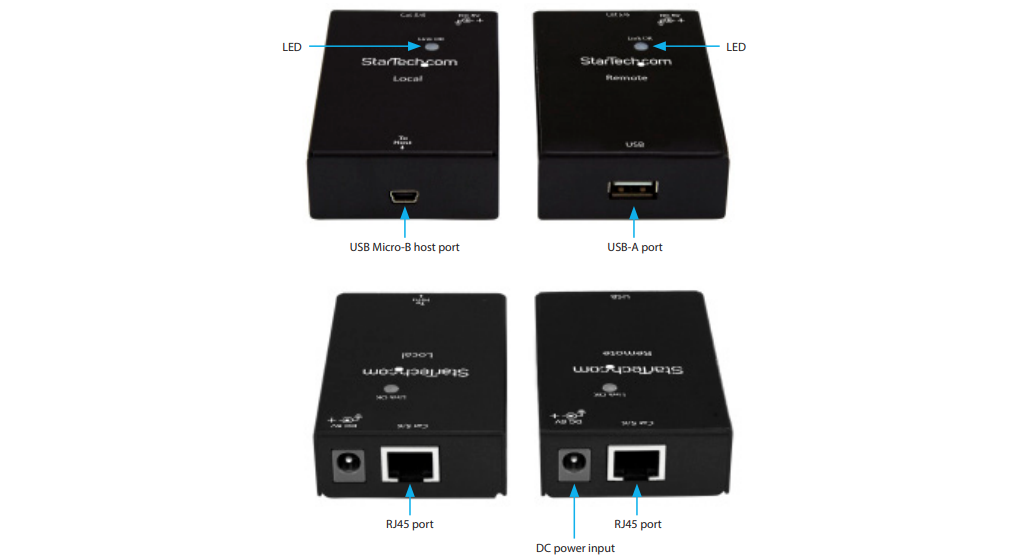

LED indicators | Link, Power |
Housing material | Metal |
Data transfer rate | 480 Mbit/s |
Cable types supported | Cat5, Cat5e, Cat6 |
Maximum transfer distance | 50 m |
Product colour | Black |
Sustainability certificatese | RoHS |
Ports & interfaces | |
Mini-USB 2.0 ports quantity | 1 |
USB 2.0 port quantity | 1 |
RJ-45 ports quantity | 1 |
Power | |
Power consumption (typical) | 10 W |
Input voltage | 100 - 240 V |
Output voltage | 5 V |
Output current | 2 A |
Power plug type | Type N |
Input current | 0.6 A |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 52 mm |
Depth | 80 mm |
Height | 22 mm |
Weight | 304 g |
Packaging data | |
Package width | 155 mm |
Package depth | 236 mm |
Package height | 67 mm |
Package weight | 717 g |
AC adapter included | Yes |
Quick start guide | Yes |

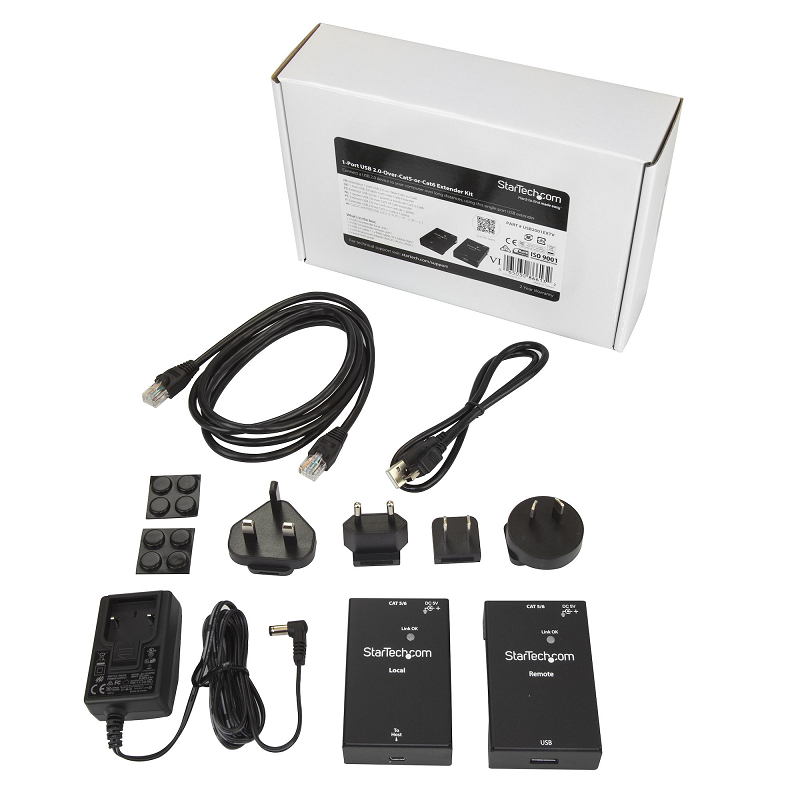

Cables included | LAN (RJ-45), USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file

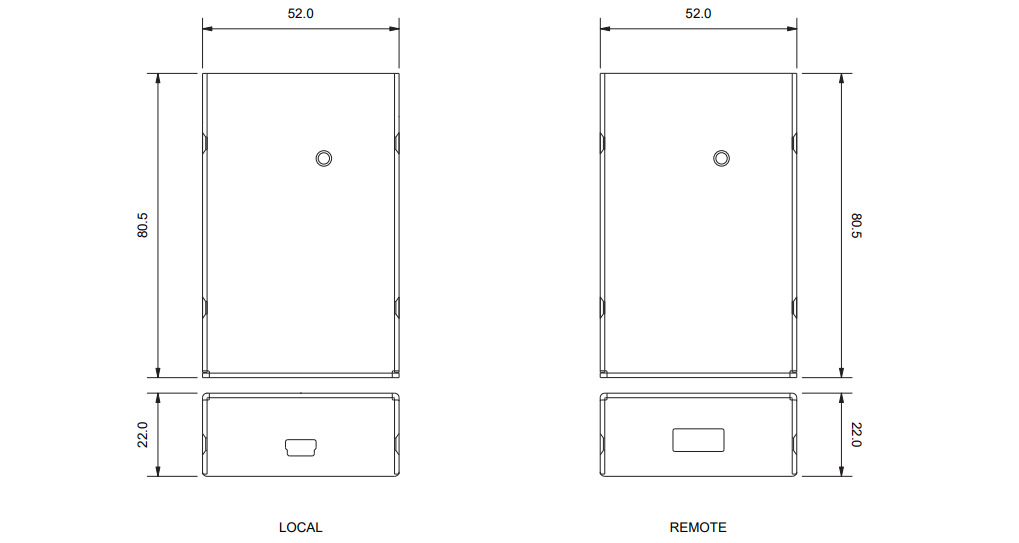

A product drawing can be found in the PDF file
