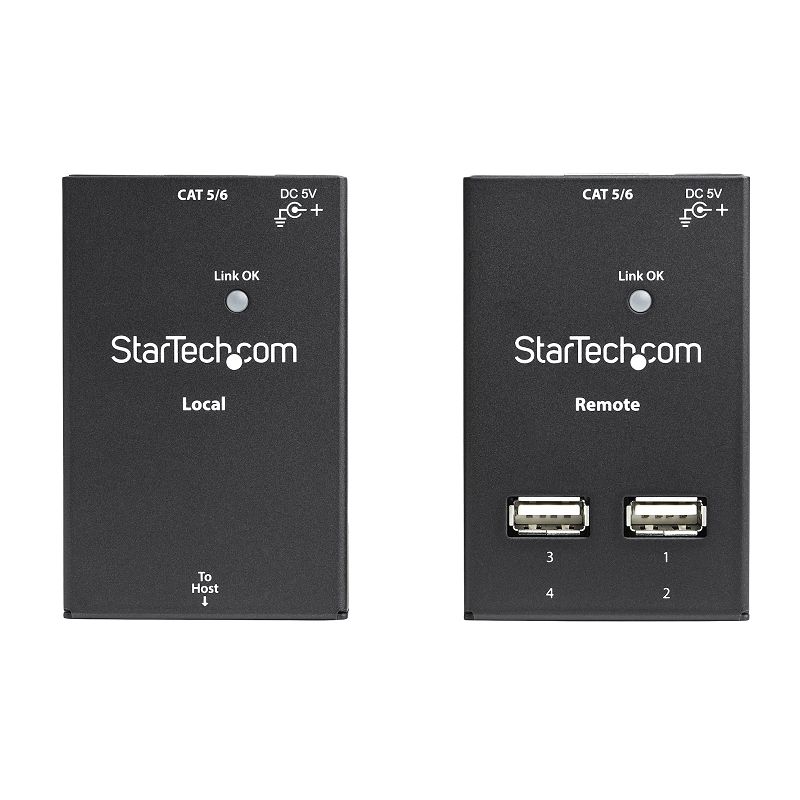

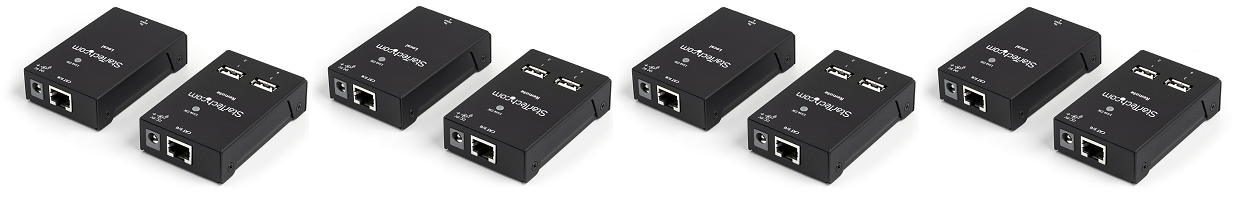

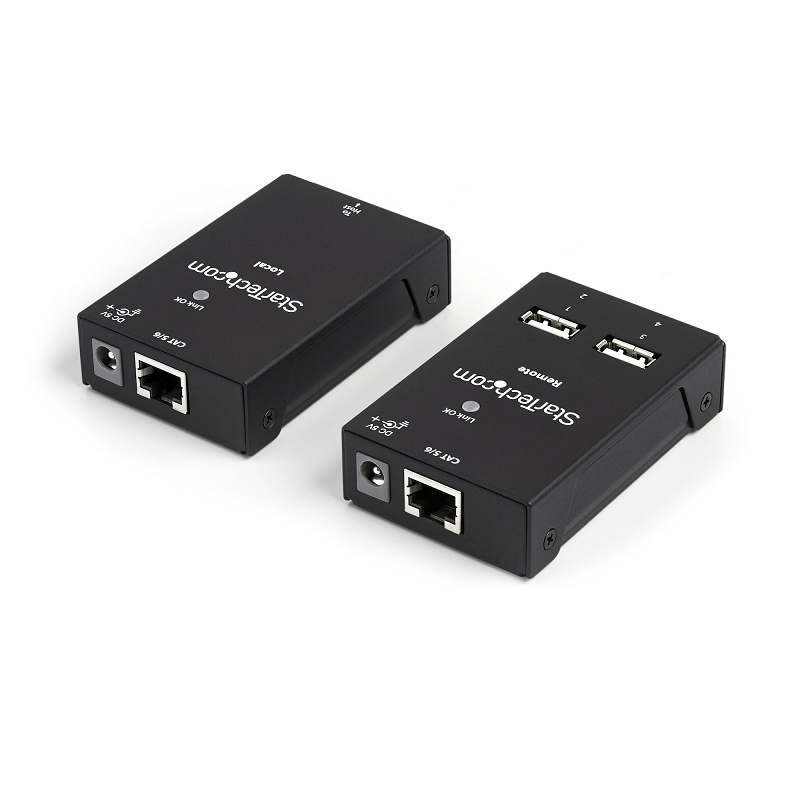

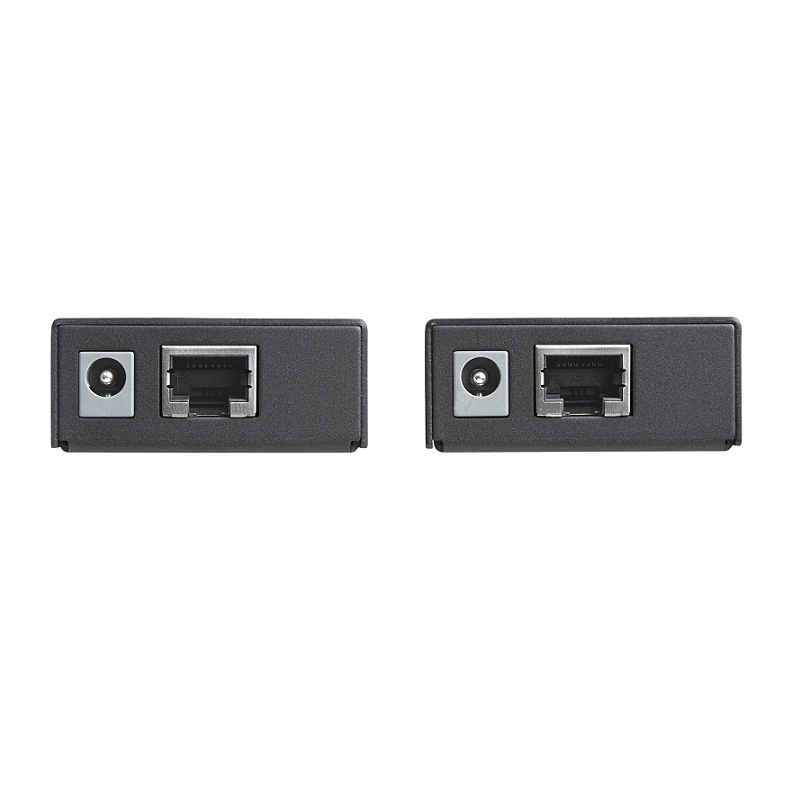

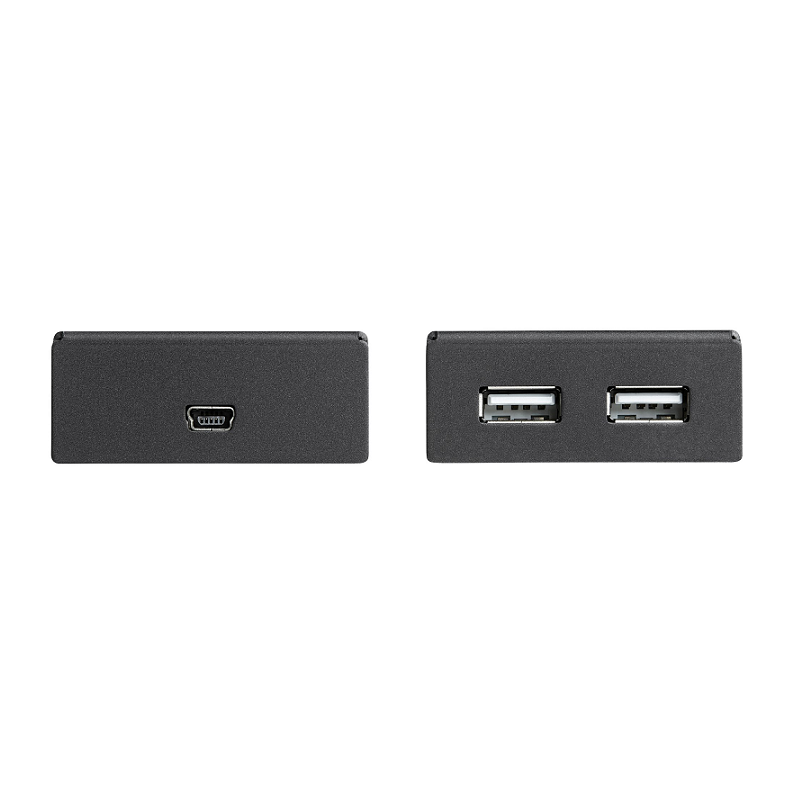

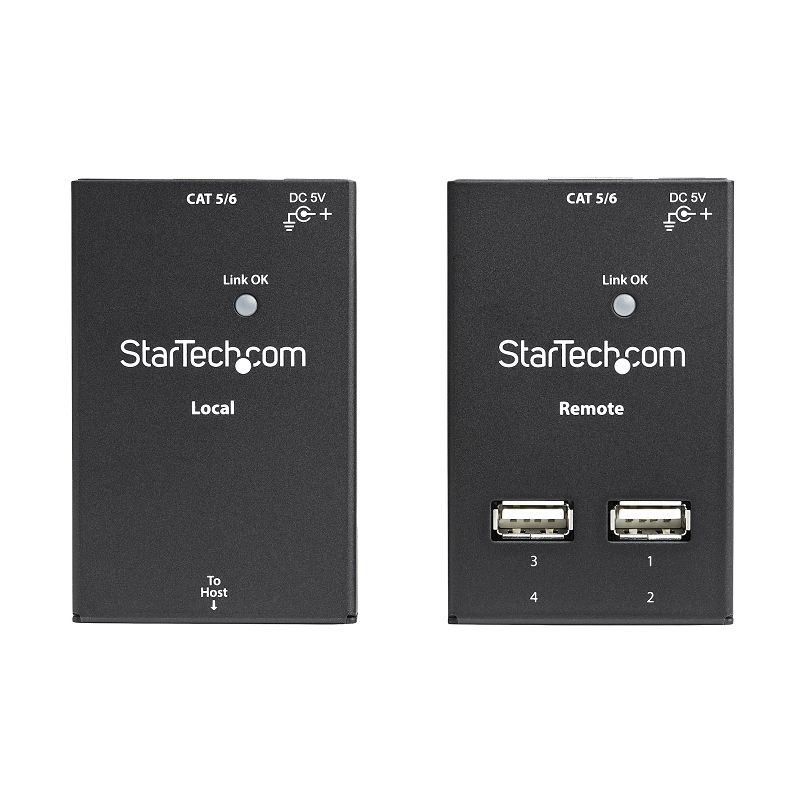

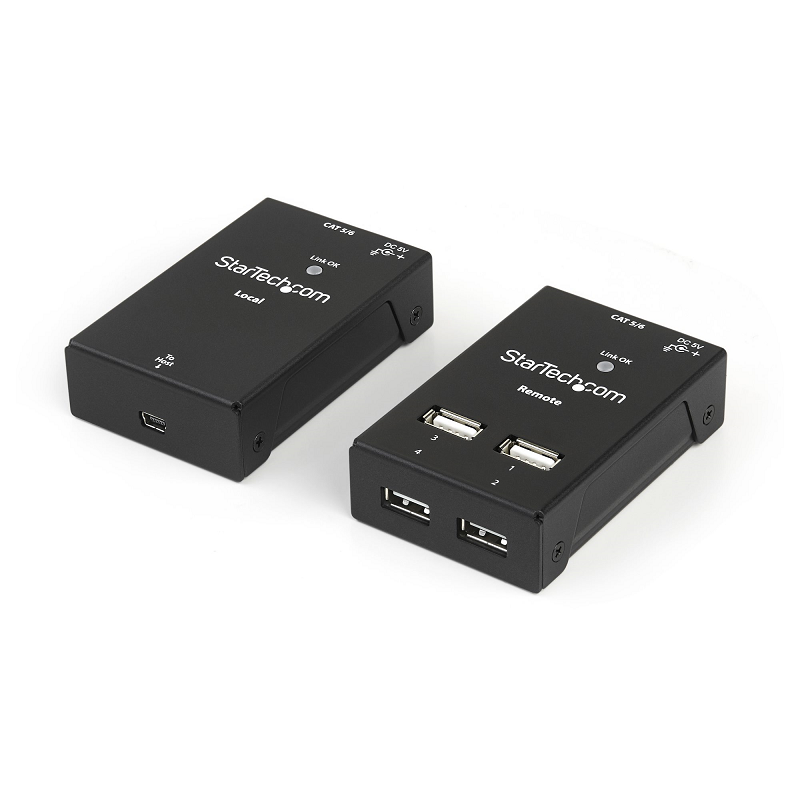

4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 165ft (50m)
Connect four USB 2.0 devices away from your computer over Cat5 (40m) or Cat6 (50m)
This 4-port USB 2.0 extender is an easy and inexpensive solution for creating workspace freedom. Now you can extend the distance of your USB 2.0 devices over a single Ethernet cable, up to 130ft (40m) over Cat5, or 165ft (50m) over Cat6.
Overcome the 16ft USB cable length limitation to create a more flexible and efficient workspace. Now you can place up to four USB devices in remote locations away from the host computer system. Position your hard drive enclosure, printer, scanner, webcam and other popular peripherals right where you need them, to save time and enhance your productivity.
Gain quick access to the USB devices you use most frequently. Often on the go? Use the two top ports for fast, easy connections to portable devices like flash drives, smartphones and tablets. Plus, you still have two front-facing ports for printers or other devices requiring a more permanent set-up.
The versatile USB2004EXTV supports Windows®, Mac® and Linux systems. Set-up is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Technical details | |
Type | Console transmitter & reciever |
Rubber feet | Yes |
LED indicators | Link, Power |
Housing material | Steel |
Data transfer rate | 480 Mbit/s |
Cable types supported | Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7 |
Maximum data transfer distance | 50 m |
Product colour | Black |
Certification | CE, FCC, TAA, REACH |
Sustainability certificates | RoHS |
Ports & interfaces | |
Mini-USB 2.0 ports quantity | 1 |
RJ-45 ports quantity | 2 |
DC-in jack | Yes |
USB 2.0 Type-A ports quantity | 4 |
Power | |
Power consumption (typical) | 10 W |
Input voltage | 100 - 240 V |
Output voltage | 5 V |
Output current | 2 A |
Power plug type | Type N |
Input current | 0.4 A |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 70 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 52 mm |
Depth | 80 mm |
Height | 22 mm |
Weight | 319 g |
Packaging data | |
Package width | 236 mm |
Package depth | 156 mm |
Package height | 65 mm |
Package weight | 744 g |
AC adapter included | Yes |
Manual | Yes |
Cables included | LAN (RJ-45), USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
