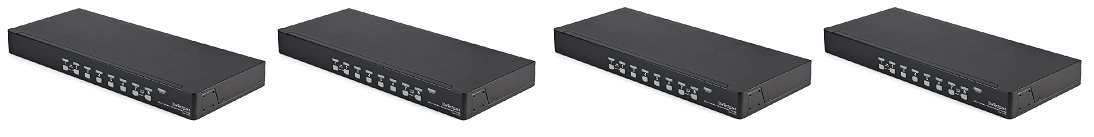

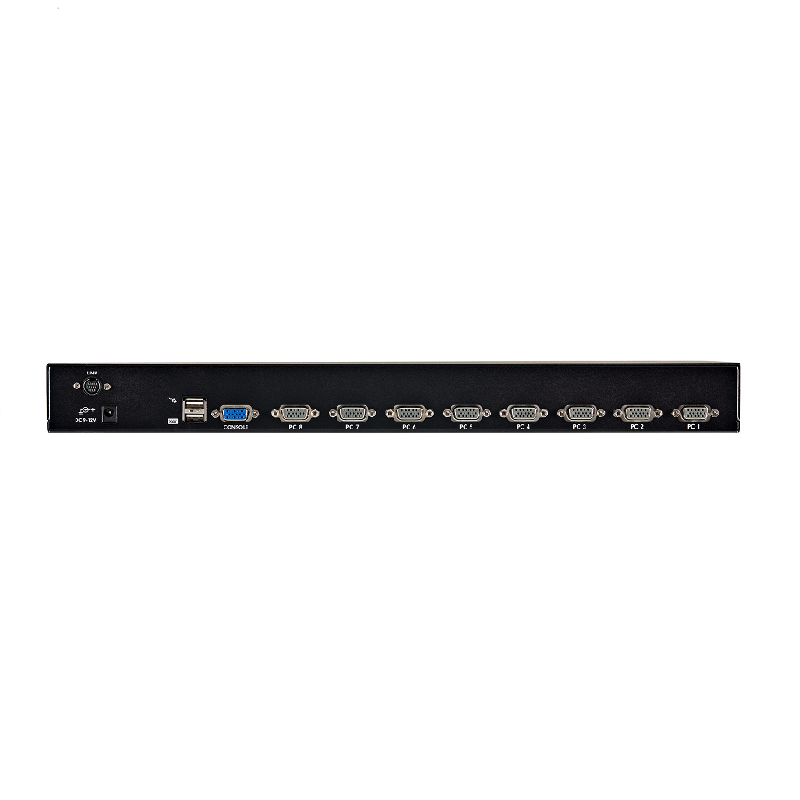

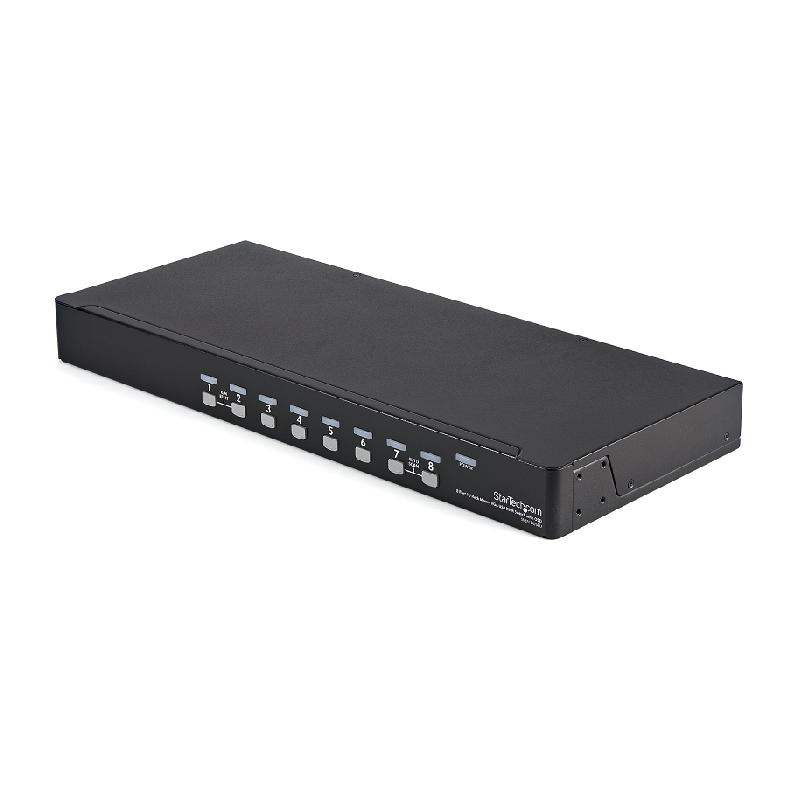

8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

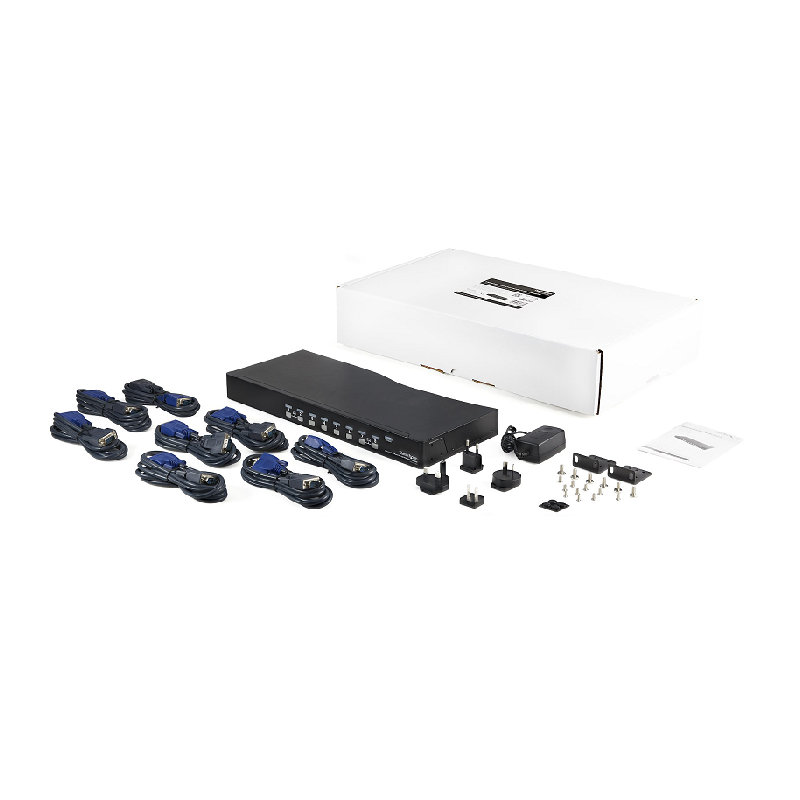

A complete 8-port USB KVM kit, including all necessary cables and accessories
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
On Screen Display (OSD) | Yes |
LED indicators | Power |
Hot keys | Yes |
IP control | No |
Audio support | No |
Cascadable | Yes |
Sustainability certificates | RoHS |
Video | |
Maximum resolution | 1920 x 1440 pixels |
Maximum analog resolution | 1920 x 1440 pixels |
Ports & interfaces | |
Console USB ports quantity | 2 |
Console ports | USB A, VGA (D-Sub) |
USB connector type | USB Type-A |
Number of computers controlled | 8 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | VGA |
USB 2.0 ports quantity | 2 |
VGA (D-Sub) ports quantity | 9 |
DC-in jack | Yes |
Performance | |
Daisy chain | Yes |
Plug and Play | Yes |
Maximum resolution | 1920 x 1440 pixels |
Maximum analog resolution | 1920 x 1440 pixels |
Design | |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Power |
Hot keys | Yes |
Certification | CE, FCC, TAA, REACH |
Cascadable | Yes |
Rack capacity | 1U |
Housing material | Steel |
Power | |
Output current | 1 A |
Compatible power plug types | AU, EU, UK, US |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 12 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 5 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 435 mm |
Depth | 180 mm |
Height | 45 mm |
Weight | 2.2 kg |
Packaging data | |
Package width | 262 mm |
Package depth | 606 mm |
Package height | 121 mm |
Package weight | 4.7 kg |
Manual | Yes |
Rack mount kit | Yes |
AC adapter included | Yes |
Cables included | KVM |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
