StarTech SV831DUSBAU 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

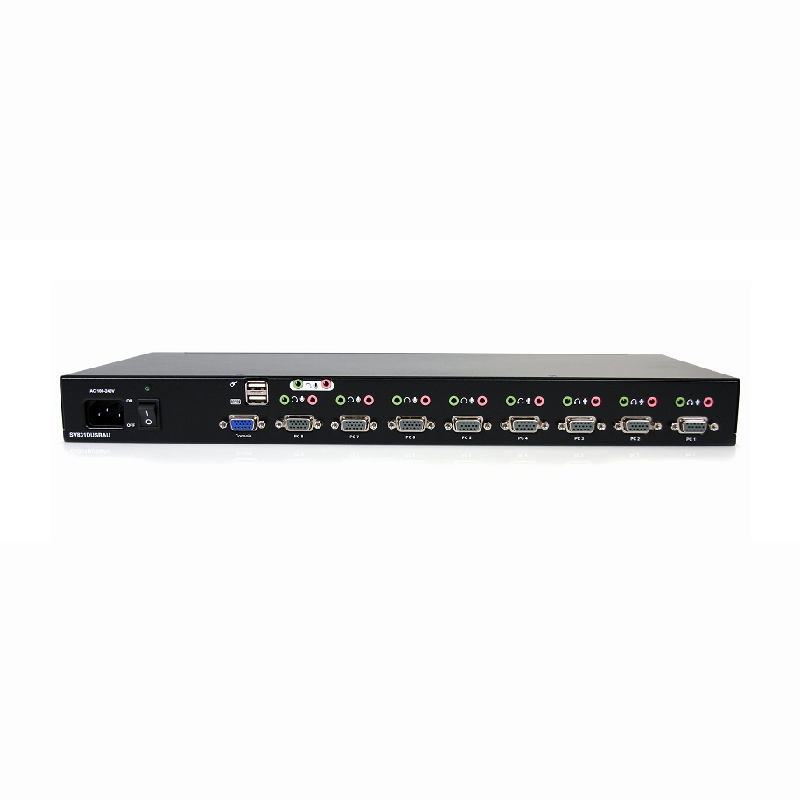

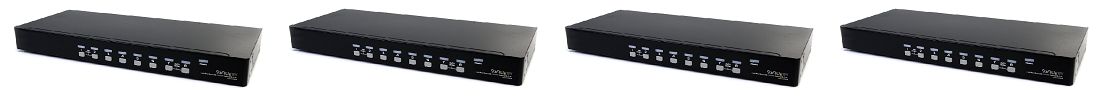

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

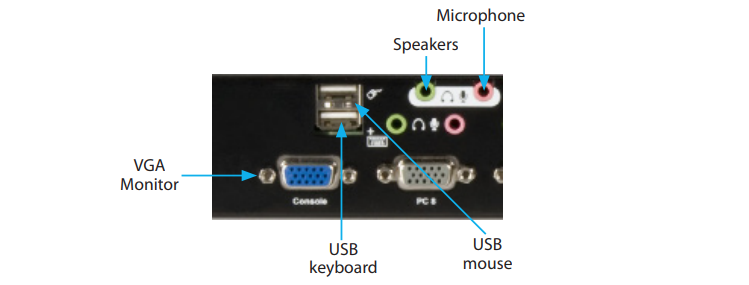

Product Diagram:

Applications:

• Add single console administration to your Co-location/ISP facility saving you time and money
• Create a scalable, streamlined access solution in your Datacenter or Server Farm
• Perfect for manufacturing line computer control, simplifying access to multiple systems
• Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
• Access multiple Security and DVR control systems from one place
• Monitor multiple systems simultaneously in Software QA labs

Features:

• Supports Hotkey and front panel push-button switching
• Identify and select computers by names assigned via the OSD menu
• OSD security allows each PC to be password protected
• Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
• Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
• Auto-scan function automatically selects computer sequentially
• Cascade configuration expands system capability
• USB console interface
• Plug-and-play system configuration
• USB Keyboard and Mouse combo supported on one USB connection

The StarTech.com Advantage:

• User friendly access through the OSD saves configuration time and frustration
• Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver

Full specification and details can be found in the PDF file

A user manual can be found in the PDF file
