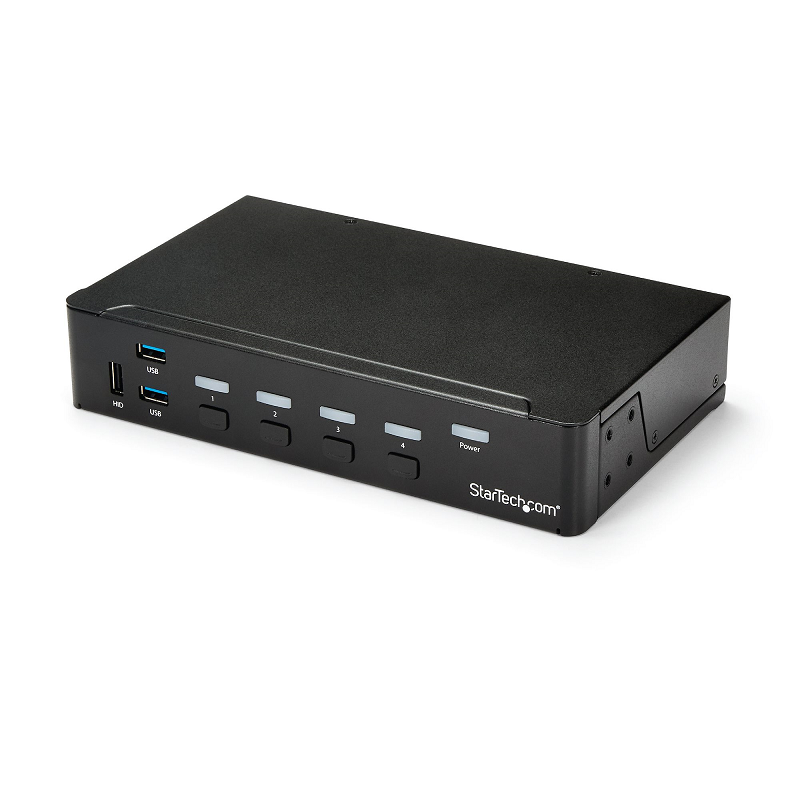

4-Port HDMI KVM Switch - USB 3.0 - 1080p
Control four HDMI computers using a single console, with a built-in USB 3.0 hub for sharing additional peripheral devices

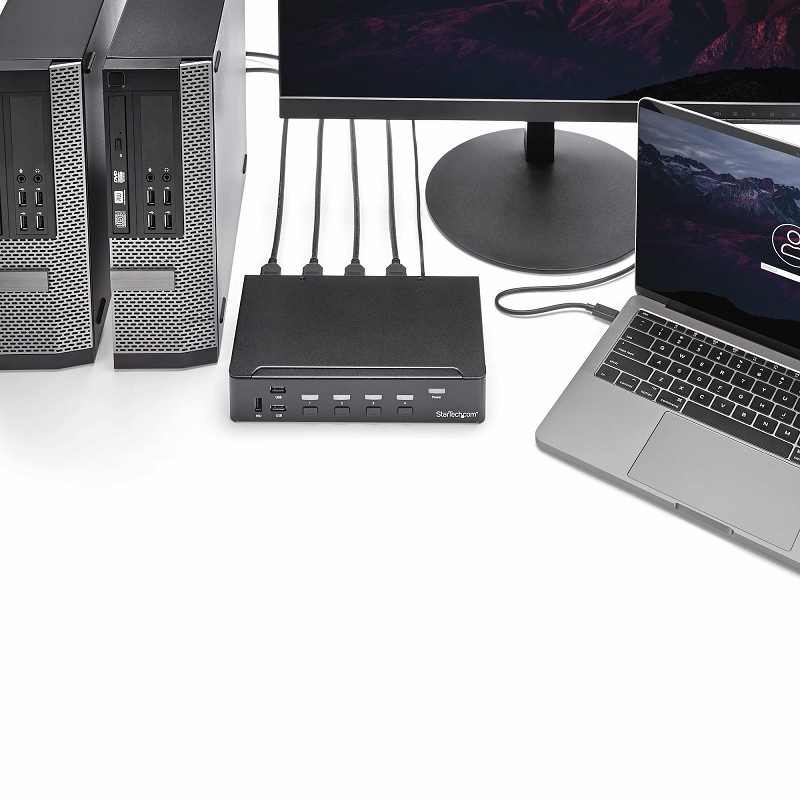

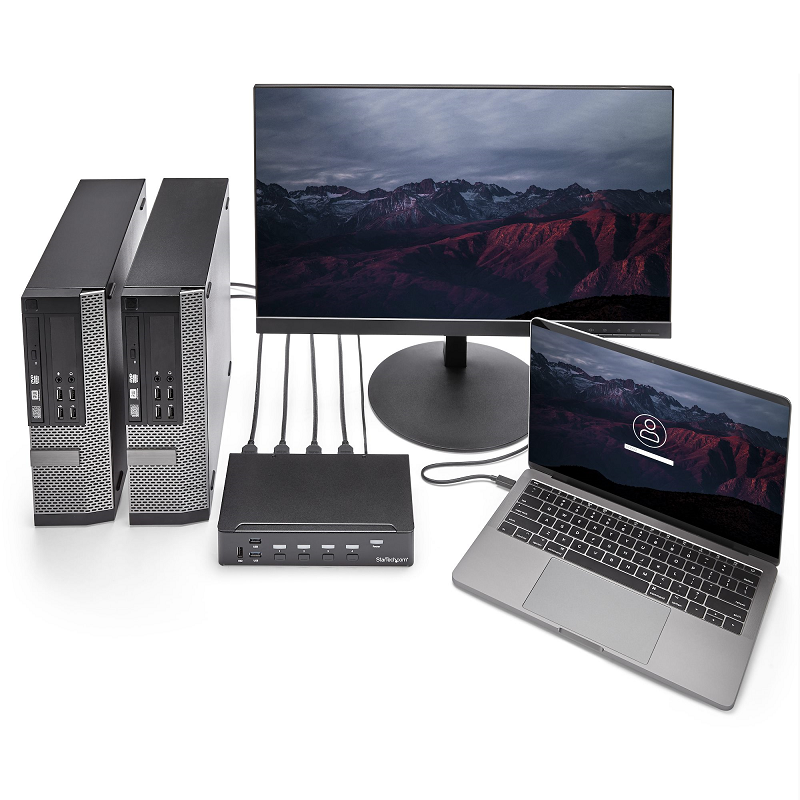

This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431HDU3A2 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
On Screen Display (OSD) | No |

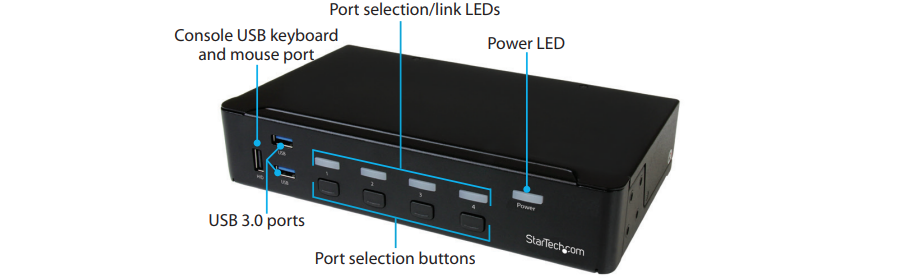

LED indicators | Link, Power |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
Sustainability certificates | RoHS |
Performance | |
Maximum cable length | 10000 m |
Daisy chain | No |
Plug and Play | Yes |
Maximum resolution | 1920 x 1080 pixels |
Audio channels | 2.0 |
Video | |
Maximum resolution | 1920 x 1080 pixels |

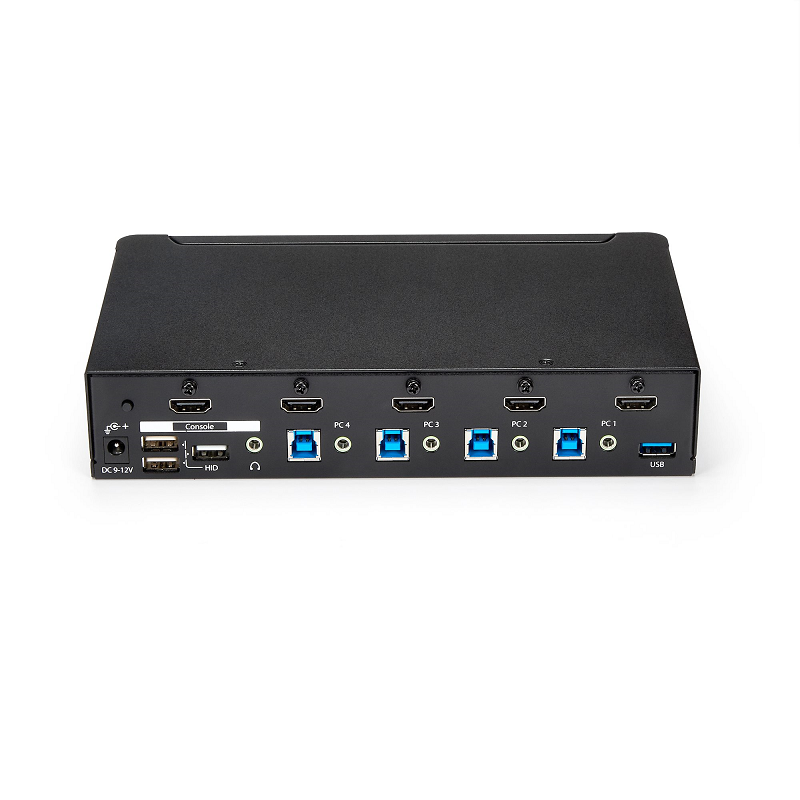

Ports & interfaces | |
Console USB ports quantity | 4 |

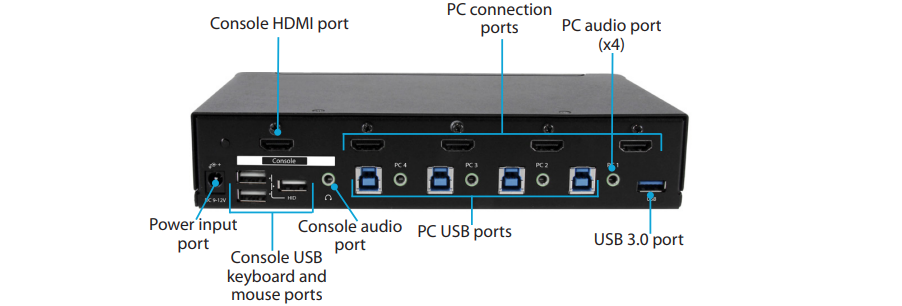

Console ports | 3.5 mm headphone, HDMI, USB A |
USB connector type | USB Type-A |
Number of computers controlled | 4 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | HDMI |
Audio connections | Yes |
Headphone outputs | 4 |
DC-in jack | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
Network | |
Ethernet LAN | No |
Design | |
Mean time between failure (MTBF) | 142000 h |
Maximum cable length | 10000 m |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Link, Power |
Hot keys | Yes |
Certification | CE, FCC, UL, PSE |
Display | |
Built-in display | No |
On Screen Display (OSD) | No |
Power | |
Input current | 0.6 A |
Output current | 1.5 A |
Power plug type | Type M |
Compatible power plug types | AU, EU, UK, US |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 130 mm |
Depth | 220 mm |
Height | 43 mm |
Weight | 1.1 kg |

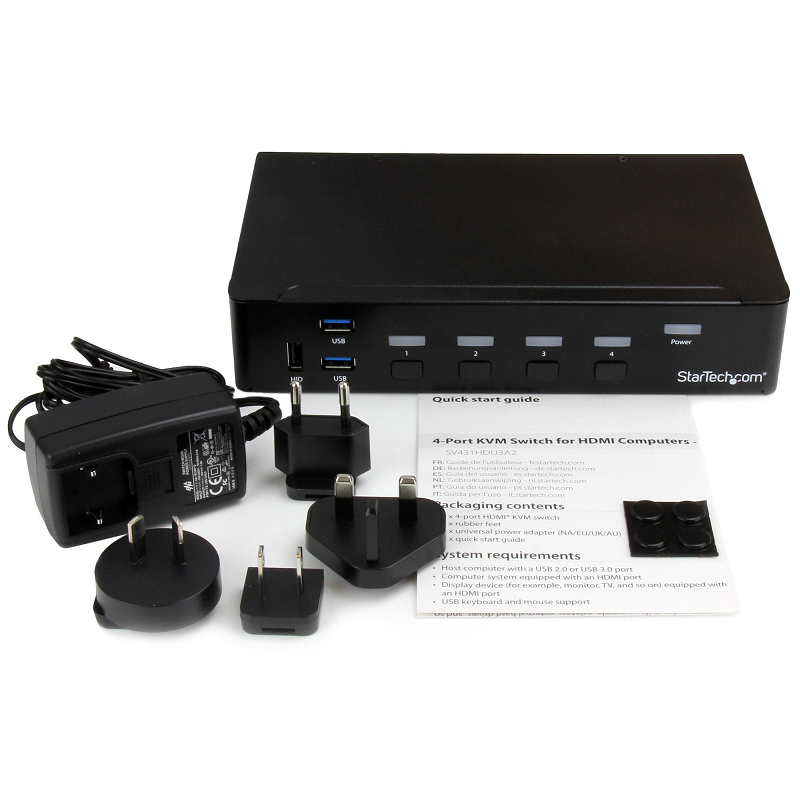

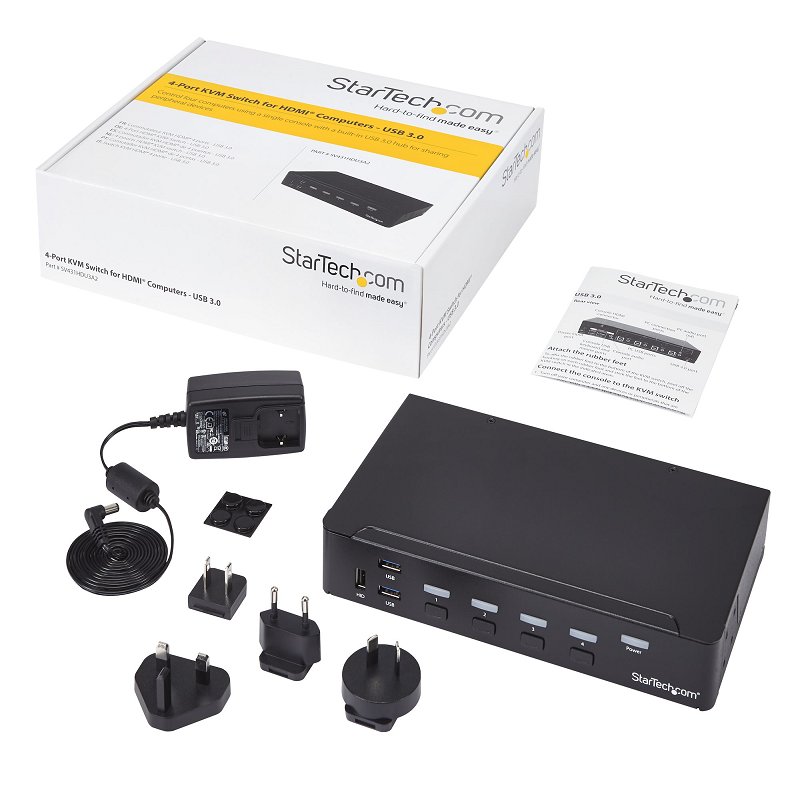

Packaging content | |
Rubber feet | Yes |
Quick installation guide | Yes |
Other features | |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
