4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant
DisplayPort 1.2?KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

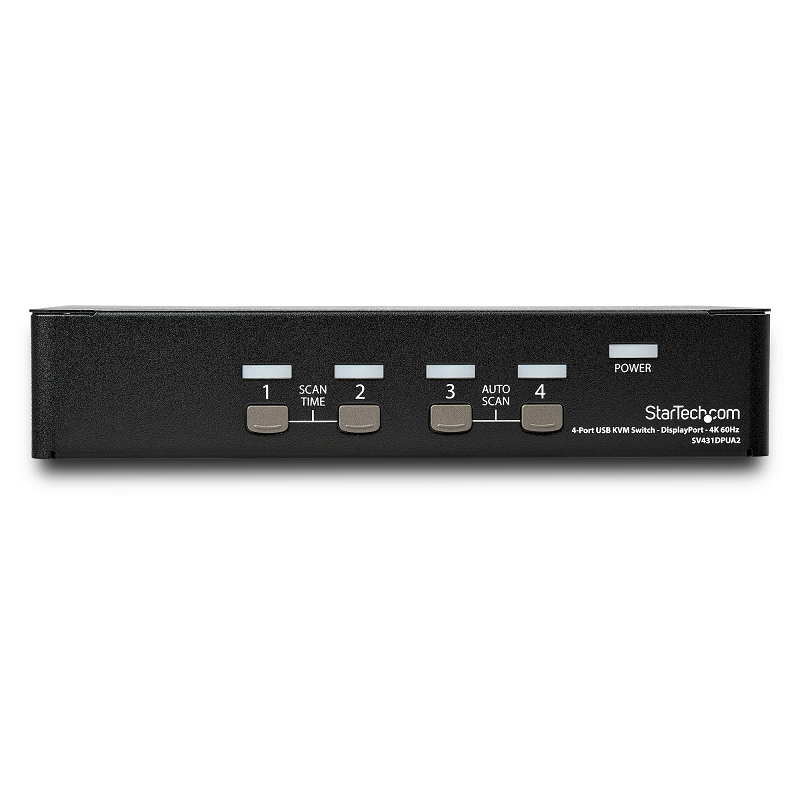

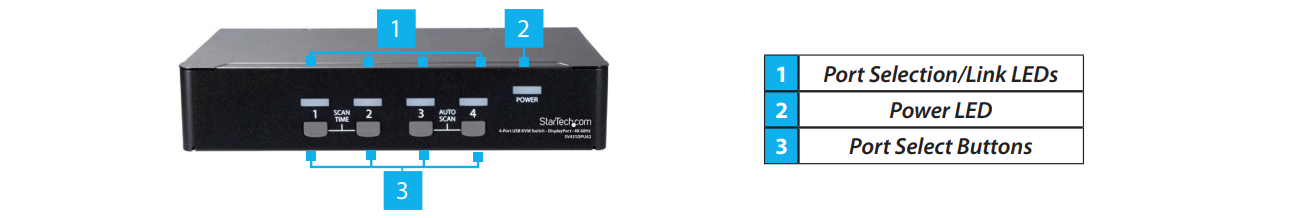

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
Scan intervals | 3, 8, 15, 30 s |
On Screen Display (OSD) | Yes |
Number of users | 1 user(s) |
LED indicators | Yes |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
Sustainability certificates | RoHS |
Video | |
HD type | 4K Ultra HD |
Maximum resolution | 3840 x 2160 pixels |

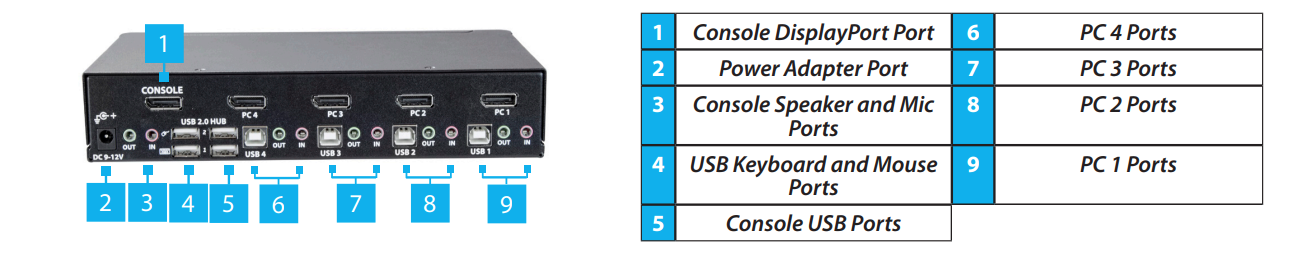

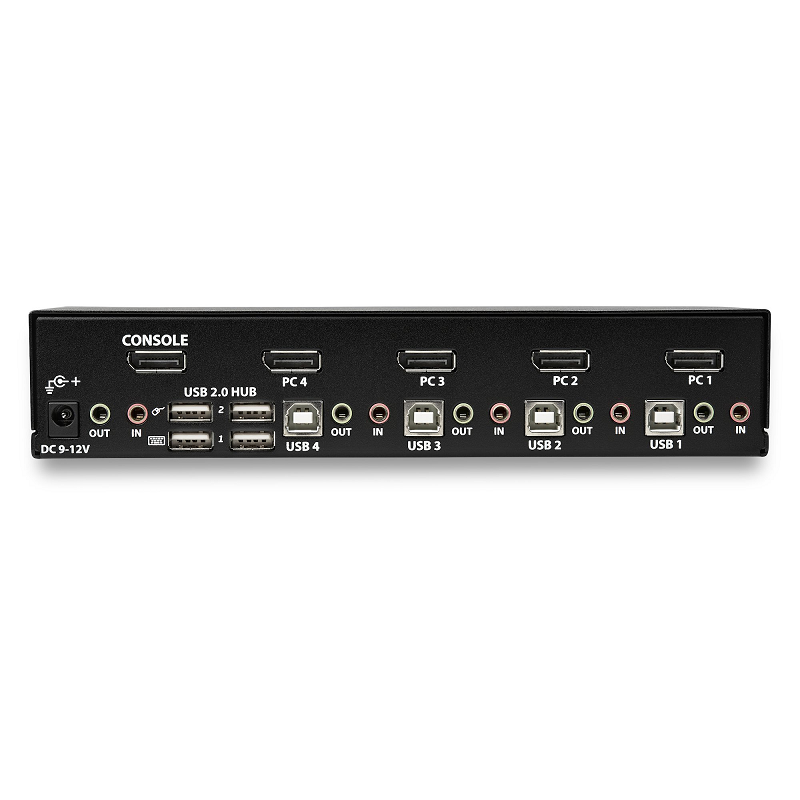

Ports & interfaces | |
Console USB ports quantity | 4 |
Console ports | 3.5 mm headphone, 3.5 mm mix, DisplayPort, USB A |
Number of microphone inuts | 5 |
DisplayPorts quantity | 5 |
Number of computers controlled | 4 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | DisplayPort |
Audio connections | Yes |
Headphone outputs | 5 |
DC-in jack | Yes |
USB 2.0 Type-B ports quantity | 4 |
Network | |
Ethernet LAN | No |
Performance | |
Daisy chain | No |
Data transfer rate (max) | 0.48 Gbit/s |
HD type | 4K Ultra HD |
Plug and Play | Yes |
Maximum resolution | 3840 x 2160 pixels |
Scan interval | 3, 8, 15, 30 s |
Number of users | 1 user(s) |
Design | |
Mean time between failures (MTBF) | 138327 h |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Yes |
Hot keys | Yes |
Certification | CE, FCC, TAA, REACH |
Rack capacity | 1U |
Housing material | Steel |
Power | |
Input current | 0.6 A |
Output current | 1.5 A |
Power plug type | Type M |
Compatible power plug types | AU, EU, JP, UK, US |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 18 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 0 - 40% |
Weight & dimensions | |
Width | 131 mm |
Depth | 220 mm |
Height | 45 mm |
Weight | 1 kg |

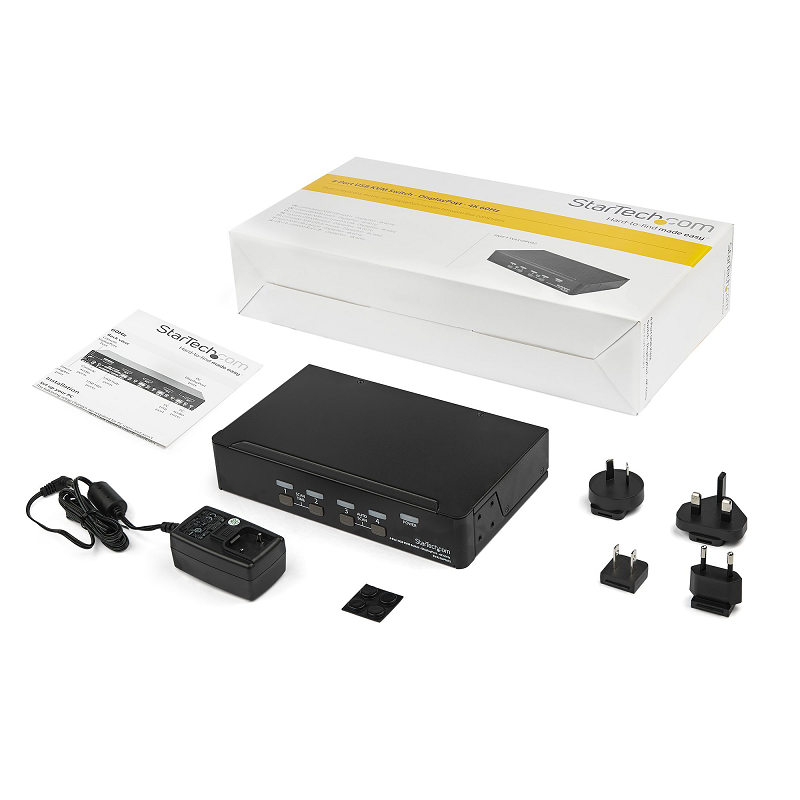

Packaging content | |
Rubber feet | Yes |
Quick installation guide | Yes |
AC adapter included | Yes |
Logistics data | |
Master (outer) case width | 43.3 cm |
Master (outer) case length | 54.5 cm |
Master (outer) case height | 25.8 cm |
Quantity per master (outer) case | 6 pc(s) |
Other features | |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A quick start guide can be found in the PDF file
