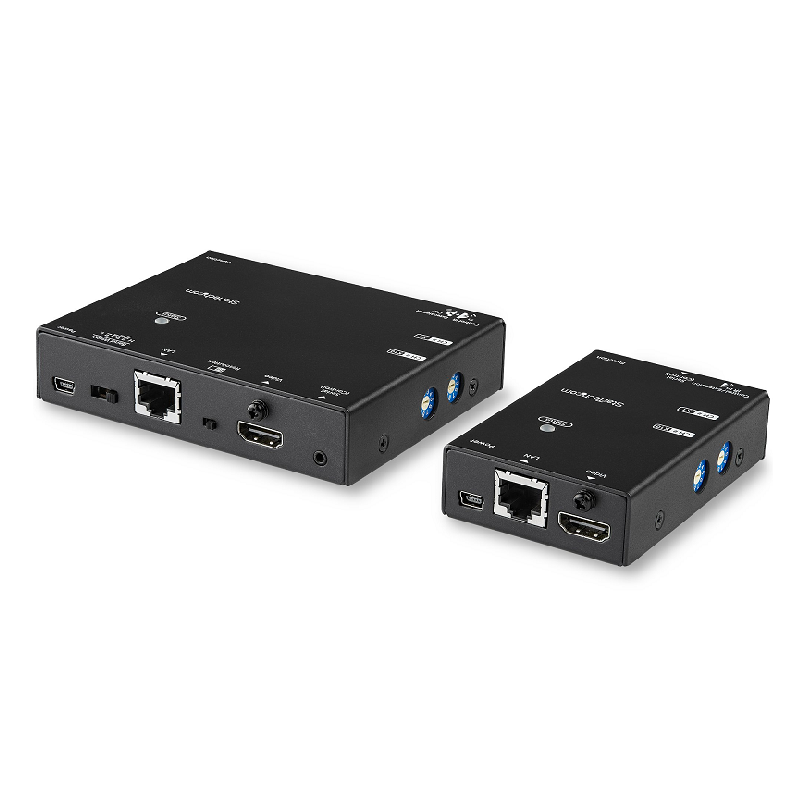

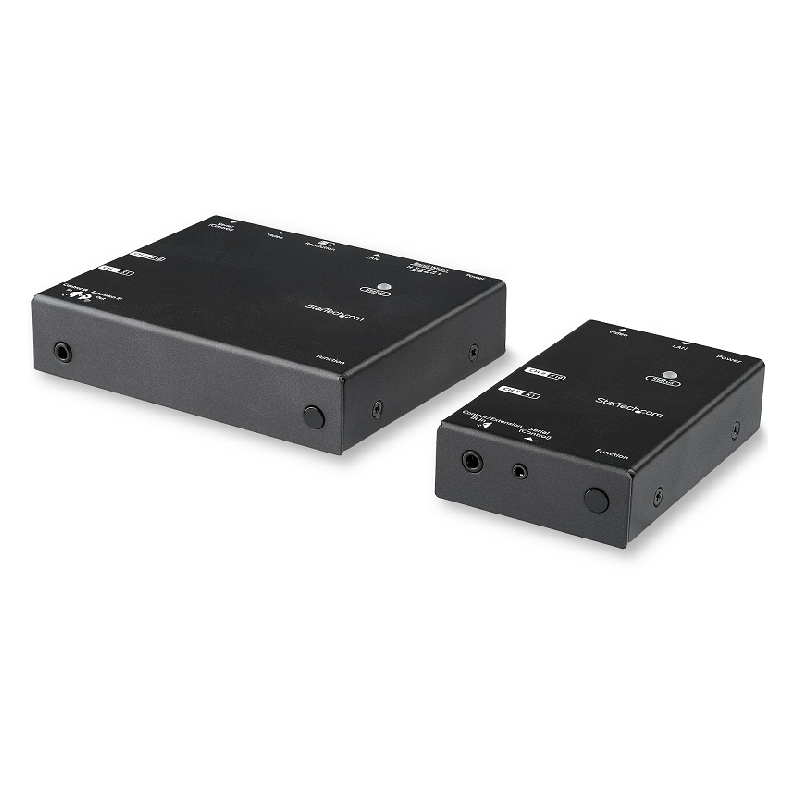

HDMI Over IP Extender Kit with Advanced Compression
Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & Unicast

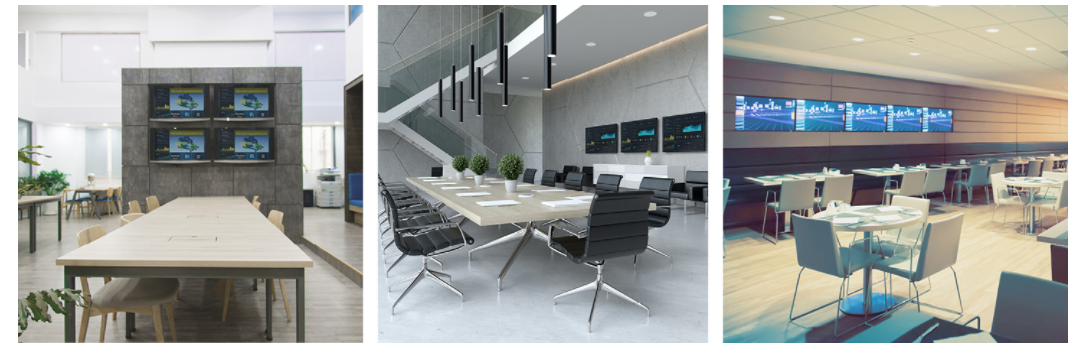

Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.

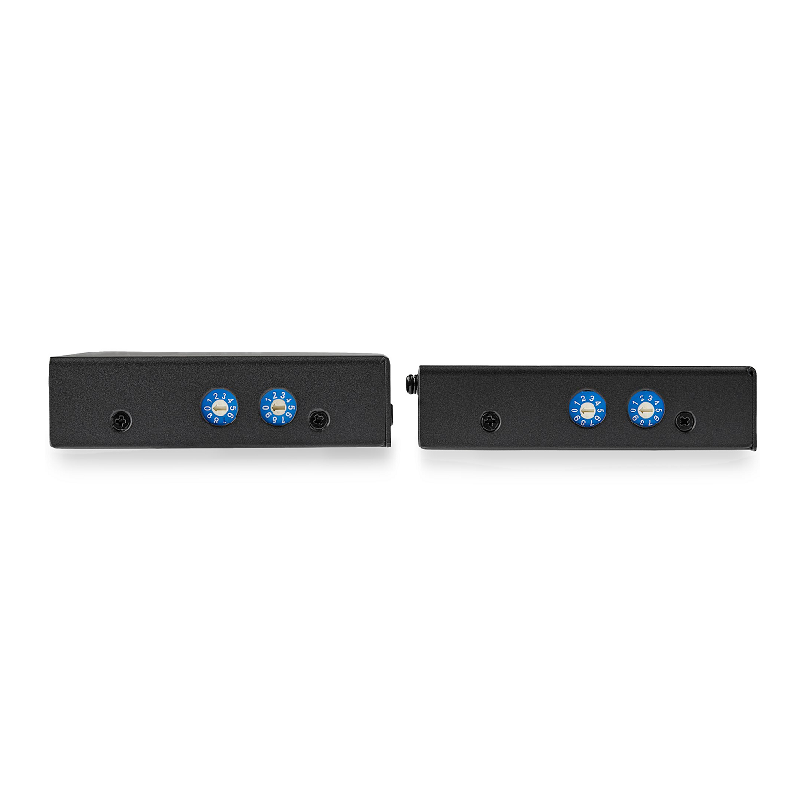

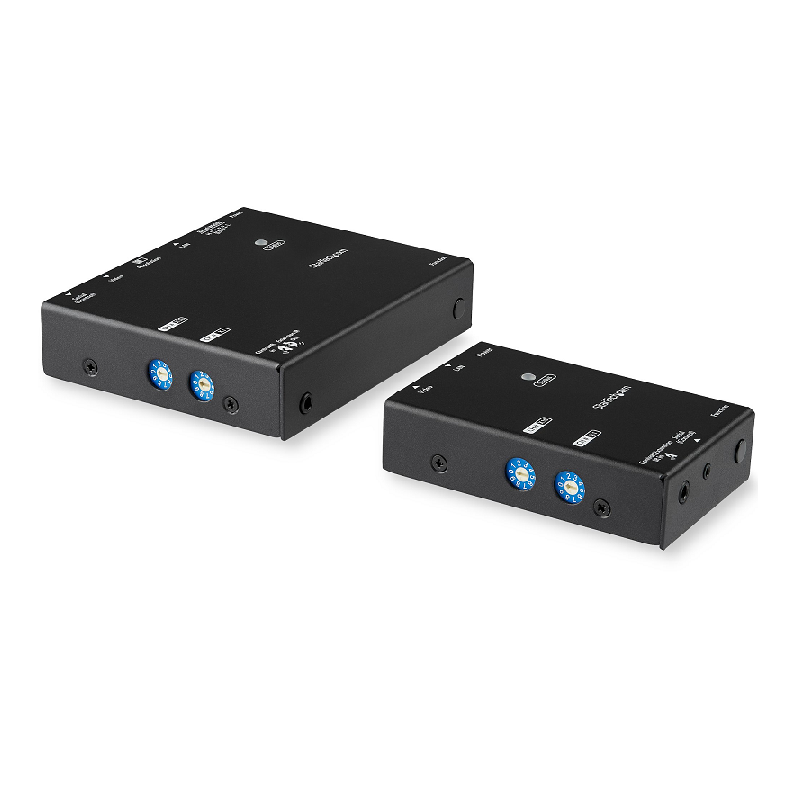

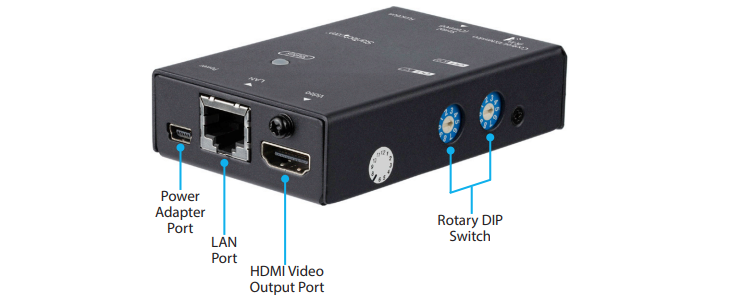

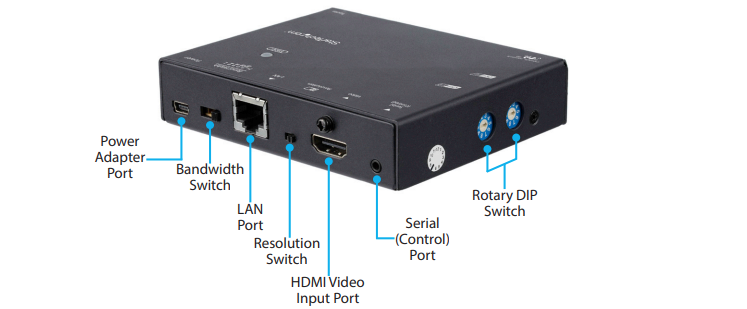

1. Rotary DIP switches located on the Tx and Rx

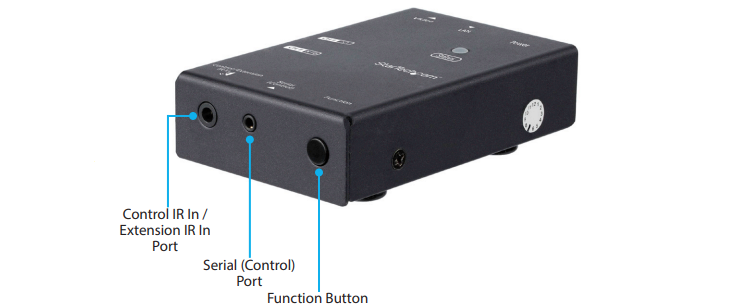

2. Your computer connected to the transmitter or receiver via a serial cable
3. Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)

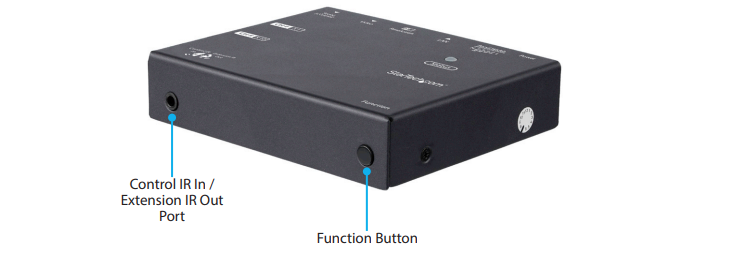

4. Infrared (IR) remote control using the included receiver
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
| Features | |
| Material | Aluminium |
| Audio output channels | 2.0 channels |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 100 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 15 m |
| Supported video modes | 1080p |
| LED indicators | Status |
| Product colour | Black |
| Rubber feet | Yes |
| Technical details | |
| Material | Aluminium |
| Audio output channels | 2.0 channels |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 100 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 15 m |
| Supported video modes | 1080p |
| Product colour | |
| Connectivity technology | Wired |
| Sustainability certificates | |

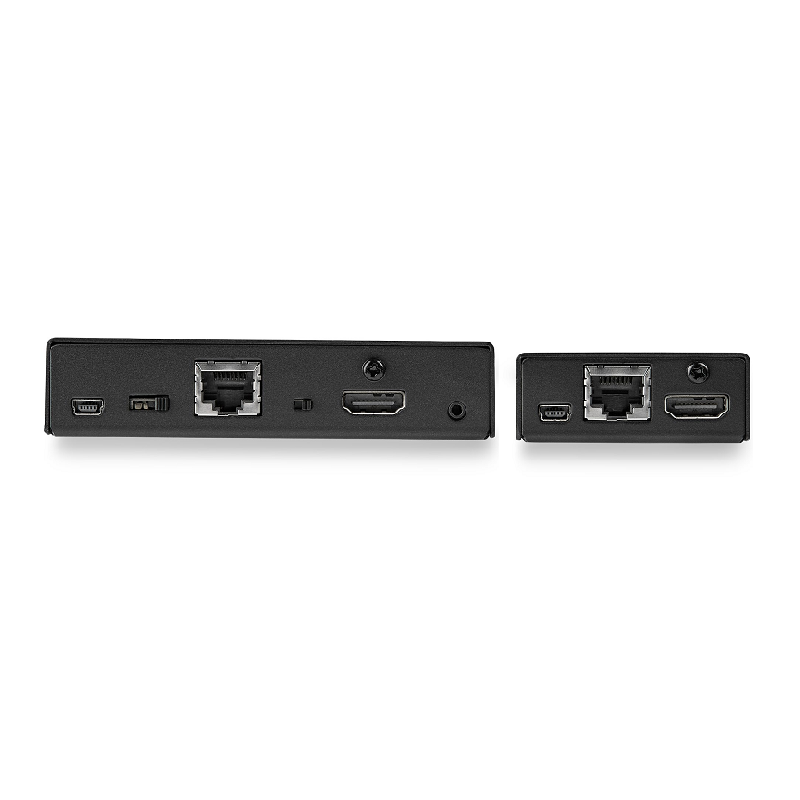

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB ports quantity | 2 |
| USB connector type | Mini-USB B |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio output | 3.5 mm |
| Audio input | 3.5 mm |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.3 A |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| Operating voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width | 92 mm |
| Package height | 24 mm |
| Package depth | 108 mm |
| Weight | 3.2 kg |

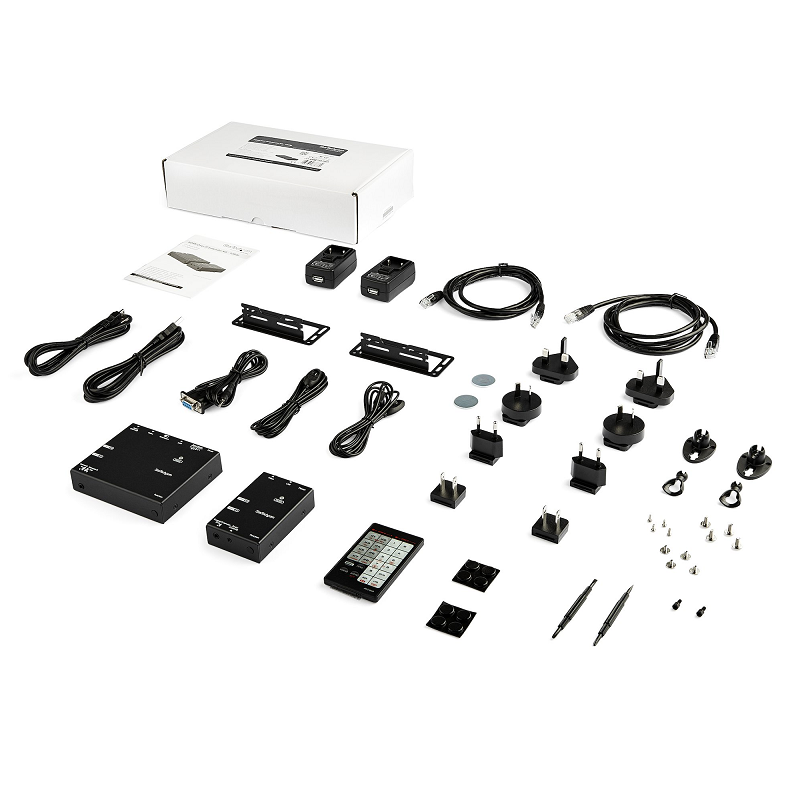

| Manual | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
| IR blaster included | Yes |
| Handheld remote control | Yes |
| Mounting brackets included | Yes |
| Cables included | LAN (RJ-45), Serial, USB |
| Included power plug types | ANZ, EU, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
