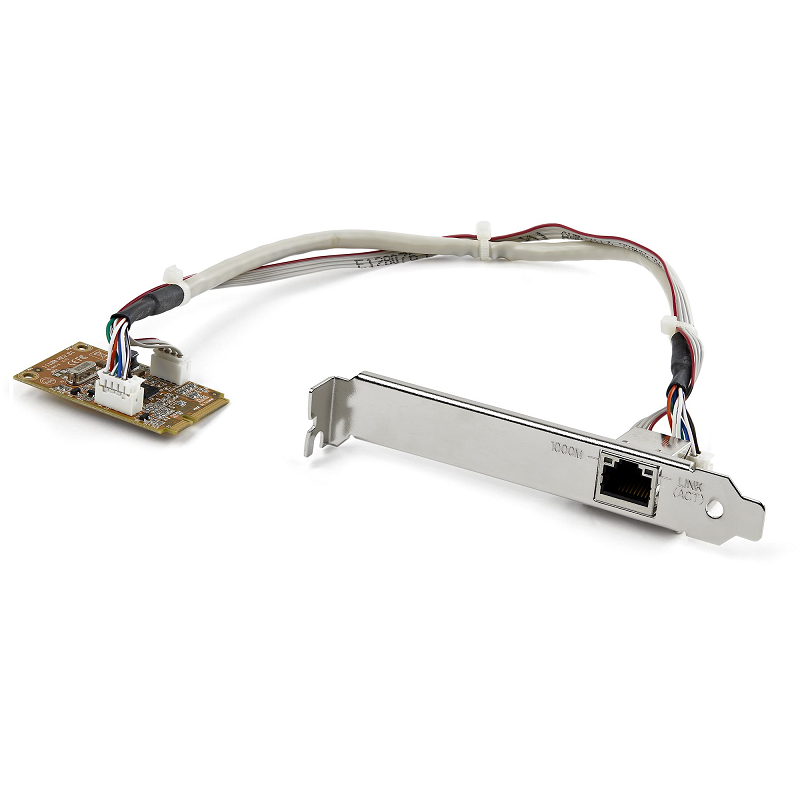

Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

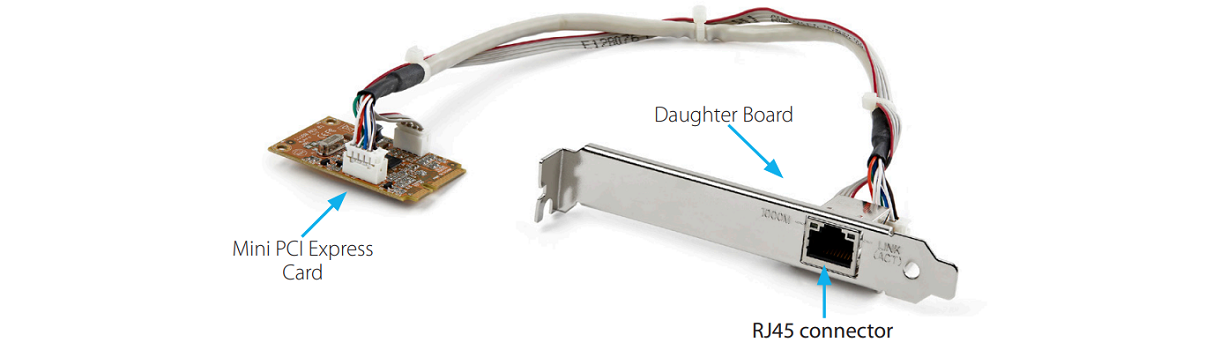

Add a Gigabit RJ45 port through a Mini PCI Express slot
The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

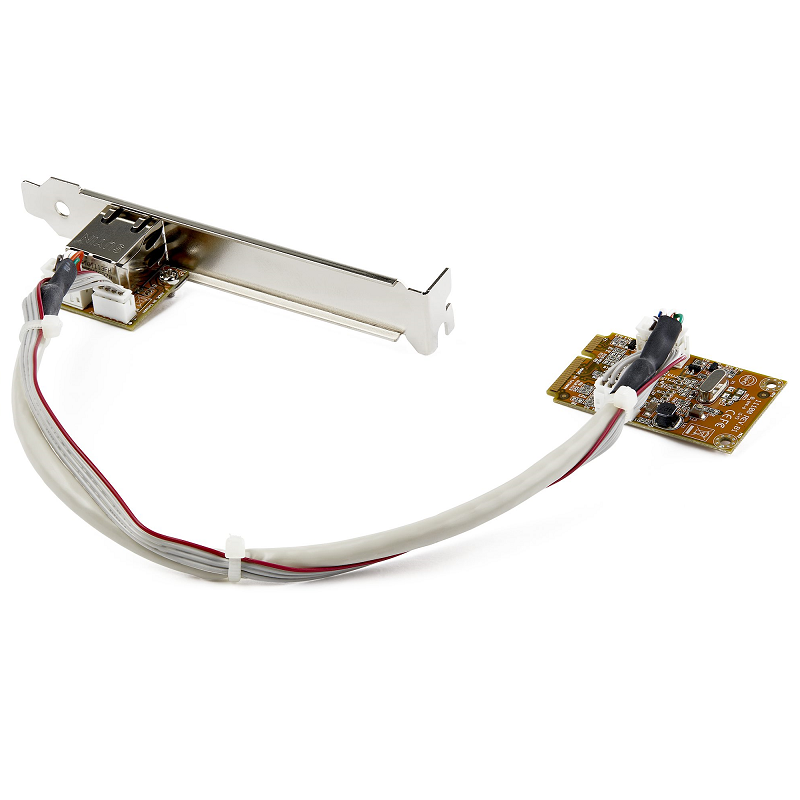

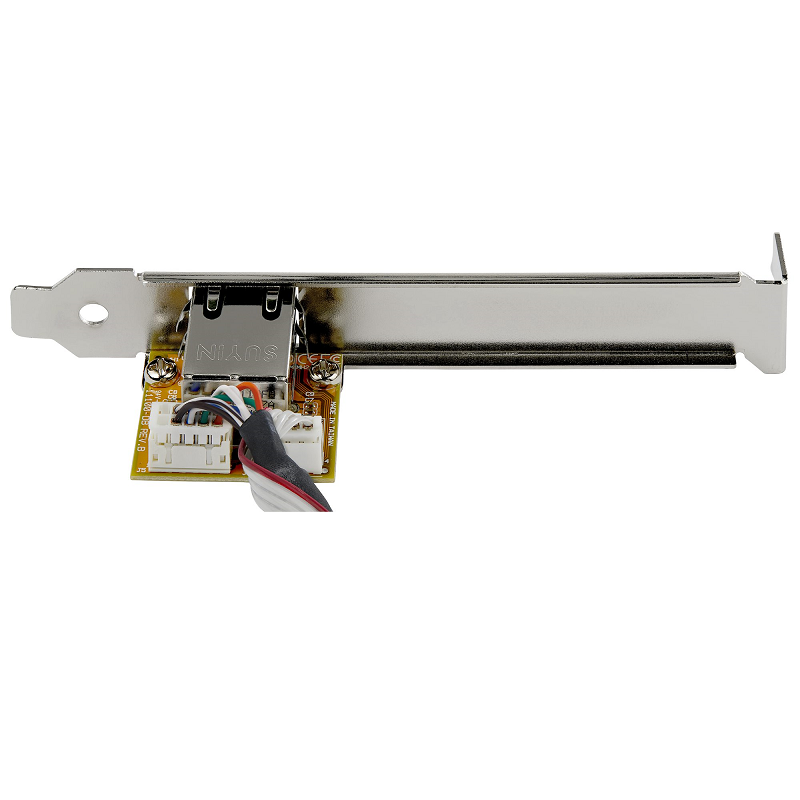

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Interface | Ethernet |
Host interface | Mini PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Network | |

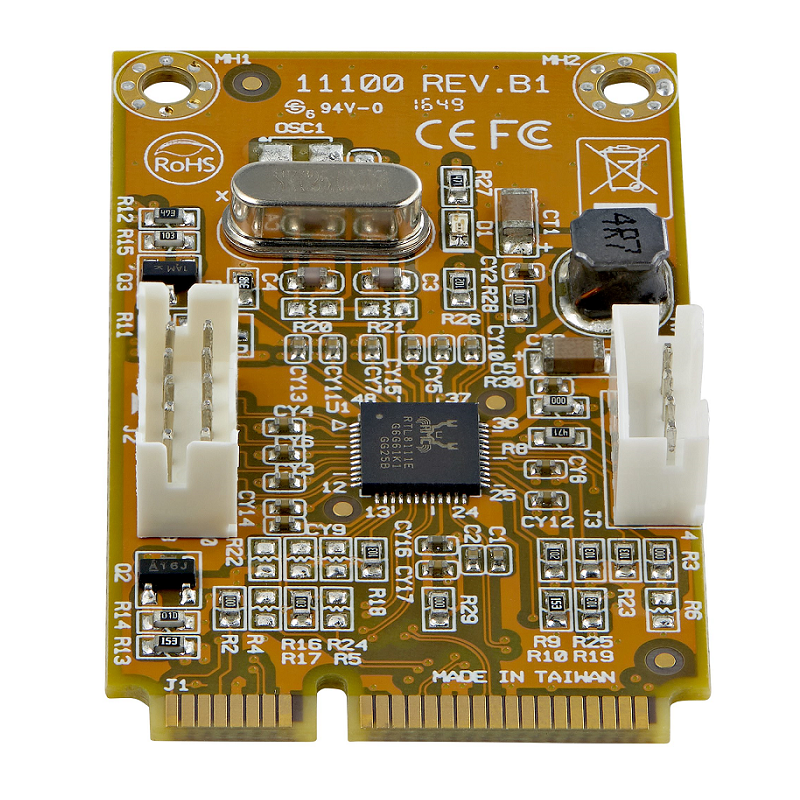

Chipset | Realtek - RTL8111E |
VLAN tagging | Yes |
Jumbo frames | 9000 |
Ethernet LAN | Yes |
Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Jumbo frames support | Yes |
Full duplex | Yes |
Flow control support | Yes |
Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Mean time between failures (MTBF) | 482765 h |
Sustainability certificates | RoHS |
Design | |
Chipset | Realtek - RTL8111E |
Certification | CE, FCC |
Internal | Yes |
Mean time between failures (MTBF) | 482765 h |
LED indicators | Activity, Link |
Operating conditions | |
Operating temperature (T-T) | 0 - 55 °C |
Storage temperature (T-T) | -20 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |

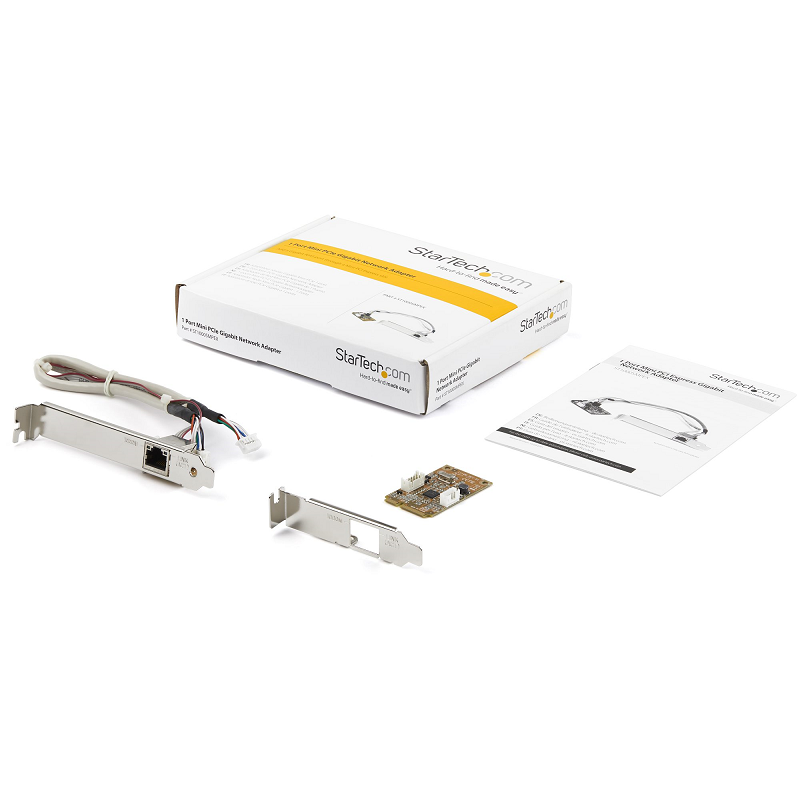

Packaging content | |
Manual | Yes |
Drivers included | Yes |
Low-profile bracket | Yes |
Quantity | 1 |
Weight & dimensions | |
Width | 30 mm |
Depth | 51 mm |
Height | 8 mm |
Weight | 6 g |
Packaging data | |
Package width | 144 cm |
Package depth | 175 cm |
Package height | 32 cm |
Package weight | 150 g |
Drivers included | Yes |
Low-profile bracket | Yes |
Manual | Yes |
Quantity | 1 |
Other features | |
Jumbo frames | 9000 |
Chipset | Realtek - RTL811E |
Manual | Yes |
Flow control support | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
