StarTech SDOCK2U33RE Standalone HDD Cloner with SATA 6Gbps for fast-speed duplication

eSATA / USB 3.0 Hard Drive Duplicator Dock – Standalone HDD Cloner with SATA 6Gbps for fast-speed duplication

Clone a 2.5in/3.5in SATA drive without a host computer connection, or dock the drives over USB 3.0 or eSATA for easy access

The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.

Versatile Features

The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB.

Fast Performance

With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details.

Hassle-free Operation

With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation. The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll know exactly when it's time to start your next operation.

For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

SATA to 2.5in or 3.5in IDE Drive Adapter - SAT2IDEADP

2.5in SATA to Mini SATA SSD Adapter - SAT2MSAT25

M.2 SSD to 2.5in SATA Adapter - SAT32M225

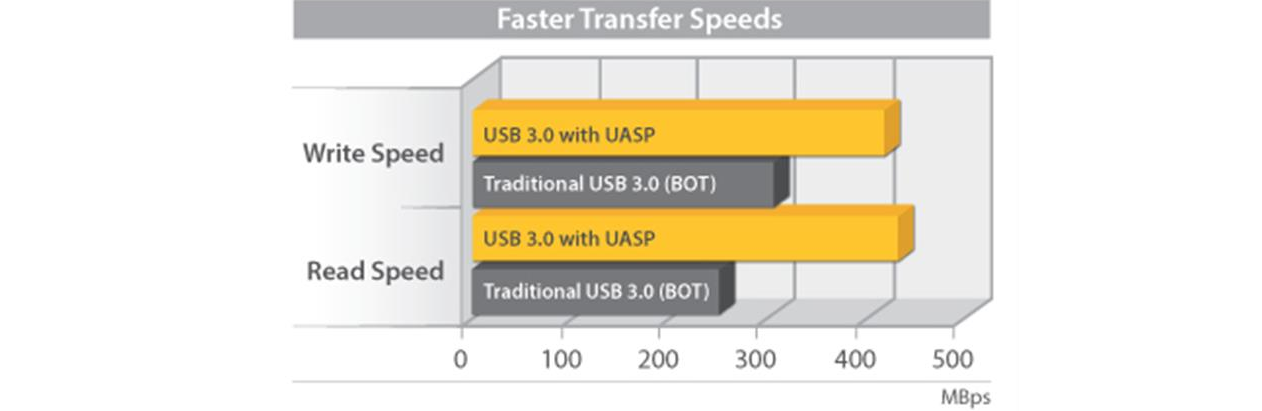

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

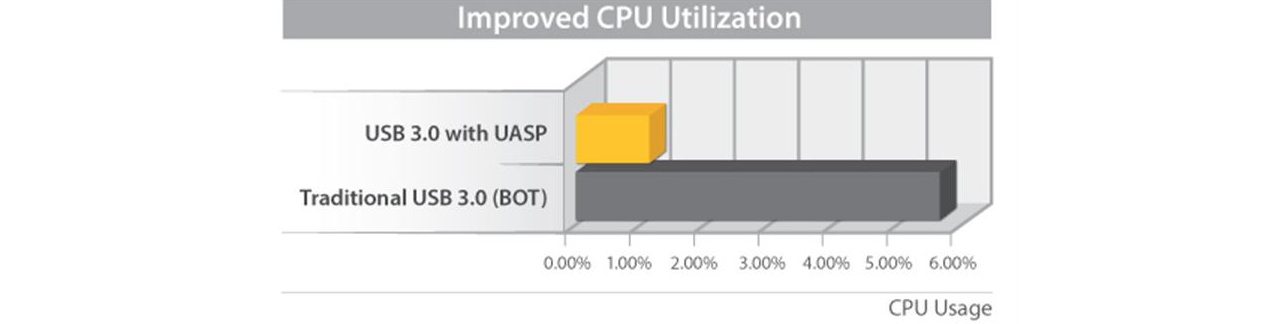

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

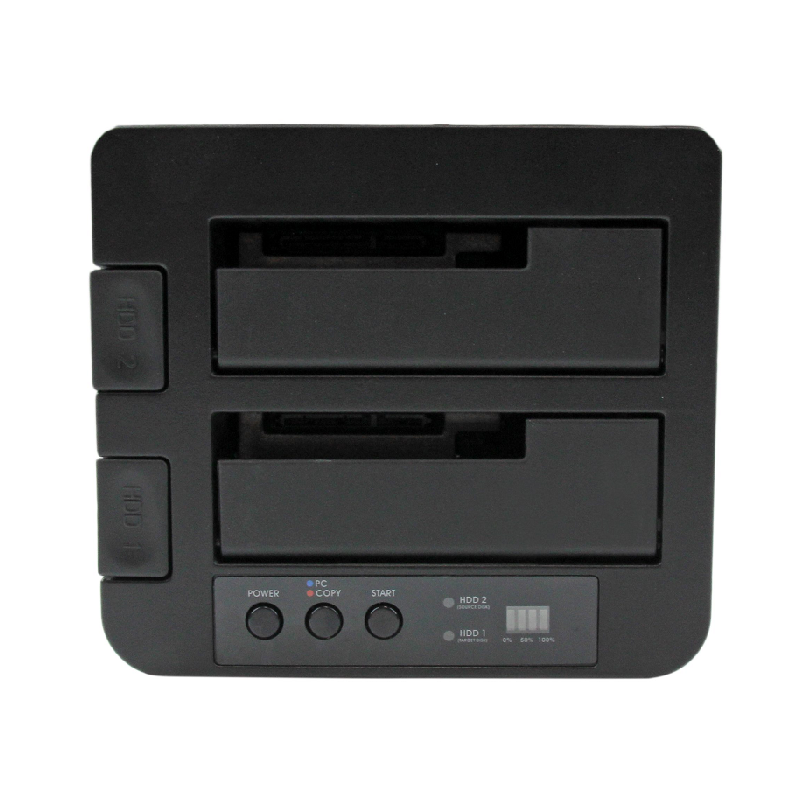

Front View:

1. Power button and LED

2. PC/Copy Mode button and LED

3. Start Duplication button

4. HDD1/HDD2 Activity LED indicators

5. Duplication LED Progress bar

6. Hard drive #1 slot (Destination for Duplication)

7. Hard drive #2 slot (Source for Duplication)

8. Hard drive #1 eject button

9. Hard drive #2 eject button

Rear View:

1. eSATA port

2. USB 3.0 port

3. Power adapter port

Applications:

• Disc sector imaging/cloning to create an exact replica of a source drive onto a different drive
• Create identical backups for system builds that require the same drive image
• Quickly access or swap bare hard drives for easy data backup/recovery

Features:

• Standalone sector-by-sector hard drive duplication with speeds up to 22GB per minute
• Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD)
• eSATA and USB 3.0 host interface connections
• 1:1 hard drive duplicator and docking station
• Support SATA III (6 Gbps) and UASP for optimal performance
• Supports dual drive capacity up to 4 TB per slot (8 TB in total)
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Dual bay, top slot-loading design with drive doors

The StarTech.com Advantage:

• Create exact duplicates of your hard drives without having to connect to a computer
• Maximize performance, with file transfer speeds up to 6Gbps using eSATA or 5 Gbps using USB 3.0 with UASP
• Versatile connectivity options, through either USB or eSATA

Full specification and details can be found in the PDF file

A user manual can be found in the PDF file
