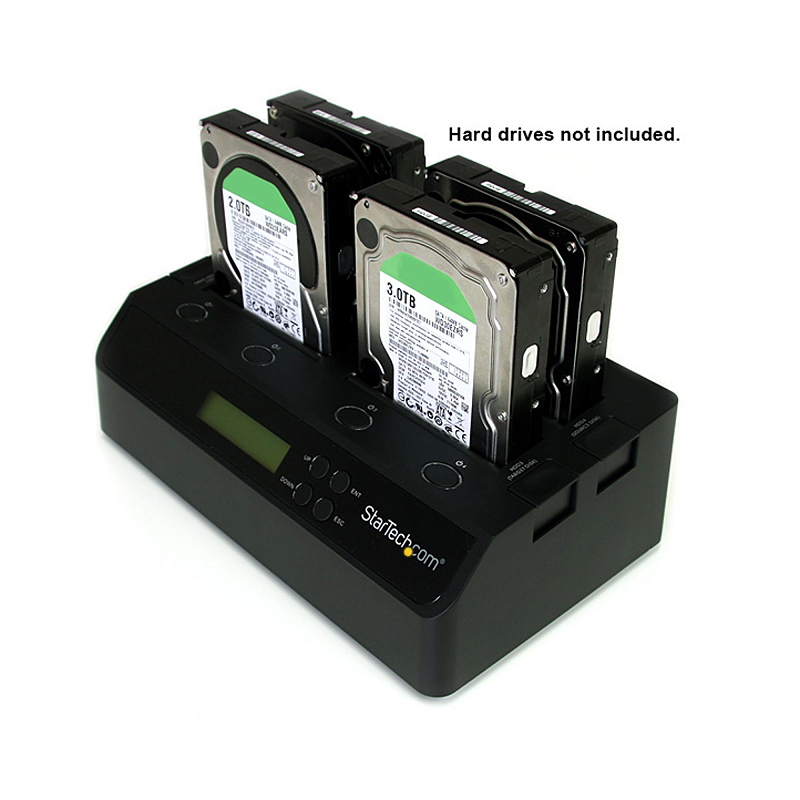

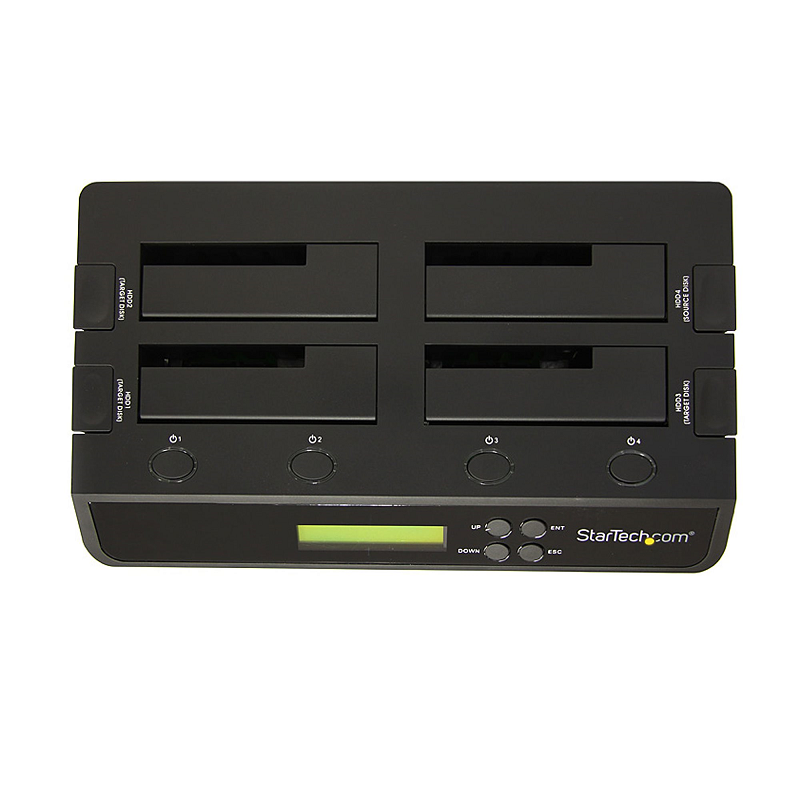

StarTech SATDOCK4U3RE 4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Duplicator Dock

4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Hard Drive Duplicator Dock

Duplicate one SATA Hard Drive onto three Hard Drives simultaneously

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.

Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.

Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP). This drive eraser ensures data is purged (a secure erase) which is required by government agencies and organizations who have strict guidelines on deleting data. Purging is a very secure method of erasing data from your storage device which complies with the NIST 800-88 Rev. 1 media sanitation standard established by the National Institute of Standards and Technology.

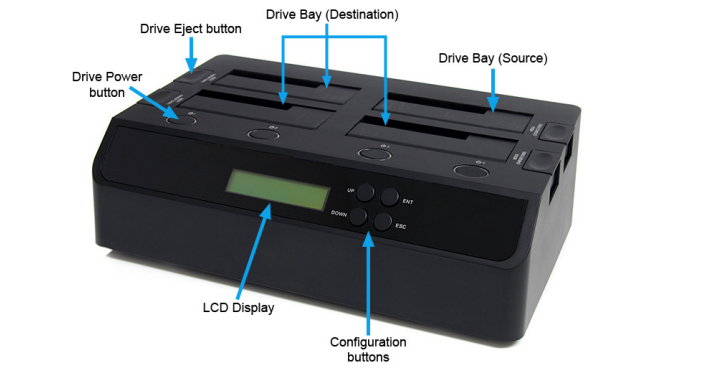

Front View:

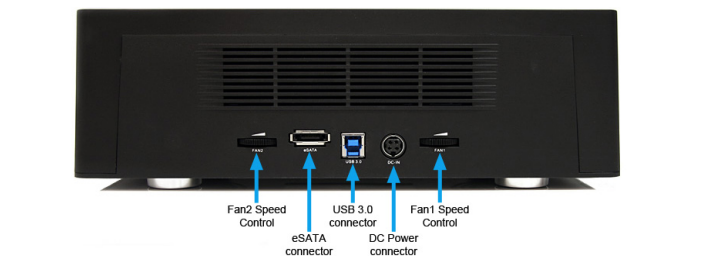

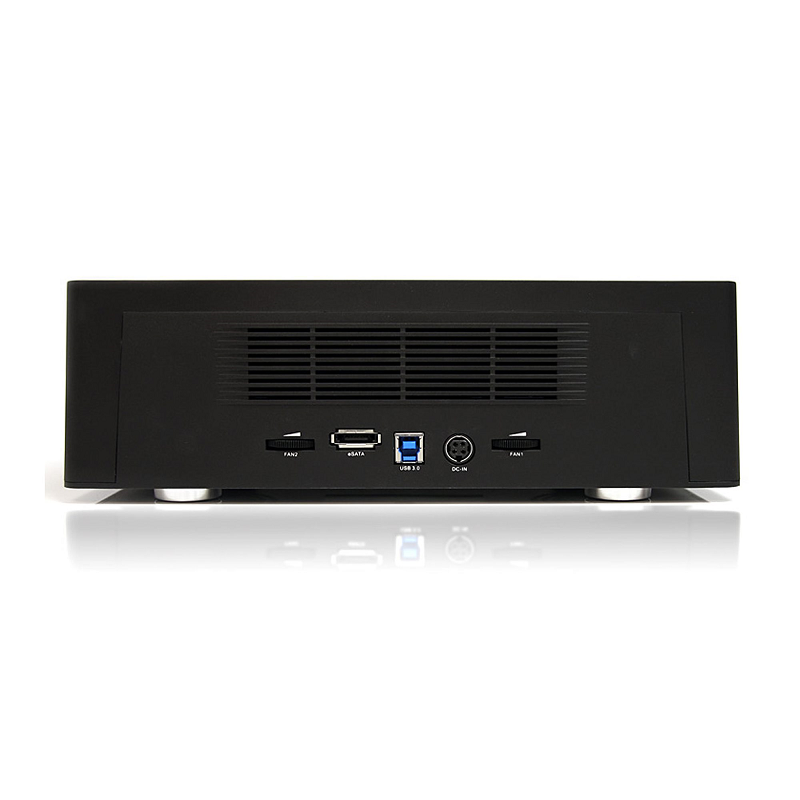

Rear View:

Applications:

• Creating multiple exact replicas of a source drive onto a new drive for large deployment of identical computer systems
• Law enforcement and forensic technicians who need one or more exact copies of the original hard drive for testing or investigation
• SMB, OEM, System Integrators, IT and service technicians requiring quick access to bare external hard drive contents, or the ability to clone data for data / disk recovery.

Features:

• Sector-by-Sector drive duplication, including the HPA
• Integrated LCD display for duplication progress and options menu
• SuperSpeed USB 3.0 compliant host interface with supported data transfer rates of up to 5 Gbps
• High speed eSATA host interface with supported data transfer rates up to 3 Gbps
• Built-in quick drive erase and NIST 800-88 Rev. 1 Purge compliant Secure Erase function
• Dual 60mm cooling fans mounted below the drives with variable speed controls (including OFF)
• Supports 2.5in or 3.5in form factor hard drives (HDD) or solid state drives (SSD)
• Compatible with SATA (1.5/3.0/6.0 Gbps) drives
• Patented hard drive eject push-buttons for each drive
• Independent power buttons for each hard drive
• Extra, easy-access spacing between each drive
• Four large, stable, non-slip table-top feet

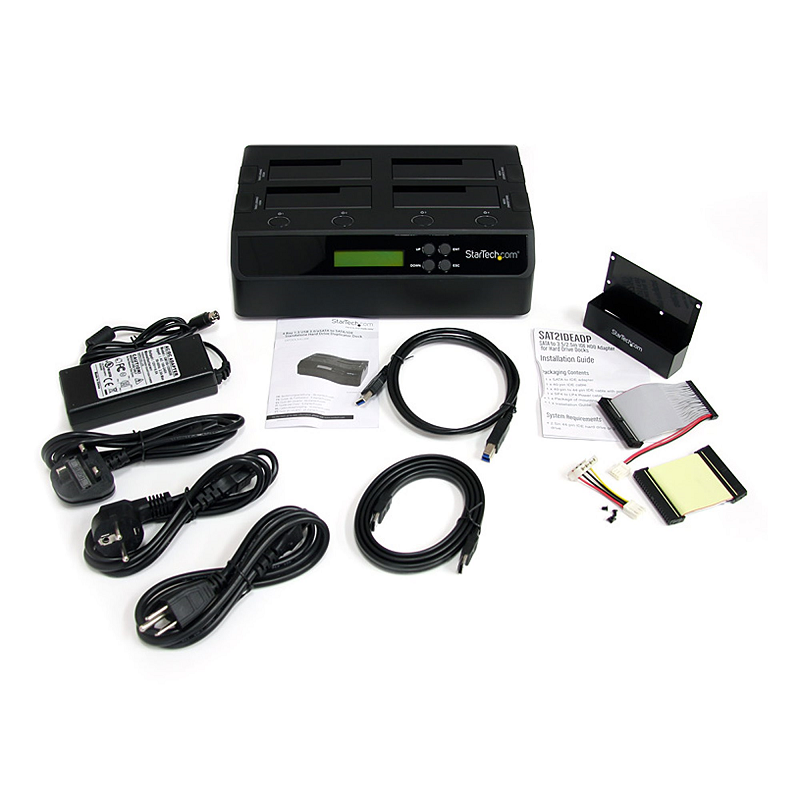

• Includes a SATA to IDE drive adapter

The StarTech.com Advantage:

• Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer
• Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
• Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type

Full specification and details can be found in the PDF file

A user manual can be found in the PDF file
