| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FESATDUP11 |
| Manufacturer No: | SATDUP11 |
| Delivery: | In Stock: Next Day |
 |

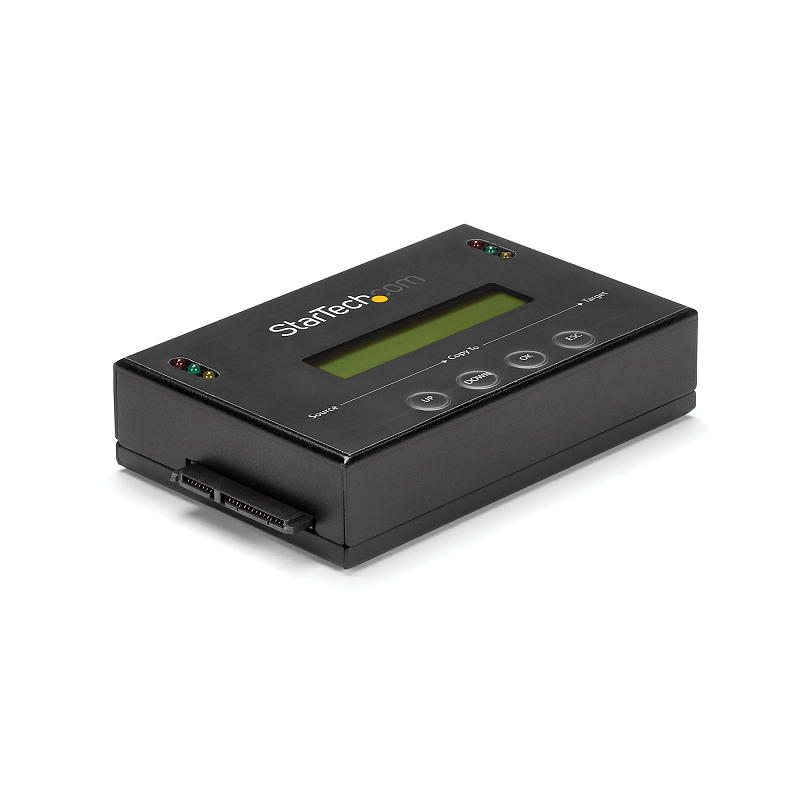

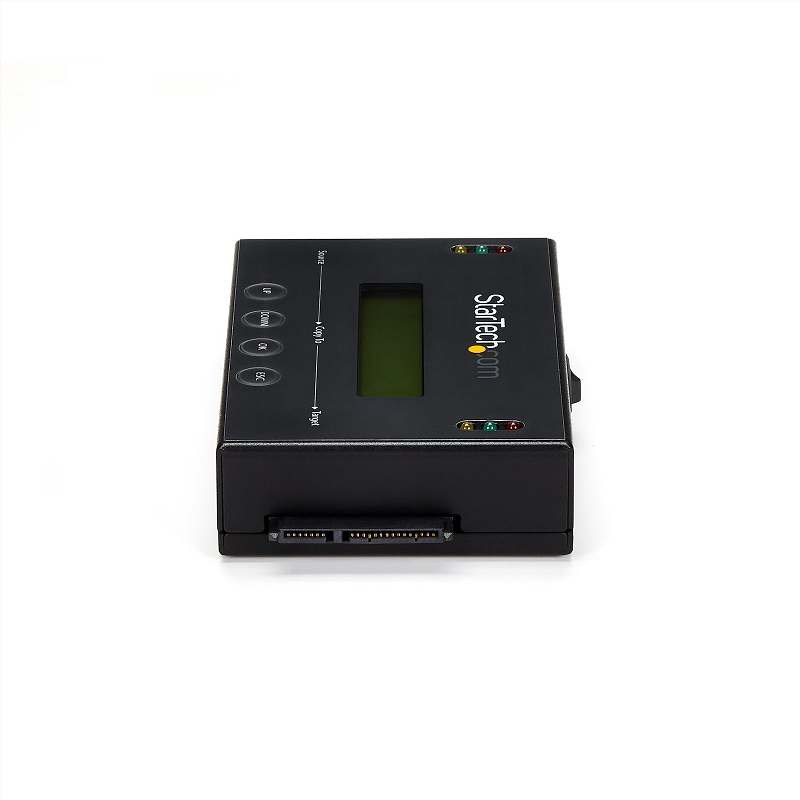

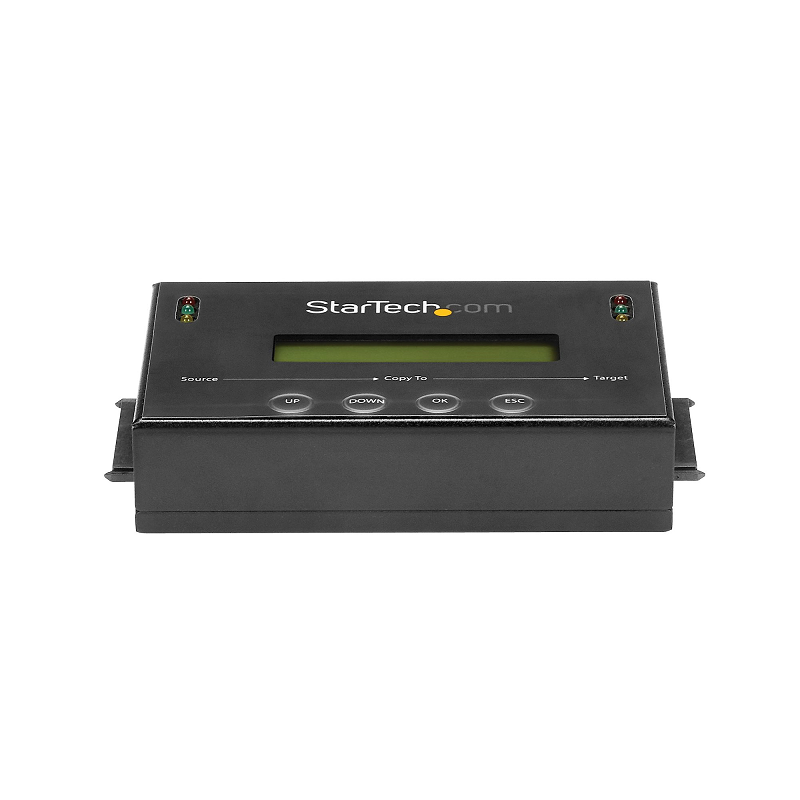

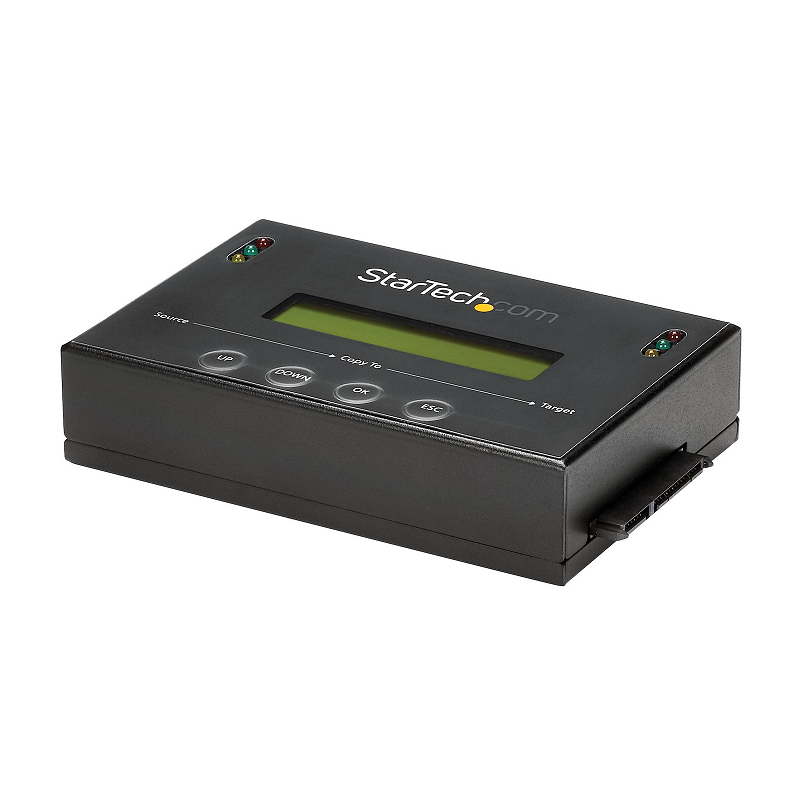

1:1 Drive Duplicator and Eraser for 2.5in / 3.5in SATA Drives
Clone or Erase 2.5in/3.5in SATA hard drives, without a host computer connection

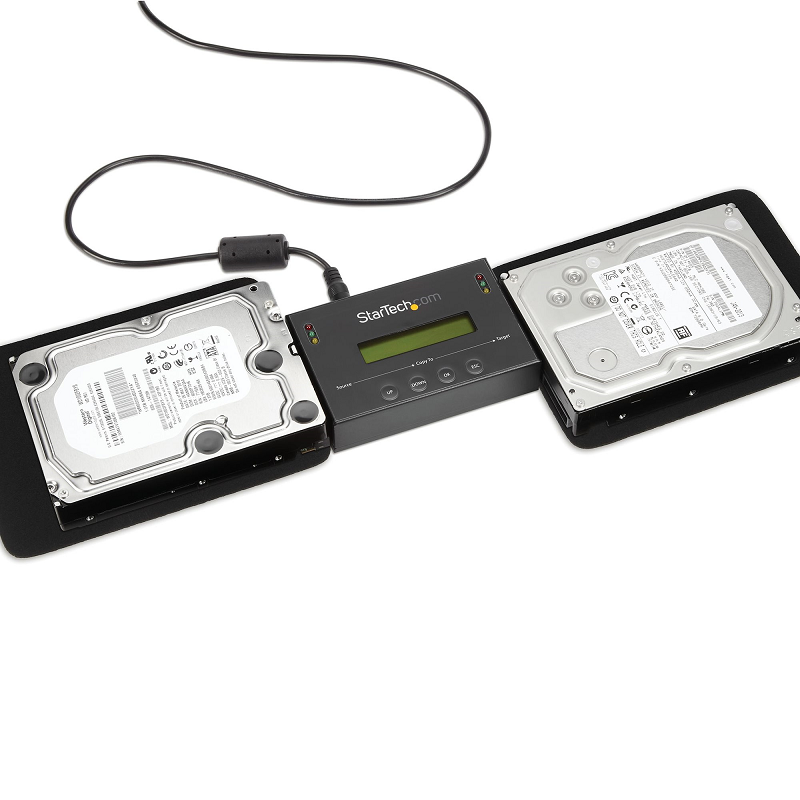

The SATDUP11 standalone hard drive duplicator eraser enables you to copy 1-to-1, or erase up to 2 SATA hard drives simultaneously without a host computer.
Featuring three modes of standalone drive duplication including Data Only, All Partitions, and Sector by Sector, the HDD copier offers high performance duplication, and has been tested for speeds up to 14GB per minute.
Complete with integrated LCD display, and support for 2.5” and 3.5” SATA I/II/III hard drives (HDD) and Solid State Drives (SSD), the SATDUP11 is a user-friendly all-in-one solution for any application requiring hard drive duplication or erasing.
For added compatibility with different drive types in duplication and quick erase applications, the SATDUP11 supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:
2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
The SATDUP11 features high quality aluminum construction, and is backed by a 2-year StarTech.com warranty and free lifetime technical support.

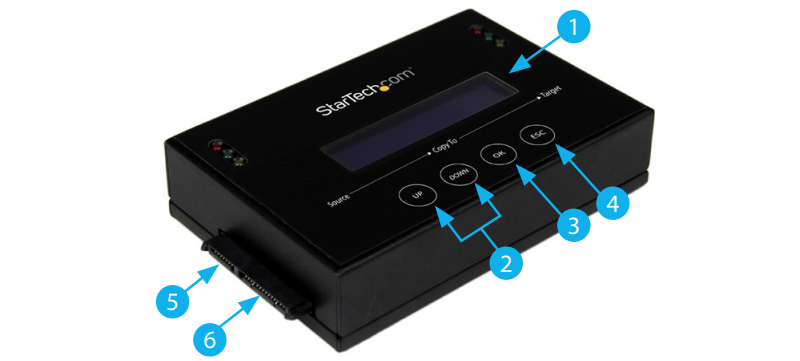

1. Display Screen
2. Navigation buttons
3. OK button
4. Esc button
5. SATA HDD source port
6. SATA HDD Target port

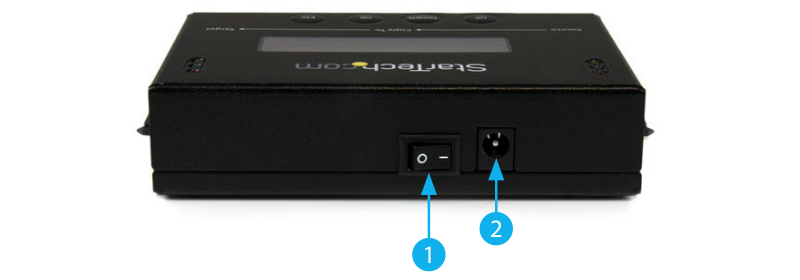

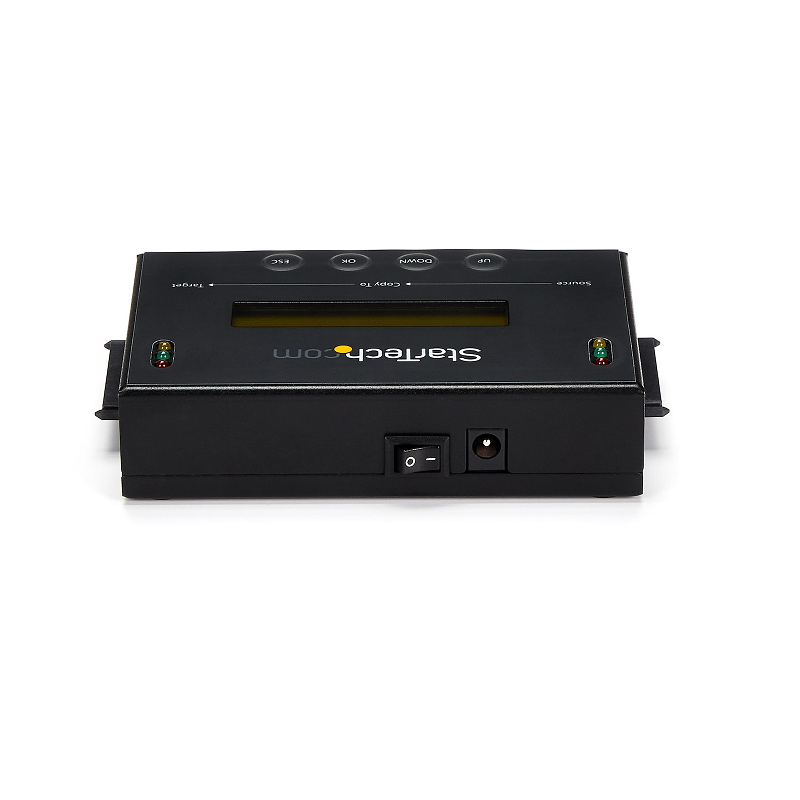

1. Power Switch
2. Power Adapter Port
| Technical details | |
| Product type | HDD duplicator |
| Housing material | Aluminium |
| Number of simultaneous copies | 1 copies |
| Interface | SATA |
| Duplicator operating modes | Compare, Copy, Erase |
| Transfer rate | 14 GB/min |
| Product colour | Black |
| Sustainability certificates | RoHS |
| Hard drive | |
| Supported HDD sizes | 2.5, 3.5" |
| Supported HDD interfaces | Serial ATA |
| HDD capacity | 4000 GB |
| Power | |
| Output voltage | 14 V |
| Output current | 5 A |
| Input current | 1.4 A |
| AC input voltage | 100 - 240 V |
| Included power plug types | EU, NA, UK |
| Power consumption (typical) | 60 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 358 g |
| Packaging data | |
| Package width | 187 mm |
| Package length | 26.5 cm |
| Package height | 123 mm |
| Package weight | 1.6 kg |

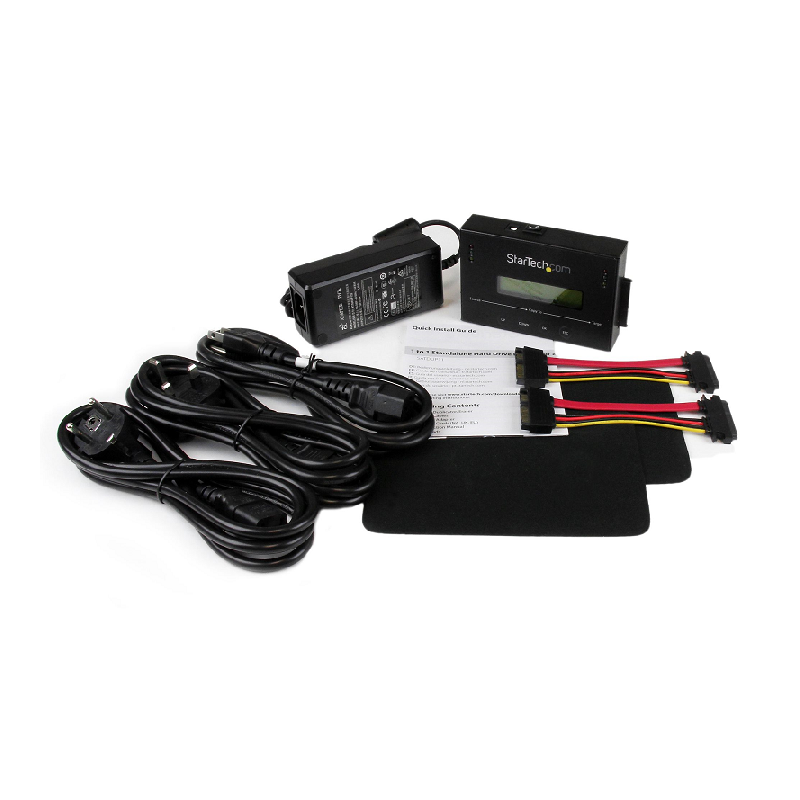

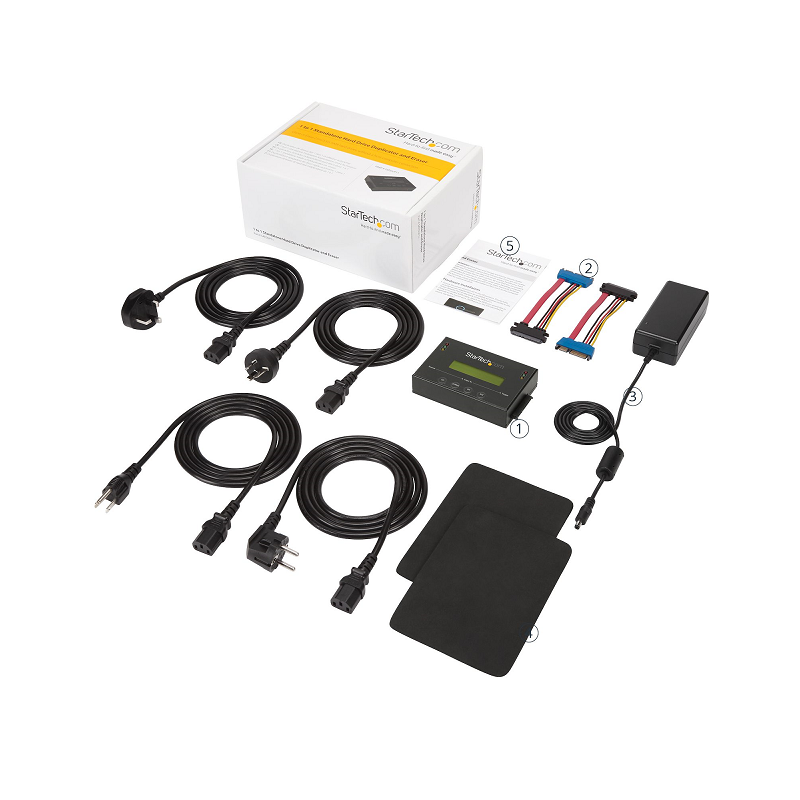

| Manual | Yes |
| AC adapter included | Yes |
| Cables included | SATA |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user install guide can be found in the PDF file
