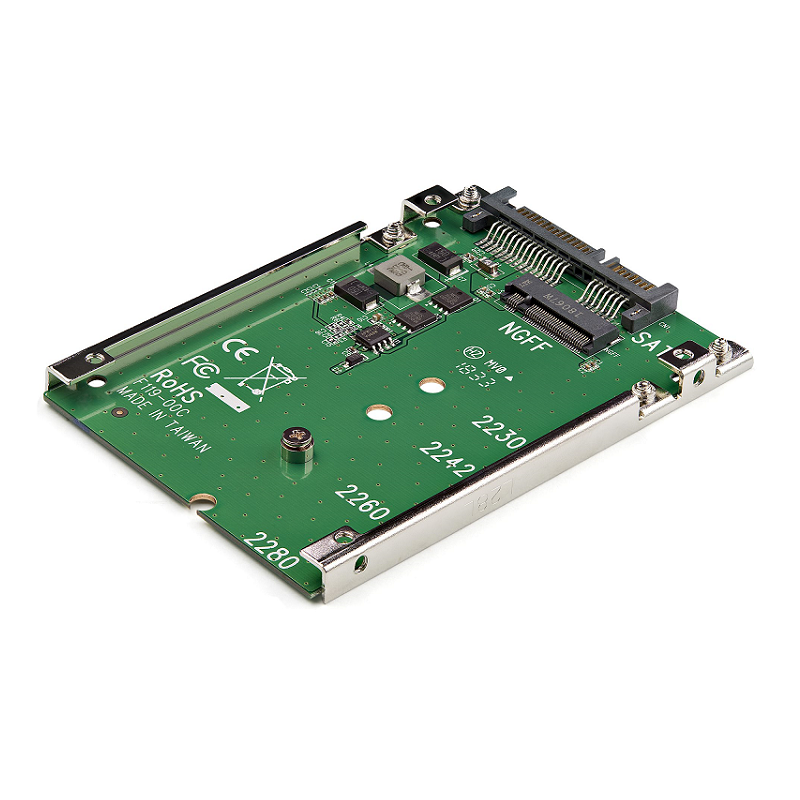

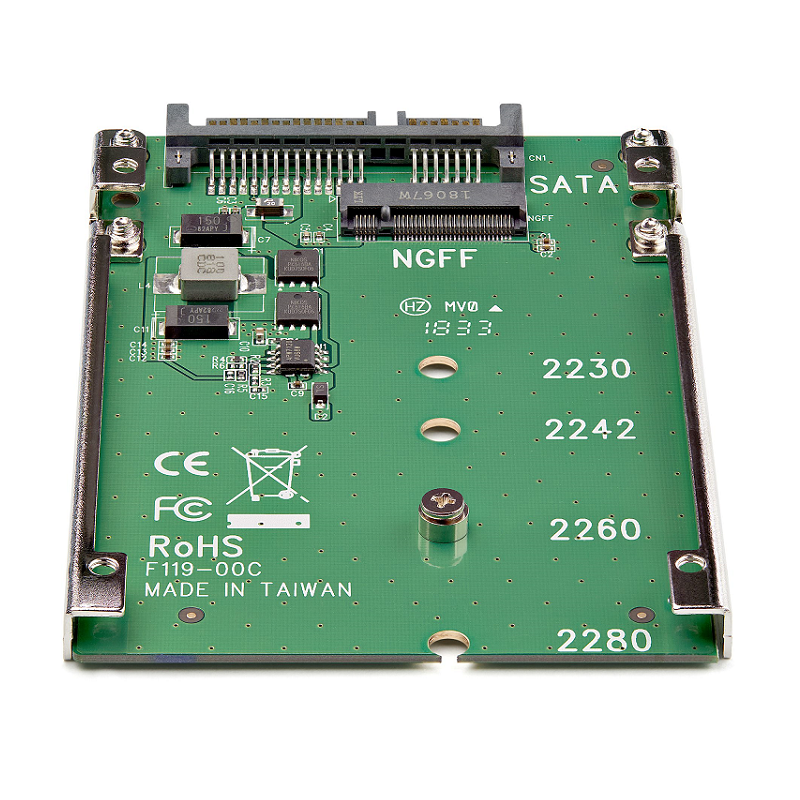

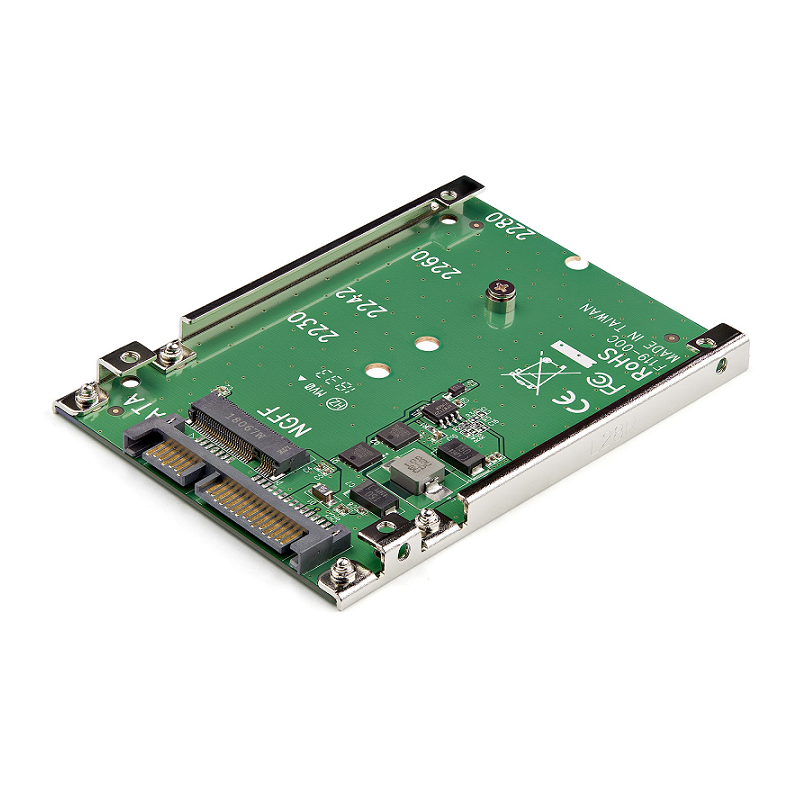

M.2 SATA SSD to 2.5in SATA Adapter - M.2 NGFF to SATA Converter - 7mm - Open-Frame Bracket - M2 Hard Drive Adapter
M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open Frame
Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.
Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.

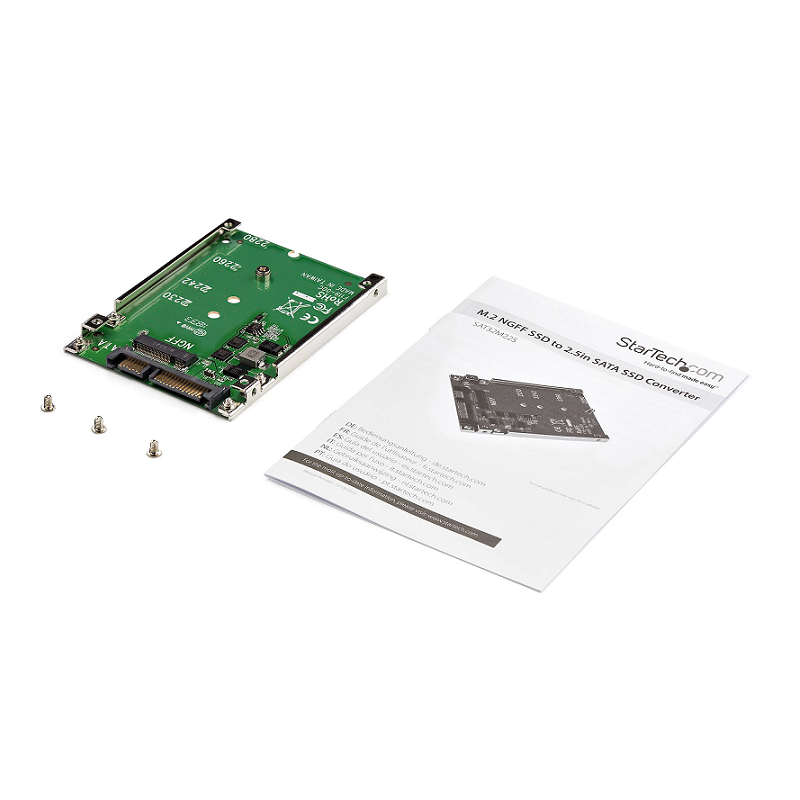

This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.
The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.
SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

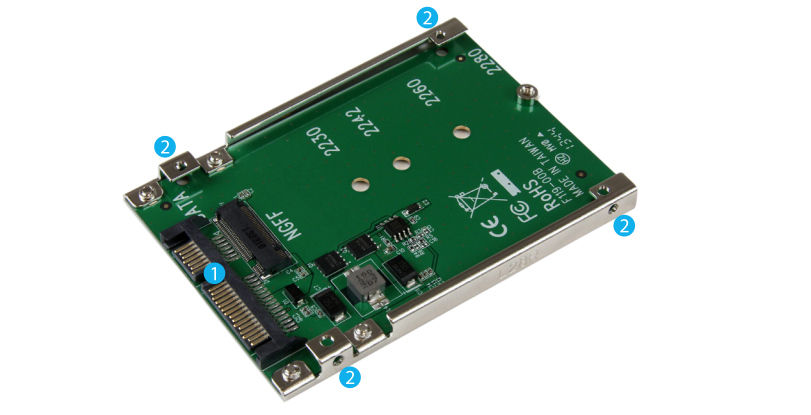

1. SATA DATA & Power Combo (7+15 pin)
2. Side mounting holes

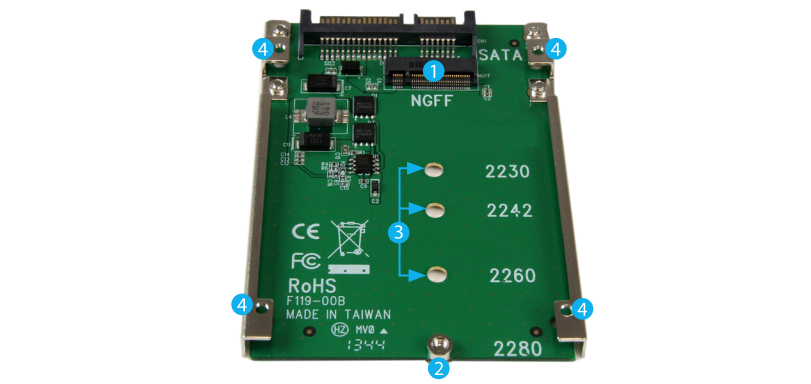

1. M.2 (NGFF) SSD Connector
2. Drive installation bracket
3. Drive length adjustment holes
4. Top mounting holes
| Ports & interfaces | |
| Internal | Yes |
| Output interface | M.2 |
| SATA revision | 3.0 |
| Host interface | SATA |
| Technical details | |
| Data transfer rate (max) | 6 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Hot-swap | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Green |
| Design | |
| Hot-swap | No |
| Internal | Yes |
| Product colour | Green |
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 36 g |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 145 mm |
| Package height | 32 mm |
| Package weight | 102 g |
| Manual | Yes |
| Screws included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
