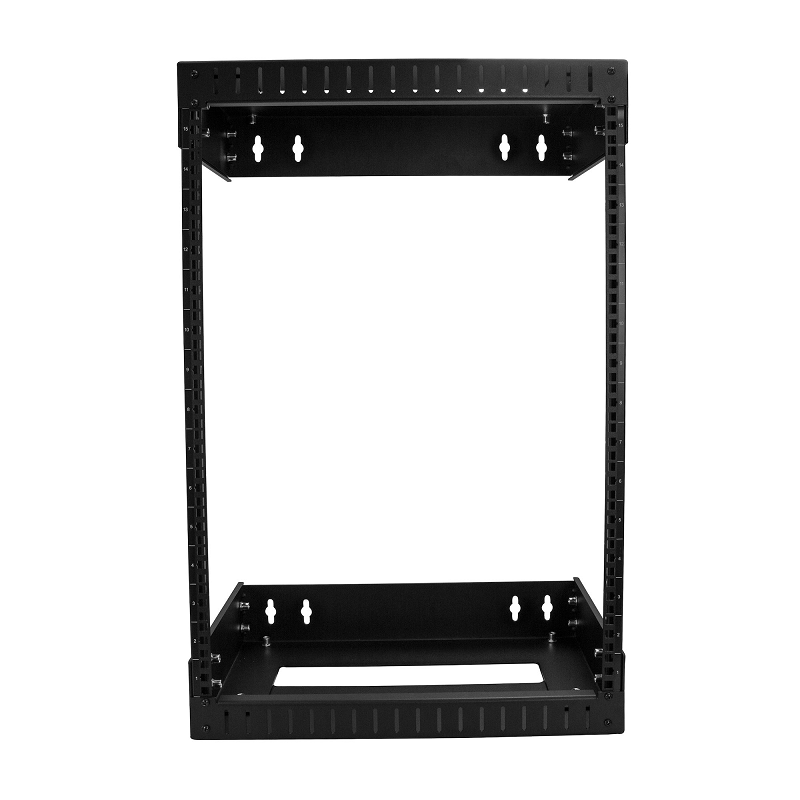

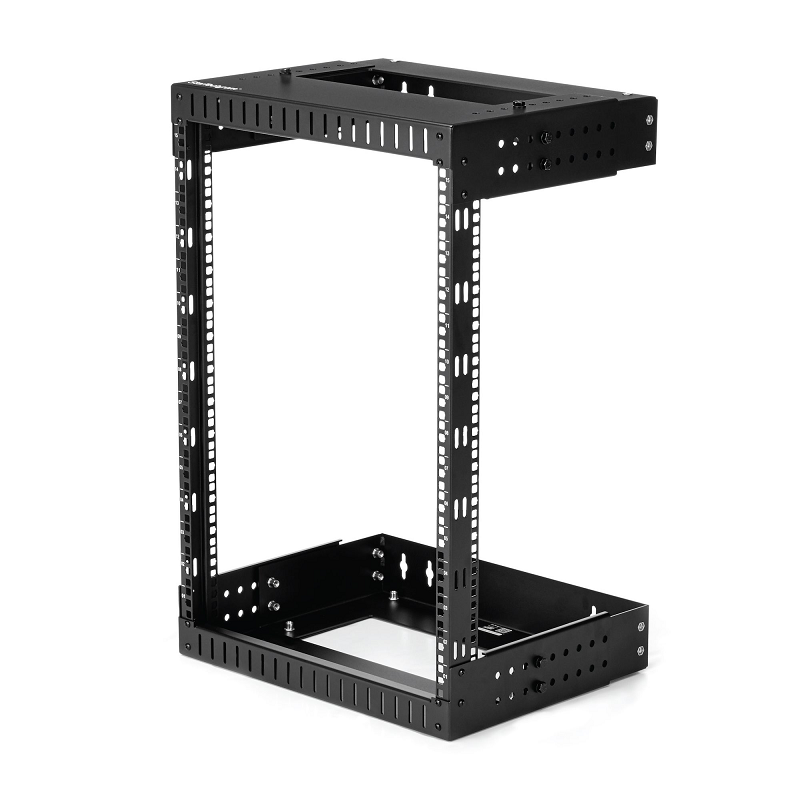

15U 19" Wall Mount Network Rack - Adjustable Depth 12-20" 2 Post Open Frame Server Room Rack for AV/Data/ IT Communication/Computer Equipment/Switch w/Cage Nuts & Screws
Network Rack | 19” Wide | 12” to 20” Depth | Weight Cap. 198 lbs | Open Frame
This open frame wallmount server rack provides 15U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb (90 kg).
The open frame rack adjusts from 12 to 20 inches (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.

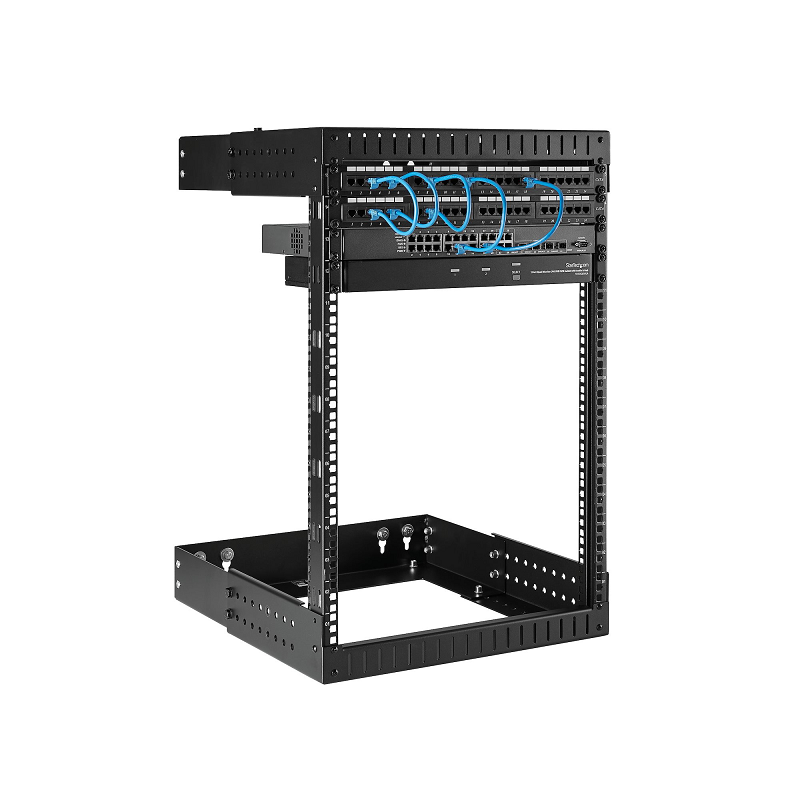

When space is limited you can wall-mount the open-frame rack in a server room, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
The rack's open frame design promotes passive cooling; ensures easy access to your rack-mounted equipment and makes it simple to configure mounted devices, which saves you time.
With an adjustable depth as low as 12 inches (30.4 cm), this network rack is perfect for smaller spaces. It's easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards.
1. Vertical rails
2. Assembly screws
3. Bolts
4. Mounting holes
5. Rear horizontal brackets
6. Front horizontal brackets
Features | |
Frame type | Open |
Product design | 2-post |
Rack capacity | 15U |
Adjustable mounting rails | No |
Cable management | No |
Mounting hole shape | Square |
Type | Wall mounted rack |
Maximum weight capacity | 90 kg |
Material | Steel |
Product colour | Black |
Certification | CE, REACH |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Rack capacity | 15U |
Sustainability certificates | RoHS |

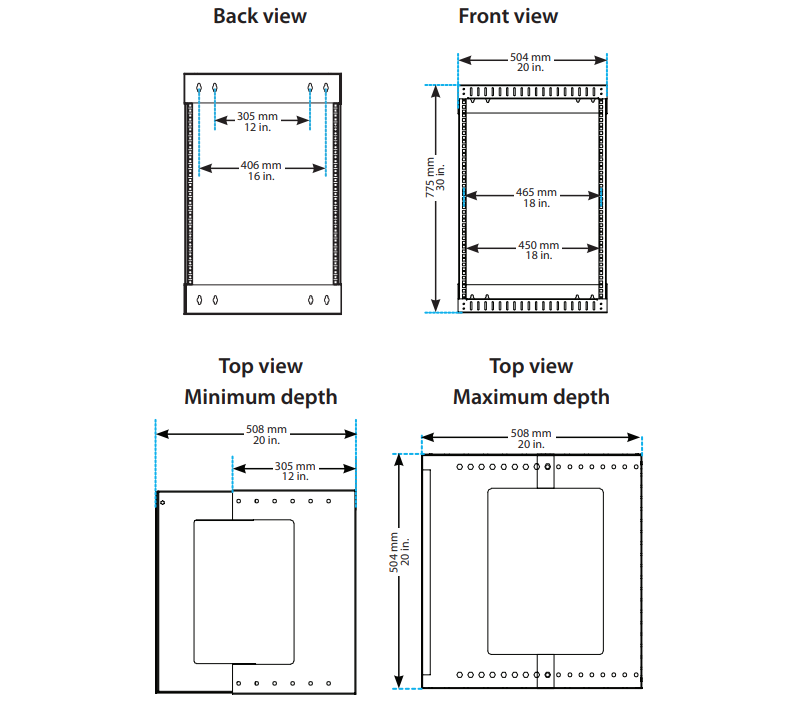

Weight & dimensions | |
Width | 504 mm |
Height | 773 mm |
Depth | 510 mm |
Weight | 15.2 kg |
Mounting depth (max) | 50.6 cm |
Maximum weight capacity | 90 kg |
Packaging data | |
Package width | 530 mm |
Package height | 130 mm |
Package depth | 800 mm |
Package weight | 17.8 kg |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 60 |
Screws included | Yes |
Number of screws | 76 |
Number of bolts | 24 |
Number of washers included | 84 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
