| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEPEXUSB4DP |
| Manufacturer No: | PEXUSB4DP |
| Delivery: | In Stock: Next Day |
 |

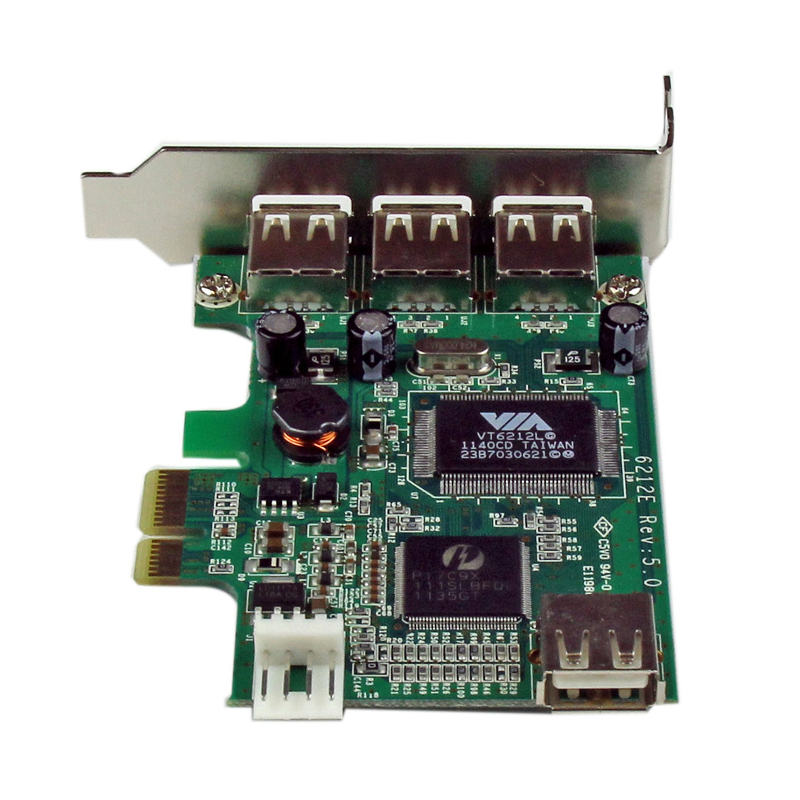

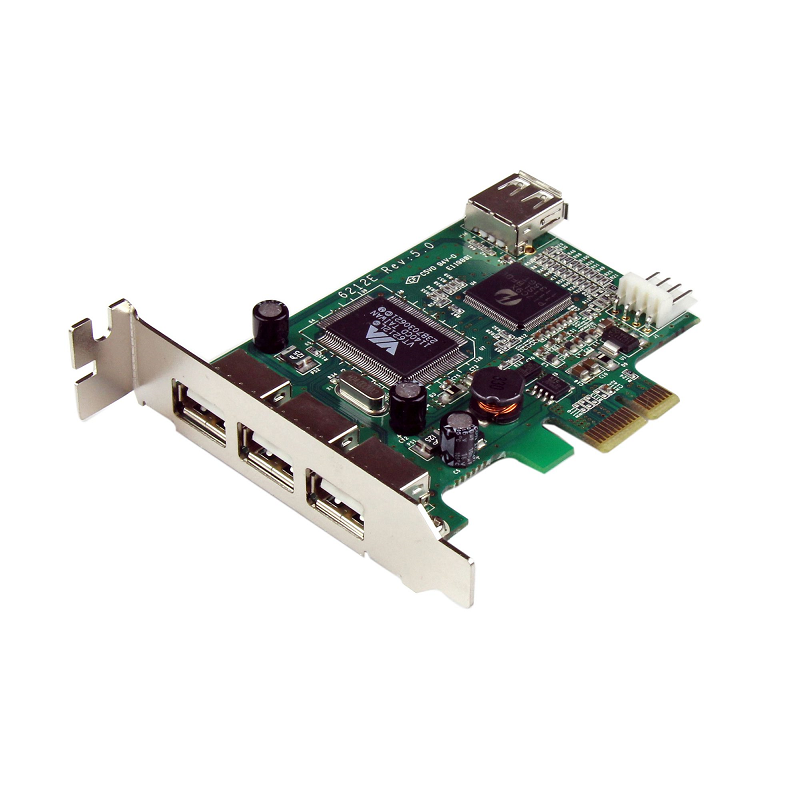

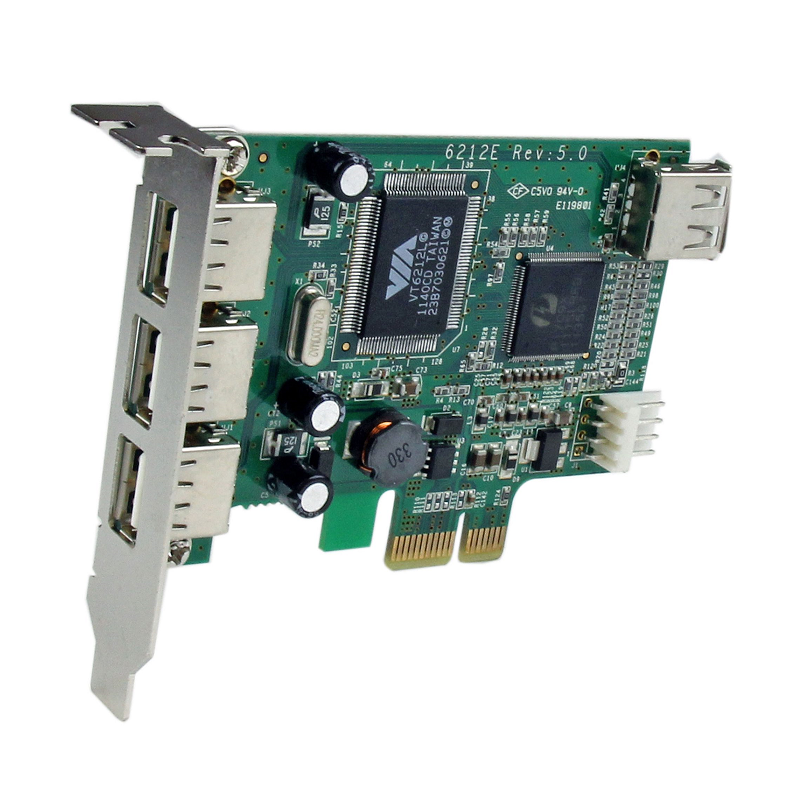

4 Port PCI Express Low Profile High Speed USB Card
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot
The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.
Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.
Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
| Ports & interfaces | |
| Internal | Yes |
| Output interface | USB 2.0 |
| USB 2.0 ports quantity | 3 |
| Interal USB 2.0 ports quantity | 1 |
| Host interface | PCIe |
| Technical details | |
| Chipset | VIA/VLI - VT6212 |
| Data transfer rate (max) | 0.48 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Chipset | VIA/VLI - VT6212 |
| Data transfer rate (max) | 0.48 Gbit/s |
| Product colour | Green |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Certification | CE, FCC, REACH, TAA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 46 g |
| Packaging data | |
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 132 g |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Quantity | 1 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
4 Port PCI Express Low Profile High Speed USB Card
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot
The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.
Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.
Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
| Ports & interfaces | |
| Internal | Yes |
| Output interface | USB 2.0 |
| USB 2.0 ports quantity | 3 |
| Interal USB 2.0 ports quantity | 1 |
| Host interface | PCIe |
| Technical details | |
| Chipset | VIA/VLI - VT6212 |
| Data transfer rate (max) | 0.48 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Chipset | VIA/VLI - VT6212 |
| Data transfer rate (max) | 0.48 Gbit/s |
| Product colour | Green |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Certification | CE, FCC, REACH, TAA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 46 g |
| Packaging data | |
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 132 g |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Quantity | 1 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
