USB Crash Cart Adapter with File Transfer & Video Capture
Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables Included

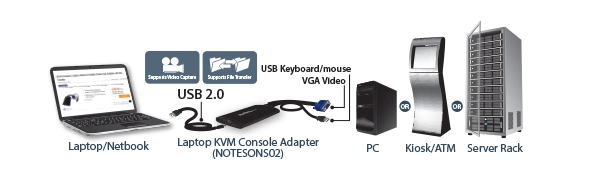

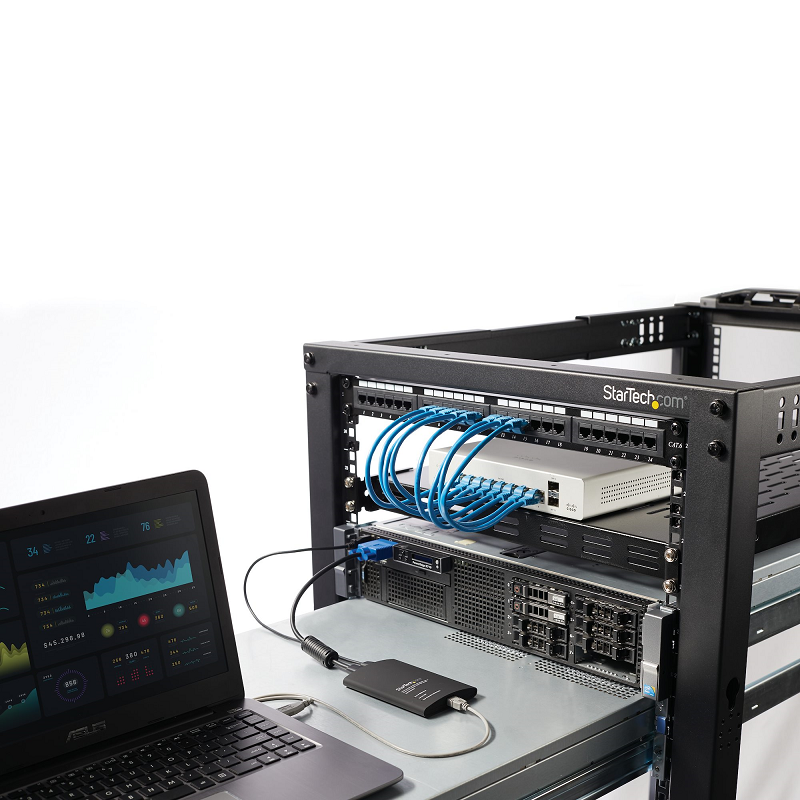

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.

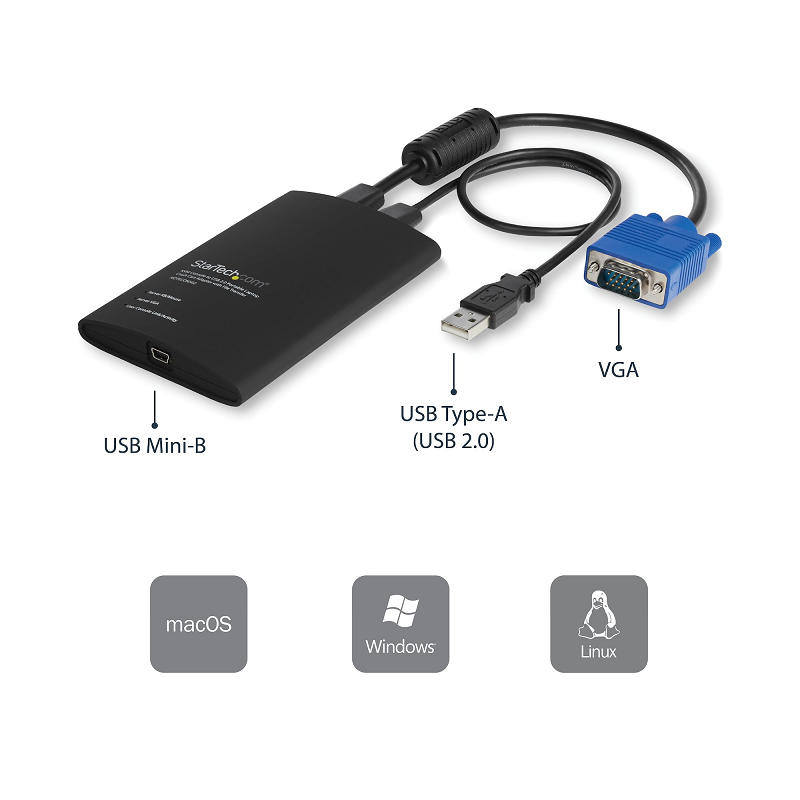

Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there’s no power outlet available.
This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM crash cart adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
| Cable length | 0.416 m |
| Console USB ports quantity | 1 |
| USB connector type | Mini-USB B |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Plug and Play | Yes |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Sustainability certificates | RoHS |
| Video | |
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Performance | |
| Daisy chain | No |
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 1 user(s) |
| Design | |
| Mean time between failures (MTBF) | 909000 h |
| Product colour | Black |
| Cable length | 0.416 m |
| Rack mounting | No |
| LED indicators | Yes |
| Certification | CE, FCC, TAA, UL |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 74 mm |
| Depth | 115 mm |
| Height | 15 mm |
| Weight | 170 g |
| Packaging data | |
| Package width | 166 mm |
| Package depth | 303 mm |
| Package height | 46 mm |
| Package weight | 363 g |
| Software included | Yes |
| Cables included | USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
A product diagram can be found in the PDF file
