| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FERKCONS1916K |
| Manufacturer No: | RKCONS1916K |
| Delivery: | In Stock: Next Day |
 |

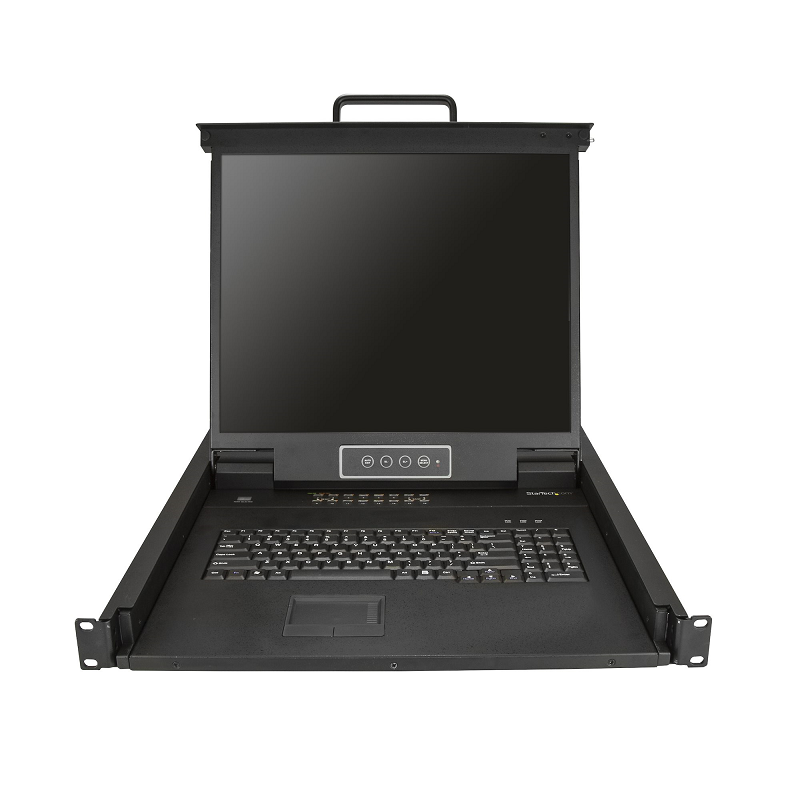

16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
Control your server or KVM switch from a centralized rack-mount KVM console
This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.

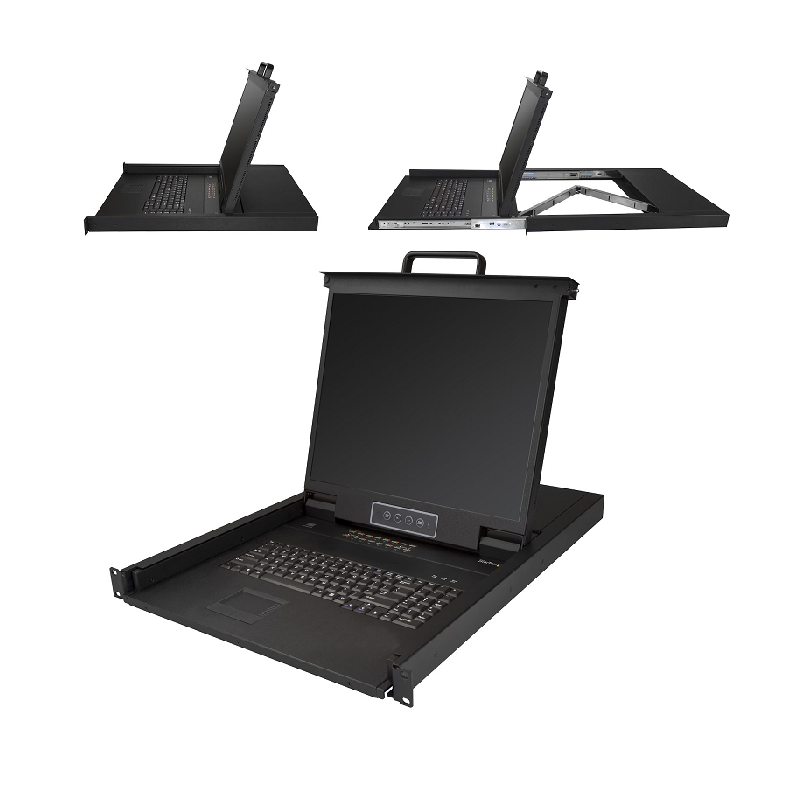

The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
1. Handle
2. Release switch
3. Display
4. Display menu buttons
5. Current port
6. Port selection buttons and LEDs
7. Keyboard LEDs
8. Keyboard
9. Trackpad
10. Rail
11. Mounting bracket

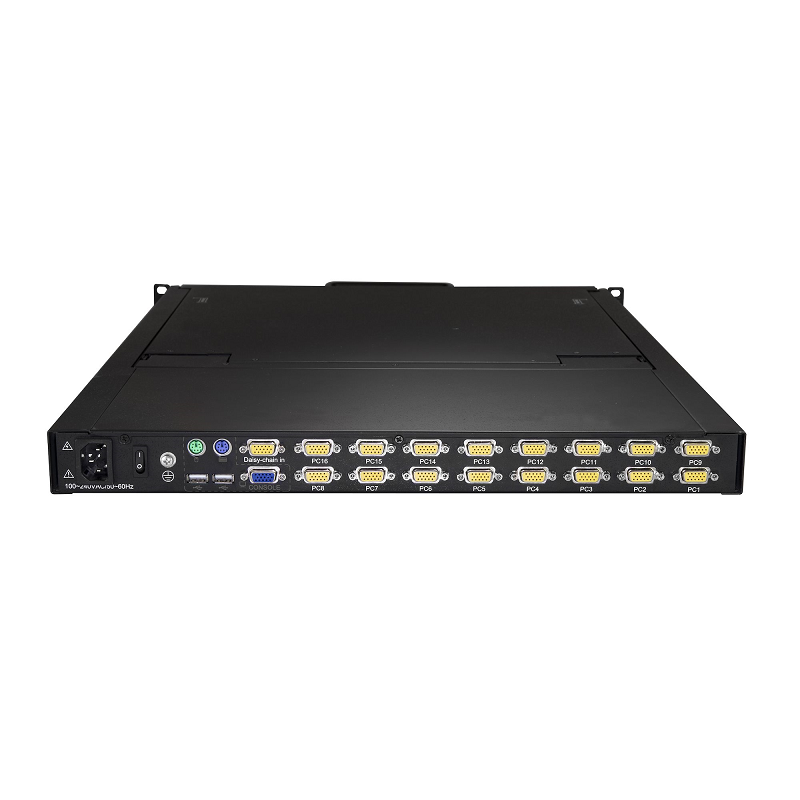

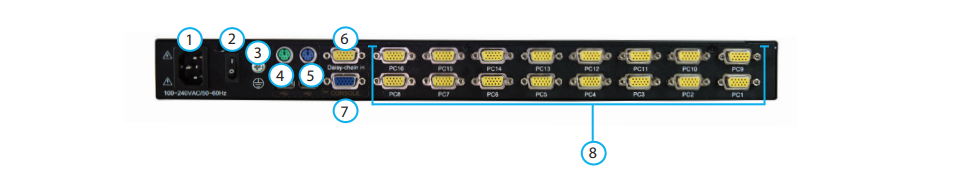

1. Power connection port
2. Power switch
3. Ground connection screw
4. Console mouse port
5. Console keyboard port
6. Daisy chain port
7. Console monitor port
8. Host ports
| Display | |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Display | TFT LCD |
| Display diagonal | 48.3 cm (19") |
| Pixel pitch | 0.264 x 0.264 mm |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Colour depth | 8 bit |
| Technical details | |
| Key lock | No |
| Daisy chain | No |
| Number of computers controlled | 16 |
| Rack capacity | 1U |
| Operating relative humidity (H-H) | 10 - 80 % |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Cables included | KVM |
| Audio support | No |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Video port type | VGA |
| Mouse port type | USB |
| Keyboard port type | USB |
| USB 2.0 Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 18 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (typical) | 23 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 643 mm |
| Height | 43 mm |
| Weight | 13.5 kg |
| Mounting depth (min) | 60.5 cm |
| Mounting depth (max) | 89 cm |
| Packaging data | |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 190 mm |
| Package weight | 21 kg |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Cables included | KVM |
| Included power plug types | ANZ, EU, JP, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
