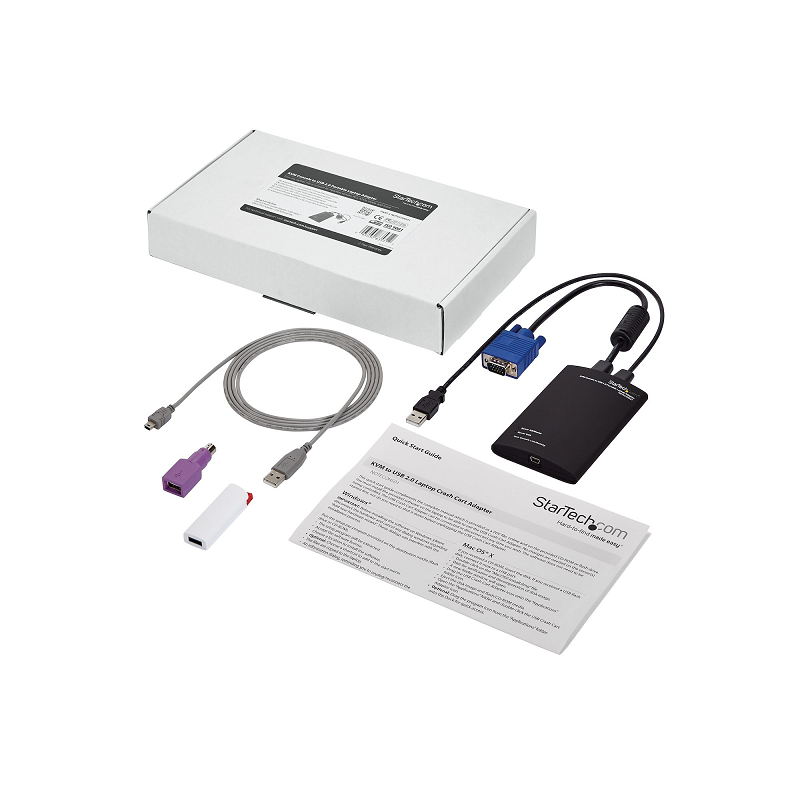

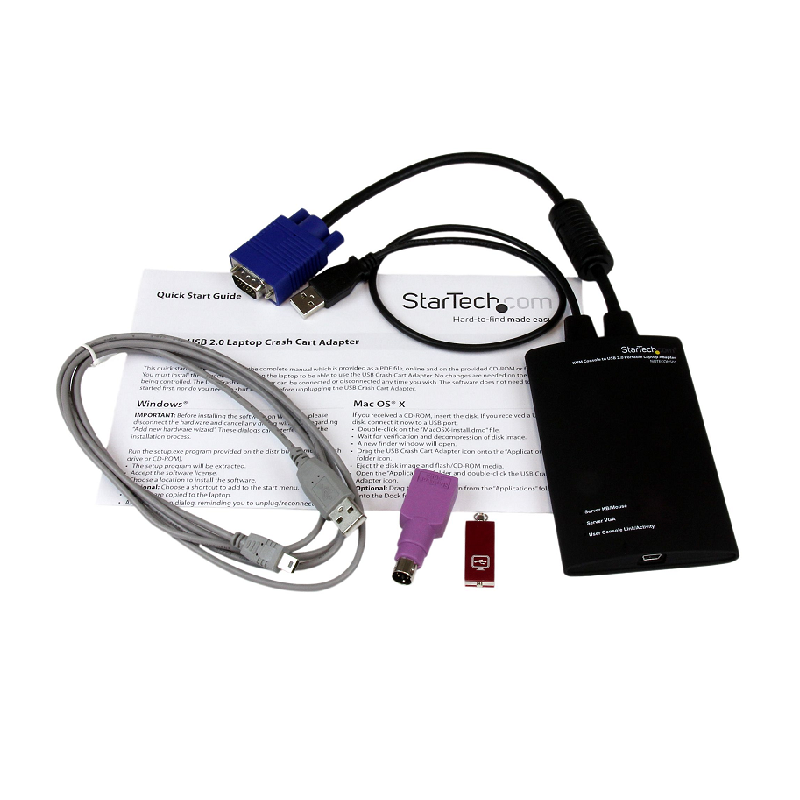

StarTech NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter

KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter

Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

How it works:

Applications:

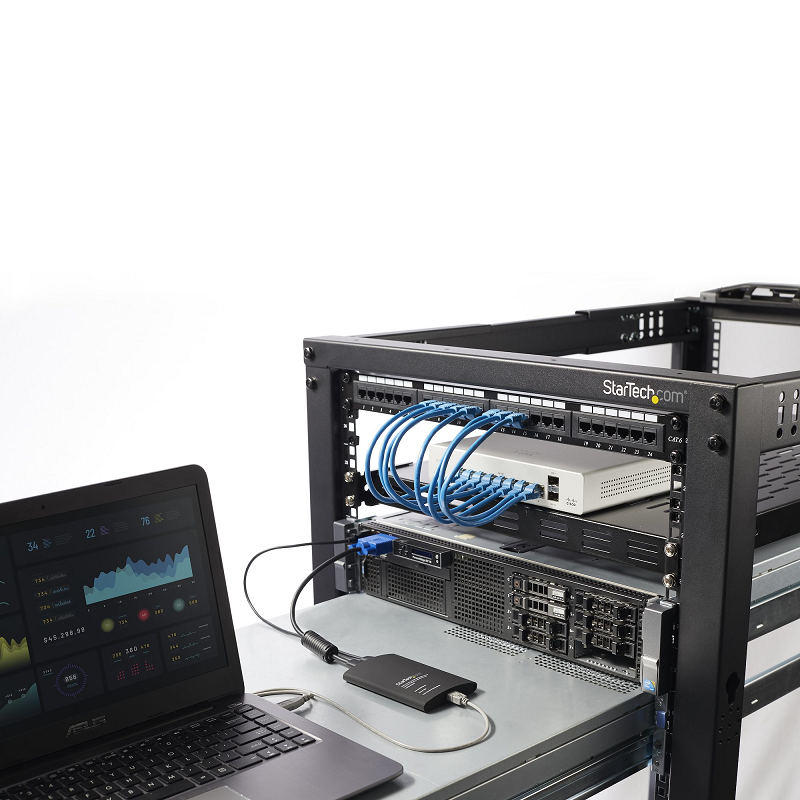

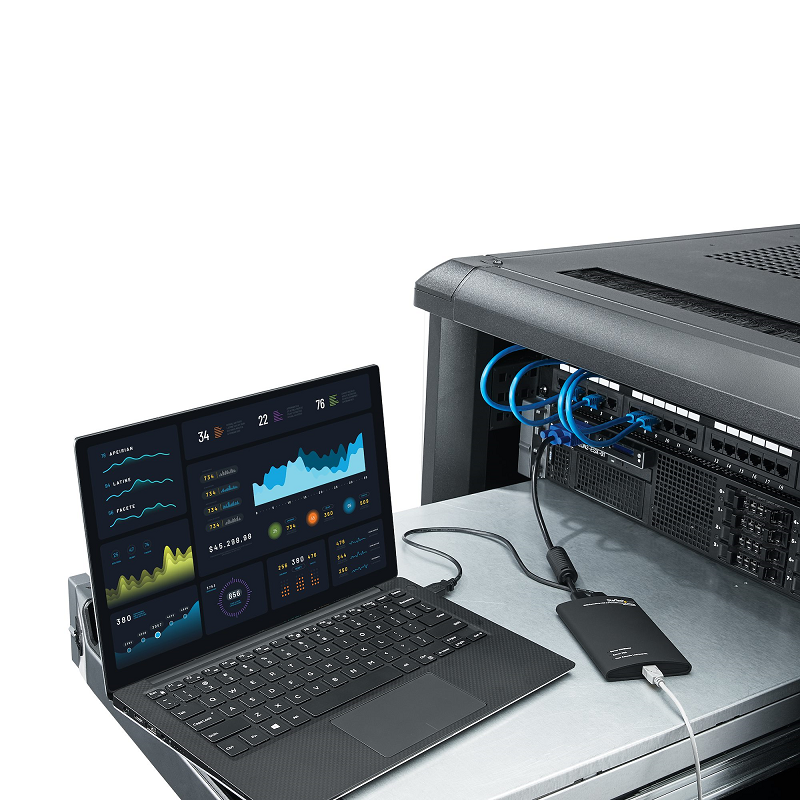

• Access your servers using your laptop, to avoid the expense of a rackmount console
• Gain full console access to servers located in small spaces, or congested server racks where a fixed-installation console is not feasible, such as in a server closet or in a wall-mounted server rack
• Create instructional videos or keep records of your server activities, using screen captures you've taken from your servers

Features:

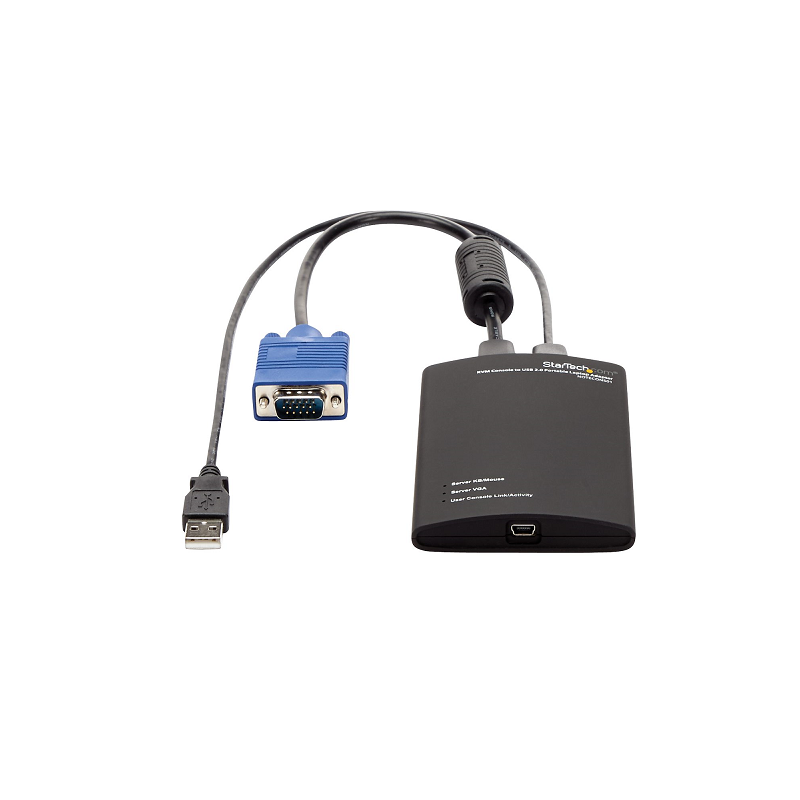

• Very small footprint with integrated KVM cables
• Self-powered – draws its power from the server USB connections
• Multi-platform support USB and PS/2 to the server or KVM (PS/2 for Keyboard Only)
• LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link
• Manual video adjustments to control the picture position, sharpness and image noise for optimal performance settings
• Snapshot feature allows you to capture screen shots of your server, error messages, and activity
• Pre-loaded special key commands
• Keyboard emulation support for USB, PS/2 and SUN systems
• Auto image centering adjustment for 4x3 images on a wide screen display
• Automatic video scaling when resizing the viewing pane from the console PC (laptop) for immediate, automatic compatibility
• Manual video override adjustments allows it to work with legacy and industrial devices where other portable consoles do not
• True USB mouse synchronization ensures accurate navigation of the connected server

The StarTech.com Advantage:

• Ultra high resolution support up to 1920 x 1200 @ 60Hz – The highest resolution portable console available
• No power adapter needed - Draws power from the server side USB connection saving your laptop’s battery life, and avoiding the hassle of finding 110V outlets in the server room or remote locations

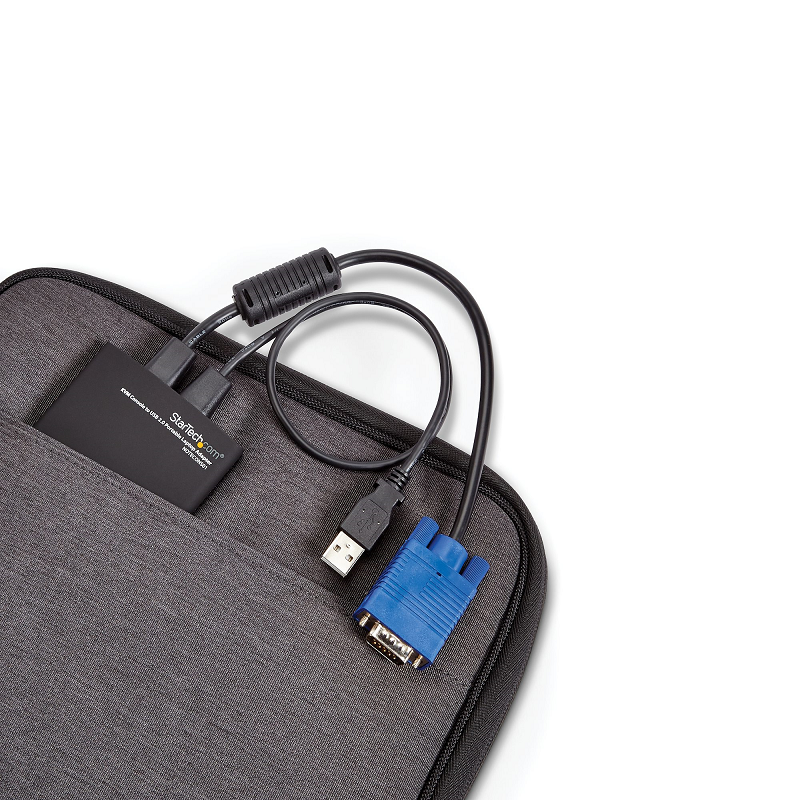

• Small, ruggedized casing (similar to the size of a cellphone) is easily stored and transported; with no server-side software requirement, you will be up and running in seconds

Full specification and details can be found in the PDF file

A user manual can be found in the PDF file
