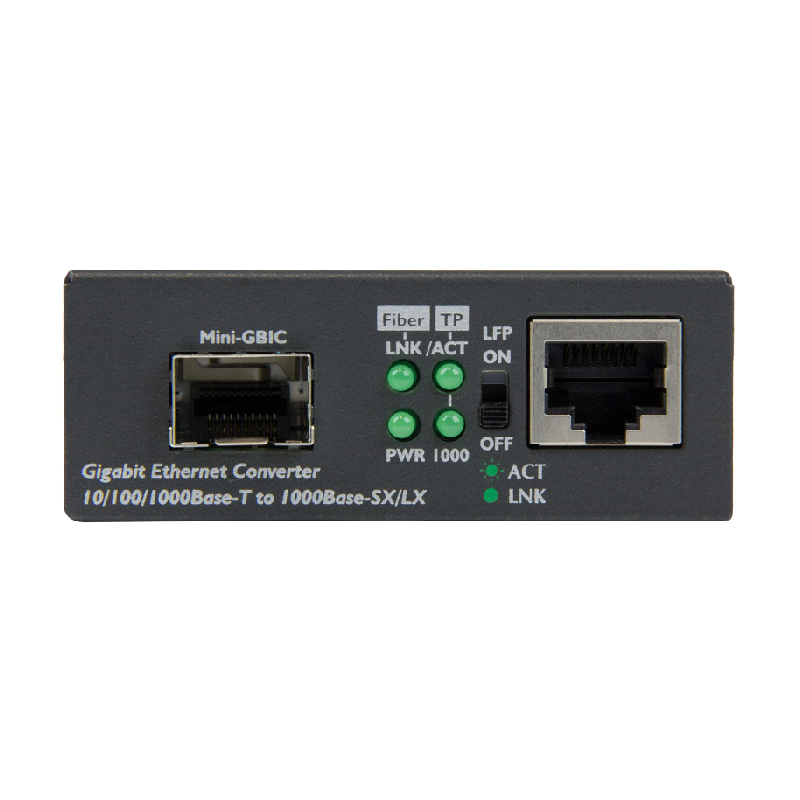

Gigabit Ethernet Fiber Media Converter with Open SFP Slot
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the that best suits your fiber connection mode (single / multimode) and distance requirements.
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Network | |
Fiber optic connector | SPF |
Jumbo frames support | Yes |
Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
Ethernet interface type | Gigabit Ethernet |
Duplex system | Full |
Converter output interface | 1000Base-LX, 1000Base-SX |
Auto MDI/MDI-X | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Housing material | Steel |
Fiber mode structure | Multi-mode, Single-mode |
Internal | No |
Sustainability certificates | RoHS |
Performance | |
Jumbo frames support | Yes |
Wavelength-division multiplexing (WDM) | Yes |
Fiber mode structure | Multi-mode, Single-mode |
Mean time between failures (MTBF) | 50000 h |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | SFP |
DC-in jack | Yes |
Design | |
Housing material | Steel |
LED indicators | Activity, Link, Power |
Product colour | Black |
Certification | CE, FCC |
Internal | No |
Power | |
Power plug type | Type N |
Power over Ethernet (PoE) | No |
Input voltage | 100 - 240 V |
Input current | 1 A |
Output voltage | 5 V |
Output current | 2 A |
Power consumption (typical) | 5 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 5 - 95 % |
Weight & dimensions | |
Width | 70 mm |
Height | 26 mm |
Depth | 95 mm |
Weight | 185 g |
Packaging data | |
Package width | 284 mm |
Package height | 68 mm |
Package depth | 139 mm |
Package weight | 544 g |
Manual | Yes |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
