Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot
Convert and extend a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice
The ET91000SFP2C Open SFP Fiber Media Converter card module converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).
The fiber to Ethernet converter offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Network | |
Fiber optic connector | SFP |
Converter input interface | 1000Base-T |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
Ethernet LAN data rates | 1000 Mbit/s |
Ethernet interface type | Gigabit Ethernet |
Duplex system | Full, Half |
Converter output interface | 1000Base-LX, 1000Base-SX |
Auto MDI/MDI-X | Yes |
Maximum data transfer rate | 1250 Mbit/s |
Technical details | |
Internal | Yes |
Sustainability certificates | RoHS |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | SFP |
Design | |
LED indicators | Yes |
Product colour | Black, Green |
Certification | FCC |
Internal | Yes |
Power | |
Power over Ethernet (PoE) | No |
Input voltage | 12 V |
Input current | 1 A |
Power consumption (typical) | 8 W |
External power adapter | No |
Operational conditions | |
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 10 - 90 % |
Weight & dimensions | |
Width | 75 mm |
Height | 20 mm |
Depth | 140 mm |
Weight | 184 g |
Packaging data | |
Package width | 130 mm |
Package height | 27 mm |
Package depth | 185 mm |
Package weight | 184 g |
Manual | Yes |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file

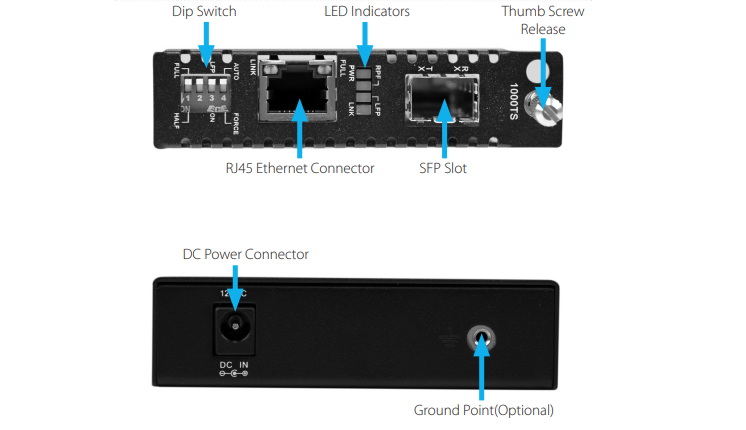

A product diagram can be found in the PDF file
