| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEMCM1110MMLC |
| Manufacturer No: | MCM1110MMLC |
| Delivery: | In Stock: Next Day |
 |

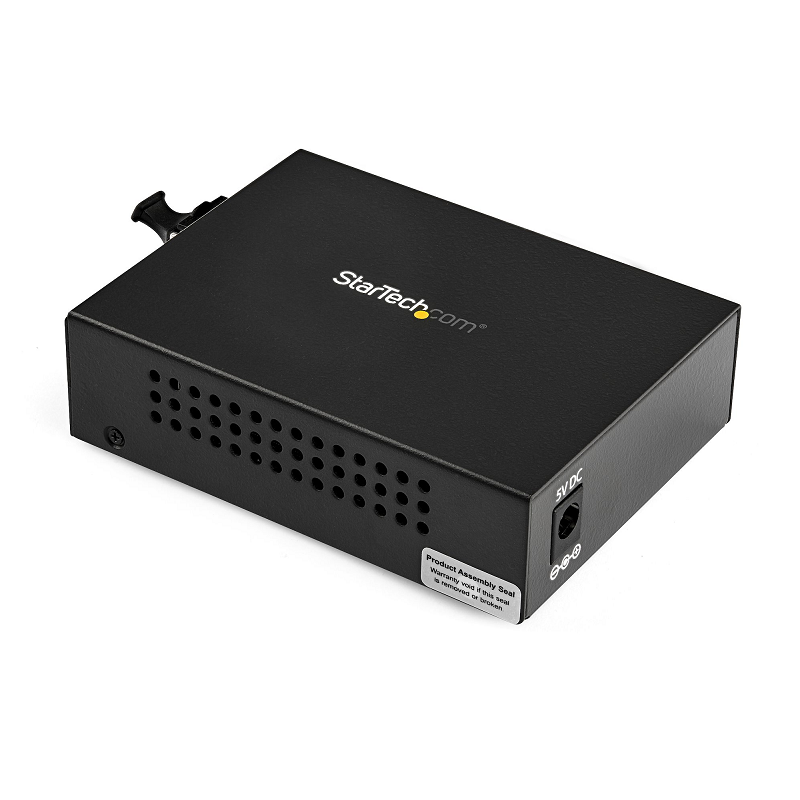

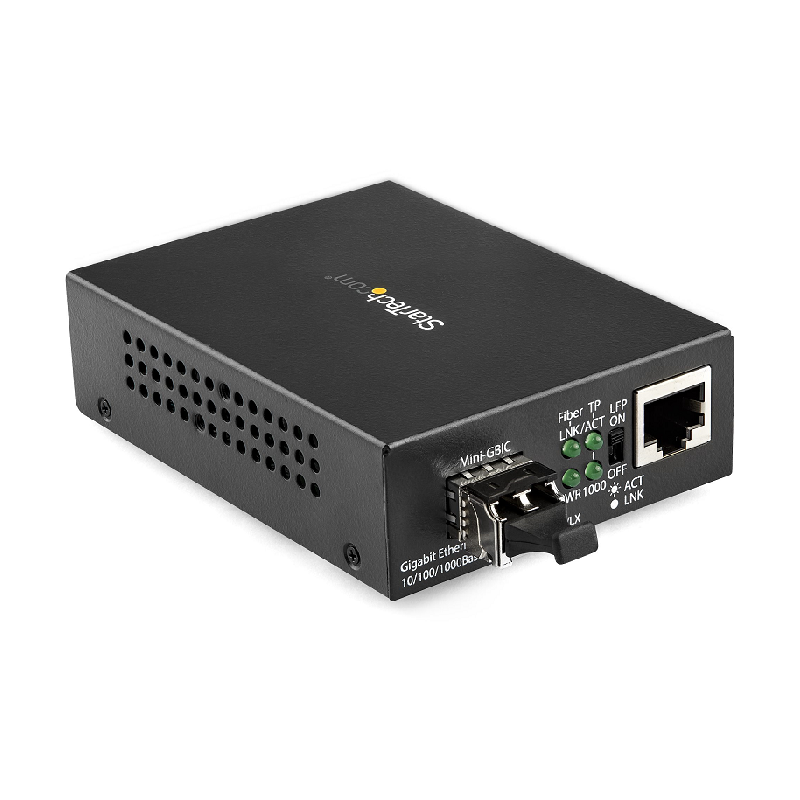

Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
| Fiber optic connector | LC |
| Jumbo frames support | Yes |
| Data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Housing material | Steel |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Data transfer rate | 1000 Mbit/s |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |

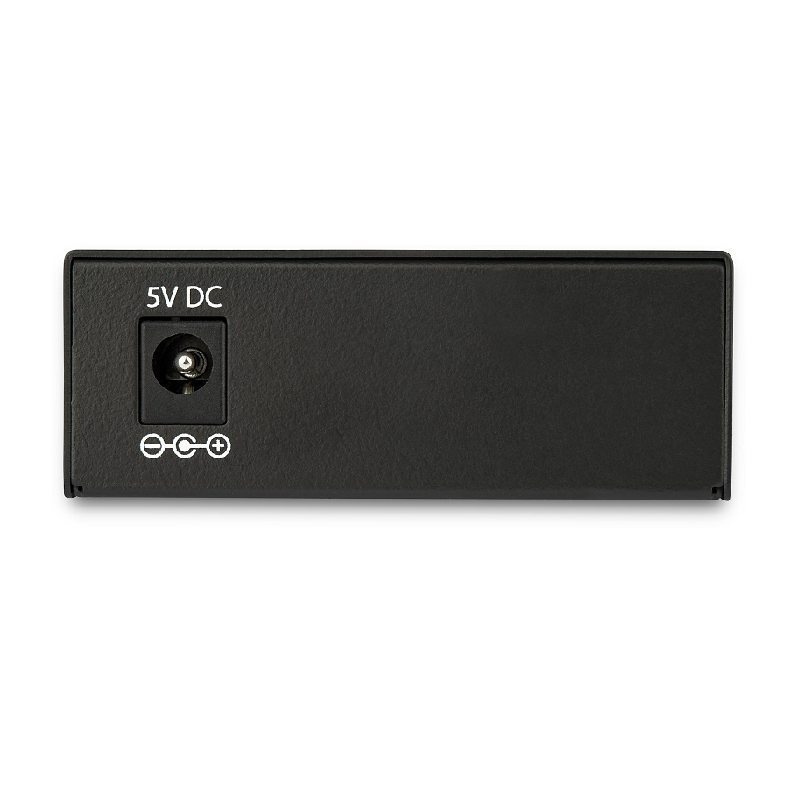

| DC-in jack | Yes |
| Design | |
| Housing material | Steel |

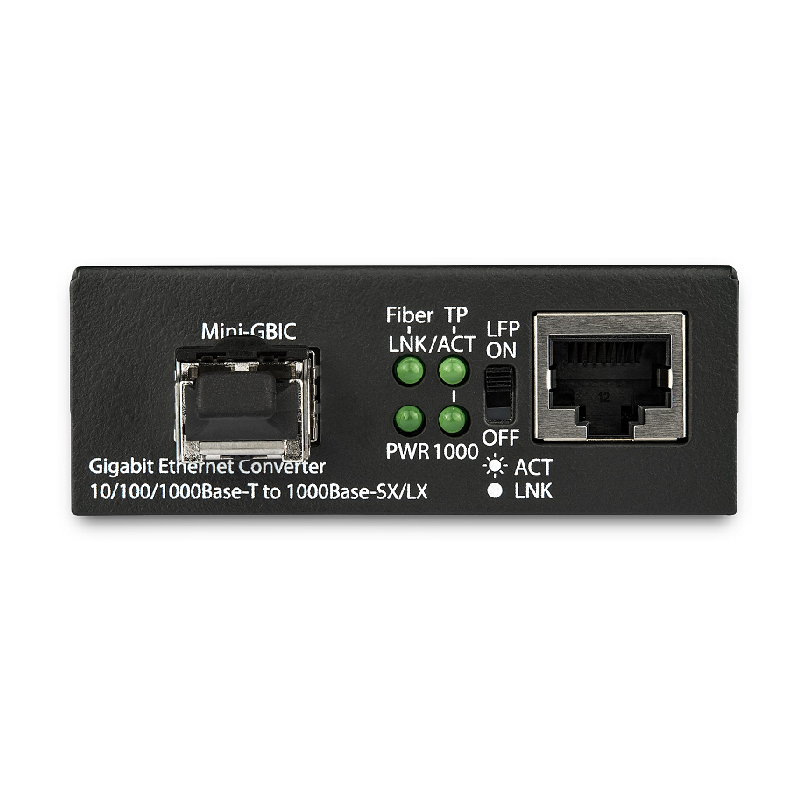

| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC, REACH, TAA |
| Internal | No |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 70 mm |
| Height | 26 mm |
| Depth | 94 mm |
| Weight | 201 g |
| Packaging data | |
| Package width | 140 mm |
| Package height | 68 mm |
| Package depth | 284 mm |
| Package weight | 556 g |
| Manual | Yes |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file

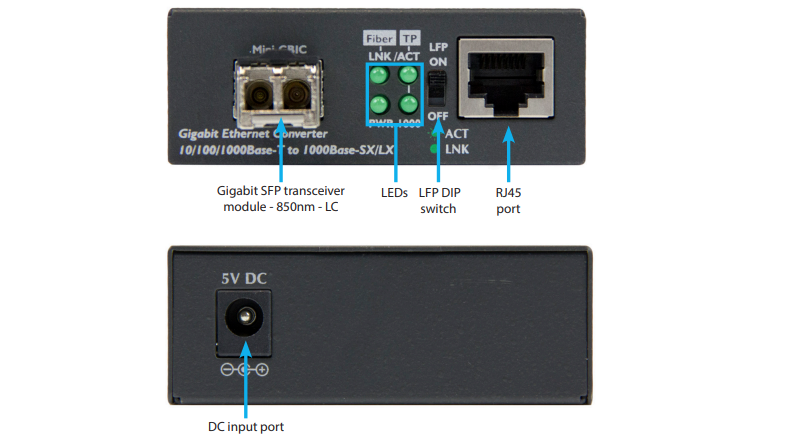

A product diagram can be found in the PDF file
