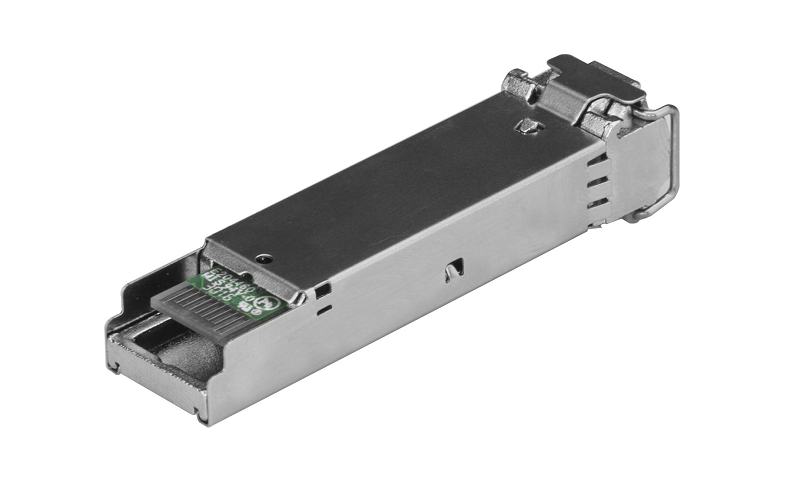

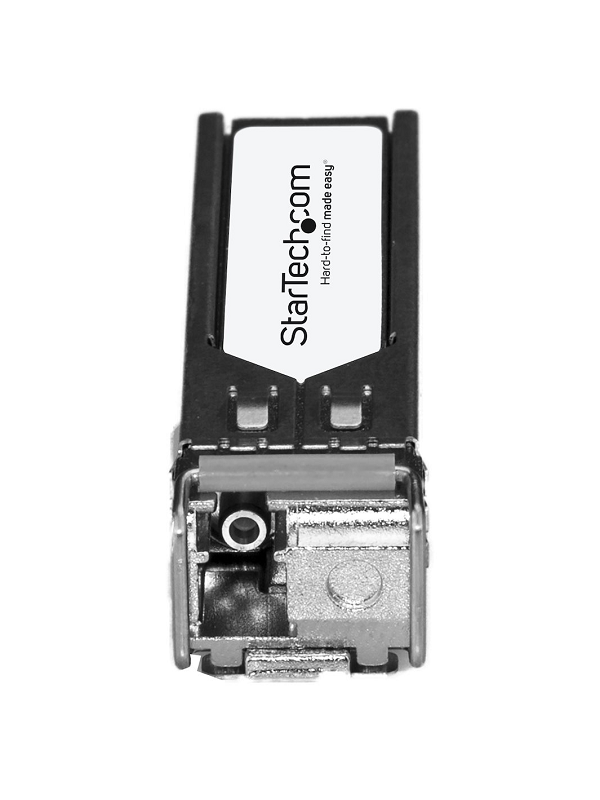

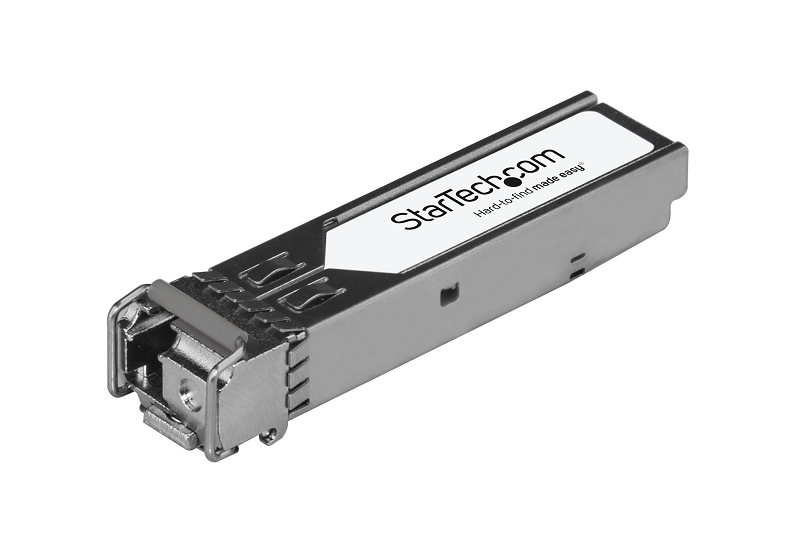

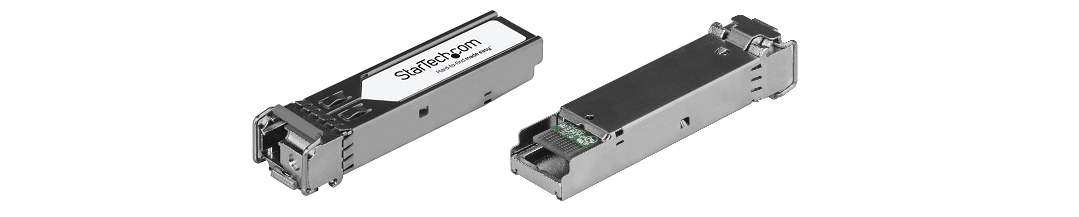

Extreme Networks 10057H Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (10057H-ST)
The 10057H-ST is an Extreme Networks 10057H compatible upstream fiber SFP transceiver which pairs with StarTech.com's 10056H-ST. They are designed, programmed and tested to work with 1000Base-BX-U compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Network | |
SFP transceiver type | Fiber optic |
Maximum data transfer rate | 1250 Mbit/s |
Interface type | SFP |
Fiber optic connector | LC |
Performance | |
Product colour | Silver |
Compatible products | 10057 |
Mean time between failures (MTBF) | 286217327 h |
Brand compatibility | Extreme Networks |
SFP transceiver type | Fiber optic |
Tx wavelength (max) | 1310 nm |
Rx wavelength (max) | 1490 nm |
Digital Diagnostics Monitoring (DDM) | Yes |
Fiber optic connector | LC |
Maximum transfer distance | 10000 m |
Duplex system | Full |
Interface type | SPF |
Single-mode fiber (SMF) supported | Yes |
Multi-mode fiber (MMF) supported | No |
SFP transceiver standard | BX |
Maximum data transfer rate | 1250 Mbit/s |
Weight & dimensions | |
Width | 56.6 mm |
Depth | 13.7 mm |
Height | 12.5 mm |
Weight | 20 g |
Logistics data | |
Master (outer) case width | 9 cm |
Master (outer) case length | 11.5 cm |
Master (outer) case height | 3.1 cm |
Quantity per master (outer) case | 1 pc(s) |
Full specification and details can be found in the PDF file
