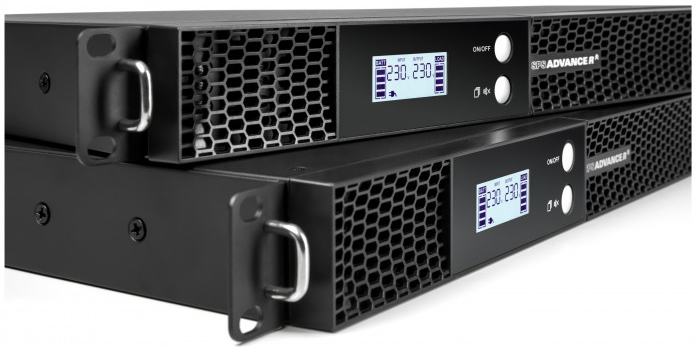

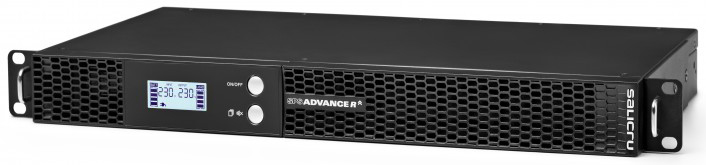

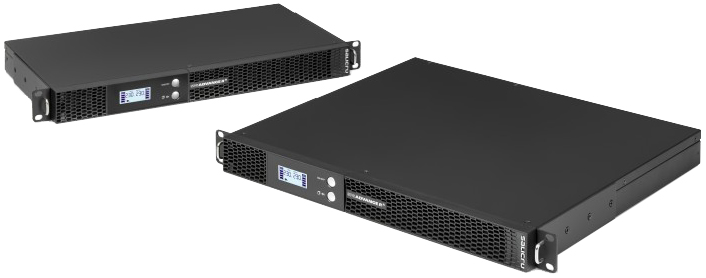

High-density security in 1U rack format
Salicru's SPS Advance R series UPSs feature line-interactive technology (AVR stabilisation with buck-boost regulation) and pure sine-wave output to power all kinds of critical load.
This technology enables a high level of efficiency to be achieved, providing significant savings in the total consumption of the rack. Also noteworthy is their compatibility with current APFC (active power factor correction) power supplies.
In terms of communications, the options are through the RS-232 interface and management and monitoring software for Windows, Linux and Mac systems, or through the available adapters (SNMP/Web adapter) to be inserted into the smart slot that the devices incorporate.
Features
Display
Applications
Specially designed for installation on racks with high occupancy density, Salicru’s SPS ADVANCE R series UPSs, thanks to their height of only one U, enable space to be freed up for other devices. In addition, their IEC sockets facilitate the connection of all computing environment elements.
Connections
Software
UPS monitoring and management software for closing files and applications. Compatible with Windows, Linux and Mac.
Technical Specification
MODEL | SPS 1000 ADVANCE R | ||
UPS Power (VA / W) | 1000 / 600 | ||
Technology | Line-interactive | ||
Format | 1U rack | ||
Outlets | AC outlets | 4 x power IEC 60320 C13 | |
AC outlet type | IEC 60320 C13 | ||
Input | Rated Voltage | 230 V | |
Voltage range | 165 - 290 V up to 100% load | ||
Stabiliser | AVR (buck-boost) | ||
Frequency | 50 / 60 Hz ±5% | ||
Input protection | Fuse | ||
Output | Rated voltage | 230 V | |
Voltage accuracy (battery mode) | ±10% | ||
Waveform | Pure sine wave | ||
Total harmonic distortion (THDv) | ?5% linear load; ?10% non-linear load |
||
Admissible overload | Line mode | 110% for 1 min / 130% immediate | |
Battery mode | 110% for 1 min / 130% immediate | ||
Compatible with APFC loads | Yes (1) | ||
Protection | Overload, short circuit and over discharge and battery charging | ||
Efficiency | On-line mode | >95% | |
Stabiliser mode (AVR) | >92% | ||
Battery mode | >80% | ||
Battery | Battery type | Pb-Ca sealed, AGM, maintenance-free | |
Protection | Internal current limitation | ||
Battery test | Automatic on each start-up + manual | ||
Battery replacement by the user | Yes | ||
Charging | Charge type | I/U (constant current/constant voltage) | |
Recharge time | 4 hours to 90% | ||
Communication | Interface | RS-232 | |
Smart slot for SNMP / potential-free contacts / MODBUS | Yes | ||
Downloadable monitoring software | For Windows, Linux and Mac | ||

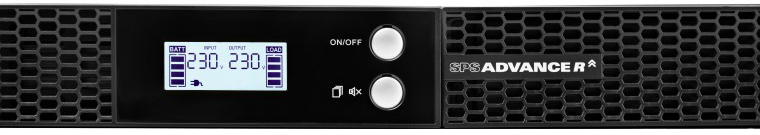

Warnings | LCD + keypad | Yes, multifunction screen | |
Displayed values | Input and output voltage / % load / % battery / backup | ||
Levels | Connected load / overload / battery / low battery | ||
Alarm | Battery / low battery / overload / failure | ||
Other Functions | Cold start (start-up from batteries) | Yes | |
Emergency power off (EPO) | Yes | ||
General | Operating temperature | 0ºC - 40ºC | |
Relative humidity | Up to 95%, non-condensing | ||
Noise level at 1 metre | Less 40 dB | ||
Dimensions (D x W x H mm) | 485 x 433 x 44 | ||
Weight | 14.20Kg | ||
Standards | Safety | EN 62040-1 | |
Electromagnetic compatibility (EMC) | EN 62040-3 | ||
Operation | EN 62040-3:2011 | ||
Quality & Environmental Management | ISO-9001 and ISO-14001 |
Salicru's SPS Advance R series UPSs feature line-interactive technology (AVR stabilisation with buck-boost regulation) and pure sine-wave output to power all kinds of critical load.
This technology enables a high level of efficiency to be achieved, providing significant savings in the total consumption of the rack. Also noteworthy is their compatibility with current APFC (active power factor correction) power supplies.
In terms of communications, the options are through the RS-232 interface and management and monitoring software for Windows, Linux and Mac systems, or through the available adapters (SNMP/Web adapter) to be inserted into the smart slot that the devices incorporate.
Specially designed for installation on racks with high occupancy density, Salicru’s SPS ADVANCE R series UPSs, thanks to their height of only one U, enable space to be freed up for other devices. In addition, their IEC sockets facilitate the connection of all computing environment elements.
UPS monitoring and management software for closing files and applications. Compatible with Windows, Linux and Mac.
