| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | MODK6AMCBK |
| Manufacturer No: | CJS6X88TGY |
| Delivery: | In Stock: 5-7 Days |
 |

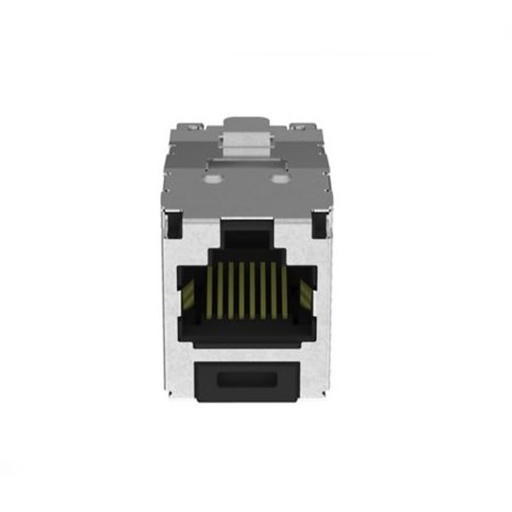

The Panduit Mini-Com Cat 6A Shielded Jack Module exceeds ANSI/TIA/EIA-568-B.2-10 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards, as well as IEC 61156-5 Category 6A component standards. Meeting draft IEEE 802.3at requirements for PoE Plus, each jack is 100% tested for NEXT and RL performance and individually serialized for traceability. Featuring patent-pending Giga-TX™ Technology, it optimizes cable pair geometry and eliminates conductor untwist.
When installed in a Panduit All Metal Modular Patch Panel, it is fully grounded and bonded. The jack includes 50-microinch gold-plated contacts for superior performance and requires no punchdown tool for termination. The optional TGJT termination tool reduces installation time by 25%, and the jack can be re-terminated at least 20 times. A blue termination cap designates 10Gig™ Category 6A performance, providing strain relief and cable bend radius control.
It terminates 4-pair, 22–26 AWG, 100-ohm solid or stranded shielded twisted pair cable, with a universal color-coded termination cap for T568A and T568B wiring. Integrated strain relief with a wire cap ensures a 360° conductive grounding path, and a 0.187" grounding tab allows individual jack grounding. The module accepts 6- and 8-position modular plugs without damage, supports optional labels and icons for clear identification, and is compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes.
The Panduit Mini-Com Cat 6A Shielded Jack Module exceeds ANSI/TIA/EIA-568-B.2-10 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards, as well as IEC 61156-5 Category 6A component standards. Meeting draft IEEE 802.3at requirements for PoE Plus, each jack is 100% tested for NEXT and RL performance and individually serialized for traceability. Featuring patent-pending Giga-TX™ Technology, it optimizes cable pair geometry and eliminates conductor untwist.
When installed in a Panduit All Metal Modular Patch Panel, it is fully grounded and bonded. The jack includes 50-microinch gold-plated contacts for superior performance and requires no punchdown tool for termination. The optional TGJT termination tool reduces installation time by 25%, and the jack can be re-terminated at least 20 times. A blue termination cap designates 10Gig™ Category 6A performance, providing strain relief and cable bend radius control.
It terminates 4-pair, 22–26 AWG, 100-ohm solid or stranded shielded twisted pair cable, with a universal color-coded termination cap for T568A and T568B wiring. Integrated strain relief with a wire cap ensures a 360° conductive grounding path, and a 0.187" grounding tab allows individual jack grounding. The module accepts 6- and 8-position modular plugs without damage, supports optional labels and icons for clear identification, and is compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes.
