| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | MODK6AMCSBK |
| Manufacturer No: | CJ6X88TGBL |
| Delivery: | Call for Leadtime |
 |

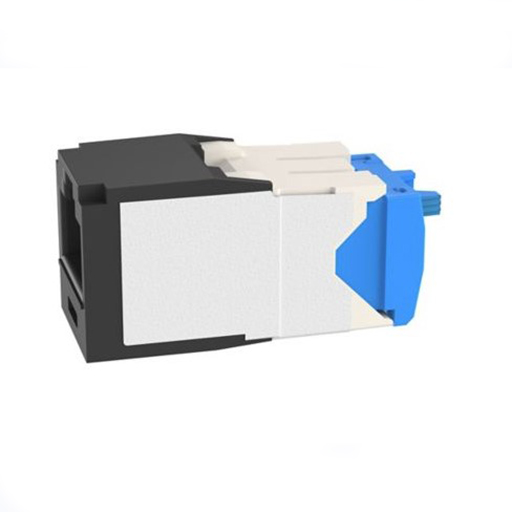

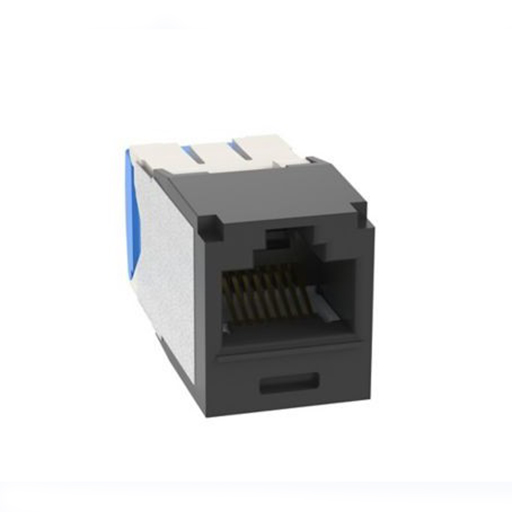

The Panduit Mini-Com Cat 6A UTP Jack Module exceeds TIA/EIA-568-B.2-AD10, ISO 11801 Class EA Edition 2.1, and IEEE 802.3an-2006 standards for 10GBASE-T support. Each jack is 100% tested for NEXT and RL performance and individually serialized for traceability. No punchdown tool is required, and an optional termination tool (TGJT) reduces installation time by 25%.
It supports at least 20 re-terminations, accepts 6- and 8-position modular plugs, and includes a blue termination cap for strain relief and bend radius control. The module terminates 4-pair, 22–26 AWG, 100-ohm solid or stranded twisted pair cable, with color-coded termination caps for T568A and T568B wiring schemes. Optional labels and icons allow for clear identification.
The Panduit Mini-Com Cat 6A UTP Jack Module exceeds TIA/EIA-568-B.2-AD10, ISO 11801 Class EA Edition 2.1, and IEEE 802.3an-2006 standards for 10GBASE-T support. Each jack is 100% tested for NEXT and RL performance and individually serialized for traceability. No punchdown tool is required, and an optional termination tool (TGJT) reduces installation time by 25%.
It supports at least 20 re-terminations, accepts 6- and 8-position modular plugs, and includes a blue termination cap for strain relief and bend radius control. The module terminates 4-pair, 22–26 AWG, 100-ohm solid or stranded twisted pair cable, with color-coded termination caps for T568A and T568B wiring schemes. Optional labels and icons allow for clear identification.
