| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | NAEXG300E-LR10G-KT-X2 |
| Manufacturer No: | EXG300E-LR10G-KT-X2 |
| Delivery: | In Stock: 1-3 Days |
 |
The EtherScope® nXG Portable Network Expert is a compact, all-in-one solution for network professionals who need speed, efficiency, and precision in the field. Designed to support both Wi-Fi and Ethernet access networks, this handheld analyzer streamlines everything from initial deployment to ongoing maintenance and documentation.
Its user friendly interface offers deep network visibility, enabling technicians to diagnose and resolve issues quickly. With remote access capabilities, engineers can guide field staff in real time, maximizing team effectiveness and minimizing downtime. The EtherScope nXG transforms how teams approach network troubleshooting, putting powerful tools in the palm of your hand.
IMPORTANT NOTES: Wi-Fi Regulatory Compliance Implementation of the 6 GHz spectrum varies by country.

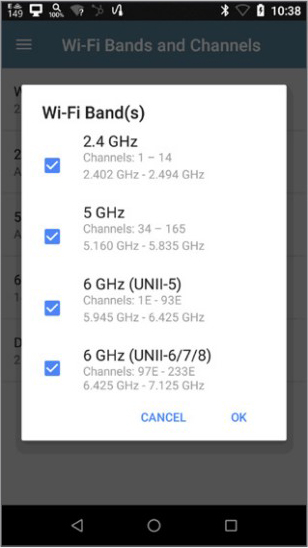

EtherScope nXG 300 models are available in three versions: Full Tri-Band (capability across the entire 6 GHz band), Partial Tri-Band (capability for only certain channels in the 6 GHz band as determined by 802.11d regulatory domain information), and Dual Band Only (for countries where operation in the 6 GHz band is not allowed.) Be sure to select the model that is certified for use in your specific country. This model uses Partial Tri-Band.
The EtherScope nXG has two sets of native Wi-Fi network interfaces: a 2x2 radio to scan and test Wi-Fi networks, and a 1x1 radio for remote control connection and testing. The test interface supports Wi-Fi 7 visibility and can show analysis of utilization and status of Wi-Fi channels, SSIDs, BSSIDs, access points and client devices. The EtherScope nXG provides full 6 GHz support.*
The EtherScope nXG has two Ethernet ports. The main test RJ-45 port supports MultiGig networks from 10/100Mbps to 1/2.5/5/10Gbps to verify link speeds, SNR, and duplex advertised and connected. It can request and verify PoE power under load from up to 90W PSE's. Alternatively, it can interface to fiber networks via single/multi-mode SFP+ to test 1/10Gbps fiber-based Ethernet. The second RJ-45 management port connects to 10/100Mbps or 1Gbps Ethernet for remote control, and conducts network discovery and tests where needed. It is also the port for cable testing.
The EtherScope nXG has built-in Bluetooth v5/BLE radio for connectivity and conducting BT/BLE site surveys; USB interfaces provide connectivity for accessories and other devices.
*Implementation of 6 GHz spectrum varies by country
Trying to pinpoint the source of Wi-Fi interference on a wireless network is hit or miss with the wrong tools. Through the use of the optional NXT-2000 Mobile Spectrum Analyzer, EtherScope nXG offers a view of RF interference in the 2.4 GHz, 5 GHz, and 6 GHz bands and its impact on the wireless network’s overall performance. Key graphs and charts include:
With the introduction of Wi-Fi 6/6E, how WLAN validation and troubleshooting is done has changed. New technologies designed to improve traffic management efficiency and support for the 6 GHz band were introduced, allowing for higher throughput and better performance in environments where a high user capacity is required - necessitating new technology to test and validate these networks.
*Note: Wi-Fi regulatory compliance implementation of the 6 GHz spectrum varies by country. EtherScope nXG models are available in three versions; see Models and Accessories for additional information.
AirMapper™ Site Survey - Now for Wi-Fi 7 Visibilty
With the AirMapper app, EtherScope nXG users can quickly and easily gather location-based Wi-Fi and Bluetooth/BLE measurements and create visual heat maps of key performance metrics in the Link-Live Cloud Service. Simple to use, the AirMapper app is ideal for quick site surveys of new deployments, change validation, and performance verification.
Survey project management capabilities in Link-Live provide a major boost in productivity and collaboration for distributed teams conducting surveys at remote sites. A team lead can create a project in Link-Live, upload and calibrate the floor plan, then automatically push the configured project out to the desired handheld instruments.
Roaming Analysis
In the Wi-Fi link test graphs (SNR, Utilization, Retries, PHY Tx Rate) as well as in active test graphs (PING), anytime the EtherScope roams and connects to a new AP, a red vertical line will be shown in the graph.
Seeing the correlation between various factors and the roam can help diagnose roaming successes as well as failures. Paired with the Connect Log, engineers can determine the exact step in the process that may be causing the failure.
The LinkRunner 10G is a high-performance solution for Multi-Gig and 10 Gig network testing. LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation and triage in a single, ruggedized unit.
The LinkRunner 10G has two Ethernet ports. The main test RJ-45 port supports MultiGig networks from 10/100/1000Mbps to 2.5/5/10G to verify link speed, SNR, and duplex advertised and connected. It can request and verify PoE power under load from up to 90W PSE’s. Alternatively, it can interface to fiber networks via single/multi-mode SFP+ to test 1/10Gbps fiber-based Ethernet. The second RJ-45 management port connects to 10/100/1000Mbps Ethernet for remote control, and conducts network scanning and tests where needed. It is also the port for cable testing.
In addition to fiber optic transceivers (SX, LX, SR, LR, ZX, singlemode, multimode, etc.) the SFP+ slot can be utilized with a variety of standards-based interfaces, such as TwinAx or other Direct Attach Copper (DAC) cables, and vendor-specific transceivers.
LinkRunner 10G can use a variety of third-party apps from the Link-Live app store for a variety of uses. The USB-A port provides connectivity for added USB adapters and 3rd party accessories such as printers, barcode scanners, fiber optic inspection cameras, and more. The use of a USB-based Wi-Fi adapter (such as the Edimax n150 for 802.11ac/b/g/n/) provides for connectivity and wireless testing using a third-party app.
The USB-C port is compatible with higher-power USB-C chargers, as well as external power-packs for all-day portable use.
This next-generation tester delivers complete network validation and troubleshooting at linerate from the media (copper/fiber) to the application (layers 1 – 7), accelerating deployments, speeding problem identification, and improving the efficiency and effectiveness of network installers and operations teams.
*For complete specifications about the EtherScope® nXG and the LinkRunner® 10G please see the documentation tab above.

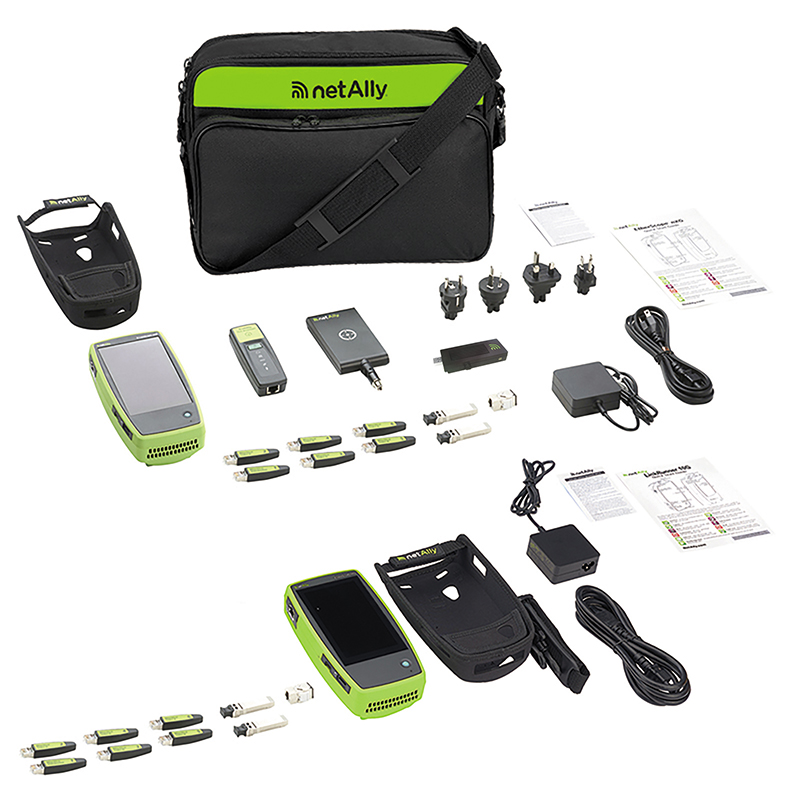

The bundle includes: Qty 1 EXG-300 mainframe, Qty 1 LR10G-200 mainframe, Qty 2 EXG-LR10G2-HOLSTER, Qty 1 NXT-2000 Spectrum Analyzer, Qty 2 G3-PWRADAPTER, Qty 2 SFP+MR-10G850, Qty 2 SFP+MR-10G1310, Qty 2 RJ-45 inline coupler, Qty 1 EXT-ANT-TRIBAND, Qty 1 TEST-ACC, Qty 2 WIREVIEW 1-6, Qty 2 Quick Start Guide, Qty 1 medium softcase.
*Product may differ in appearance; Images used are for illustrative purposes only
