The EtherScope® nXG Portable Network Expert is an advanced handheld analyzer designed to simplify complex network tasks. Combining multiple technologies in one device, it helps teams move quickly through deployment, diagnostics, and documentation for both Wi-Fi and Ethernet networks. Its straightforward interface delivers deep network insight without a steep learning curve, and with remote access features, engineers can guide on-site technicians in real time, bridging the gap between fieldwork and expert support for faster, more effective issue resolution.
IMPORTANT NOTES: Wi-Fi Regulatory Compliance Implementation of the 6 GHz spectrum varies by country.
EtherScope nXG 300 models are available in three versions: Full Tri-Band (capability across the entire 6 GHz band), Partial Tri-Band (capability for only certain channels in the 6 GHz band as determined by 802.11d regulatory domain information), and Dual Band Only (for countries where operation in the 6 GHz band is not allowed.) Be sure to select the model that is certified for use in your specific country. This model uses Partial Tri-Band.
The EtherScope nXG has two sets of native Wi-Fi network interfaces: a 2x2 radio to scan and test Wi-Fi networks, and a 1x1 radio for remote control connection and testing. The test interface supports Wi-Fi 7 visibility and can show analysis of utilization and status of Wi-Fi channels, SSIDs, BSSIDs, access points and client devices. The EtherScope nXG provides full 6 GHz support.*

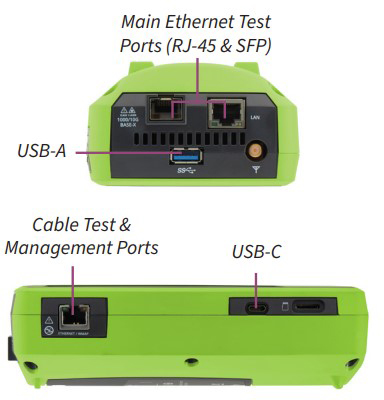

The EtherScope nXG has two Ethernet ports. The main test RJ-45 port supports MultiGig networks from 10/100Mbps to 1/2.5/5/10Gbps to verify link speeds, SNR, and duplex advertised and connected. It can request and verify PoE power under load from up to 90W PSE's. Alternatively, it can interface to fiber networks via single/multi-mode SFP+ to test 1/10Gbps fiber-based Ethernet. The second RJ-45 management port connects to 10/100Mbps or 1Gbps Ethernet for remote control, and conducts network discovery and tests where needed. It is also the port for cable testing.
The EtherScope nXG has built-in Bluetooth v5/BLE radio for connectivity and conducting BT/BLE site surveys; USB interfaces provide connectivity for accessories and other devices.
*Implementation of 6 GHz spectrum varies by country
Trying to pinpoint the source of Wi-Fi interference on a wireless network is hit or miss with the wrong tools. Through the use of the optional NXT-2000 Mobile Spectrum Analyzer, EtherScope nXG offers a view of RF interference in the 2.4 GHz, 5 GHz, and 6 GHz bands and its impact on the wireless network’s overall performance. Key graphs and charts include:
AirMapper™ Site Survey - Now for Wi-Fi 7 Visibilty
With the AirMapper app, EtherScope nXG users can quickly and easily gather location-based Wi-Fi and Bluetooth/BLE measurements and create visual heat maps of key performance metrics in the Link-Live Cloud Service. Simple to use, the AirMapper app is ideal for quick site surveys of new deployments, change validation, and performance verification.
Survey project management capabilities in Link-Live provide a major boost in productivity and collaboration for distributed teams conducting surveys at remote sites. A team lead can create a project in Link-Live, upload and calibrate the floor plan, then automatically push the configured project out to the desired handheld instruments.
Roaming Analysis
In the Wi-Fi link test graphs (SNR, Utilization, Retries, PHY Tx Rate) as well as in active test graphs (PING), anytime the EtherScope roams and connects to a new AP, a red vertical line will be shown in the graph.
Seeing the correlation between various factors and the roam can help diagnose roaming successes as well as failures. Paired with the Connect Log, engineers can determine the exact step in the process that may be causing the failure.
The bundle includes: EXG-300 mainframe with one-year of AllyCare support (EXG-300-1YS), NXT-2000 Spectrum Analyzer, G3-PWRADAPTER, EXG-LR10G-HOLSTER, SFP+MR-10G850, SFP+MR-10G1310, RJ-45 inline coupler, EXT-ANT-TRIBAND, TEST-ACC, WIREVIEW 1-6, Quick Start Guide, and medium softcase.
All new EXG-300 mainframes are sold with the first year (one-year) of AllyCare support included. Additional year(s) of support may be added. Product registration and activation is required within 30 days of first power-on.
The EtherScope® nXG Portable Network Expert is an advanced handheld analyzer designed to simplify complex network tasks. Combining multiple technologies in one device, it helps teams move quickly through deployment, diagnostics, and documentation for both Wi-Fi and Ethernet networks. Its straightforward interface delivers deep network insight without a steep learning curve, and with remote access features, engineers can guide on-site technicians in real time, bridging the gap between fieldwork and expert support for faster, more effective issue resolution.
IMPORTANT NOTES: Wi-Fi Regulatory Compliance Implementation of the 6 GHz spectrum varies by country.
EtherScope nXG 300 models are available in three versions: Full Tri-Band (capability across the entire 6 GHz band), Partial Tri-Band (capability for only certain channels in the 6 GHz band as determined by 802.11d regulatory domain information), and Dual Band Only (for countries where operation in the 6 GHz band is not allowed.) Be sure to select the model that is certified for use in your specific country. This model uses Partial Tri-Band.
The EtherScope nXG has two sets of native Wi-Fi network interfaces: a 2x2 radio to scan and test Wi-Fi networks, and a 1x1 radio for remote control connection and testing. The test interface supports Wi-Fi 7 visibility and can show analysis of utilization and status of Wi-Fi channels, SSIDs, BSSIDs, access points and client devices. The EtherScope nXG provides full 6 GHz support.*
The EtherScope nXG has two Ethernet ports. The main test RJ-45 port supports MultiGig networks from 10/100Mbps to 1/2.5/5/10Gbps to verify link speeds, SNR, and duplex advertised and connected. It can request and verify PoE power under load from up to 90W PSE's. Alternatively, it can interface to fiber networks via single/multi-mode SFP+ to test 1/10Gbps fiber-based Ethernet. The second RJ-45 management port connects to 10/100Mbps or 1Gbps Ethernet for remote control, and conducts network discovery and tests where needed. It is also the port for cable testing.
The EtherScope nXG has built-in Bluetooth v5/BLE radio for connectivity and conducting BT/BLE site surveys; USB interfaces provide connectivity for accessories and other devices.
*Implementation of 6 GHz spectrum varies by country
Trying to pinpoint the source of Wi-Fi interference on a wireless network is hit or miss with the wrong tools. Through the use of the optional NXT-2000 Mobile Spectrum Analyzer, EtherScope nXG offers a view of RF interference in the 2.4 GHz, 5 GHz, and 6 GHz bands and its impact on the wireless network’s overall performance. Key graphs and charts include:
AirMapper™ Site Survey - Now for Wi-Fi 7 Visibilty
With the AirMapper app, EtherScope nXG users can quickly and easily gather location-based Wi-Fi and Bluetooth/BLE measurements and create visual heat maps of key performance metrics in the Link-Live Cloud Service. Simple to use, the AirMapper app is ideal for quick site surveys of new deployments, change validation, and performance verification.
Survey project management capabilities in Link-Live provide a major boost in productivity and collaboration for distributed teams conducting surveys at remote sites. A team lead can create a project in Link-Live, upload and calibrate the floor plan, then automatically push the configured project out to the desired handheld instruments.
Roaming Analysis
In the Wi-Fi link test graphs (SNR, Utilization, Retries, PHY Tx Rate) as well as in active test graphs (PING), anytime the EtherScope roams and connects to a new AP, a red vertical line will be shown in the graph.
Seeing the correlation between various factors and the roam can help diagnose roaming successes as well as failures. Paired with the Connect Log, engineers can determine the exact step in the process that may be causing the failure.
The bundle includes: EXG-300 mainframe with one-year of AllyCare support (EXG-300-1YS), NXT-2000 Spectrum Analyzer, G3-PWRADAPTER, EXG-LR10G-HOLSTER, SFP+MR-10G850, SFP+MR-10G1310, RJ-45 inline coupler, EXT-ANT-TRIBAND, TEST-ACC, WIREVIEW 1-6, Quick Start Guide, and medium softcase.
All new EXG-300 mainframes are sold with the first year (one-year) of AllyCare support included. Additional year(s) of support may be added. Product registration and activation is required within 30 days of first power-on.
