| Part No: | LIN36470 |
| Manufacturer No: | 36470 |
| Delivery: | In Stock: Next Day |
 |

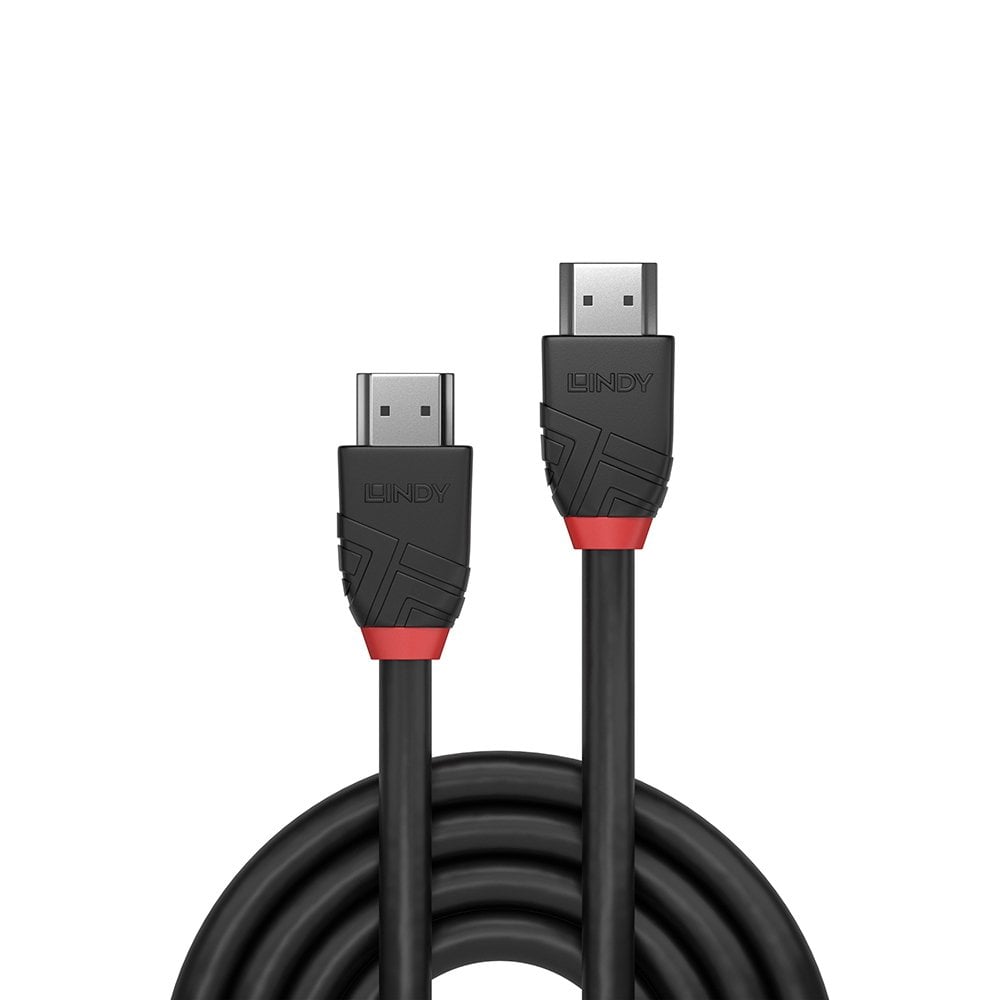

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Features
Technical Information
| Connectors | |
| Connector A | HDMI Type A Male |
| Connector B | HDMI Type A Male |
| Housing Material | PVC |
| Pin Construction | Phosphor Bronze |
| Pin Plating | Gold Flash |
| Connector Plating | Nickel |
|
Dimensions WxDxH (approx.) |
19.2x34.1x10.6mm (0.76x1.34x0.42in) |
| Cable Construction | |
| Lengths Available | 0.5m, 1m, 2m, 3m and 5m |
| Colour | Black |
| Standard | High Speed HDMI with Ethernet |
| Jacket Diameter | 6mm (0.24in) |
| Jacket Material | PVC |
| Conductor Material | Copper Coated Steel |
| Conductor Gauge | 30AWG |
| Type | Round |
| Shielding | Aluminium Foil |
| Specifications | |
| Supported Bandwidth | 18 Gbps |
| Maximum Resolution | 4096x2160@60Hz 4:4:4 8bit |
| Nominal Attenuation | 300kHz-825MHz ‹5dB, 825MHz-2.475GHz ‹5dB, 2.475GHz-4.125GHz ‹12dB, 4.125GHz-5.1GHz ‹20dB |
| Minimum Band Radius | 60mm (2.36in) |
| Operating Temperature | -10°C - 80°C (14°F - 176°F) |
| Storage Temperature | -10°C - 80°C (14°F - 176°F) |
| ATC Approved | No |
