From the Lines cable connectivity concept developed by Lindy, Gold Line High Speed HDMI cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

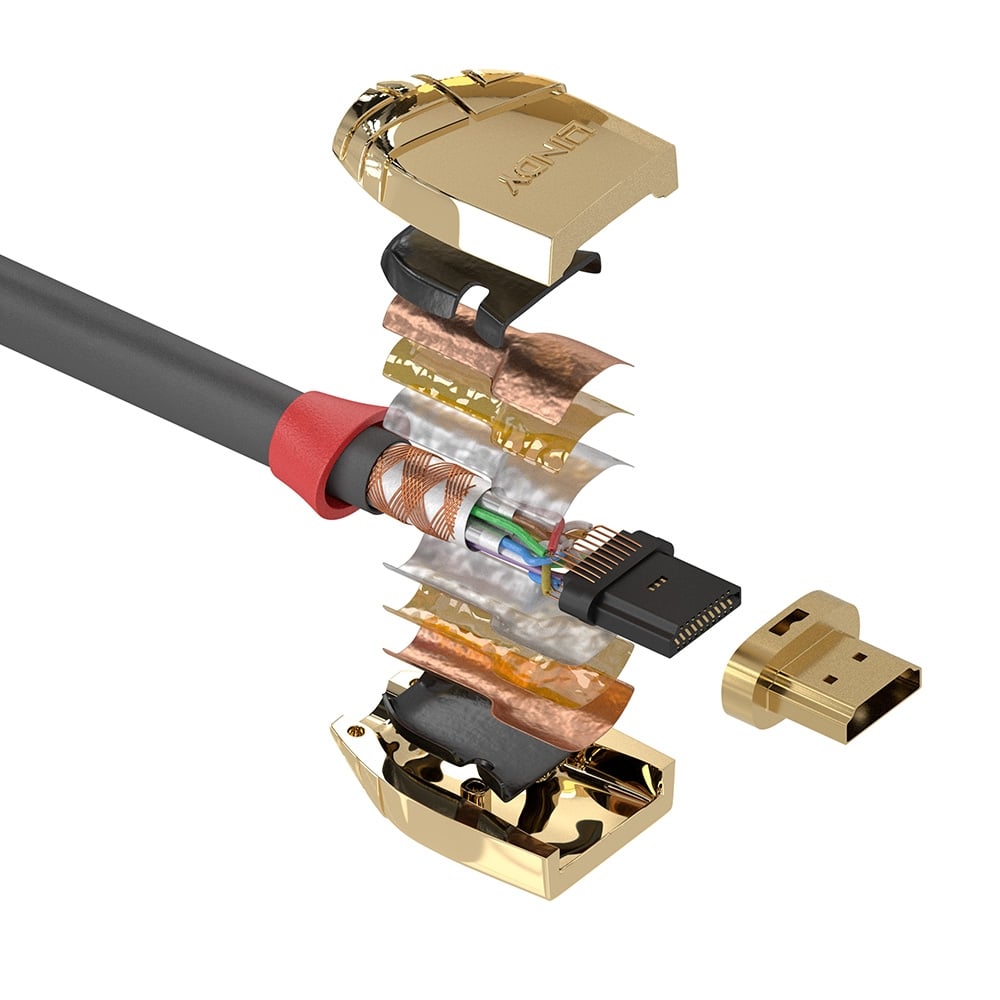

Gold Line High Speed HDMI cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Gold Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
The HDMI 2.0 specification is supported for 18G bandwidth capacity in cable lengths up to 7.5m. Gold Line HDMI cables are classified as High Speed up to 7.5m and Standard at lengths above 7.5m.
Features
Technical Information
Connectors | |
Connector A | HDMI Type A Male |
Connector B | HDMI Type A Male |
Housing Material | 24K Gold Plated Zinc Alloy |
Pin Construction | Phosphor Bronze |
Pin Plating | 24K Gold 15µm |
Connector Plating | 24K Gold 3µm |
Dimensions WxDxH (approx.) |
20x11.6x34.1mm (0.79x0.46x1.34in) |
Cable Construction | |
Lengths Available | 0.5m, 1m, 2m, 3m, 5m and 7.5m |
Colour | Grey |
Standard | High Speed HDMI with Ethernet |
Jacket Diameter | 8.5mm (0.33in) |
Jacket Material | PVC |
Conductor Material | OFC Copper |
Conductor Gauge | 24AWG |
Type | Round |
Shielding | Copper Braid, 85% |
Specifications | |
Supported Bandwidth | 18 Gbps |
Maximum Resolution | 4096x2160@60Hz 4:4:4 8bit |
Nominal Attenuation | 300kHz-825MHz ‹5dB, 825MHz-2.475GHz ‹5dB, 2.475GHz-4.125GHz ‹12dB, 4.125GHz-5.1GHz |
Minimum Band Radius | 85mm (3.35in) |
Operating Temperature | -10°C - 80°C (14°F - 176°F) |
Storage Temperature | -10°C - 80°C (14°F - 176°F) |
ATC Approved | Yes |
