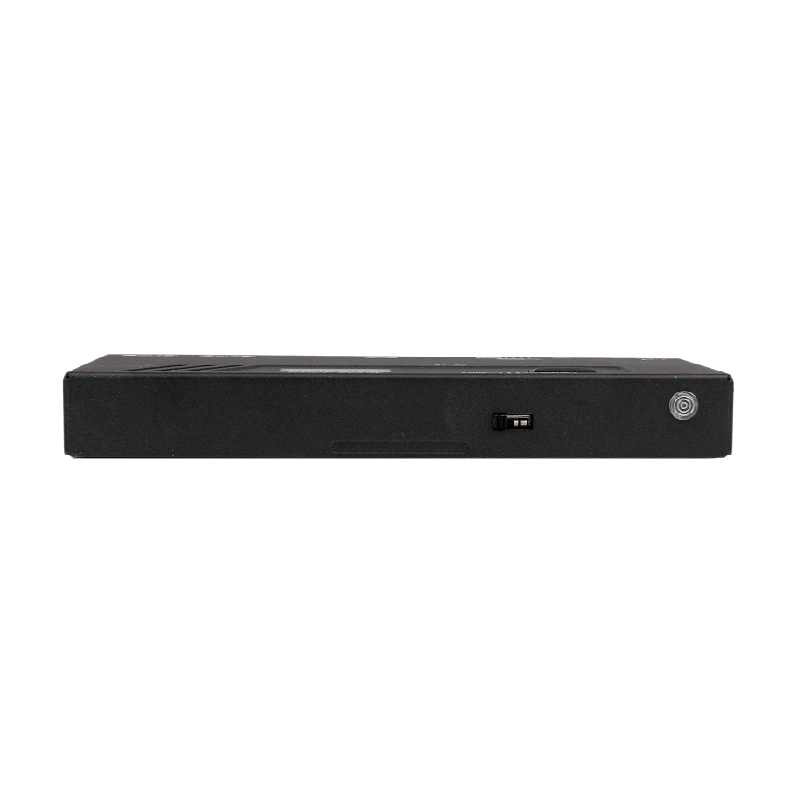

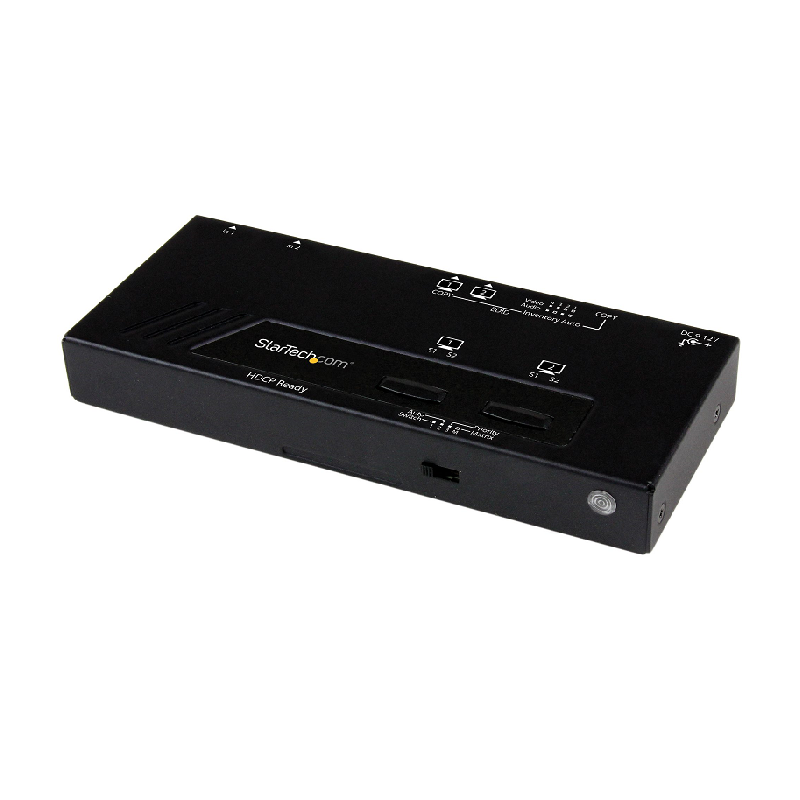

2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality
Save time and hassle by automatically switching between your HDMI audio/video sources. This 2x2 HDMI® matrix switcher provides the ultimate viewing experience, with support for Ultra HD 4K. It lets you connect two HDMI sources to two HDMI displays, with exceptional 4K resolution, while switching seamlessly between your video sources.
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.

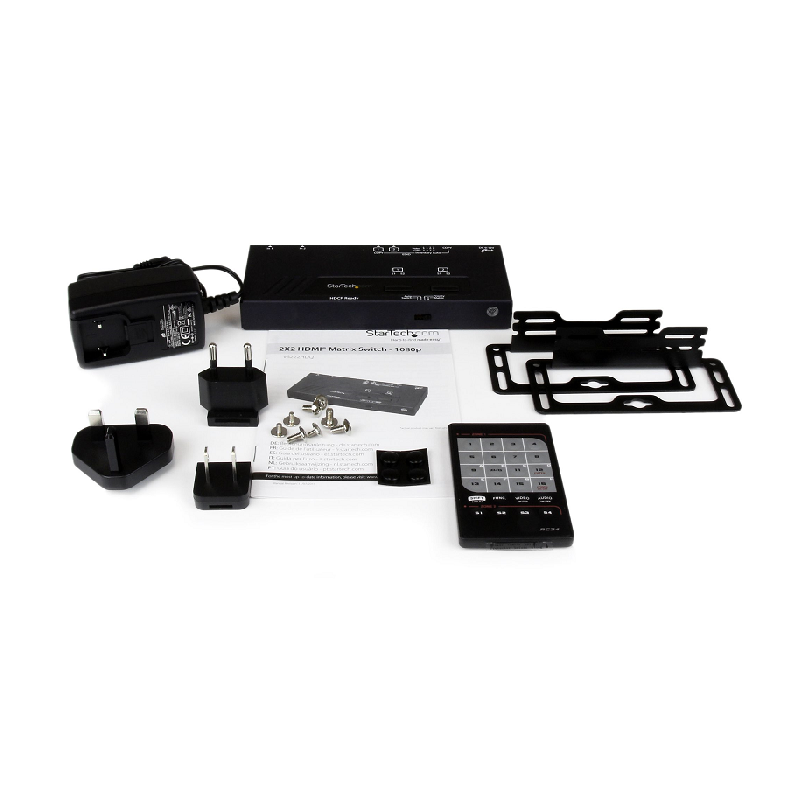

Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.

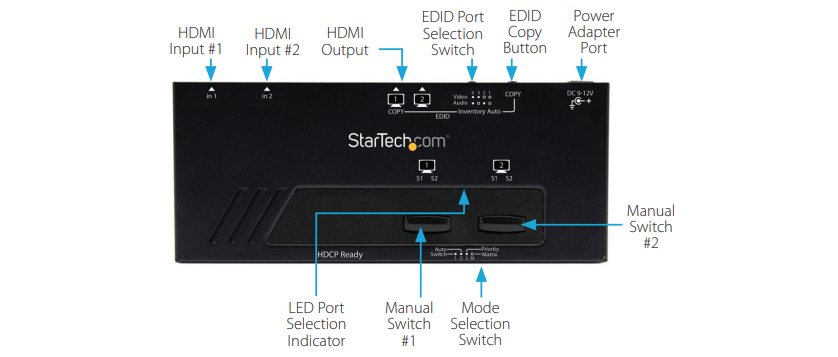

Enjoy hassle-free operation with four different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection: Independently switch two displays between two video sources.

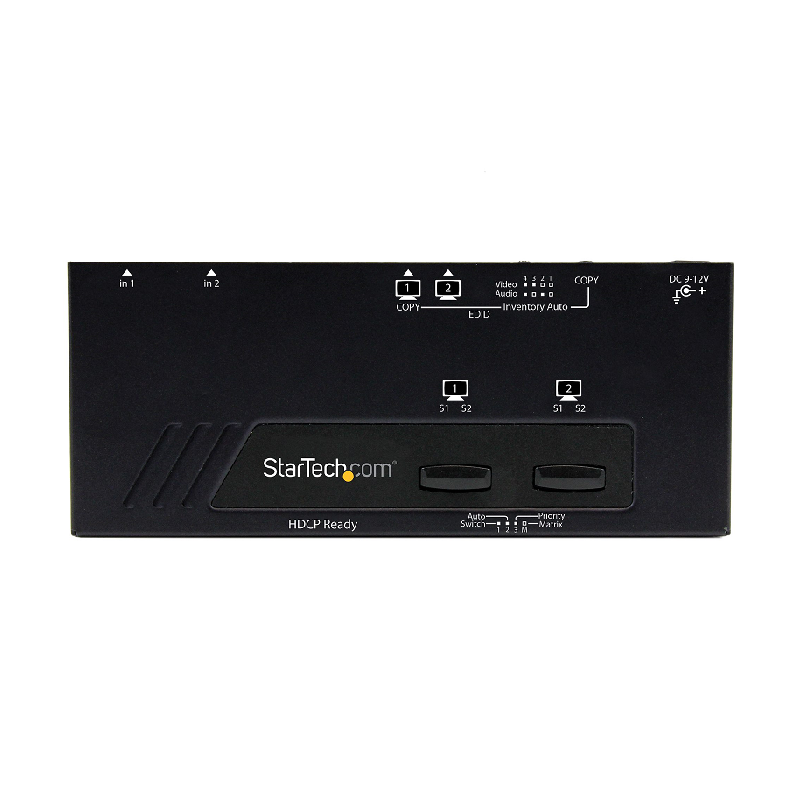

Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support.

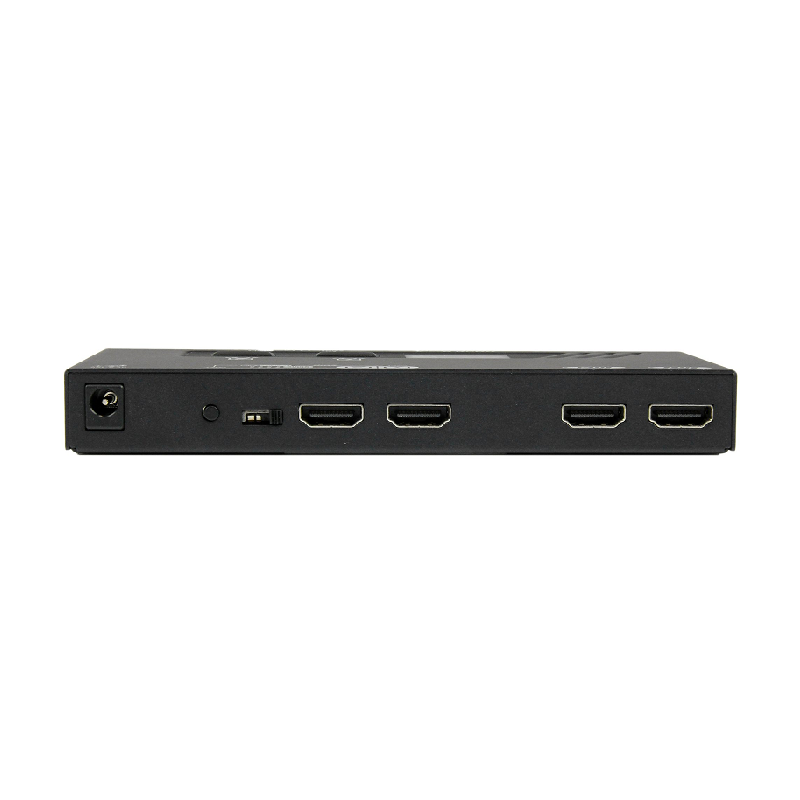

Ports & interfaces | |
Video port type | HDMI |
HDMI ports quantity | 4 |
Number of HDMI outputs | 2 |
HDMI in | 2 |
Features | |
Audio output channels | 7.1 channels |
Product colour | Black |
Supported video modes | 1080p, 720p |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Rack mounting | Yes |
Plug and Play | Yes |
Maximum operating distance | 10 m |
Material | Aluminium, Plastic |
LED indicators | Activity |
HDCP | Yes |
Power | |
AC adapter input voltage | 100 - 240 V |
AC adapter input current | 0.6 A |
AC adapter output voltage | 12 V |
AC adapter output current | 1.5 A |
Power plug type | Type M |
Power consumption (max) | 18 W |
Technical details | |
Audio output channels | 7.1 channels |
Product colour | Black |
Video port type | HDMI |
Supported video modes | 1080p, 720p |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Rack mounting | Yes |
Plug and Play | Yes |
Maximum operating distance | 10 m |
Material | Aluminium, Plastic |
LED indicators | Activity |
HDMI ports quantity | 4 |
HDCP | Yes |
Handheld remote control | Yes |
Sustainability certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 65 mm |
Height | 20 mm |
Depth | 157 mm |
Weight | 290 g |
Packaging data | |
Package width | 195 mm |
Package height | 72 mm |
Package depth | 292 mm |
Package weight | 545 g |
Manual | Yes |
AC adapter included | Yes |
Handheld remote control | Yes |
Plug adapter type | NA, EU, UK, AU |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
