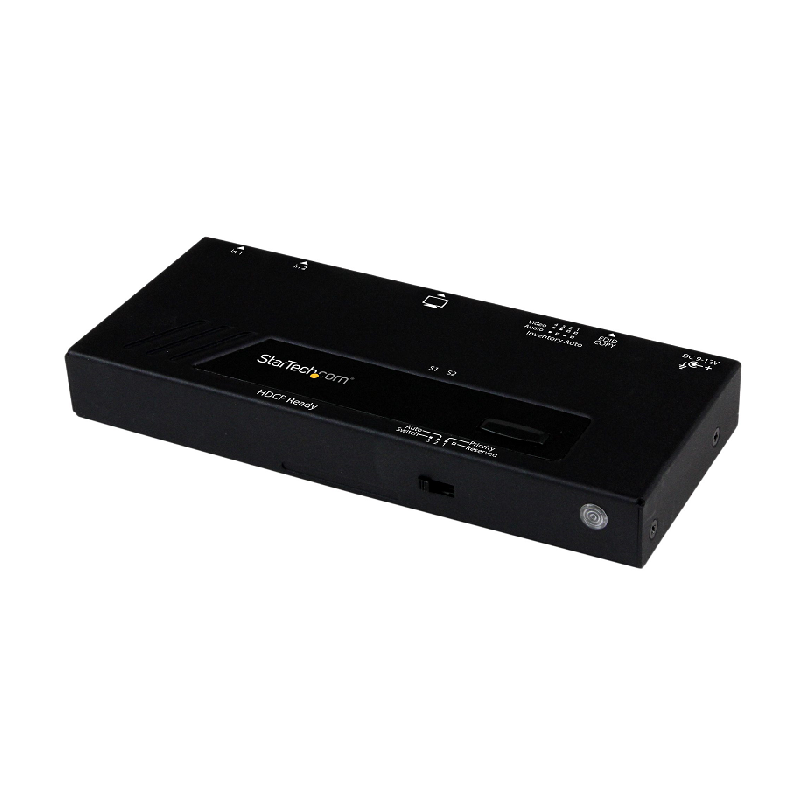

2 Port HDMI Switch w/ Automatic and Priority Switching - 1080p
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality
Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS221HDQ 2-Port HDMI Auto Switcher. This easy-to-use HDMI switch ensures seamless transition while switching video sources, with EDID copy maintaining your video resolution.
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.

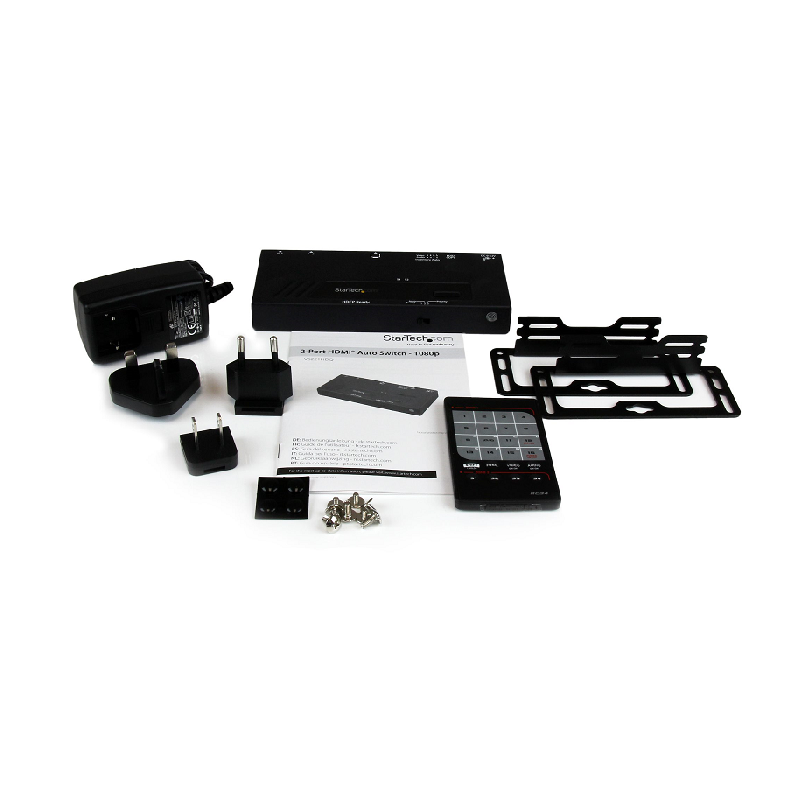

Save time by connecting two HDMI video source devices to your HDMI display instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Enjoy hassle-free operation with three different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support.
Ports & interfaces | |
Video port type | HDMI |
HDMI ports quantity | 3 |
Number of HDMI outputs | 2 |
HDMI in | 1 |
Features | |
Audio output channels | 7.1 channels |
Product colour | Black |
Supported video modes | 1080p, 720p |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Rack mounting | Yes |
Plug and Play | Yes |
Maximum resolution | 1920 x 1200 pixels |
Maximum operating distance | 10 m |
Material | Aluminium, Plastic |
LED indicators | Yes |
HDCP | Yes |
Extended display identification data (EDID) | Yes |
Power | |
AC adapter input current | 0.6 A |
AC adapter output voltage | 12 V |
AC adapter output current | 1.5 A |
Power plug type | Type M |
Power consumption (typical) | 18 W |
AC input voltage | 100 - 240 V |
Technical details | |
Audio output channels | 7.1 channels |
Product colour | Black |
Video port type | HDMI |
Supported video modes | 1080p, 720p |
Supported graphics resolutions | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
Rack mounting | Yes |
Plug and Play | Yes |
Maximum resolution | 1920 x 1200 pixels |
Maximum operating distance | 10 m |
Material | Aluminium, Plastic |
LED indicators | Yes |
HDMI ports quantity | 3 |
HDCP | Yes |
Handheld remote control | Yes |
Sustainability certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 65 mm |
Height | 20 mm |
Depth | 156 mm |
Weight | 290 g |
Packaging data | |
Package width | 197 mm |
Package height | 72 mm |
Package depth | 294 mm |
Package weight | 853 g |
Manual | Yes |
Handheld remote control | Yes |
Mounting kit | Yes |
Plug adapter type | NA, EU, UK, AU |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file

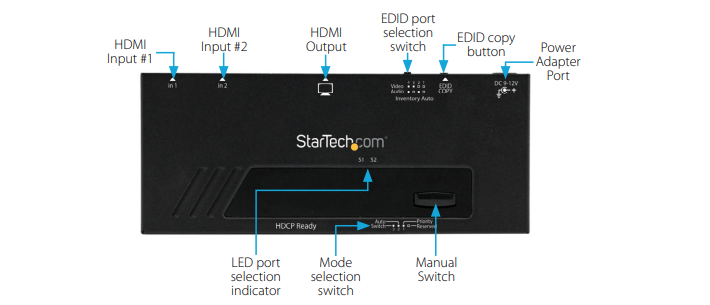

A product diagram can be found in the PDF file
