Length: |
| Part No: | LIN41424 |
| Manufacturer No: | 41424 |
| Delivery: | End of Life Product |
 |

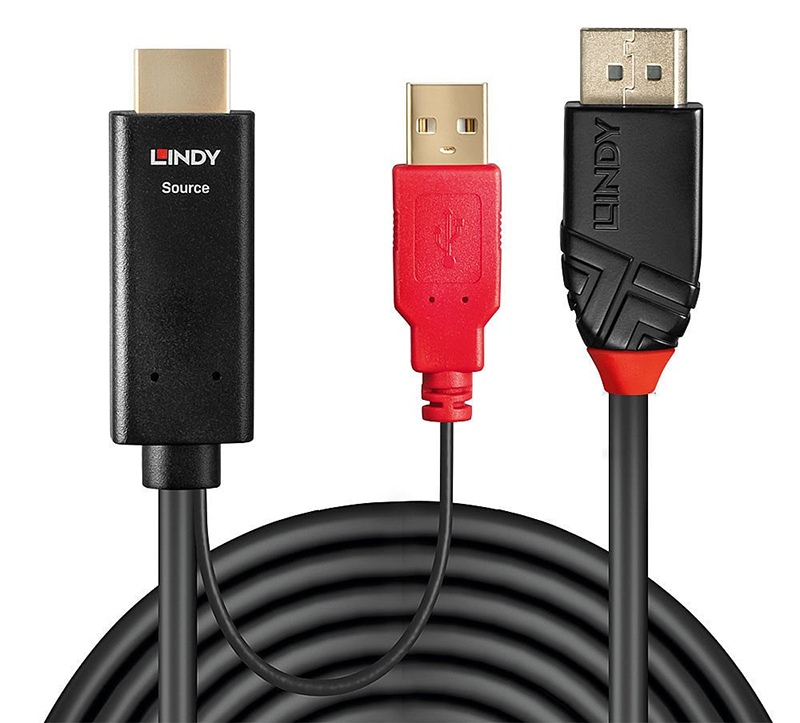

Lindy’s HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors.
With support for resolutions up to 4096x2160@30Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
Features
| Connectors | |
| Connector A | HDMI Type A Male, USB Type A Male |
| Connector B | DisplayPort A Male |
| Housing Material | ABS |
| Pin Construction | Phosphor Bronze |
| Pin Plating | Gold 15µm |
| Connector Plating | Gold 1µm |
|
Dimensions WxDxH (approx.) |
HDMI: 48x20.9x11.3mm (1.89x0.82x0.44in) USB: 37.5x15.8x8mm (1.48x0.62x0.31in) DisplayPort: 36.4x20x9.4mm (1.43x0.79x0.37in) |
| Cable Construction | |
| Lengths Available | 0.5m, 1m, 2m, 3m and 5m |
| Colour | Black |
| Standard | DisplayPort 1.2 |
| Jacket Diameter | 5.5mm (0.22in) |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 30AWG |
| Type | Round |
| Shielding | Aluminium Braid, 85% |
| Specifications | |
| Supported Bandwidth | 10.2Gbps/225MHz |
| Maximum Resolution | 4096x2160@30Hz 4:4:4 8bit |
| Nominal Attenuation | 300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB |
| Minimum Bend Radius | 55mm (2.17in) |
| Operating Temperature | 0°C - 45°C |
| Storage Temperature | -10°C - 80°C |
