| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Length: |
| Part No: | LIN48360 |
| Manufacturer No: | 48360 |
| Delivery: | In Stock: Next Day |
 |

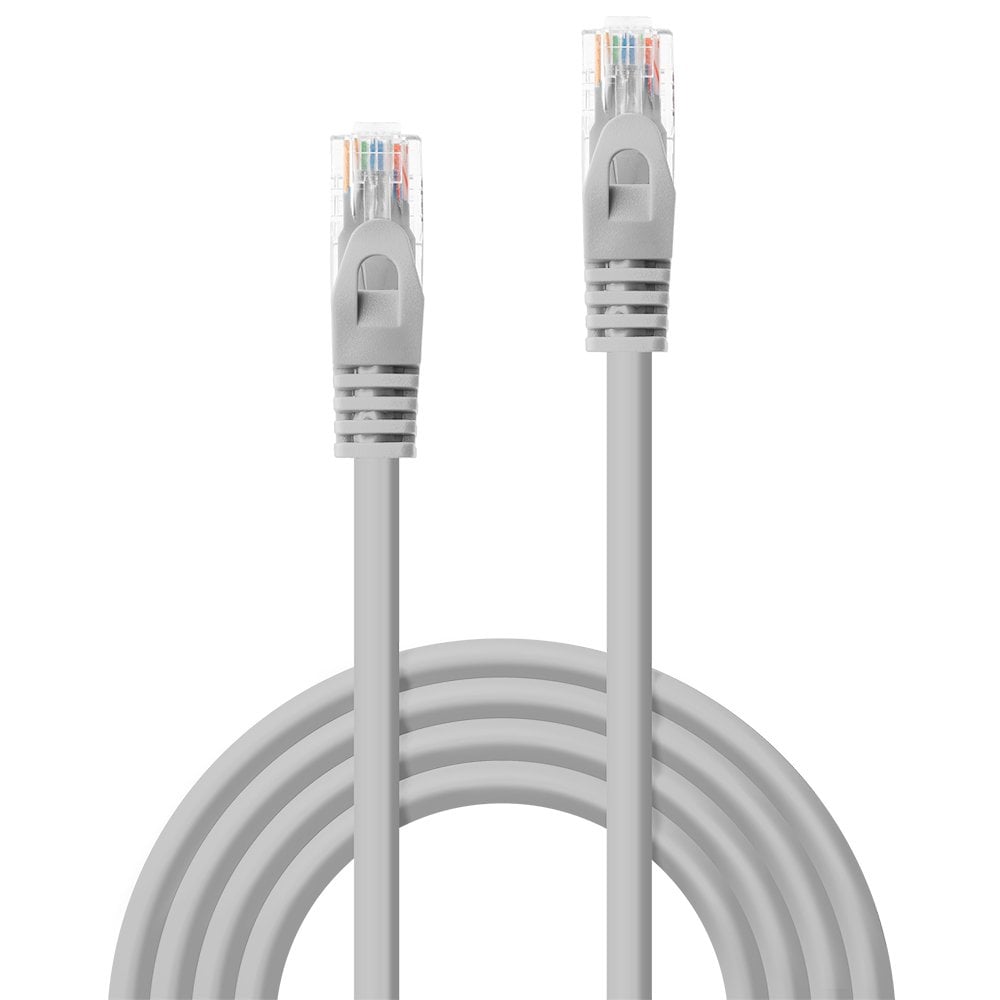

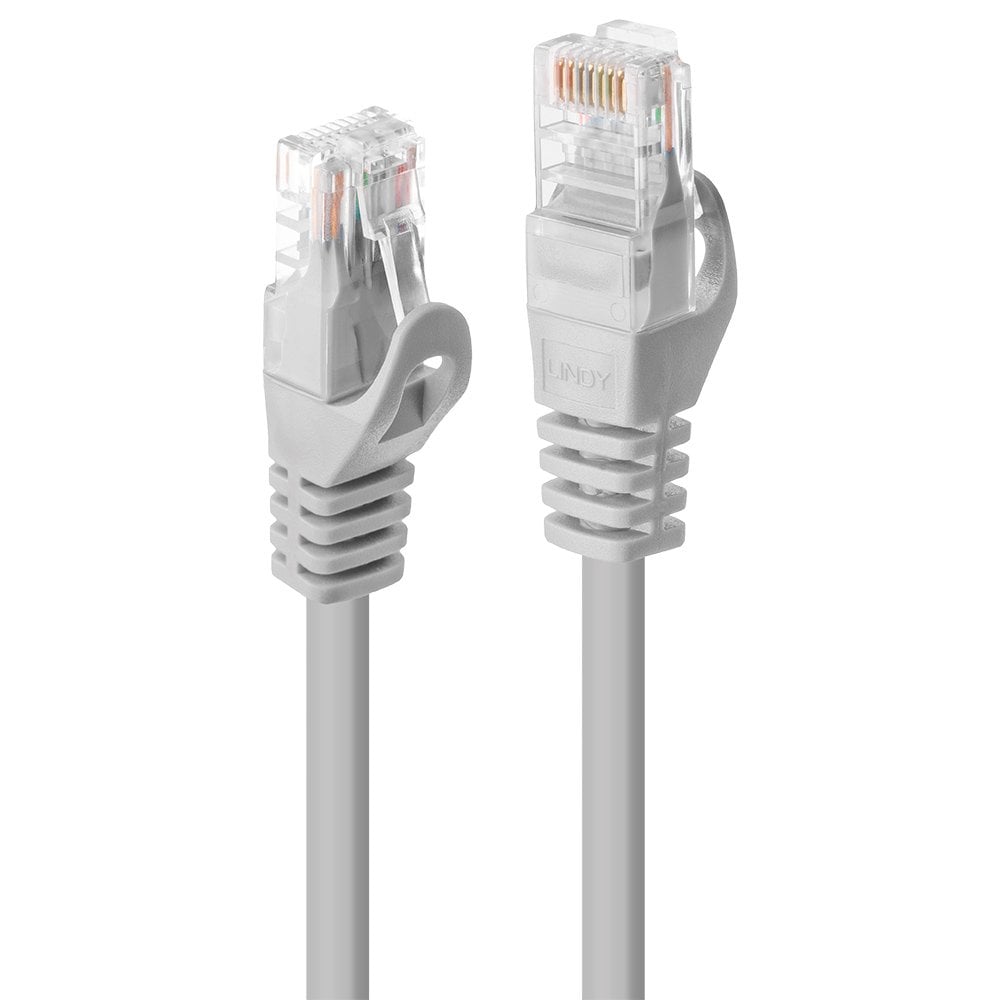

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding.

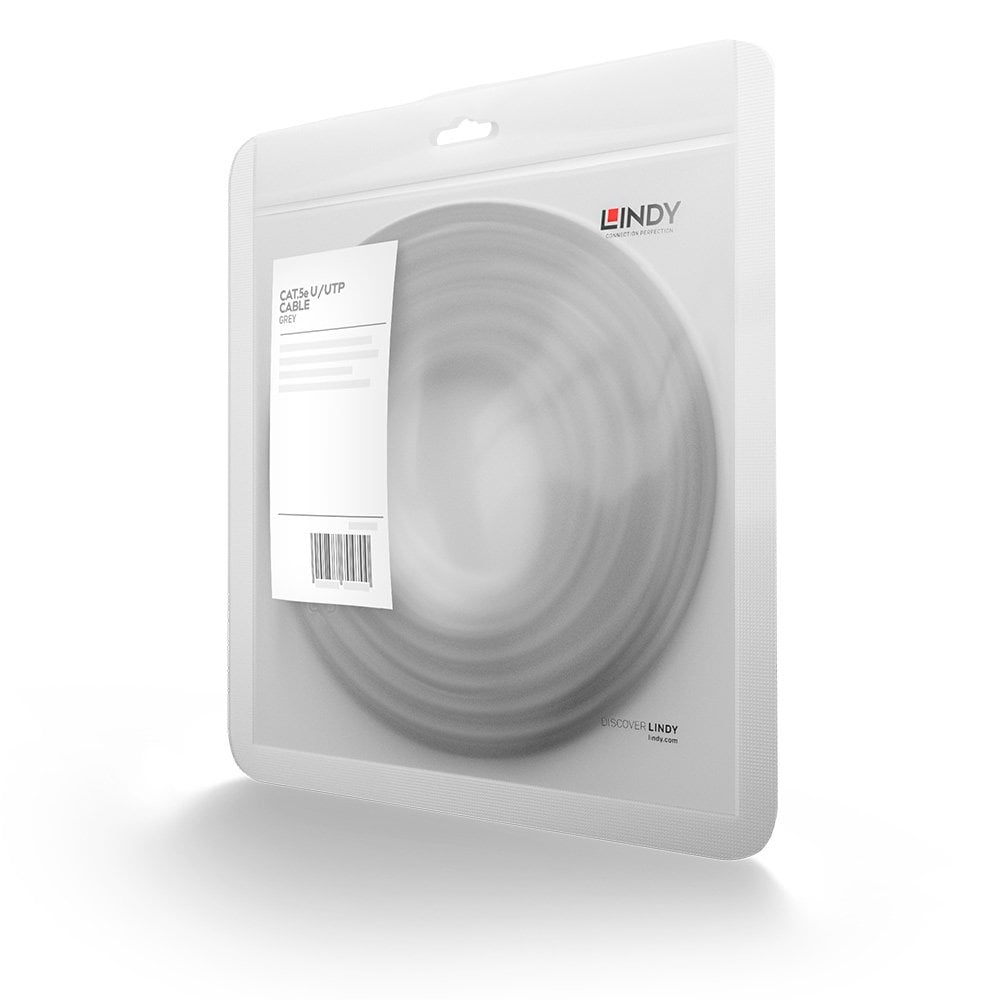

These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Features
Technical Specification
| Connectors | |
| Connector A | RJ45 Male |
| Connector B | RJ45 Male |
| Housing Material | Polycarbonate |
| Pin Construction | Copper Alloy |
| Pin Plating | Gold plated |
| Dimensions WxDxH (approx.) |
11.6x22.8x8.3mm (0.46x0.90x0.33in) |
| Connection | USB |
| Compatibility | Windows XP, Vista, 7, 8, 10 Linux |
| Cable Construction | |
| Lengths | 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m and 100m |
| Colour | Grey |
| Type | Cat.5e |
| Jacket Diameter | 4.8mm (0.19in) |
| Jacket Material | PVC |
| Conductor Material | Copper |
| Conductor Gauge | 26AWG |
| Specifications | |
| Supported Bandwidth | 100MHz |
| Nominal Attenuation | 24dB/100m @100MHz |
| Minimum Band Radius | 57mm (2.24in) |
| Operating Temperature | -10°C - 60°C (14°F - 140°F) |
| Storage Temperature | -20°C - 75°C (-4°F - 167°F) |
