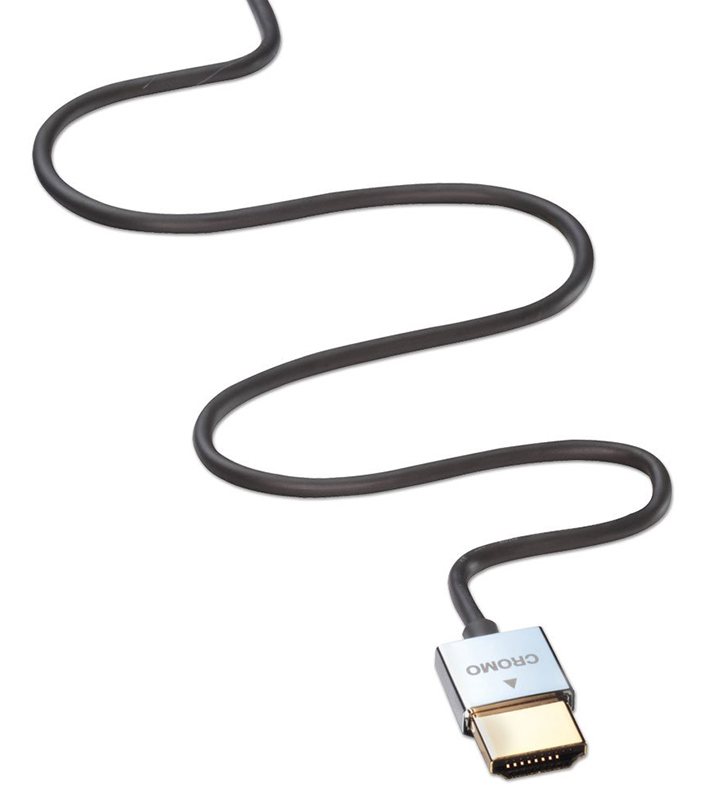

The CROMO Slim High Speed HDMI Cable with Ethernet is an affordable, high quality cable featuring gold plated contacts for better conductivity and resistance to corrosion and tarnishing.

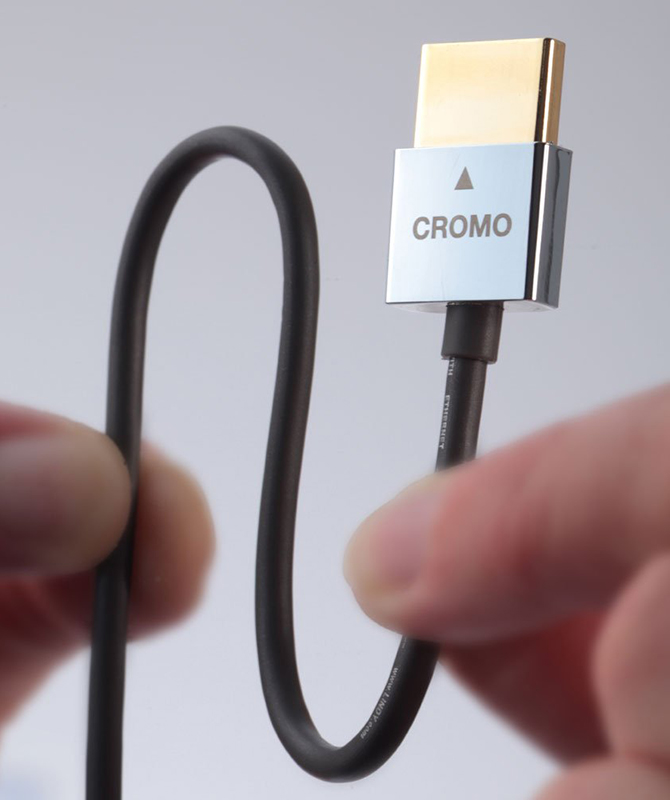

This super thin and flexible HDMI cable has been specially designed for connection to devices in confined spaces or with restricted access to the HDMI ports. The slim form factor also reduces the weight of the cable by around 80% compared to the standard CROMO® cables making it perfect for connecting to awkwardly placed devices in a rack or to displays mounted close to a wall.
HDMI ATC (Authorised Test Centre) certified for High Speed Category 2 compliance. Ethernet support allows compatible devices to connect to the internet
Features
Technical Information
Connectors | |
Connector A | HDMI Type A Male |
Connector B | HDMI Type A Male |
Housing Material | Chrome plated, ABS |
Pin Construction | Phosphor Bronze |
Pin Plating | 15?m Gold |
Connector Plating | Gold Plating |
Dimensions WxDxH (approx.) |
19x16x7mm / (0.75x0.63x0.28in) 21x16x7mm / (0.83x0.63x0.28in) for connector with chipset |
Cable Construction | |
Lengths Available | 0.3m, 0.5m, 1m, 2m and 4.5m |
Colour | Grey |
Standard | High Speed HDMI with Ethernet |
Jacket Diameter | 3.2mm (0.13in) |
Jacket Material | PVC |
Conductor Material | Tinned Copper |
Conductor Gauge | 36AWG |
Type | Round |
Shielding | Copper Braid, 85% |
Specifications | |
Supported Bandwidth | 18 Gbps Gbps |
Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
Nominal Attenuation | 0.5Mhz – 5.1Ghz < 25db |
Minimum Bend Radius | 32mm (1.26in) |
Operating Temperature | -10°C - 80°C (14°F - 176°F) |
Storage Temperature | -10°C - 80°C (14°F - 176°F) |
The CROMO Slim High Speed HDMI Cable with Ethernet is an affordable, high quality cable featuring gold plated contacts for better conductivity and resistance to corrosion and tarnishing.
This super thin and flexible HDMI cable has been specially designed for connection to devices in confined spaces or with restricted access to the HDMI ports. The slim form factor also reduces the weight of the cable by around 80% compared to the standard CROMO® cables making it perfect for connecting to awkwardly placed devices in a rack or to displays mounted close to a wall.
HDMI ATC (Authorised Test Centre) certified for High Speed Category 2 compliance. Ethernet support allows compatible devices to connect to the internet
Features
Technical Information
Connectors | |
Connector A | HDMI Type A Male |
Connector B | HDMI Type A Male |
Housing Material | Chrome plated, ABS |
Pin Construction | Phosphor Bronze |
Pin Plating | 15?m Gold |
Connector Plating | Gold Plating |
Dimensions WxDxH (approx.) |
19x16x7mm / (0.75x0.63x0.28in) 21x16x7mm / (0.83x0.63x0.28in) for connector with chipset |
Cable Construction | |
Lengths Available | 0.3m, 0.5m, 1m, 2m and 4.5m |
Colour | Grey |
Standard | High Speed HDMI with Ethernet |
Jacket Diameter | 3.2mm (0.13in) |
Jacket Material | PVC |
Conductor Material | Tinned Copper |
Conductor Gauge | 36AWG |
Type | Round |
Shielding | Copper Braid, 85% |
Specifications | |
Supported Bandwidth | 18 Gbps Gbps |
Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
Nominal Attenuation | 0.5Mhz – 5.1Ghz < 25db |
Minimum Bend Radius | 32mm (1.26in) |
Operating Temperature | -10°C - 80°C (14°F - 176°F) |
Storage Temperature | -10°C - 80°C (14°F - 176°F) |
