| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Length: |
| Part No: | LIN36310 |
| Manufacturer No: | 36310 |
| Delivery: | In Stock: Next Day |
 |

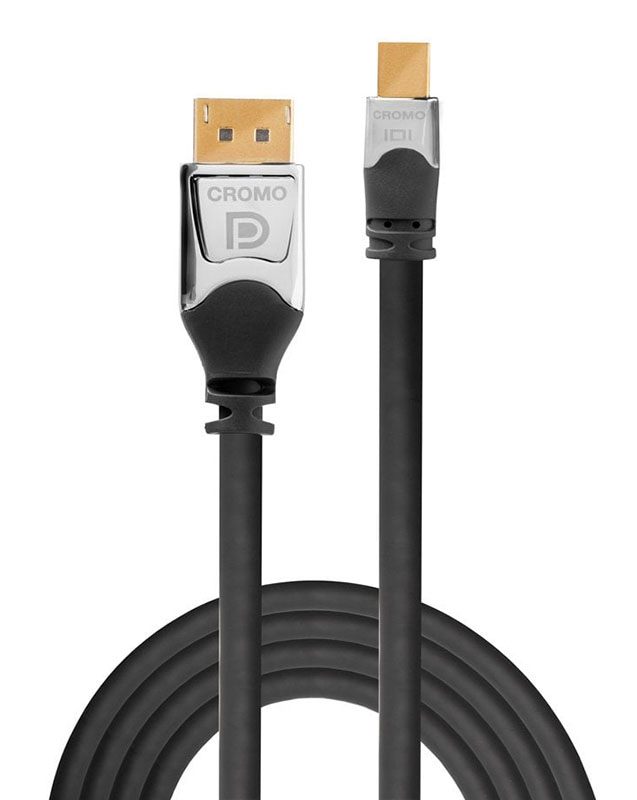

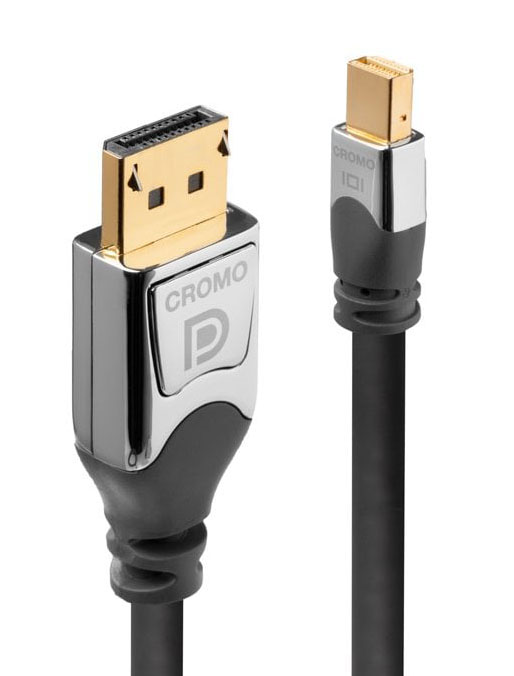

CROMO Mini DisplayPort To DisplayPort Cables feature triple shielded construction with 32AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. CROMO DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
CROMO cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
Features
Technical Information
| Connectors | |
| Connector A | Mini DisplayPort 20 Pin Male |
| Connector B | DisplayPort 20 Pin Male |
| Housing Material | Chrome plated, ABS |
| Pin Construction | Phosphor bronze |
| Pin Plating | 15?m Gold |
| Connector Plating | 3?m Gold |
|
Dimensions WxDxH (approx.) |
Mini DisplayPort: 10 x 7 x 32mm DisplayPort: 20 x 12 x 35mm |
| Cable Construction | |
| Lengths Available | 0.5m, 1m, 2m, 3m and 5m |
| Colour | Grey |
| Standard | DisplayPort 1.2 compatible |
| Jacket Diameter | 5.5mm |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 32AWG |
| Type | Round |
| Shielding | copper braid, 85% coverage |
| Specifications | |
| Supported Bandwidth | 17.28Gbps in HBR2 mode |
| Maximum Resolution | 4096x2160p 60Hz including 3D (stereoscopic) |
| Maximum colour depth | UHD up to 4K 60Hz (4: 4: 4 10bpc) |
| Nominal Damping: | 300kHz-825MHz - <5dB 825MHz-2.475GHz - <5dB 2.475GHz-4.125GHz - <12dB 4.125GHz-5.1GHz - <20dB |
| Minimum Bend Radius | 55mm |
| Operating Temperature | -25°C - 85°C |
| Storage Temperature | -25°C - 85°C |
CROMO Mini DisplayPort To DisplayPort Cables feature triple shielded construction with 32AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. CROMO DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
CROMO cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
Features
Technical Information
| Connectors | |
| Connector A | Mini DisplayPort 20 Pin Male |
| Connector B | DisplayPort 20 Pin Male |
| Housing Material | Chrome plated, ABS |
| Pin Construction | Phosphor bronze |
| Pin Plating | 15?m Gold |
| Connector Plating | 3?m Gold |
|
Dimensions WxDxH (approx.) |
Mini DisplayPort: 10 x 7 x 32mm DisplayPort: 20 x 12 x 35mm |
| Cable Construction | |
| Lengths Available | 0.5m, 1m, 2m, 3m and 5m |
| Colour | Grey |
| Standard | DisplayPort 1.2 compatible |
| Jacket Diameter | 5.5mm |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 32AWG |
| Type | Round |
| Shielding | copper braid, 85% coverage |
| Specifications | |
| Supported Bandwidth | 17.28Gbps in HBR2 mode |
| Maximum Resolution | 4096x2160p 60Hz including 3D (stereoscopic) |
| Maximum colour depth | UHD up to 4K 60Hz (4: 4: 4 10bpc) |
| Nominal Damping: | 300kHz-825MHz - <5dB 825MHz-2.475GHz - <5dB 2.475GHz-4.125GHz - <12dB 4.125GHz-5.1GHz - <20dB |
| Minimum Bend Radius | 55mm |
| Operating Temperature | -25°C - 85°C |
| Storage Temperature | -25°C - 85°C |
