HPE P83112-425 ProLiant ML110 EU Server

Built for demanding SMB workloads, the HPE ProLiant ML110 Gen11 featuring the Intel Xeon Silver 4514Y processor brings enterprise-level performance to a compact tower chassis. With a base frequency of 2.0 GHz, turbo boost up to 3.4 GHz, and 16 cores, it’s engineered to support scalable computing needs. Enhanced with 64 GB DDR5 memory, dual 480 GB SATA SSDs, and redundant power options, this 4.5U tower server delivers reliable performance, flexible expansion, and secure remote management for branch offices and growing infrastructure environments.

Key Features:

• Intel Xeon Silver 4514Y processor with 16 cores, 30 MB cache, 2.0 GHz base and 3.4 GHz boost speeds
• 64 GB DDR5-SDRAM (2 x 32 GB modules) with 5600 MHz memory clock, expandable to 1.5 TB via 16 DIMM slots
• Dual 480 GB SATA III SSDs (2.5") installed; supports up to 8 SSDs with RAID capabilities
• Broadcom 5720 Gigabit Ethernet with two RJ-45 ports for stable and efficient network connectivity
• 4.5U tower chassis design with active cooling, rack-mountable with 5.5U conversion kit
• Advanced PCIe Gen5 expandability: 4 x16 slots and 1 x16 OCP 3.0 slot for future upgrades
• HPE iLO 6 for comprehensive remote management, monitoring, and system updates
• Dual 1000W power supplies (1+1 redundancy) to ensure system uptime and failover protection
• Rear I/O ports: 2 x Gigabit Ethernet, 3 x USB 3.2 Gen 1, 1 x VGA, 1 x DisplayPort

Precision Computing with Intel Xeon Silver 4514Y

Experience robust processing with Intel’s Xeon Silver 4514Y, delivering 16-core parallelism and high-speed responsiveness for multi-threaded business applications, virtualization, and database management tasks.

Memory That Adapts to Your Growth

Outfitted with 64 GB of DDR5 memory, the ML110 Gen11 supports a maximum of 1.5 TB across 16 DIMM slots. This future-ready memory configuration ensures your infrastructure remains responsive as workload demands scale.

Secure Storage with RAID Flexibility

Dual 480 GB SSDs offer fast data access and enhanced durability. With support for up to 8 SSDs and integrated RAID options, the server allows for scalable, secure storage tailored to your organization’s data footprint.

Power Redundancy in a Compact Tower

Designed for mission-critical uptime, the server comes with dual 1000W redundant power supplies and active cooling. The 4.5U black tower chassis fits easily into tight IT spaces or racks with minimal conversion effort.

Remote Control Made Easy with iLO 6

Monitor, configure, and troubleshoot your server remotely with HPE iLO 6, allowing IT administrators to maintain control and visibility from virtually anywhere without compromising security.

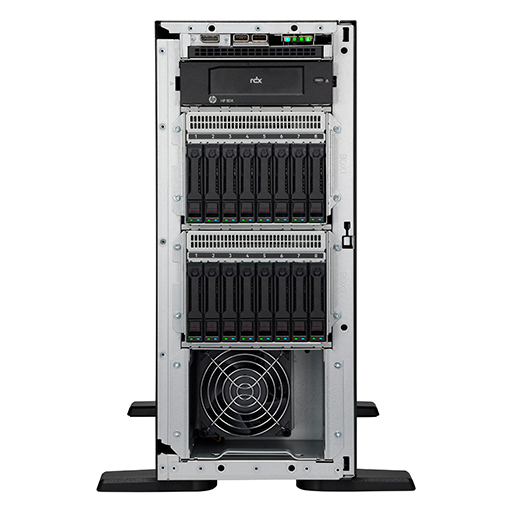

I/O Diagram (Front)

Key	Component
1	DisplayPort 1.1a
2	USB 3.2 Gen1 port
3	iLO service port
4	UID button/LED
5	NIC status LED
6	Health LED
7	Power on/Standby button and system power LED
8	Optical drive bay
9	Media Bay: optional internal USB RDX docking station
10	Box1: 4LFF/NHP or 8SFF SAS/SATA drive cage
11	Box2: Optional 4LFF/NHP or 8SFF SAS/SATA drive cage

Note: Image shown without the security front bezel which is standard in every ML110 Gen11 unit.

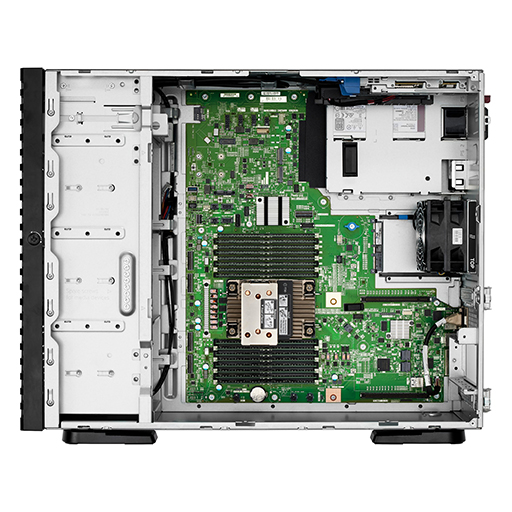

I/O Diagram (Side)

Key	Component
1	CPU Socket with 16 DDR5 DIMM slots
2	M.2 Slot 2
3	M.2 Slot 1
4	x8 SlimSAS port
5	Megacell battery holder (Under)
6	HPE NS204i-u NVMe Hot Plug Boot Device (Optional)
7	Slot 14 OCP 1 (Optional for OROC/NIC)
8	Slot 4 PCIe5 x16
9	USB 2.0 port
10	Slot 1 PCIe5 x16
11	MCIO port 1 for the riser slot 2
12	MCIO port 2 for the riser slot 2
13	MCIO port 3 for the riser slot 3
14	MCIO port 4 for the riser slot 3
15	USB 3.2 Gen 1 port

---

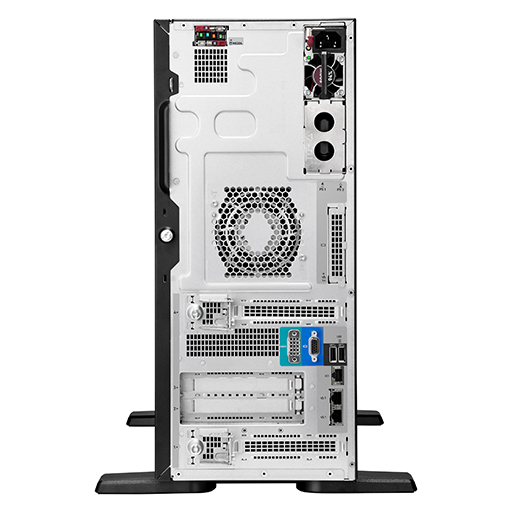

I/O Diagram (Back)

Key	Component
1	HPE NS204i-u Gen11 NVMe Hot Plug Boot Device (Optional)
2	Flexible Slot power supply 1
3	Flexible Slot power supply 2
4	Slot 14 OCP 1 (Optional for OROC/NIC OCP adapter)
5	Serial port (Optional)
6	VGA Port
7	Dual USB 3.2 Gen 1 ports
8	iLO management port
9	Dual NIC ports (1 GbE)
10	Slot 1 PCIe5 x16
11	Slot 2 PCIe5 x16 (Optional riser kit required)
12	Slot 3 PCIe5 x16 (Optional riser kit required)
13	Slot 4 PCIe5 x16
