| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | HPP77234-425 |
| Manufacturer No: | P77234-425 |
| Delivery: | In Stock: Next Day |
 |
The HPE ProLiant ML110 Gen11 (P77234-425) is designed for powerful performance in a compact tower form factor. Featuring a 12-core Intel® Xeon® Silver 4510 processor at 2.4 GHz (boosting to 4.1 GHz), this server includes 32 GB of DDR5 memory running at 5600 MHz. With the Intel C741 chipset, it delivers enterprise-class performance for growing businesses. The system comes with 8 TB of pre-installed SATA storage (2x 4 TB HDDs), supports RAID, and allows expansion up to 192 TB. Dual Gigabit Ethernet, redundant 1000W power supplies, and a rack-convertible chassis round out this balanced and reliable solution.
This ML110 Gen11 model runs on a single Intel® Xeon® Silver 4510 processor delivering a balance of 12-core multi-threaded performance with 30 MB cache, ideal for virtualized workloads, file sharing, ERP/CRM systems, and VDI. It leverages DDR5 memory at 5600 MHz to support advanced application requirements and reduce latency under load.
Preloaded with two 4 TB 3.5" SATA drives and built to scale, the server supports up to 4 LFF drives with RAID, enabling growth to 192 TB maximum capacity. It offers reliable, protected data handling for storage-intensive environments while remaining energy-conscious and space-efficient.
Featuring dual Gigabit Ethernet via Broadcom 5720 and multiple high-speed USB 3.2 ports, the server ensures reliable connectivity and ease of device integration. Expand performance capabilities with multiple PCIe Gen5 slots, providing ample bandwidth for storage controllers, graphics accelerators, or networking cards.
The system is equipped with two 1000W redundant power supplies to ensure consistent uptime and failover protection. With TPM 2.0 onboard, system integrity and secure boot processes are standard. The server's intelligent design promotes reliability, manageability, and peace of mind for IT administrators handling critical infrastructure.

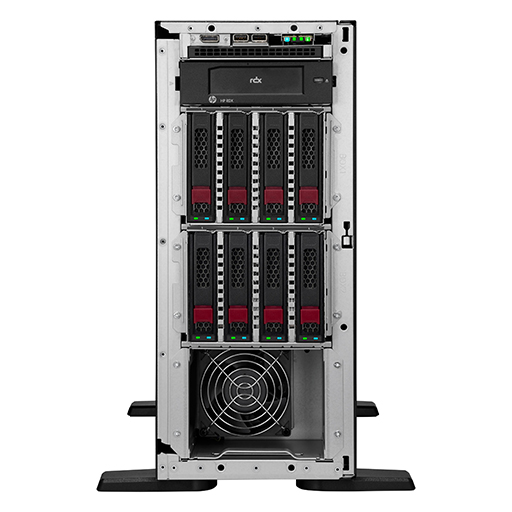

| Key | Component |
|---|---|
| 1 | DisplayPort 1.1a |
| 2 | USB 3.2 Gen1 port |
| 3 | iLO service port |
| 4 | UID button/LED |
| 5 | NIC status LED |
| 6 | Health LED |
| 7 | Power on/Standby button and system power LED |
| 8 | Optical drive bay |
| 9 | Media Bay: optional internal USB RDX docking station |
| 10 | Box1: 4LFF/NHP or 8SFF SAS/SATA drive cage |
| 11 | Box2: Optional 4LFF/NHP or 8SFF SAS/SATA drive cage |
Note: Image shown without the security front bezel which is standard in every ML110 Gen11 unit.

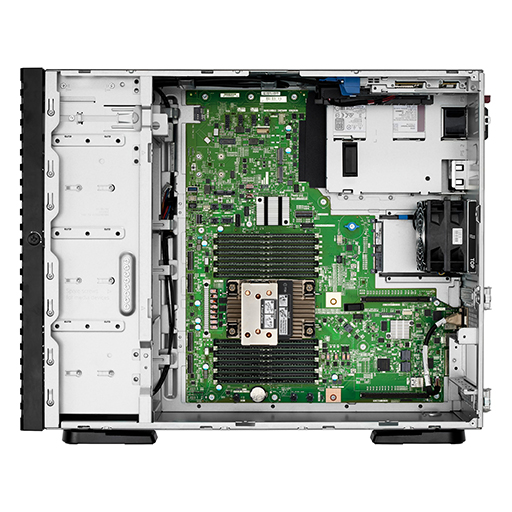

| Key | Component |
|---|---|
| 1 | CPU Socket with 16 DDR5 DIMM slots |
| 2 | M.2 Slot 2 |
| 3 | M.2 Slot 1 |
| 4 | x8 SlimSAS port |
| 5 | Megacell battery holder (Under) |
| 6 | HPE NS204i-u NVMe Hot Plug Boot Device (Optional) |
| 7 | Slot 14 OCP 1 (Optional for OROC/NIC) |
| 8 | Slot 4 PCIe5 x16 |
| 9 | USB 2.0 port |
| 10 | Slot 1 PCIe5 x16 |
| 11 | MCIO port 1 for the riser slot 2 |
| 12 | MCIO port 2 for the riser slot 2 |
| 13 | MCIO port 3 for the riser slot 3 |
| 14 | MCIO port 4 for the riser slot 3 |
| 15 | USB 3.2 Gen 1 port |

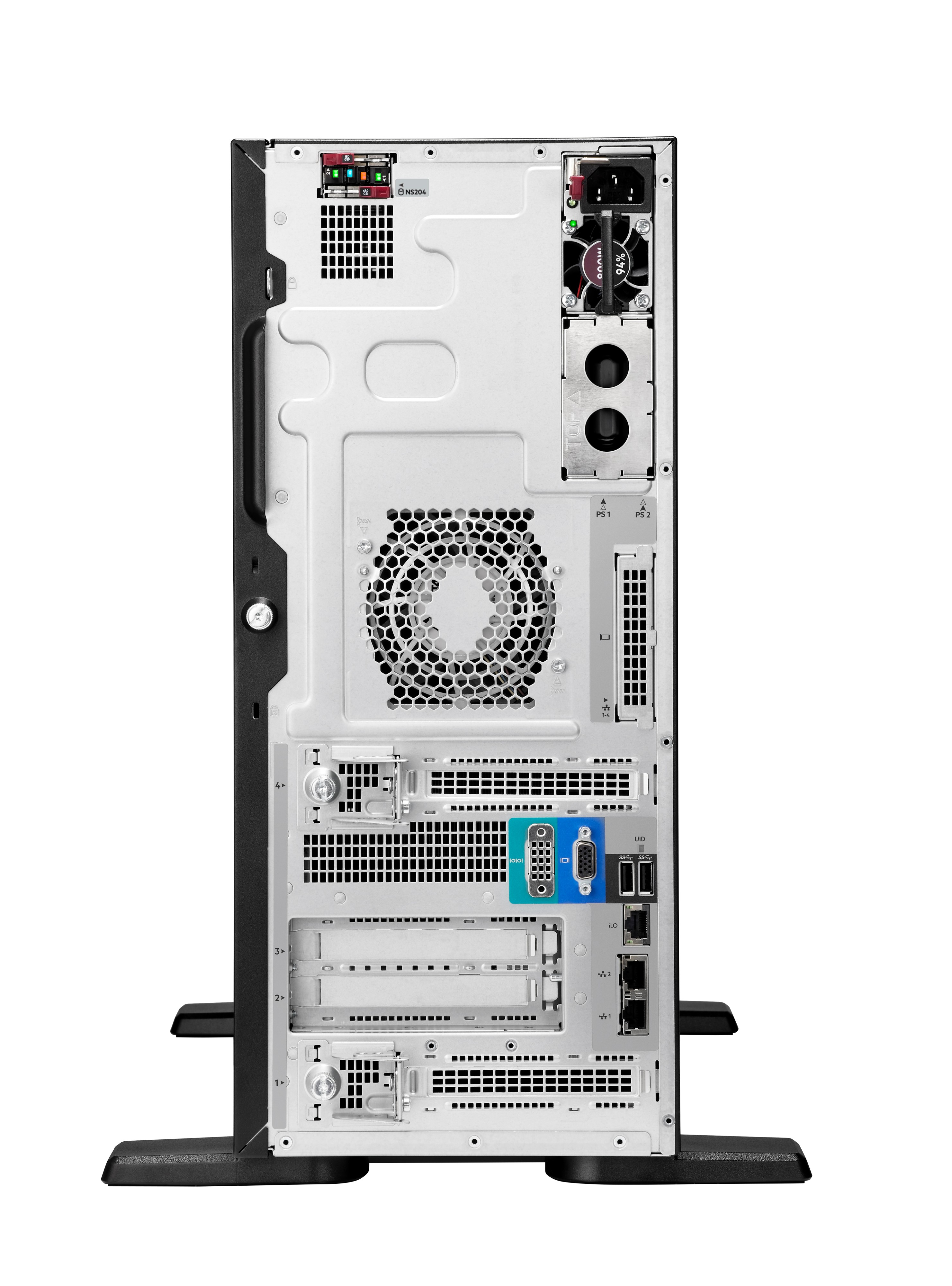

| Key | Component |
|---|---|
| 1 | HPE NS204i-u Gen11 NVMe Hot Plug Boot Device (Optional) |
| 2 | Flexible Slot power supply 1 |
| 3 | Flexible Slot power supply 2 |
| 4 | Slot 14 OCP 1 (Optional for OROC/NIC OCP adapter) |
| 5 | Serial port (Optional) |
| 6 | VGA Port |
| 7 | Dual USB 3.2 Gen 1 ports |
| 8 | iLO management port |
| 9 | Dual NIC ports (1 GbE) |
| 10 | Slot 1 PCIe5 x16 |
| 11 | Slot 2 PCIe5 x16 (Optional riser kit required) |
| 12 | Slot 3 PCIe5 x16 (Optional riser kit required) |
| 13 | Slot 4 PCIe5 x16 |
The HPE ProLiant ML110 Gen11 (P77234-425) is designed for powerful performance in a compact tower form factor. Featuring a 12-core Intel® Xeon® Silver 4510 processor at 2.4 GHz (boosting to 4.1 GHz), this server includes 32 GB of DDR5 memory running at 5600 MHz. With the Intel C741 chipset, it delivers enterprise-class performance for growing businesses. The system comes with 8 TB of pre-installed SATA storage (2x 4 TB HDDs), supports RAID, and allows expansion up to 192 TB. Dual Gigabit Ethernet, redundant 1000W power supplies, and a rack-convertible chassis round out this balanced and reliable solution.
This ML110 Gen11 model runs on a single Intel® Xeon® Silver 4510 processor delivering a balance of 12-core multi-threaded performance with 30 MB cache, ideal for virtualized workloads, file sharing, ERP/CRM systems, and VDI. It leverages DDR5 memory at 5600 MHz to support advanced application requirements and reduce latency under load.
Preloaded with two 4 TB 3.5" SATA drives and built to scale, the server supports up to 4 LFF drives with RAID, enabling growth to 192 TB maximum capacity. It offers reliable, protected data handling for storage-intensive environments while remaining energy-conscious and space-efficient.
Featuring dual Gigabit Ethernet via Broadcom 5720 and multiple high-speed USB 3.2 ports, the server ensures reliable connectivity and ease of device integration. Expand performance capabilities with multiple PCIe Gen5 slots, providing ample bandwidth for storage controllers, graphics accelerators, or networking cards.
The system is equipped with two 1000W redundant power supplies to ensure consistent uptime and failover protection. With TPM 2.0 onboard, system integrity and secure boot processes are standard. The server's intelligent design promotes reliability, manageability, and peace of mind for IT administrators handling critical infrastructure.
| Key | Component |
|---|---|
| 1 | DisplayPort 1.1a |
| 2 | USB 3.2 Gen1 port |
| 3 | iLO service port |
| 4 | UID button/LED |
| 5 | NIC status LED |
| 6 | Health LED |
| 7 | Power on/Standby button and system power LED |
| 8 | Optical drive bay |
| 9 | Media Bay: optional internal USB RDX docking station |
| 10 | Box1: 4LFF/NHP or 8SFF SAS/SATA drive cage |
| 11 | Box2: Optional 4LFF/NHP or 8SFF SAS/SATA drive cage |
Note: Image shown without the security front bezel which is standard in every ML110 Gen11 unit.
| Key | Component |
|---|---|
| 1 | CPU Socket with 16 DDR5 DIMM slots |
| 2 | M.2 Slot 2 |
| 3 | M.2 Slot 1 |
| 4 | x8 SlimSAS port |
| 5 | Megacell battery holder (Under) |
| 6 | HPE NS204i-u NVMe Hot Plug Boot Device (Optional) |
| 7 | Slot 14 OCP 1 (Optional for OROC/NIC) |
| 8 | Slot 4 PCIe5 x16 |
| 9 | USB 2.0 port |
| 10 | Slot 1 PCIe5 x16 |
| 11 | MCIO port 1 for the riser slot 2 |
| 12 | MCIO port 2 for the riser slot 2 |
| 13 | MCIO port 3 for the riser slot 3 |
| 14 | MCIO port 4 for the riser slot 3 |
| 15 | USB 3.2 Gen 1 port |
| Key | Component |
|---|---|
| 1 | HPE NS204i-u Gen11 NVMe Hot Plug Boot Device (Optional) |
| 2 | Flexible Slot power supply 1 |
| 3 | Flexible Slot power supply 2 |
| 4 | Slot 14 OCP 1 (Optional for OROC/NIC OCP adapter) |
| 5 | Serial port (Optional) |
| 6 | VGA Port |
| 7 | Dual USB 3.2 Gen 1 ports |
| 8 | iLO management port |
| 9 | Dual NIC ports (1 GbE) |
| 10 | Slot 1 PCIe5 x16 |
| 11 | Slot 2 PCIe5 x16 (Optional riser kit required) |
| 12 | Slot 3 PCIe5 x16 (Optional riser kit required) |
| 13 | Slot 4 PCIe5 x16 |
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
