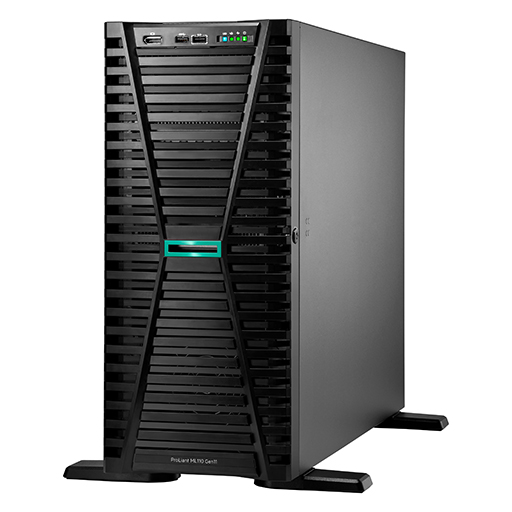

HPE P81774-425 ProLiant ML110 Server

The HPE ProLiant ML110 Gen11 is a reliable and scalable tower server tailored for small to mid-sized businesses needing dependable compute, storage, and remote management capabilities. Powered by a single 8-core Intel Xeon Bronze 3508U processor and equipped with dual 480 GB SATA SSDs, this system is ideal for handling essential workloads while providing headroom for future expansion. Housed in a compact 4.5U tower chassis and backed by redundant 1000W power supplies, it’s designed to run business-critical tasks efficiently and securely without compromise.

Key Features

• Intel Xeon Bronze 3508U processor with 8 cores, 2.1 GHz base, and 2.2 GHz boost speeds
• 22.5 MB processor cache for improved data handling and multitasking
• 32 GB DDR5-SDRAM (1 x 32 GB) with 5600 MHz memory clock speed
• Dual 480 GB 2.5" SATA III SSDs included, supporting RAID and scalable up to 8 SSDs
• Gigabit Ethernet connectivity with 2 x RJ-45 LAN ports
• Redundant 1000W power supplies installed (total 2000W capacity)
• Chassis design: Tower (4.5U), black finish, dimensions 183mm x 630mm x 600mm
• No pre-installed operating system — ideal for custom deployments

Optimized Entry-Level Performance

Powered by the Intel Xeon Bronze 3508U, the ML110 Gen11 provides dependable compute with 8 physical cores and solid cache capacity. It’s a solid choice for light virtualization, file serving, and office-critical applications.

Enterprise Storage Flexibility

This configuration includes 2 x 480 GB 2.5" SATA SSDs with RAID capability. The system supports up to 8 SSDs, giving you options to scale storage as your business data grows while maintaining data protection.

Robust Network and Power Architecture

Dual Gigabit Ethernet ports ensure reliable network performance for local and remote operations. Built-in redundant power supplies with a combined 2000W capacity offer high availability, ensuring business continuity even during power-related failures.

Tool-Free, Customizable Design

With a 4.5U chassis and no preloaded operating system, the server offers excellent deployment flexibility. It’s ideal for businesses needing to install their own preferred OS environment or server stack.

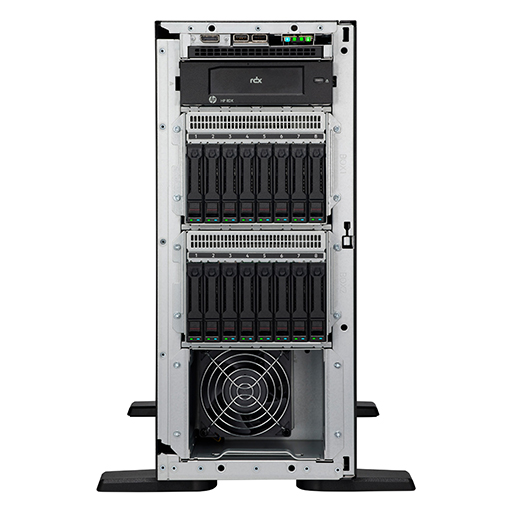

I/O Diagram (Front)

Key	Component
1	DisplayPort 1.1a
2	USB 3.2 Gen1 port
3	iLO service port
4	UID button/LED
5	NIC status LED
6	Health LED
7	Power on/Standby button and system power LED
8	Optical drive bay
9	Media Bay: optional internal USB RDX docking station
10	Box1: 4LFF/NHP or 8SFF SAS/SATA drive cage
11	Box2: Optional 4LFF/NHP or 8SFF SAS/SATA drive cage

Note: Image shown without the security front bezel which is standard in every ML110 Gen11 unit.

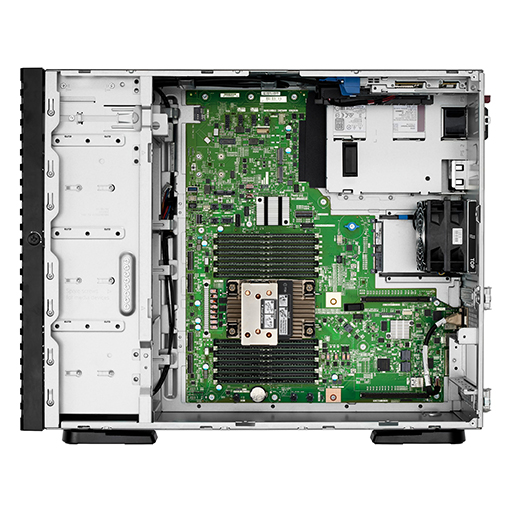

I/O Diagram (Side)

Key	Component
1	CPU Socket with 16 DDR5 DIMM slots
2	M.2 Slot 2
3	M.2 Slot 1
4	x8 SlimSAS port
5	Megacell battery holder (Under)
6	HPE NS204i-u NVMe Hot Plug Boot Device (Optional)
7	Slot 14 OCP 1 (Optional for OROC/NIC)
8	Slot 4 PCIe5 x16
9	USB 2.0 port
10	Slot 1 PCIe5 x16
11	MCIO port 1 for the riser slot 2
12	MCIO port 2 for the riser slot 2
13	MCIO port 3 for the riser slot 3
14	MCIO port 4 for the riser slot 3
15	USB 3.2 Gen 1 port

---

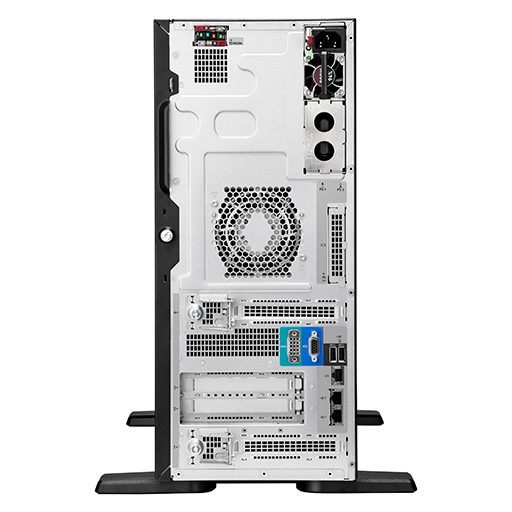

I/O Diagram (Back)

Key	Component
1	HPE NS204i-u Gen11 NVMe Hot Plug Boot Device (Optional)
2	Flexible Slot power supply 1
3	Flexible Slot power supply 2
4	Slot 14 OCP 1 (Optional for OROC/NIC OCP adapter)
5	Serial port (Optional)
6	VGA Port
7	Dual USB 3.2 Gen 1 ports
8	iLO management port
9	Dual NIC ports (1 GbE)
10	Slot 1 PCIe5 x16
11	Slot 2 PCIe5 x16 (Optional riser kit required)
12	Slot 3 PCIe5 x16 (Optional riser kit required)
13	Slot 4 PCIe5 x16
