HPE P81776-425 ProLiant ML350 Server

Key Features:

• Equipped with 1x Intel Xeon Silver 4514Y 2.0GHz 16-core CPU (30MB cache, C741 chipset), scalable to dual-CPU configuration.
• 64GB DDR5 ECC memory (2x32GB modules), expandable up to 8.19TB across 32 DIMM slots.
• Supports 5600 MHz memory clock speed for accelerated data handling and performance.
• Two 480GB 2.5" SATA SSDs installed (960GB total), with support for up to 8 SSDs and full RAID capability (0, 1, 5, 6, 10, 50, 60).
• Onboard Broadcom BCM5719 Gigabit Ethernet controller with 4x RJ-45 ports for robust network connectivity.
• Integrated iLO 6 ASIC for secure, remote management and configuration access.
• TPM 2.0 security module and Silicon Root of Trust help safeguard firmware integrity.
• Dual 1000W hot-plug redundant power supplies for high availability and operational continuity.
• 4U tower chassis form factor, rack-convertible for deployment flexibility across environments.
• Multiple OS support including Windows Server, VMware ESXi, RHEL, SLES, Ubuntu, Oracle Linux/VM, and Citrix.

Reliable Mid-Tier Processing

This configuration includes a single Intel Xeon Silver 4514Y processor with 16 cores and a base frequency of 2.0GHz, offering balanced performance for standard virtualization, file serving, and office application workloads. Upgrade to dual processors for heavier parallel computing tasks.

Optimized Memory Architecture

With 64GB DDR5 ECC memory out of the box and capacity for up to 8.19TB across 32 DIMM slots, the ML350 Gen11 is ready to scale as workload demands increase. 5600 MHz memory speed ensures fast, responsive processing across applications.

Secure and Scalable Storage

Includes two 480GB SATA SSDs with support for RAID levels 0 through 60, enabling flexible redundancy and performance configurations. Expandable to 8x 2.5" drives, this system is designed for scalability and reliability in data-centric environments.

Enterprise Connectivity and Expansion

Equipped with 4x Gigabit Ethernet ports and standard I/O including 3x USB 3.2 Gen 1, 1x VGA, and 1x DisplayPort. The platform supports advanced expansion with PCIe Gen5 slots and optional GPU accelerators for compute-heavy scenarios.

Management, Power, and Deployment

Remote administration is streamlined through HPE’s iLO 6 platform, and uptime is assured with two installed 1000W redundant power supplies. Its tower form factor is ideal for office environments while still being rack-mountable when needed.

---

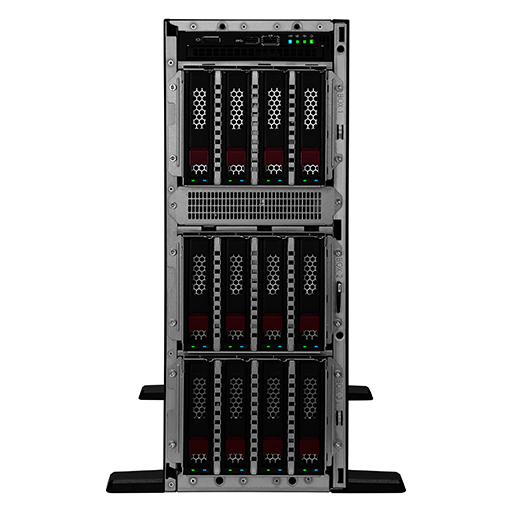

I/O Diagram (Front 4LFF "4 Bays")

Key	Component
1	DisplayPort 1.1a
2	USB 3.2 Gen1 port
3	iLO service port
4	UID button/LED
5	NIC status LED 1
6	Health LED
7	Power on/Standby button and system power LED
8	Optical drive bay
9	Media bay filler panel
10	Serial number/iLO information pull tab
11	Box3: Default drive cage for 4LFF
12	Box2: Optional drive cage for 8SFF/4LFF
13	Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive

Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

---

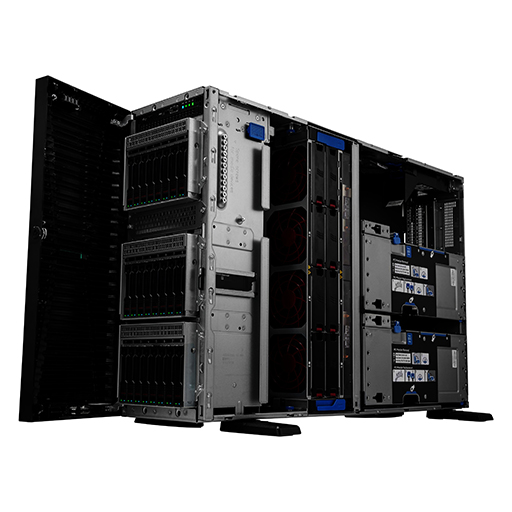

I/O Diagram (Front 8SFF "8 Bays")

Key	Component
1	DisplayPort 1.1a
2	USB 3.2 Gen1 port
3	iLO service port
4	UID button/LED
5	NIC status LED
6	Health LED
7	Power on/Standby button and system power LED
8	Optical drive bay
9	Media bay filler panel
10	Serial number/iLO information pull tab
11	Box3: Default drive cage for 8SFF*
12	Box2: Optional drive cage for 8SFF
13	Box1: Optional drive cage for 8SFF, or internal LTO tape drive

Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit

---

I/O Diagram (Side)

Key	Component
1	CPU Socket 1 & 2
2	Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3	Megacell battery holder (Under)
4	HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5	Secondary riser connector
6	Tertiary riser sideband connector
7	Serial port cable connector
8	Slot 15 OCP 2 (Optional for NIC adapter)
9	HPE NS204i-u power connector
10	Primary riser connector
11	Slot 14 OCP 1 (Optional for OROC/NIC adapter)

Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)

---

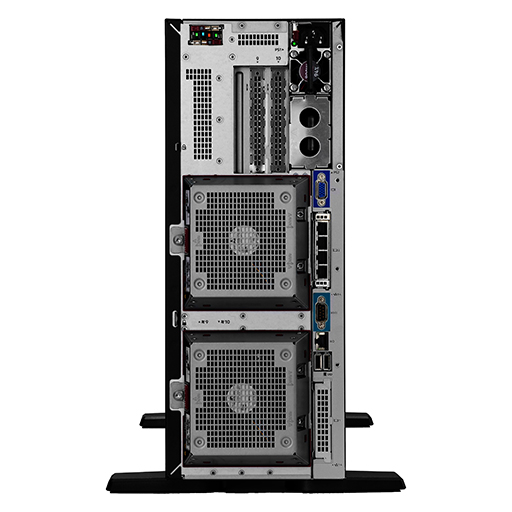

I/O Diagram (Back)

Key	Component
1	HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2	PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3	Flexible Slot power supply 1
4	Flexible Slot power supply 2 (Optional)
5	VGA Port
6	External Fan connector 9
7	Slot 15 OCP 2 (Optional for NIC adapter)
8	Serial port (Optional)
9	iLO management port
10	USB 3.2 Gen 1 ports x2
11	External Fan connector 10
12	Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13	PCIe Slots 1-4 (Primary riser)
14	Padlock eye
15	PCIe Slots 5-8 (Secondary riser)
16	Kensington slot
