Grandstream POE-INJ POE INJECTOR

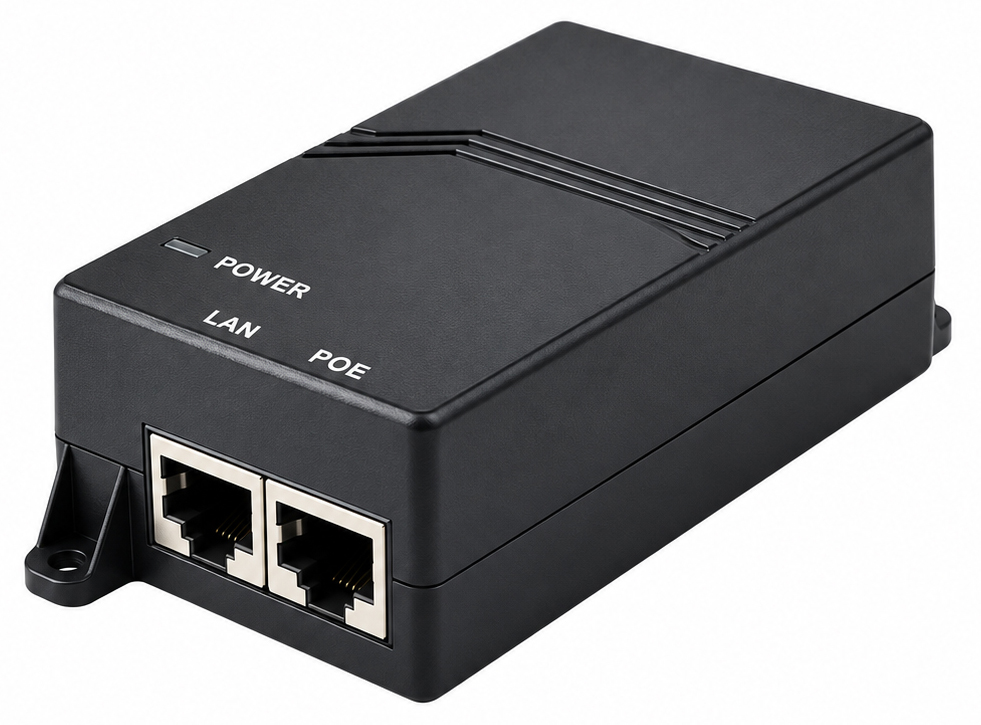

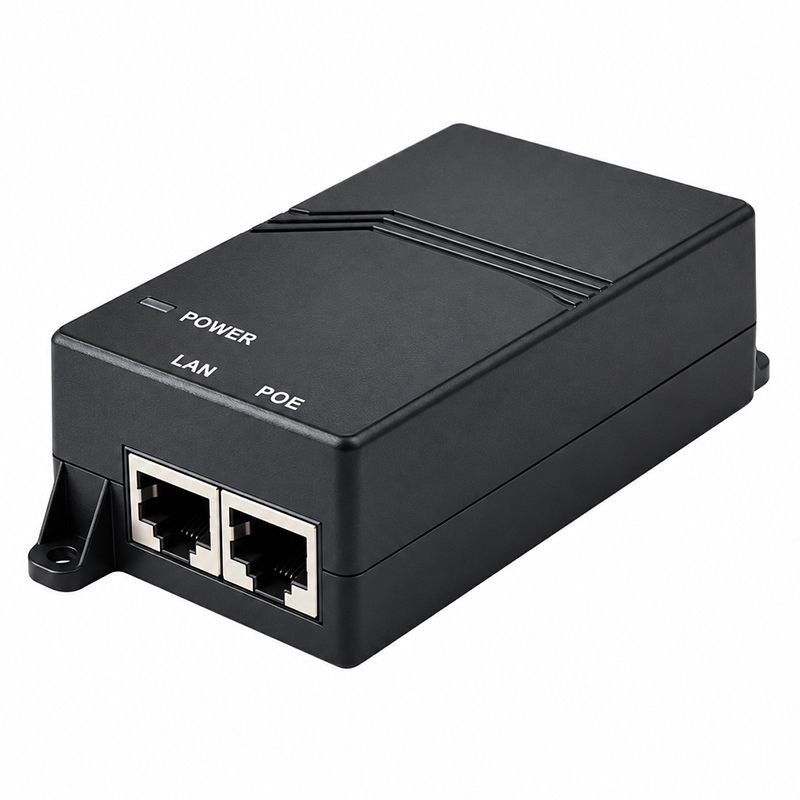

Grandstream POE-INJ Gigabit Passive PoE Injector

The Grandstream POE-INJ is a compact passive PoE injector designed to add power to a compatible Gigabit Ethernet connection where the network switch does not provide PoE. It combines data and power onto a single Ethernet connection, with one RJ45 LAN input and one RJ45 data-and-power output.

Supporting 10/100/1000Mbps network speeds, the injector provides a fixed 48V 0.5A output with up to 24W power consumption. It uses pins 4/5 for positive power and 7/8 for negative power, while LED indicators provide quick confirmation of AC power and active PoE operation.

Key Features

• Passive PoE [Power over Ethernet] injector with no powered-device detection
• 10/100/1000Mbps Gigabit Ethernet support
• 1 RJ45 Data input port and 1 RJ45 Data + Power output port
• 48V 0.5A PoE output with 24W maximum power consumption
• 100-240VAC, 50-60Hz universal power input
• Power delivered on pins 4/5 (+) and 7/8 (-)
• LED indicators for AC power and active PoE operation
• 500,000-hour MTBF [Mean Time Between Failures]
• Compact 97 x 53.5 x 33.5mm housing, 133g device weight

Key Benefits

• Adds power to a compatible Ethernet connection without requiring replacement of a non-PoE network switch
• Combines Gigabit network data and electrical power onto a single Ethernet cable to simplify compatible device installation
• Supports full Gigabit speeds for applications where network performance must be maintained
• Fixed 48V passive PoE output provides a straightforward power solution for devices designed for this power arrangement
• LED indicators make it easy to confirm that the injector is powered and supplying PoE
• Compact design allows the injector to be incorporated easily into existing network installations

Important: The POE-INJ is a passive injector with no powered-device detection. The voltage, polarity and passive PoE requirements of the connected device should therefore be checked before installation.
