| Part No: | FEGXP2170 |
| Manufacturer No: | GXP2170 |
| Delivery: | In Stock: Next Day |
 |

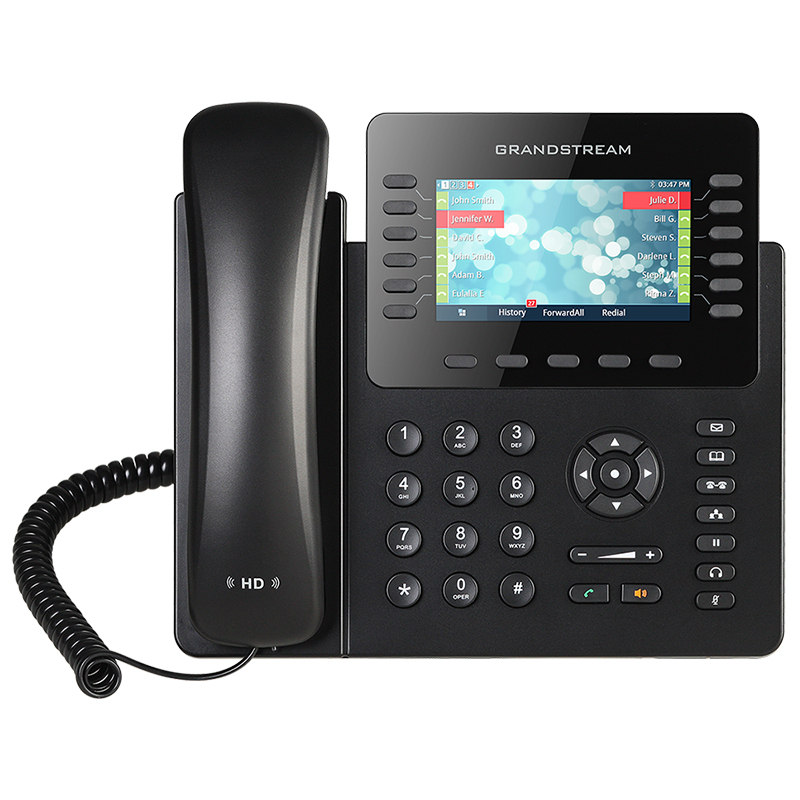

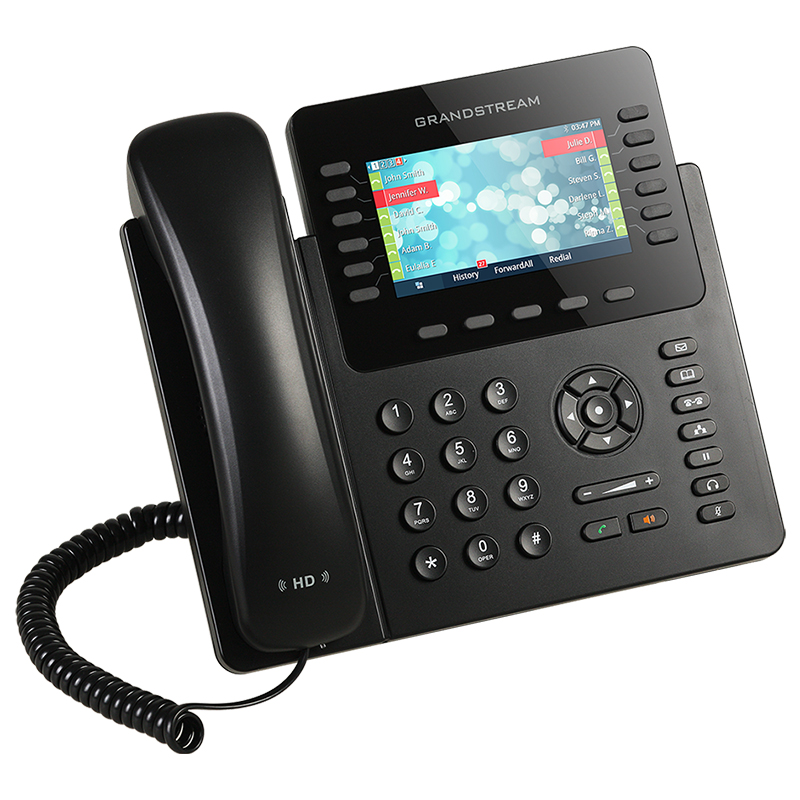

Our most powerful High-End IP Phone, designed for the high-call volume user who requires a suite of call control and efficiency focused features. Bring heavy communications under control by utilizing the GXP2170's high-line access, BLF/speed-dial support and other control focused features.
The GXP2170 is ideal for busy users who handle high call volumes and is the perfect choice for enterprise users looking for a top-notch executive IP phone with advanced functionality. Receptionists, administrators, sales staff and other call-intensive rolls can enjoy efficiency by utilizing the GXP2170's 12 line keys, 4.3 inch color display LCD and 48 digital, on-screen speed dial/BLF keys. Provide users with the fastest possible connection speeds thanks to the device's dual Gigabit, PoE network ports. Maximized call control, expandable speed dial/BLF capabilities and a sleek design makes this phone the ultimate high-volume experience.
As all Grandstream IP phones do, the GXP2170 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2170 supports a variety of automated provisioning options, including zero-configuration with Grandstream's UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Key Features:

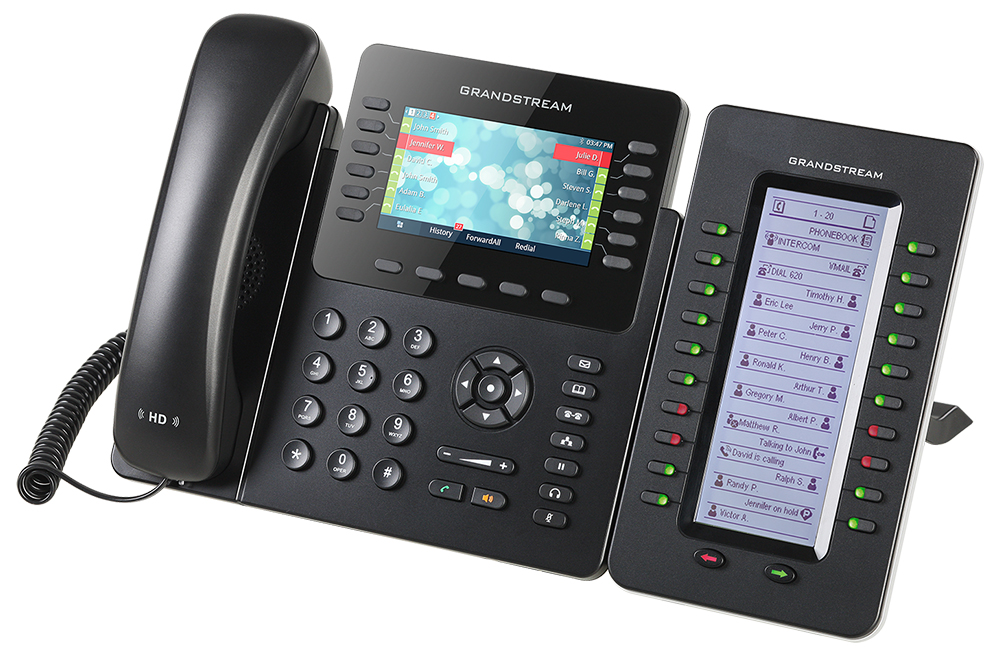

* GXP2170 shown here with optional GXP2200EXT module - with 20 quick-dial/BLF keys, dual colour LED, 2 navigation keys. See below to purchase.
High End IP Phone Comparison
 |
 |
 |
 |
 |
 |
| Model | GXP2130v2 | GXP2135 | GXP2140 | GXP2160 | GXP2170 |
| Lines | 3 Lines, 3 SIP Accounts | 8 Lines, 4 SIP Accounts | 4 Lines, 4 SIP Accounts | 6 Lines, 6 SIP Accounts | 12 Lines, 6 SIP Accounts |
| Conferencing | 4-Way | 5-Way | 5-Way | 5-Way | 5-Way |
| Phonebook Size | 2000 | ||||
| Soft Keys | 4 XML Programmable Keys | ||||
| Display | 320 x 240 TFT Colour LCD | 320 x 240 TFT Colour LCD | 480 x 272 TFT Colour LCD | 480 x 272 TFT Colour LCD | 480 x 272 TFT Colour LCD |
| BLF/Fast-Dial Keys | 8 + 12 Virtual Keys | 32 Virtual Keys | 16 Virtual Keys | 24 + 24 Virtual Keys | 48 Virtual Keys |
| Extension Module | No | No | Up to 4 GXP2000EXTs | No | Up to 4 GXP2000EXTs |
| HD Audio | Yes | ||||
| Auxiliary Ports | RJ9, EHS | RJ9, EHS | RJ9, EHS, USB | RJ9, EHS, USB | RJ9, EHS, USB |
| Bluetooth | Yes | ||||
| PoE | Yes | ||||
| Network Ports | 2 x 10/100 Network Ports | ||||
| Voice Codecs | G.729A/B, G.711u/a-law, G.726, G.722, G.723, iLBC, DTMF | ||||
| Security | SIP/TLS, SRTP, AES-256, 802.1x | ||||
| Provisioning | HTTP, HTTPS, FTP, TFTP, TR069, XML | ||||
| Power Supply Included | Yes | Yes | Yes | Yes | Yes |
| Buy | Buy | Buy | Buy | Buy | |
GXP2170 Specifications
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display | 4.3 inch (480x272) TFT colour LCD |
| Bluetooth | Yes, integrated |
| Feature Keys | 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Voice Codecs | Support for G.729A/B, G.711ยต/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |
| Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-colour LED, 2 navigation keys, and less than 1.2W power consumption per unit. |

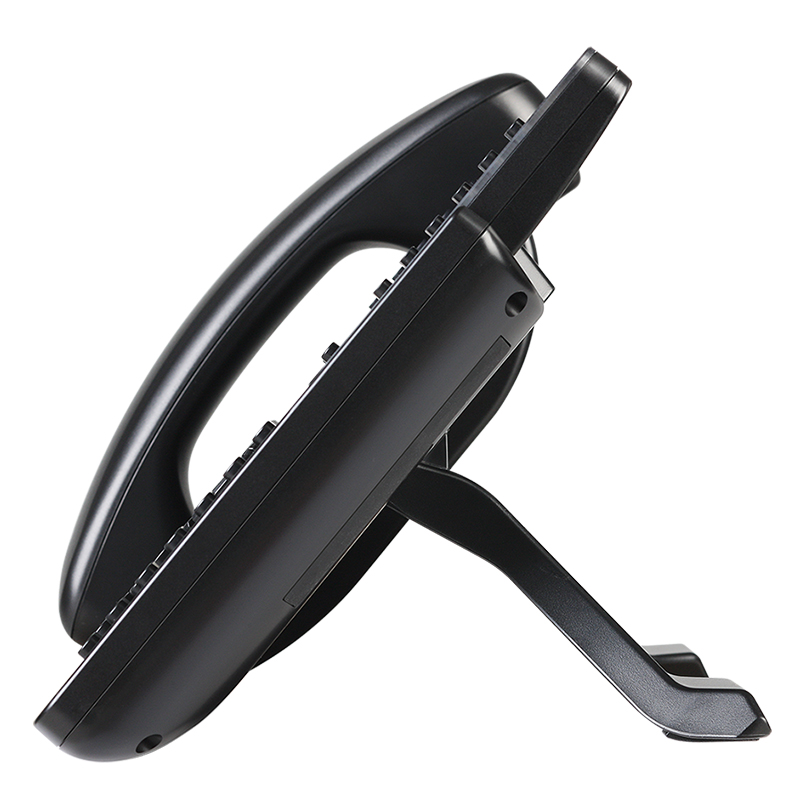

| Base Stand | Yes, 2 angled positions available |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control |
| Power & Green Energy Efficiency | Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet (802.3af) Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs) |
| Physical | Dimension: 228mm (W) x 206mm (L) x 46.5mm (H) Unit weight: 0.98kg; Package weight: 1.43kg |
| Package Content | GXP2170 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide,GPL license |
*For complete specifications see the documentation tab above
* OPTIONAL GXP2200EXT module features a 128 x 384 graphic LCD, 20 quick-dial/BLF keys with dual colour LED, 2 navigation keys is compatible with the following Grandstream handsets: GXP2140, GXP2170, GXV3240.
Grandstream's most powerful High-End IP Phone, designed for the high-call volume user who requires a suite of call control and efficiency-focused features. Bring heavy communications under control by utilising the GXP2170’s high-line access, BLF/speed-dial support and other control focused features.
The GXP2170 is a powerful High-End IP phone that is ideal for busy users who handle high call volumes. Receptionists, administrators, sales staff and other call-intensive rolls can enjoy efficiency by utilising the GXP2170’s 12 line keys, 4.3-inch colour display LCD and 48 digital, on-screen speed dial/BLF keys. Provide users with the fastest possible connection speeds thanks to the device’s dual Gigabit, PoE network ports. Maximised call control, expandable speed dial/BLF capabilities and sleek design make this phone the ultimate high-volume experience.
As all Grandstream IP phones do, the GXP2170 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2170 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6.
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE.
4.3 inch (480x272) TFT colour LCD.
Yes, integrated.
12 line keys with up to 6 SIP accounts, 5 XML programmable context-sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL-.
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC.
Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customisation of the screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over.
RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port.
Yes, HD handset and speakerphone with support for wideband audio.
Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-colour LED, 2 navigation keys, and less than 1.2W power consumption per unit.
Yes, 2 angled positions available.
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS.
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control.
Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet (802.3af) Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs).
Dimension: 228mm (W) x 206mm (L) x 46.5mm (H). Unit weight: 0.98kg. Package weight: 1.43kg.
GXP2170 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide, GPL license.
