| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEGXP2140 |
| Manufacturer No: | GXP2140 |
| Delivery: | In Stock: Next Day |
 |
Bringing quality and versatility to your desktop, the GXP2140 delivers the ideal balance of call control, sleek design and an enjoyable user experience. This device is the choice for the desktop user who requires medium-to-high call control functionality with a focus on advanced features and high-end design.
The customisable GXP2140 brings a rich and vibrant display, and call control to the medium to high-volume call user. This device provides the perfect balance for the call-intensive user’s desktop, with its 4 lines, 5 programmable soft keys and feature-loaded call controls. Its 4.3” colour LCD display creates a high-quality user experience, and its dual Gigabit PoE ports, HD audio, and integrated Bluetooth makes the GXP2140 highly versatile as well.
As all Grandstream IP phones do, the GXP2140 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2140 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Features:High End IP Phone Comparison
 |
 |
 |
 |
 |
 |
| Model | GXP2130v2 | GXP2135 | GXP2140 | GXP2160 | GXP2170 |
| Lines | 3 Lines, 3 SIP Accounts | 8 Lines, 4 SIP Accounts | 4 Lines, 4 SIP Accounts | 6 Lines, 6 SIP Accounts | 12 Lines, 6 SIP Accounts |
| Conferencing | 4-Way | 5-Way | 5-Way | 5-Way | 5-Way |
| Phonebook Size | 2000 | ||||
| Soft Keys | 4 XML Programmable Keys | ||||
| Display | 320 x 240 TFT Colour LCD | 320 x 240 TFT Colour LCD | 480 x 272 TFT Colour LCD | 480 x 272 TFT Colour LCD | 480 x 272 TFT Colour LCD |
| BLF/Fast-Dial Keys | 8 + 12 Virtual Keys | 32 Virtual Keys | 16 Virtual Keys | 24 + 24 Virtual Keys | 48 Virtual Keys |
| Extension Module | No | No | Up to 4 GXP2000EXTs | No | Up to 4 GXP2000EXTs |
| HD Audio | Yes | ||||
| Auxiliary Ports | RJ9, EHS | RJ9, EHS | RJ9, EHS, USB | RJ9, EHS, USB | RJ9, EHS, USB |
| Bluetooth | Yes | ||||
| PoE | Yes | ||||
| Network Ports | 2 × 10/100 Network Ports | ||||
| Voice Codecs | G.729A/B, G.711u/a-law, G.726, G.722, G.723, iLBC, DTMF | ||||
| Security | SIP/TLS, SRTP, AES-256, 802.1x | ||||
| Provisioning | HTTP, HTTPS, FTP, TFTP, TR069, XML | ||||
| Power Supply Included | Yes | Yes | Yes | Yes | Yes |
| Buy | Buy | Buy | Buy | Buy | |
Specifications
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display | 4.3 inch (480x272) TFT colour LCD |
| Bluetooth | Yes, Bluetooth V2.1 |
| Feature Keys | 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Voice Codecs | Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/ bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over |

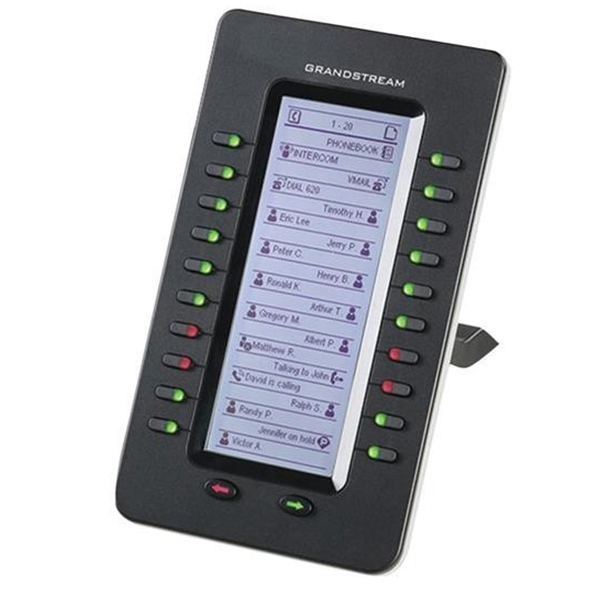

| Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/ BLF keys which dual-colour LED, 2 navigation keys, and less than 1.2W power consumption per unit. |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| HD Audio | Yes, both on handset and speakerphone |
| Base Stand | Yes, 2 angled positions available |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
| Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs ) |
| Physical | Dimension: 228mm (W) x 206mm (L) x 46.5mm (H) Unit weight: 0.98kg; Package weight: 1.55kg |
| Package Content | GXP2140 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide |
Bringing quality and versatility to your desktop, the GXP2140 delivers the ideal balance of call control, sleek design and enjoyable user experience. This device is the choice for the desktop user who requires medium-to-high call control functionality with a focus on advanced features and high-end design.
The customisable GXP2140 brings a rich and vibrant display, and call control to the medium to high-volume call user. This device provides the perfect balance for the call-intensive user’s desktop, with its 4 lines, 5 programmable soft keys and feature-loaded call controls. Its 4.3” colour LCD display creates a high-quality user experience, and its dual Gigabit PoE ports, HD audio, and integrated Bluetooth makes the GXP2140 highly versatile as well.
As all Grandstream IP phones do, the GXP2140 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2140 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6.
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE.
4.3 inch (480x272) TFT colour LCD.
Yes, Bluetooth V2.1.
4 line keys with up to 4 SIP accounts, 5 programmable context-sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL-.
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC.
Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/ bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customisation of the screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over.
Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/ BLF keys which dual-colour LED, 2 navigation keys, and less than 1.2W power consumption per unit.
RJ9 headset jack (allowing EHS with Plantronics headsets).
Yes, both on handset and speakerphone.
Yes, 2 angled positions available.
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS.
User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control.
Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs).
Dimension: 228mm (W) x 206mm (L) x 46.5mm (H) Unit weight: 0.98kg; Package weight: 1.55kg.
GXP2140 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide.
