| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEGXP2135 |
| Manufacturer No: | GXP2135 |
| Delivery: | In Stock: Next Day |
 |
A high-profile desktop phone built for the busy user. The GXP2135 is a sleek High-End IP phone that will bring higher levels of communication productivity to a network. Its modern design, high call capacity and rich functionality makes it the ideal choice for the call-intensive worker.
The GXP2135 is the ideal selection for busy users who value call control, productivity and usability, and manage medium to heavy call volumes. Equipped with 8 lines and 4 SIP accounts, a 2.8 inch colour LCD display, and 32 digital speed dial/BLF keys, the GXP2135 enables quick and powerful usability.
As all Grandstream IP phones do, the GXP2135 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2135 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Features:High End IP Phone Comparison
 |
 |
 |
 |
 |
 |

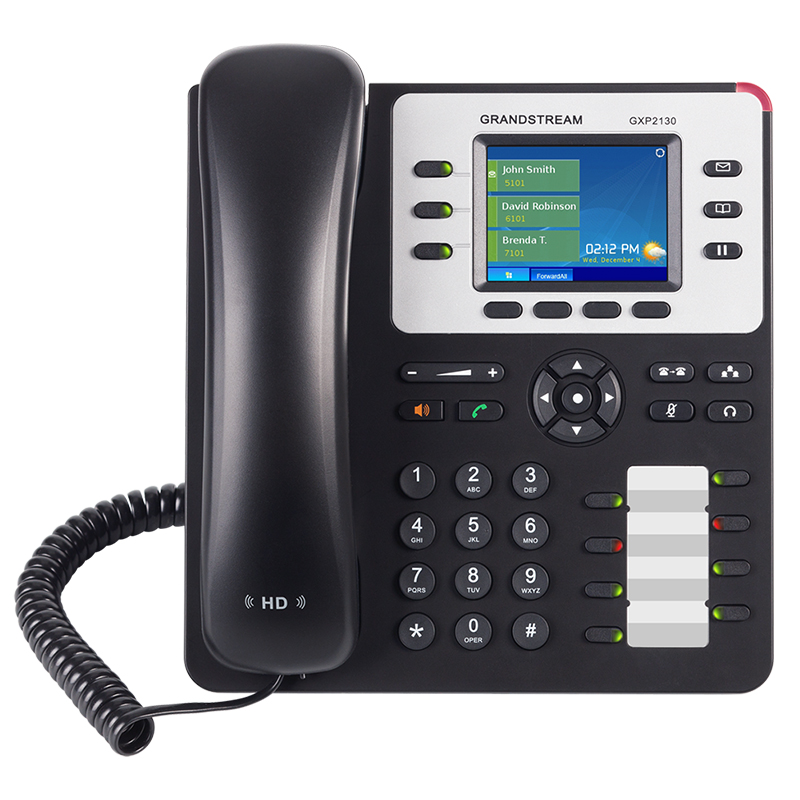

| Model | GXP2130v2 | GXP2135 | GXP2140 | GXP2160 | GXP2170 |
| Lines | 3 Lines, 3 SIP Accounts | 8 Lines, 4 SIP Accounts | 4 Lines, 4 SIP Accounts | 6 Lines, 6 SIP Accounts | 12 Lines, 6 SIP Accounts |
| Conferencing | 4-Way | 5-Way | 5-Way | 5-Way | 5-Way |
| Phonebook Size | 2000 | ||||
| Soft Keys | 4 XML Programmable Keys | ||||
| Display | 320 x 240 TFT Colour LCD | 320 x 240 TFT Colour LCD | 480 x 272 TFT Colour LCD | 480 x 272 TFT Colour LCD | 480 x 272 TFT Colour LCD |
| BLF/Fast-Dial Keys | 8 + 12 Virtual Keys | 32 Virtual Keys | 16 Virtual Keys | 24 + 24 Virtual Keys | 48 Virtual Keys |
| Extension Module | No | No | Up to 4 GXP2000EXTs | No | Up to 4 GXP2000EXTs |
| HD Audio | Yes | ||||
| Auxiliary Ports | RJ9, EHS | RJ9, EHS | RJ9, EHS, USB | RJ9, EHS, USB | RJ9, EHS, USB |
| Bluetooth | Yes | ||||
| PoE | Yes | ||||
| Network Ports | 2 × 10/100 Network Ports | ||||
| Voice Codecs | G.729A/B, G.711u/a-law, G.726, G.722, G.723, iLBC, DTMF | ||||
| Security | SIP/TLS, SRTP, AES-256, 802.1x | ||||
| Provisioning | HTTP, HTTPS, FTP, TFTP, TR069, XML | ||||
| Power Supply Included | Yes | Yes | Yes | Yes | Yes |
| Buy | Buy | Buy | Buy | Buy | |
Specifications
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display | 2.8 inch (320x240) TFT colour LCD |
| Bluetooth | Yes, integrated |
| Feature Keys | 8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Voice Codecs | Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Telephony Features | Hold, transfer, forward, 4-way conference, call park, call pickup, shared-callappearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| HD Audio | Yes, both on handset and speakerphone |
| Base Stand | Yes, 2 angled positions available |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
| Power & Green Energy Efficiency | Universal power adapter included:Input:100-240V ; Output: +12V, 0.5A ; Integrated Power-over-Ethernet (802.3af) Max power consumption : 6.4W (power adapter) or 6.49W (PoE) |
| Physical | Dimension: 201mm (W) x 193mm (L) x 85mm (H) Unit weight: 0.85kg; Package weight: 1.12kg |
| Package Content | GXP2135 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide, GPL license |
A high-profile desktop phone built for the busy user. The GXP2135 is a sleek High-End IP phone that will bring higher levels of communication productivity to a network. Its modern design, high call capacity and rich functionality make it the ideal choice for the call-intensive worker.
The GXP2135 is the ideal selection for busy users who value call control, productivity and usability and manage medium to heavy call volumes. Equipped with 8 lines and 4 SIP accounts, a 2.8-inch colour LCD display, and 32 digital speed dial/BLF keys, the GXP2135 enables quick and powerful usability.
As all Grandstream IP phones do, the GXP2135 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2135 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6.
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE.
2.8 inch (320x240) TFT colour LCD.
Yes, integrated.
8 line keys with up to 4 SIP accounts, 4 XML programmable context-sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-.
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC.
Hold, transfer, forward, 4-way conference, call park, call pickup, shared-call appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customisation of the screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over.
RJ9 headset jack (allowing EHS with Plantronics headsets).
Yes, both on handset and speakerphone.
Yes, 2 angled positions available.
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS.
User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control.
Universal power adapter included: Input:100-240V; Output: +12V, 0.5A; Integrated Power-over-Ethernet (802.3af) Max power consumption : 6.4W (power adapter) or 6.49W (PoE).
Dimension: 201mm (W) x 193mm (L) x 85mm (H). Unit weight: 0.85kg. Package weight: 1.12kg.
GXP2135 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide, GPL license.
