| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEGXP1630 |
| Manufacturer No: | GXP1630 |
| Delivery: | In Stock: Next Day |
 |

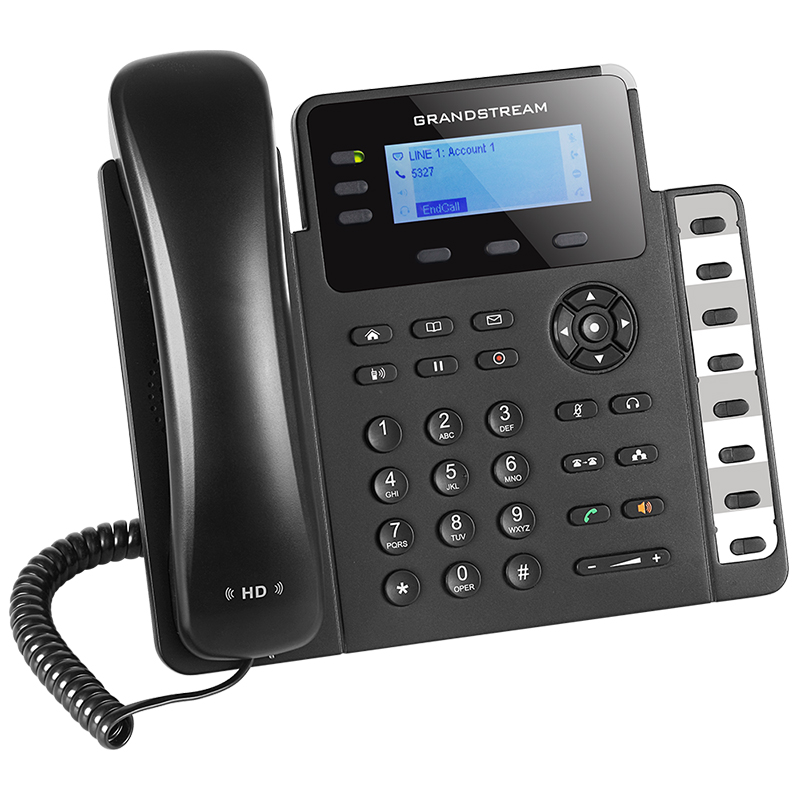

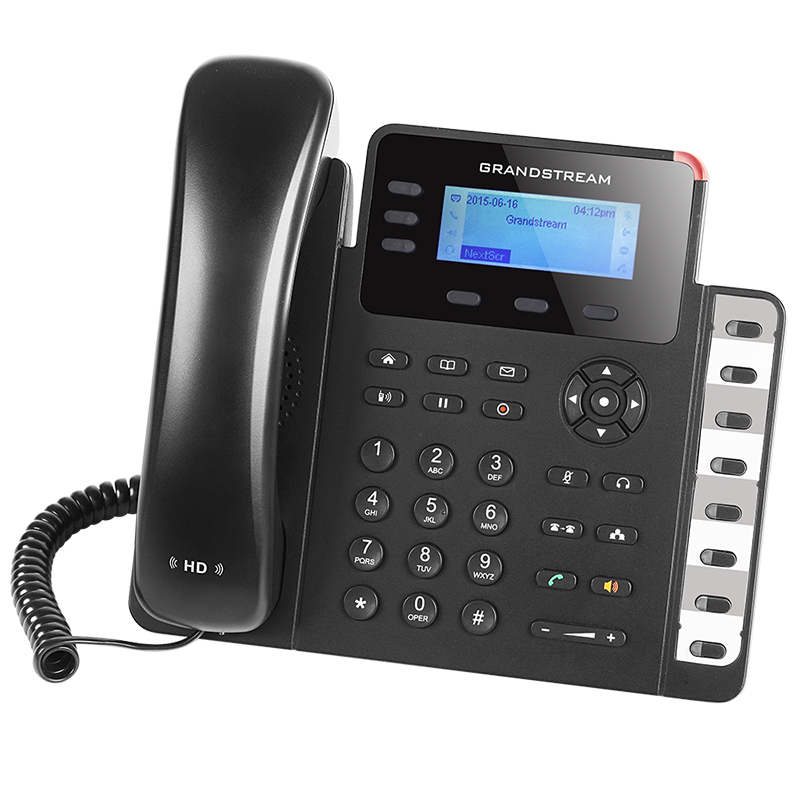

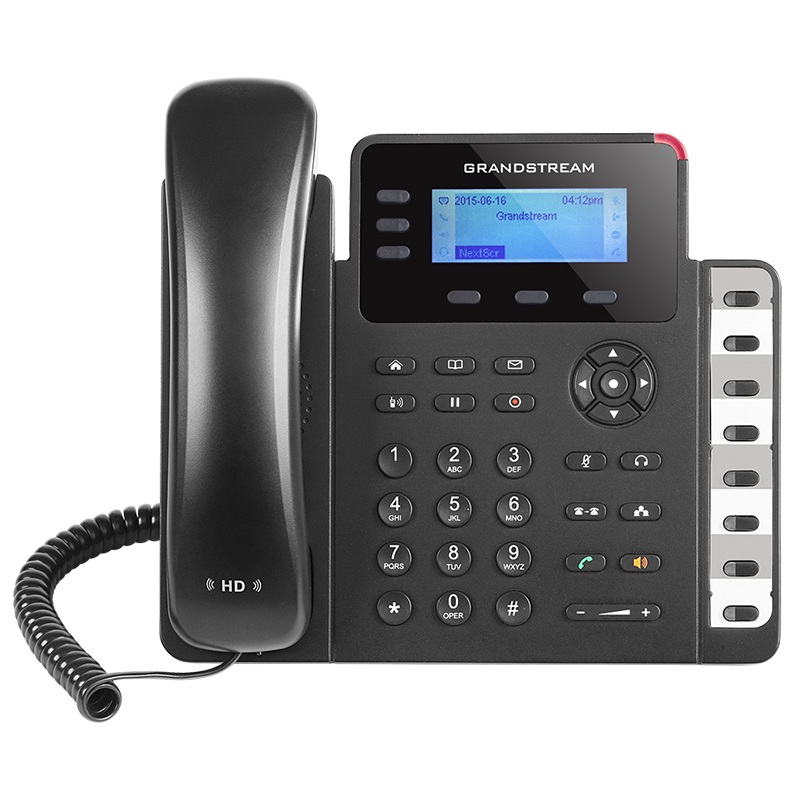

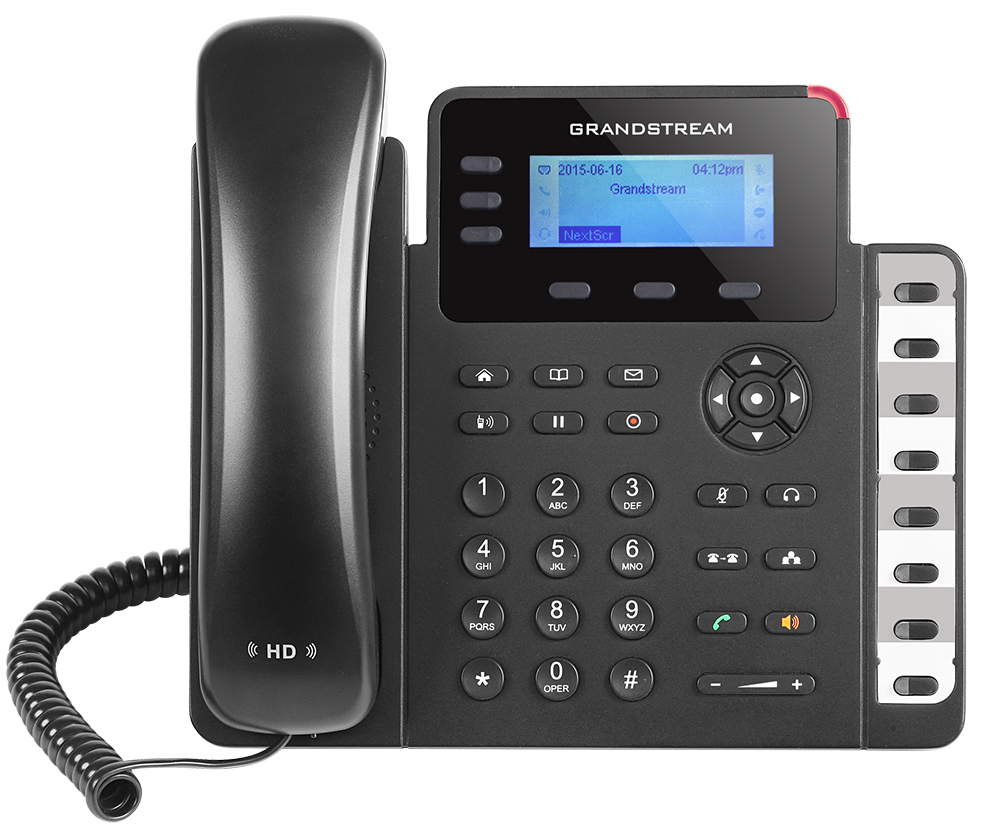

Grandstream's most powerful entry-level Basic IP phone, the GXP1630 delivers an effective communications platform for access to quick call control. Delivering a vibrant and clear user-interface, this device is a perfect solution for those who handle low to medium call volume and require access to key call efficiency functionalities.
The GXP1630 comes equipped with a suite of VoIP features that are deployed in a clear and easy-to-use fashion. Focused primarily for low to medium call volumes and efficient call handling, its 3 line/SIP account design and 8 dual-coloured BLF/speed dial keys gives this versatility. The GXP1630 also supports the best possible connection speeds and call quality with its dual Gigabit ports and HD audio on both speakerphone and handset. With other features such as its integrated PoE, 3 XML programmable soft keys and 4-way conferencing support, the GXP1630 is a high-quality and versatile Basic IP phone.
As all Grandstream IP phones do, the GXP1630 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1630 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Features:Basic IP Phone Comparison
 |
 |
 |
 |
|
| Model | GXP1615 | GXP1620/1625 | GXP1628 | GXP1630 |
| Lines | 2 Lines, 1 SIP Account | 2 Lines, 2 SIP Accounts | 2 Lines, 2 SIP Accounts | 3 Lines, 3 SIP Accounts |
| Conferencing | 3-Way | 3-Way | 3-Way | 4-Way |
| Phonebook Size | 500 | 500 | 500 | 500 |
| Soft Keys | 3 XML Programmable Keys | 3 XML Programmable Keys | 3 XML Programmable Keys | 3 XML Programmable Keys |
| Display | 132 x 48 Pixel LCD | 132 x 48 Pixel Back-Lit LCD | 132 x 48 Pixel Back-Lit LCD | 132 x 64 Pixel Back-Lit LCD |
| BLF/Fast-Dial Keys | No | No | 8 | 8 |
| HD Audio | No | Yes | Yes | Yes |
| Auxiliary Ports | RJ9, EHS | RJ9, EHS | RJ9, EHS | RJ9, EHS |
| PoE | Yes | GXP1620 - No GXP1625 - Yes |
Yes | Yes |
| Network Ports | 2 × 10/100 Network Ports | 2 × 10/100 Network Ports | 2 × 10/100 Network Ports | 2 × 10/100 Network Ports |
| Voice Codecs | G.729A/B, G.711u/a-law, G.726, G.722, G.723, iLBC, DTMF | |||
| Security | SIP/TLS, SRTP, AES-256, 802.1x | |||
| Provisioning | HTTP, HTTPS, TFTP, TR-069, XML | |||
| Power Supply Included | Yes | Yes | Yes | Yes |
| Buy | Buy GXP1620 | Buy | Buy | |
| Buy GXP1625 | ||||
Specifications
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,S- RV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE |
| Graphic Display | 132 x 48 (2.95’’) backlit graphical LCD display |
| Feature Keys | 3 line keys with dual-colour LED and 3 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME |
| Voice Codecs | Support for G.711μ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Telephony Features | Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones, server redundancy & fail-over |
| Headset Jack | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |

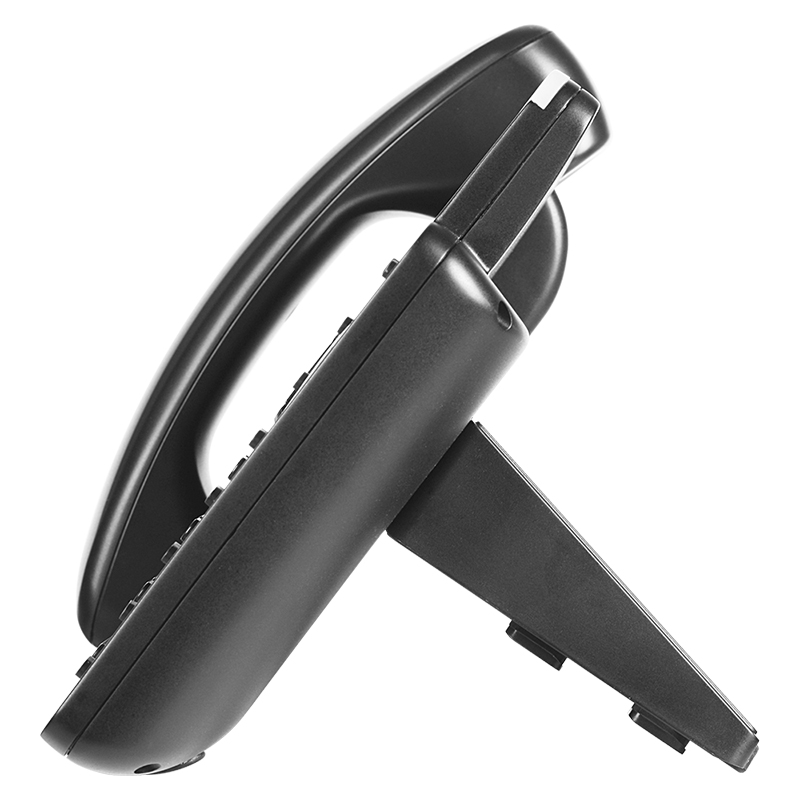

| Base Stand | Yes, 2 angled positions available, wall mountable |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level access control, MD5 and MD5-sess based authentica- tion, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
| Power & Green Energy Efficiency | Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE: IEEE802.3af Class 2, 3.84W-6.49W |
| Physical Dimension: | 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset) Unit weight: 0.8kg; Package weight: 1.2kg |
| Package Content | GXP1630 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, brochure, GPL License |
The GXP1630 comes equipped with a suite of VoIP features that are deployed in a clear and easy-to-use fashion. Focused primarily for low to medium call volumes and efficient call handling, its 3 line/SIP account design and 8 dual-coloured BLF/speed dial keys gives this versatility. The GXP1630 also supports the best possible connection speeds and call quality with its dual Gigabit ports and HD audio on both speakerphone and handset. With other features such as its integrated PoE, 3 XML programmable soft keys and 4-way conferencing support, the GXP1630 is a high-quality and versatile Basic IP phone.
As all Grandstream IP phones do, the GXP1630 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1630 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
