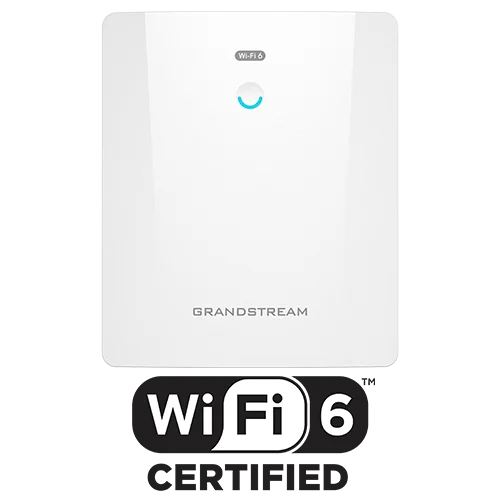

Grandstream GWN7664ELR Wi-Fi 6 LR Access Point

Grandstream GWN7664ELR Outdoor AX6000 Wi-Fi 6 Long-Range Access Point with 6Gbps Throughput, IP68 Weatherproofing and 2.5G RJ45/SFP Connectivity

The Grandstream GWN7664ELR is a high-performance outdoor long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises that need extended wireless coverage in outdoor spaces. It supports 6Gbps aggregate wireless throughput, dual-band 4x4:4 MU-MIMO with OFDMA, 512 concurrent Wi-Fi clients and a coverage range of up to 300 metres.

Designed for demanding outdoor deployments, the GWN7664ELR combines IP68-level weatherproof capability with eight internal antennas and operation from -30°C to 60°C. A 2.5G RJ45 port with PoE/PoE+ and a 2.5G SFP port provide flexible wired connectivity for higher-performance wireless networks.

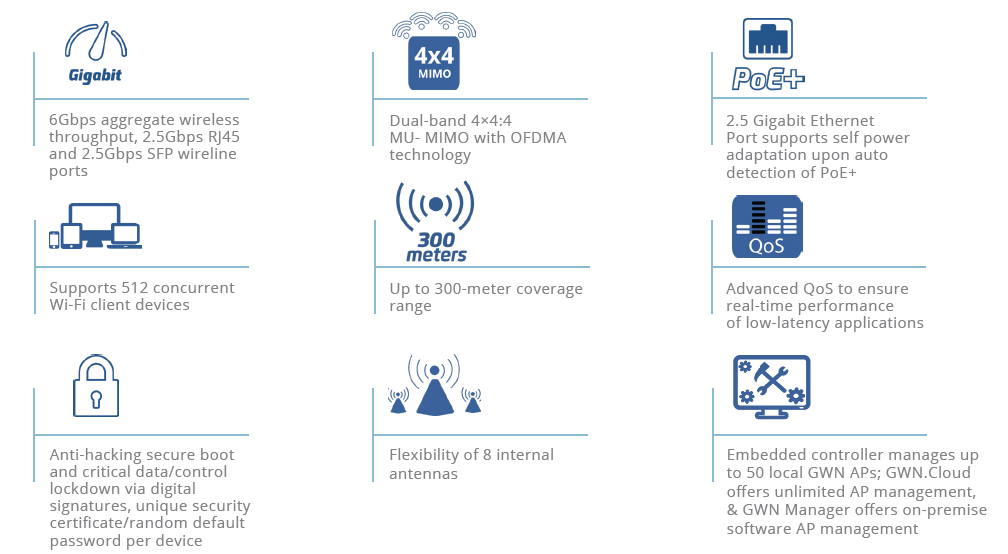

Key Features:

• High-performance outdoor AX6000 802.11ax Wi-Fi 6 access point
• 6Gbps aggregate wireless throughput with dual-band 4x4:4 MU-MIMO and OFDMA technology (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 512 concurrent Wi-Fi client devices and a coverage range of up to 300 metres, subject to environment and installation conditions
• IP68-level weatherproof capability for demanding outdoor environments
• Eight internal antennas designed to support long-range wireless coverage
• One 2.5G RJ45 port with PoE/PoE+ and one 2.5G SFP port (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7664ELR is well suited to extending managed Wi-Fi across outdoor areas, warehouses, schools, healthcare sites, business campuses and other large sites where long-range coverage and resilient outdoor installation are important.

Key Benefits:

• AX6000 Wi-Fi 6 performance helps support demanding outdoor wireless environments
• 300m range helps extend managed coverage across larger outdoor areas
• IP68 protection and wide operating temperature support tough installation conditions
• 2.5G RJ45 and 2.5G SFP ports provide flexible high-speed wired connectivity
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

The package includes the GWN7664ELR 802.11ax wireless access point, wall/pole mounting kits and a Quick Installation Guide. The mounting kits can be rotated and adjusted by 60°.

Comms Express offers a choice of GWN7664 models in the Grandstream Wireless Access Points range, including:
GWN7664 - indoor, 3.55Gbps, 1G + 2.5GbE, 750+ clients
GWN7664E - indoor, 6Gbps, dual 2.5G ports, 512 clients
GWN7664LR - outdoor, 3.55Gbps, 300m range, 750+ clients
GWN7664ELR - outdoor, 6Gbps, 300m range, 2.5G RJ45 + SFP, 512 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and External Grade Cable suitable for outdoor network cable runs.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
