Extreme Networks ACC-BKT-AX-WNGADAPT Mounting Adapter for Wireless Access Point - 10 Pack

• One 37201 main mounting bracket
• Two Philips pan-head screws
• Two screw-in anchors

*For concrete wall installations, you must provide screws and screw-in anchors.

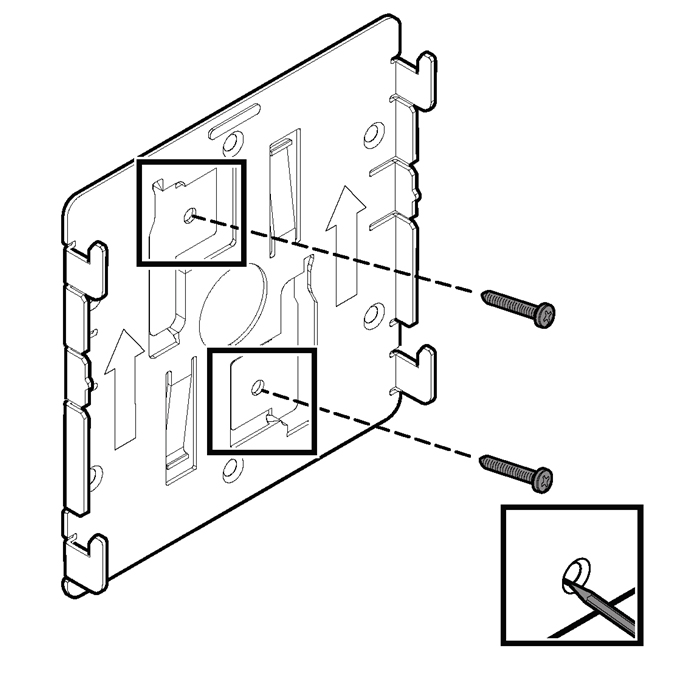

1. Use the metal mounting bracket as a template and mark and drill two mounting holes.

   *The four bracket feet and the engraved bracket arrows must be pointing up.


2. Attach the screw-in anchors to the mounting holes.

   *Plastic screws and screw-in anchors are for drywall and metal screws and screw-in anchors are for drywall or wood wall installations.

   For concrete wall installations, use a masonry anchor which slips into a drilled hole and expands as the bolt is tightened. Masonry anchors are not provided with the #37201 bracket.

3. Place the metal bracket over the mounting holes and run the LAN cable through the large center hole on the metal mounting bracket.
4. Attach the bracket using two pan-head screws for drywall, wood wall, or metal installations.

   *Masonry anchors have integral threaded studs. If you are attaching the 37201 bracket to a concrete wall, then the anchor studs must protrude through the holes where a hex nut is tightened.

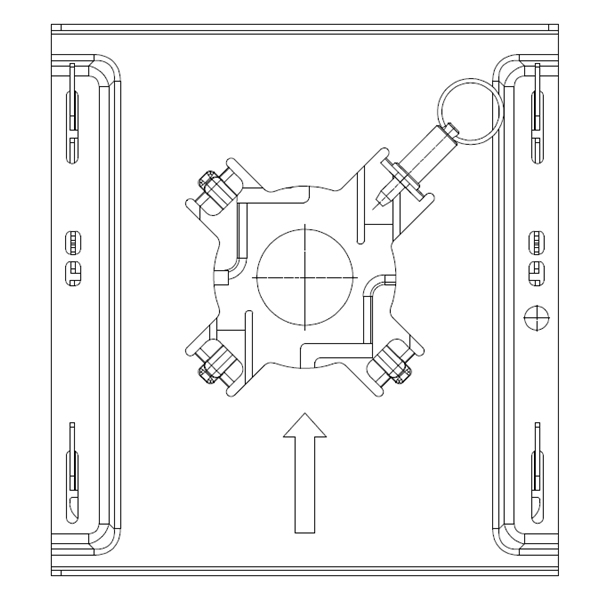

The WNGADAPT plate ships with two parts:

1. With the WNGADAPT metal plate engraved arrows pointing up, place the WNGADAPT metal plate over the 37201 metal mounting bracket.

2. Run the LAN cable through the large center opening on the WNGADAPT plate.
3. Push the WNGADAPT metal plate down on to the 37201 bracket until the metal plate clicks in place.
4. Line the plastic twist part embossed dot against the red dot on the WNGADAPT metal plate.

   *Bring the LAN cable up between the WNGADAPT metal plate and the plastic twist part.

5. Rotate the twist part clockwise quarter of a turn until the locking pin on the WNGADAPT metal plate clicks into place.
6. Line up the red dot on the rear of the access point against the red dot on the plastic twist part.
7. Ensure that the access point center recess area aligns onto the plastic twist center post.
8. Rotate the access point 1/6 of a turn clockwise until it clicks into place.
9. Insert the LAN cable into the RJ45 connector on top of the access point. If there is a LAN cable PoE, the access point starts a boot cycle.

   *If desired, use an in-line coupler, flat cable, and a cosmetic cap to attach the RJ45 cable onto the indoor access points.
