| Part No: | FES2134-BK |
| Manufacturer No: | S2134-BK |
| Delivery: | In Stock: 2-3 Weeks |
 |

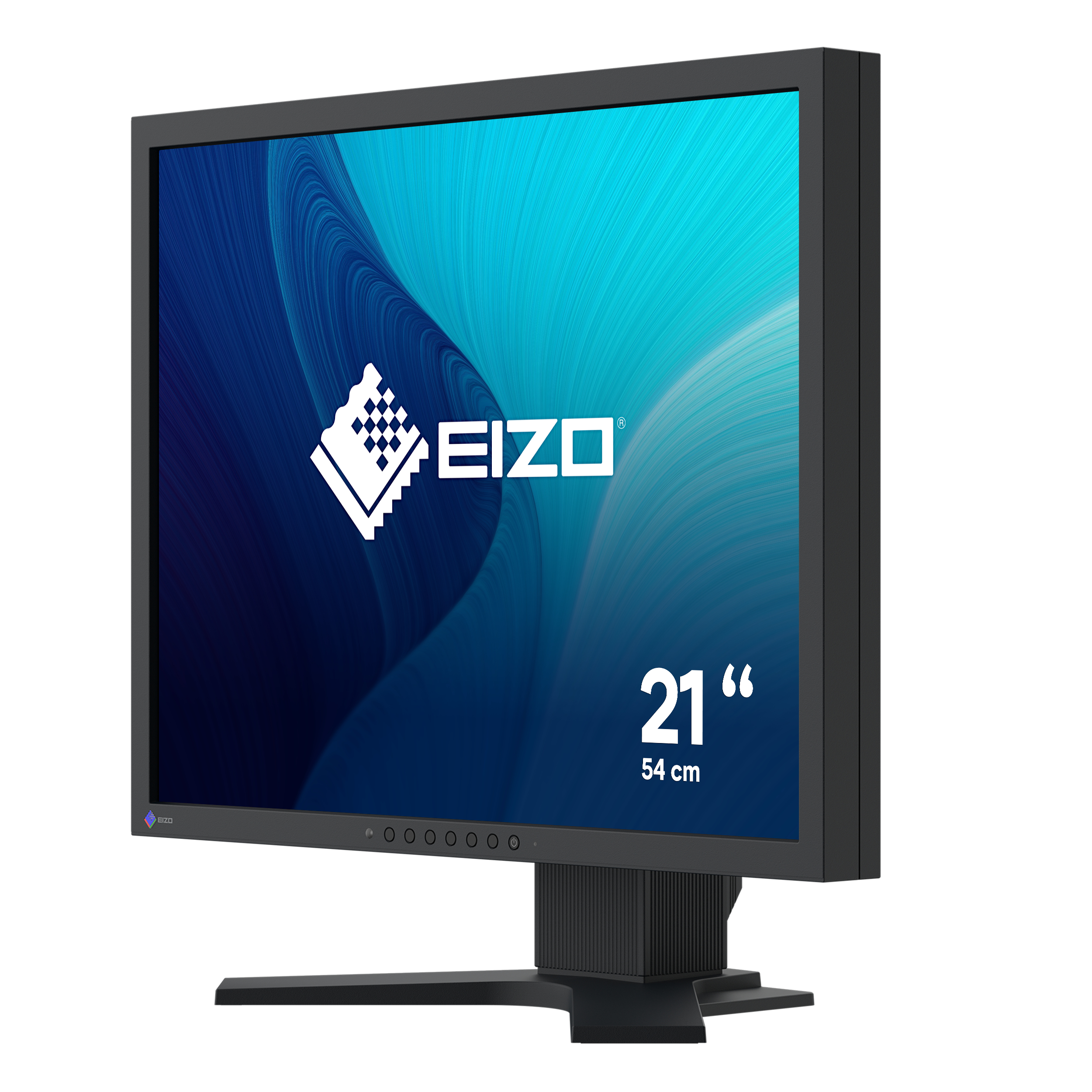

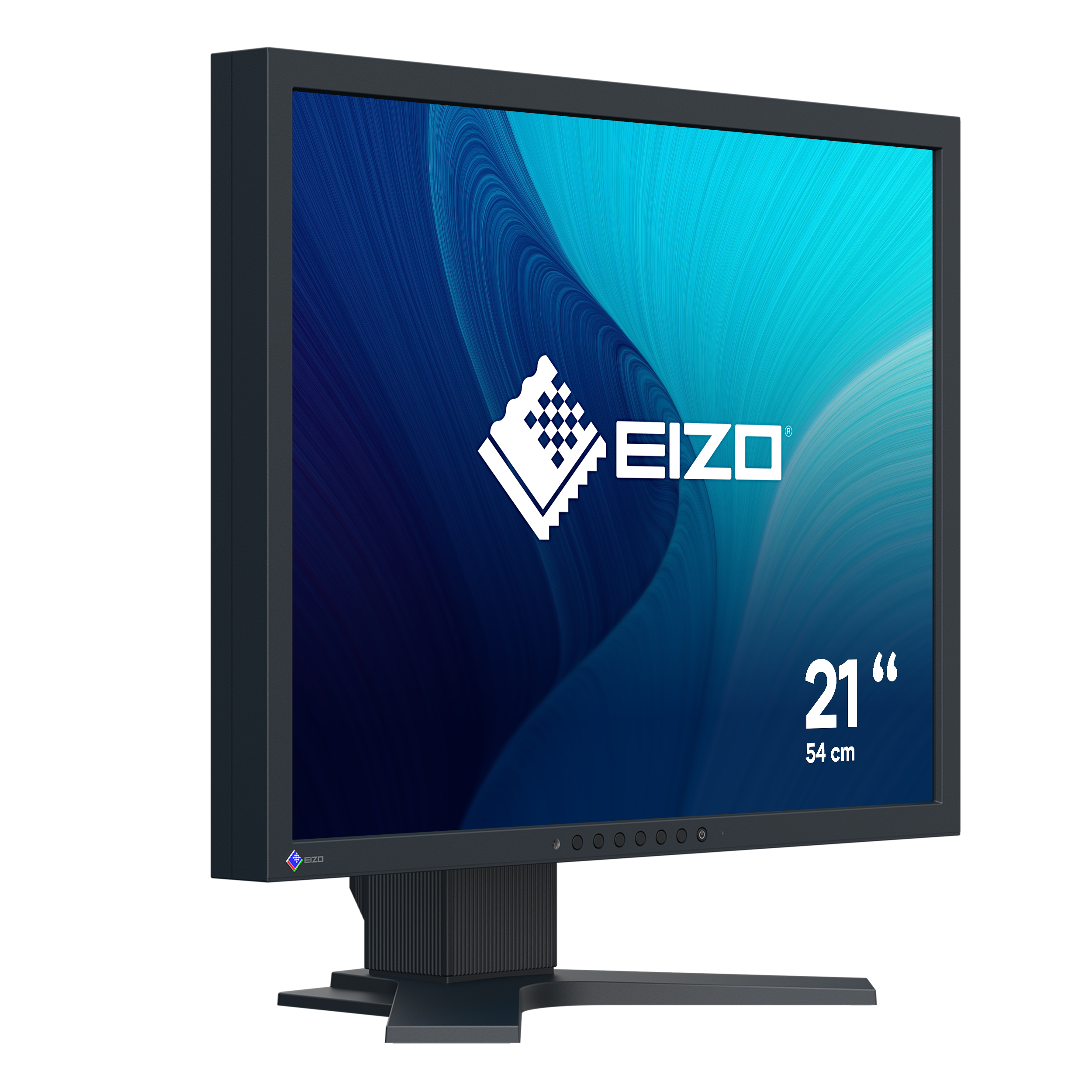

The Eizo S2134-BK is a 21.3-inch FlexScan monitor with a 1600 x 1200 UXGA resolution and 4:3 aspect ratio, providing a spacious square-format display for office work, finance applications, control systems and other professional desktop tasks.
Its IPS panel uses LED backlighting and delivers 16.7 million colours, 500 cd/m² typical brightness, an 1800:1 contrast ratio and 178° horizontal and vertical viewing angles. DisplayPort, DVI-D and D-Sub inputs support digital and analogue computer connections, while two USB downstream ports, automatic brightness control and an adjustable stand add practical functionality for different workstation environments.
The 21.3-inch display provides a 1600 x 1200 UXGA resolution with a 4:3 aspect ratio and a visible image area of 432 x 324 mm. The square-format screen provides additional vertical workspace compared with many widescreen monitors, making it suitable for applications where information needs to remain visible with less scrolling.
The IPS panel delivers 16.7 million colours and supports a colour palette of up to 1.06 billion colour tones through its 10-bit look-up table. With 500 cd/m² typical brightness and an 1800:1 contrast ratio, the display provides strong image visibility, while 178° horizontal and vertical viewing angles help maintain consistent images from different viewing positions.
DisplayPort and DVI-D provide digital video connections, while the D-Sub mini 15-pin input supports analogue sources. DisplayPort supports HDCP 1.3 and DVI-D supports HDCP 1.4. Automatic signal input recognition makes it easier to switch between connected sources.
A USB 2.0 Type-B upstream connection links the monitor to a computer, while two USB 2.0 Type-A downstream ports provide convenient connections for compatible peripherals. The downstream ports can supply up to 500 mA per port when the USB upstream connection is active.
The monitor includes two manual memory locations together with sRGB, Paper, Movie and DICOM modes. Auto EcoView adjusts screen brightness according to ambient lighting, while EcoView Index and EcoView Optimizer provide additional energy-saving functions. Overdrive and flicker-free operation are also supported.
When using an analogue signal, the Self Adjustment function automatically adjusts the image to help suppress flicker and drift. This provides a more consistent image when connecting computers through the D-Sub input.

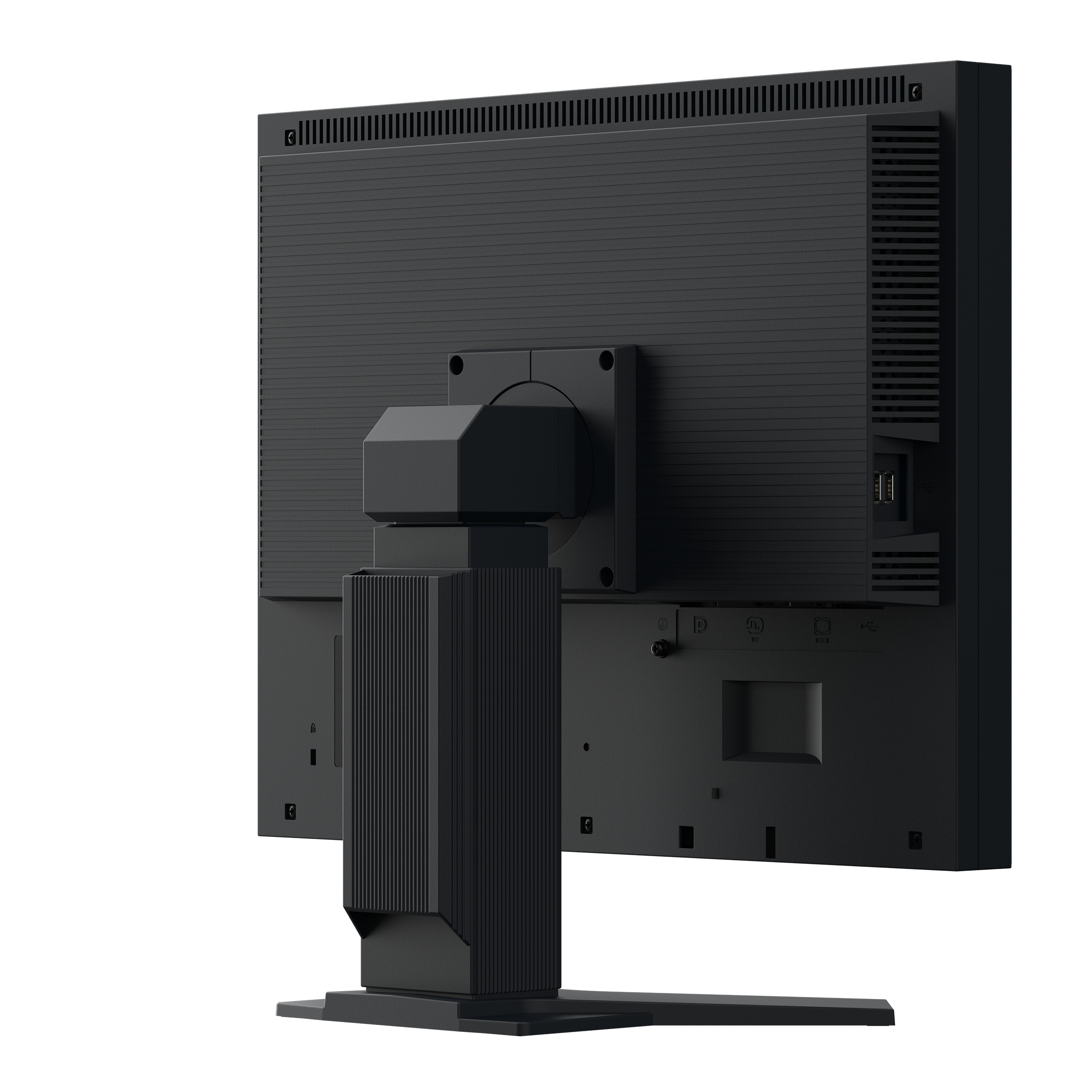

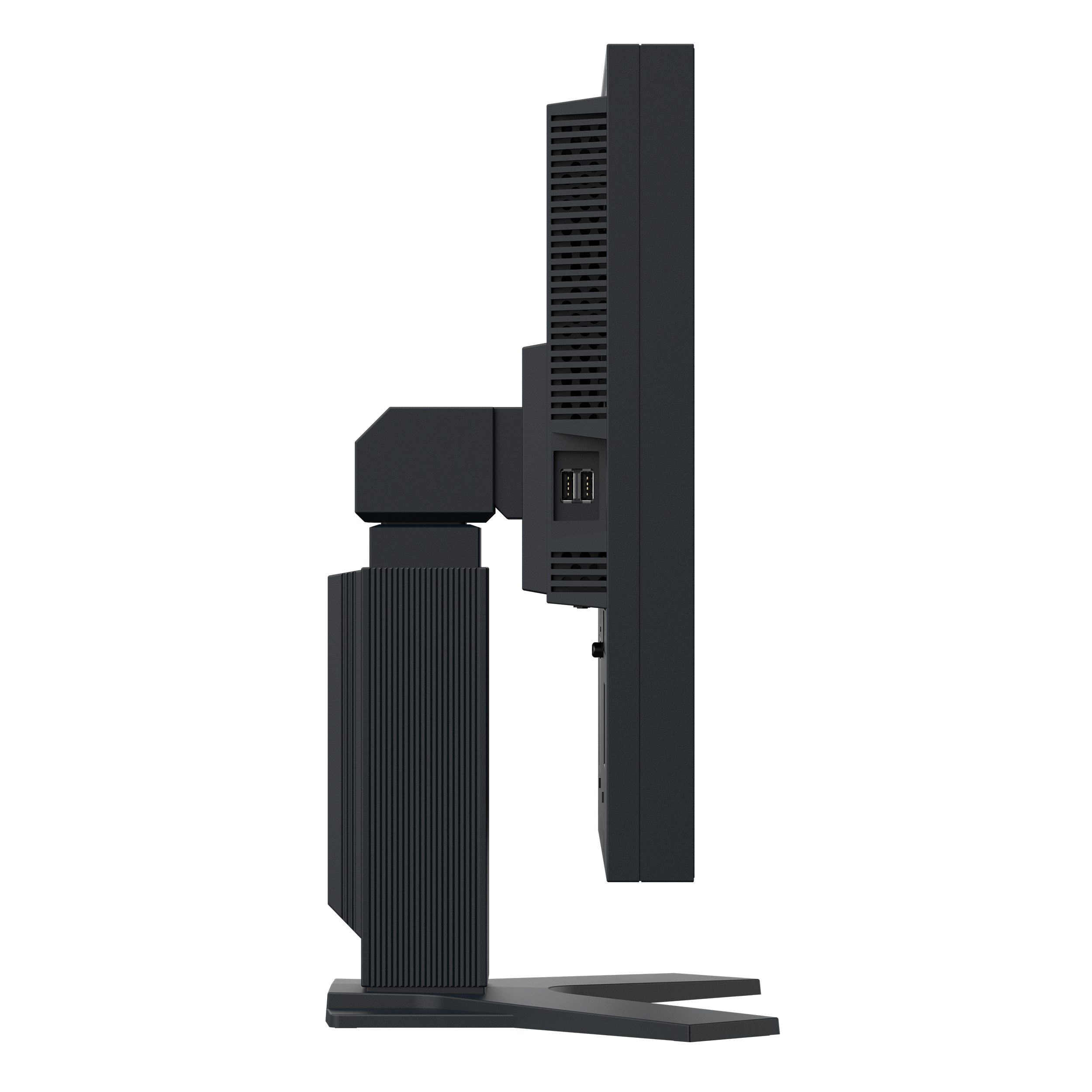

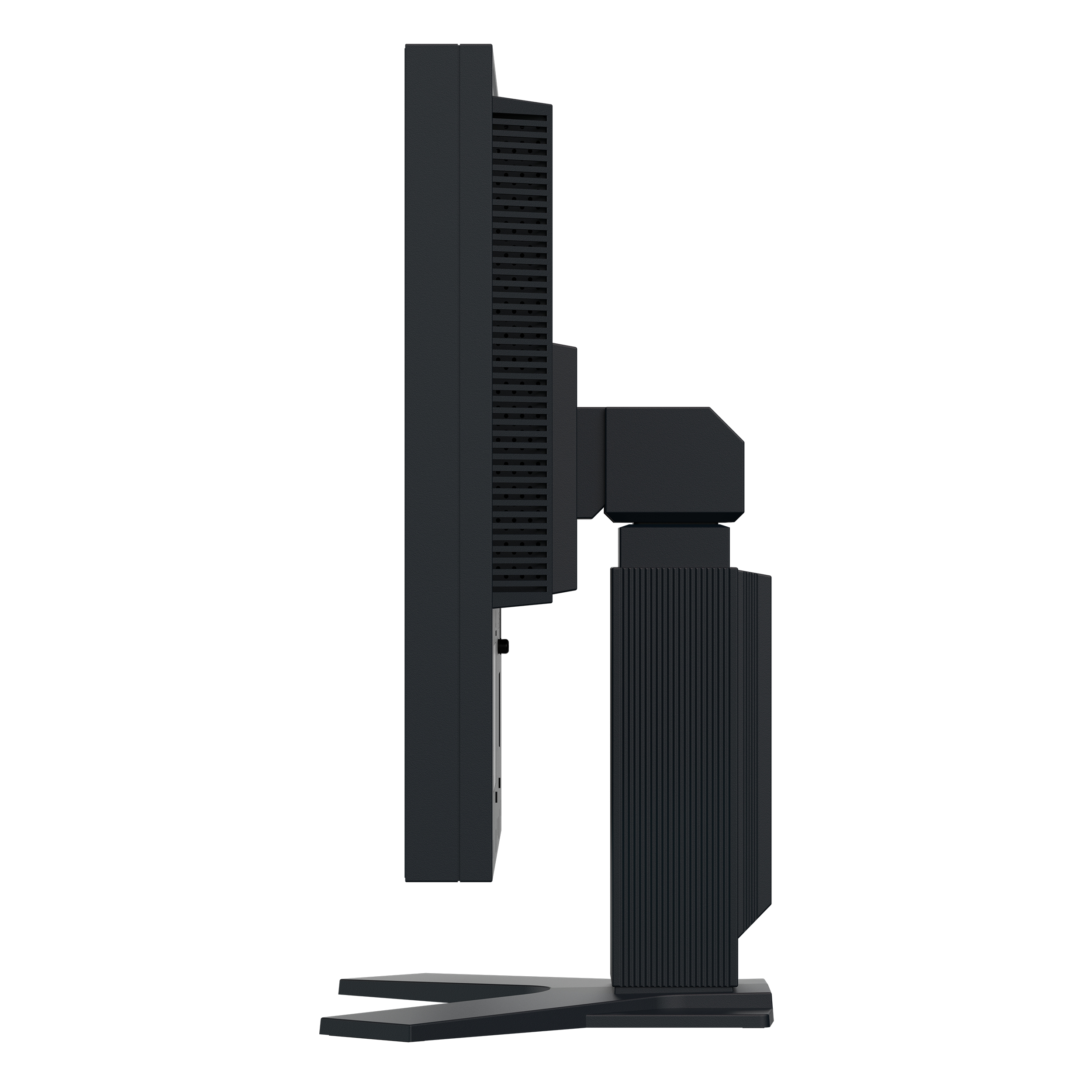

The supplied stand provides 82 mm of height adjustment together with tilt, swivel and pivot functions. The display can tilt from 0° forwards to 40° backwards, swivel through 70° and rotate clockwise between landscape and portrait orientations.

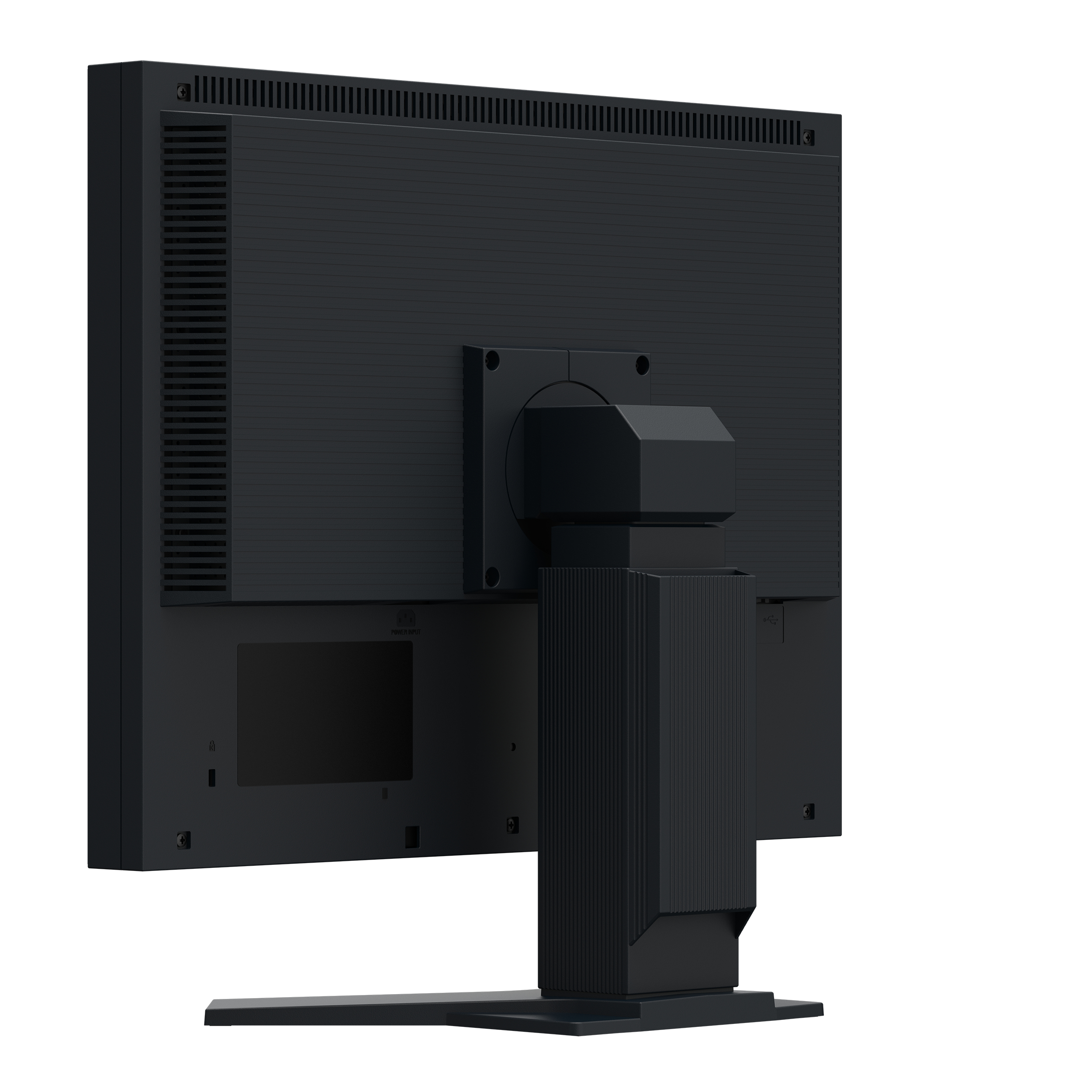

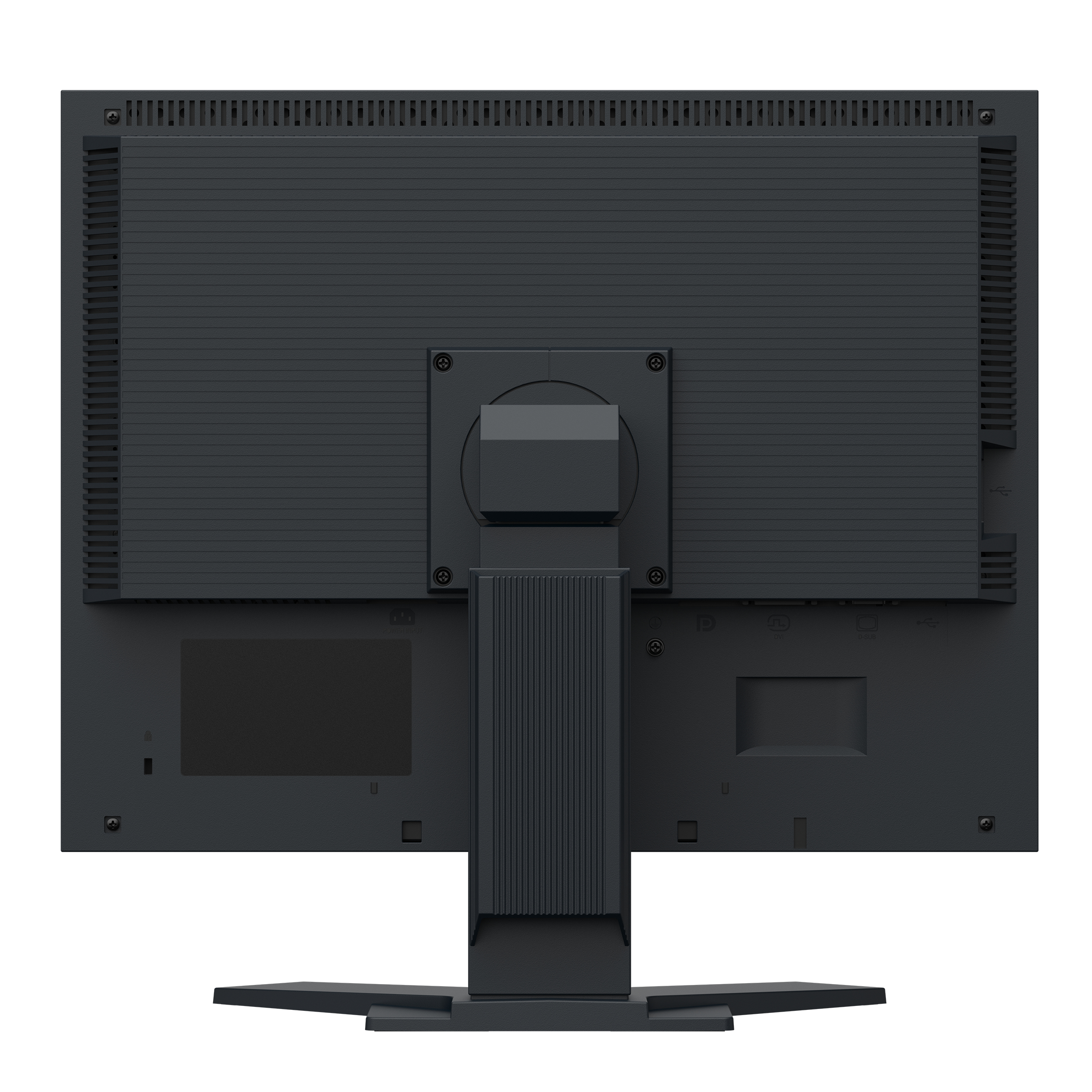

A 100 x 100 mm VESA mounting pattern allows the display to be installed on a compatible monitor arm, wall mount or other mounting system when the supplied stand is not required.
The monitor has a typical power consumption of 13 W and a maximum consumption of 42 W when operating at maximum brightness with all signal inputs and USB ports in use. Standby consumption is rated at 0.5 W, while power consumption reaches 0 W when the power switch is turned off. The monitor has an energy efficiency class C rating.
The Eizo S2134-BK is a 21.3-inch FlexScan monitor with a 1600 x 1200 UXGA resolution and 4:3 aspect ratio, providing a spacious square-format display for office work, finance applications, control systems and other professional desktop tasks.
Its IPS panel uses LED backlighting and delivers 16.7 million colours, 500 cd/m² typical brightness, an 1800:1 contrast ratio and 178° horizontal and vertical viewing angles. DisplayPort, DVI-D and D-Sub inputs support digital and analogue computer connections, while two USB downstream ports, automatic brightness control and an adjustable stand add practical functionality for different workstation environments.
The 21.3-inch display provides a 1600 x 1200 UXGA resolution with a 4:3 aspect ratio and a visible image area of 432 x 324 mm. The square-format screen provides additional vertical workspace compared with many widescreen monitors, making it suitable for applications where information needs to remain visible with less scrolling.
The IPS panel delivers 16.7 million colours and supports a colour palette of up to 1.06 billion colour tones through its 10-bit look-up table. With 500 cd/m² typical brightness and an 1800:1 contrast ratio, the display provides strong image visibility, while 178° horizontal and vertical viewing angles help maintain consistent images from different viewing positions.
DisplayPort and DVI-D provide digital video connections, while the D-Sub mini 15-pin input supports analogue sources. DisplayPort supports HDCP 1.3 and DVI-D supports HDCP 1.4. Automatic signal input recognition makes it easier to switch between connected sources.
A USB 2.0 Type-B upstream connection links the monitor to a computer, while two USB 2.0 Type-A downstream ports provide convenient connections for compatible peripherals. The downstream ports can supply up to 500 mA per port when the USB upstream connection is active.
The monitor includes two manual memory locations together with sRGB, Paper, Movie and DICOM modes. Auto EcoView adjusts screen brightness according to ambient lighting, while EcoView Index and EcoView Optimizer provide additional energy-saving functions. Overdrive and flicker-free operation are also supported.
When using an analogue signal, the Self Adjustment function automatically adjusts the image to help suppress flicker and drift. This provides a more consistent image when connecting computers through the D-Sub input.
The supplied stand provides 82 mm of height adjustment together with tilt, swivel and pivot functions. The display can tilt from 0° forwards to 40° backwards, swivel through 70° and rotate clockwise between landscape and portrait orientations.
A 100 x 100 mm VESA mounting pattern allows the display to be installed on a compatible monitor arm, wall mount or other mounting system when the supplied stand is not required.
The monitor has a typical power consumption of 13 W and a maximum consumption of 42 W when operating at maximum brightness with all signal inputs and USB ports in use. Standby consumption is rated at 0.5 W, while power consumption reaches 0 W when the power switch is turned off. The monitor has an energy efficiency class C rating.
