10G High-Bandwidth Connectivity
All models in the DGS-1250 Series feature four 10G SFP+ ports, allowing you to choose the most suitable media type for your requirement, to mitigate network bottlenecks. |
Layer 2 Features Such as port mirroring, Spanning Tree Procol (STP), RSTP, MSTP, Link Aggregation. |
 |
QoS & Surveillance Mode Capabilities like 802.11p Quality of Service, Bandwidth Control, Auto-Voice VLAN, and Surveillance Mode. |
 |
Layer 3 Lite Features Including IP interfaces, IPv6 Neighbor Discovery (ND), and IPv4/IPv6 Static Routing. |
 |
Security controls Including ARP Spoofing Prevention, port security - up to 64 MAC addresses per port, IMP-Binding, and D-Link Safeguard Engine. |
 |
Management interfaces Dedicated RJ-45 console port. Full CLI1, multilingual web GUI, SNMP MIB for remote NMS (D-View 7). Dual configuration files and dual software images |
 |
Limited Lifetime Warranty & Next Day Service Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included. |
 |
10-Gigabit Ethernet port Four 10G SFP+ uplink ports. Backwards compatibility with RJ-45 ports. |

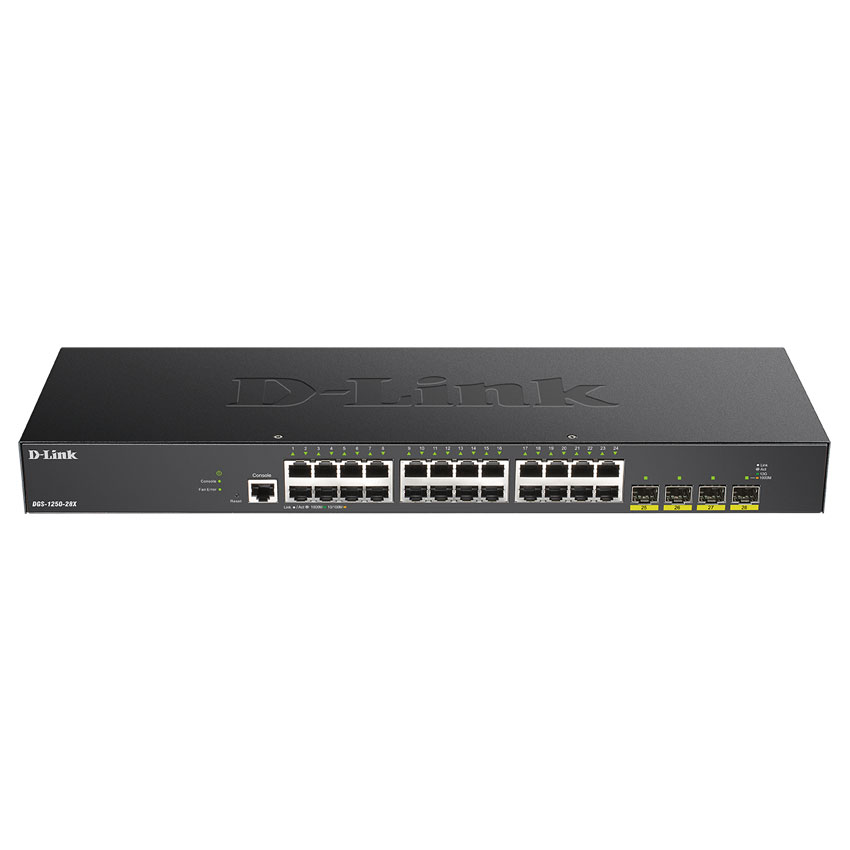

DGS-1250-28X
24 x 10/100/1000BASE-T
4 x 10G SFP+ ports
128 GBps switching capacity
 |
Easier maintenance, less downtime.Support for STP, RSTP, and MSTP provides redundant links, prevents network loops, increases network reliability and minimises downtime for essential applications. These switches can even withstand temperatures between -5 to 50°C. Dual software images and configuration files allow the switch to quickly change between firmware versions and configurations to minimise downtime |
10G connectionsEach switch in the series has four 10G SFP+ ports, which allows the most suitable media type to be chosen and mitigates network bottlenecks. The flexible uplink connections in both 1G/10G speeds deliver on data-intensive tasks. |
Optimised for Video SurveillanceD-Link’s exclusive Surveillance Mode provides a Web UI designed for video surveillance: it gives you an instant snapshot of your topology, makes features easy to access, and simplifies management of your surveillance network. |
 |
Layer 3 LiteIncluding IP interfaces, IPv6 Neighbor Discovery (ND), ARP-Snooping Prevention, IGMP and MLD Snooping, LLDP and LLDP-MED. The DGS-1250 series also includes IPv4/IPv6 static routing capabilities for a scalable and more efficient network. |
|
QoSThe series supports 802.11p Quality of Service to deliver data to devices based on the priority and type of traffic, and bandwidth Control to reduce unwanted network broadcast traffic. And the Auto-Voice and Auto-Surveillance VLAN features allow voice and video traffic to be automatically identified and prioritised. |
 |
Security down to the port level.The D-Link Safeguard Engine helps protect against malicious traffic flooding the network in the event of a malicious attack. The series supports IMP-Binding which is an easy method to control nodes during IP conflicts and auditing issues, and it prevents ‘ARP spoofing’ and 'man-in-the-middle' malicious attacks. Network security is further reinforced with ARP Inspection, DHCP Snooping, and a host of security and authentication features such as 802.1X port-based authentication, port security for 64 MAC addresses per port. The series also includes network protection functionalities like Access Control List, and DHCP Server Screening that only allows legitimate DHCP Server IP addresses on specific ports. |
The DGS-1250 series comes with the intuitive D-Link Network Assistant (DNA) utility for which simplifies the discovery of all devices using the D-Link Discovery Protocol within the same L2 network segment and displays them on screen for instant access. Simultaneous configurations and basic setups of all discovered devices, including password changes and firmware upgrades, can then be done easily.
The series can also be managed through the web-GUI that has 11 selectable languages, or the free, SNMP-supported D-View 7. Each switch includes a dedicated console port, and the full CLI1 provides more control, precision and repeatability.
1 Full CLI support available at end 2019 via firmware update.
Layer 2 Features
Such as port mirroring, Spanning Tree Procol (STP), RSTP, MSTP, Link Aggregation.
QoS & Surveillance Mode
Capabilities like 802.11p Quality of Service, Bandwidth Control, Auto-Voice VLAN, and Surveillance Mode.
Layer 3 Lite Features
Including IP interfaces, IPv6 Neighbor Discovery (ND), and IPv4/IPv6 Static Routing.
Security controls
Including ARP Spoofing Prevention, port security - up to 64 MAC addresses per port, IMP-Binding, and D-Link Safeguard Engine.
Management interfaces
Dedicated RJ-45 console port. Full CLI1, multilingual web GUI, SNMP MIB for remote NMS (D-View 7). Dual configuration files and dual software images
Limited Lifetime Warranty & Next Day Service
Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.
10-Gigabit Ethernet port
Four 10G SFP+ uplink ports. Backwards compatibility with RJ-45 ports.
Deploy the most cost-effective 10G solution as core switches for SMBs and as access switches for Enterprises. Designed with a high port density, high-bandwidth ports to remove bottlenecks, a high PoE power budget for larger deployments, redundancy capabilities to maintain uptime, easy-to-use multilingual web UI management, dedicated console port and full CLI control.
DGS-1250-28X
24 x 10/100/1000BASE-T
4 x 10G SFP+ ports
128 GBps switching capacity
Layer 2 Features
Such as port mirroring, Spanning Tree Procol (STP), RSTP, MSTP, Link Aggregation.
QoS & Surveillance Mode
Capabilities like 802.11p Quality of Service, Bandwidth Control, Auto-Voice VLAN, and Surveillance Mode.
Layer 3 Lite Features
Including IP interfaces, IPv6 Neighbor Discovery (ND), and IPv4/IPv6 Static Routing.
Security controls
Including ARP Spoofing Prevention, port security - up to 64 MAC addresses per port, IMP-Binding, and D-Link Safeguard Engine.
Management interfaces
Dedicated RJ-45 console port. Full CLI1, multilingual web GUI, SNMP MIB for remote NMS (D-View 7). Dual configuration files and dual software images
Limited Lifetime Warranty & Next Day Service
Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.
10-Gigabit Ethernet port
Four 10G SFP+ uplink ports. Backwards compatibility with RJ-45 ports.
High PoE budget
Up to 370W Power over Ethernet (PoE) power budget to power more devices
Deploy the most cost-effective 10G solution as core switches for SMBs and as access switches for Enterprises. Designed with a high port density, high-bandwidth ports to remove bottlenecks, a high PoE power budget for larger deployments, redundancy capabilities to maintain uptime, easy-to-use multilingual web UI management, dedicated console port and full CLI control.
DGS-1250-28XMP
24 x 10/100/1000BASE-T PoE
4 x 10G SFP+ ports
128 GBps switching capacity
The D-Link Safeguard Engine helps protect against malicious traffic flooding the network in the event of a malicious attack. The series supports IMP-Binding which is an easy method to control nodes during IP conflicts and auditing issues, and it prevents ‘ARP spoofing’ and 'man-in-the-middle' malicious attacks.
Network security is further reinforced with ARP Inspection, DHCP Snooping, and a host of security and authentication features such as 802.1X port-based authentication, port security for 64 MAC addresses per port. The series also includes network protection functionalities like Access Control List, and DHCP Server Screening that only allows legitimate DHCP Server IP addresses on specific ports.
The DGS-1250 series comes with the intuitive D-Link Network Assistant (DNA) utility for which simplifies the discovery of all devices using the D-Link Discovery Protocol within the same L2 network segment and displays them on screen for instant access. Simultaneous configurations and basic setups of all discovered devices, including password changes and firmware upgrades, can then be done easily.
The series can also be managed through the web-GUI that has 11 selectable languages, or the free, SNMP-supported D-View 7. Each switch includes a dedicated console port, and the full CLI provides more control, precision and repeatability.
