| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DLDEM-CB100Q28 |
| Manufacturer No: | DEM-CB100Q28 |
| Delivery: | In Stock: 7-10 Days |
 |

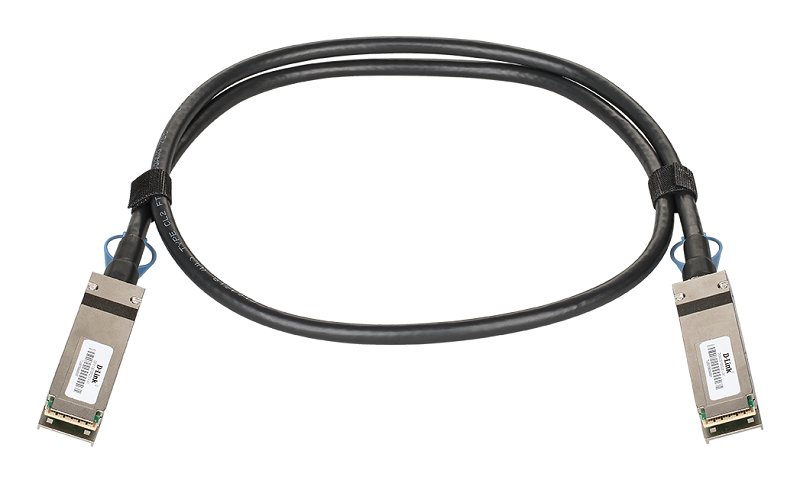

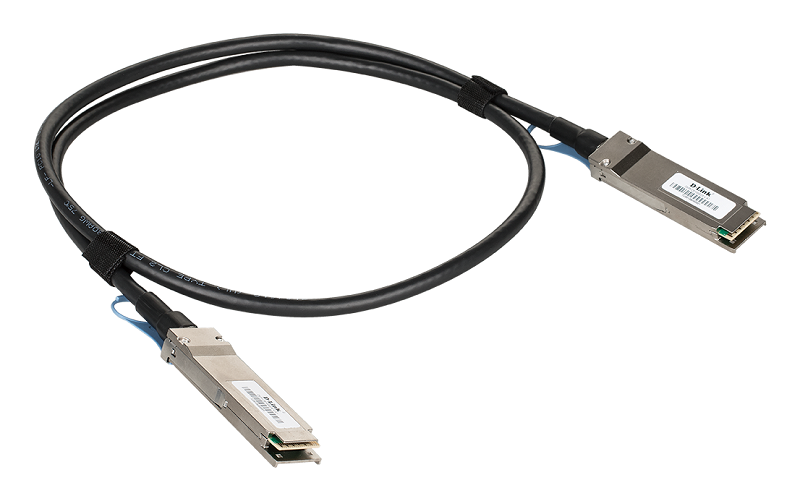

100G QSFP28 to QSFP28 1 m Direct Attach Stacking Cable
High-quality 100G QSFP28 connection cables for physical stacking (compatible with DXS-3610 series)
| General | |
| Device Rate | 100 Gbps |
| Connector Type | QSFP28 Cable Assembly |
| Wire AWG | 30 AWG |
| Functionality | |
| SFP MSA Standard | SFF-8436, SFF-8636, SFF-8665 |
| Electrical Connector Performance Test Standard | EIA-364, EIA-364-1000.01 |
| Flammability Standard | UL 94 |
| Physical | |
| Minimum Cable Bend Radius | 34.5 mm / 1.36 in |
| Cable Characteristic Impedance | 100 Ohms |
| Voltage | 30 V AC |
| Current | 0.5 A |
| Operating Temperature | -40 to 75 °C / -40 to 167 °F |
| Specifications | |
| Data transfer rate | 100 Gbit/s |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Product colour | Black |
| Weight & dimensions | |
| Weight | 45 g |
| Size | 12.7 cm / 5" |
Full specification and details can be found in the PDF file
