| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | BSNPA100DA |
| Manufacturer No: | NPA100DA |
| Delivery: | In Stock: 5-7 Days |
 |

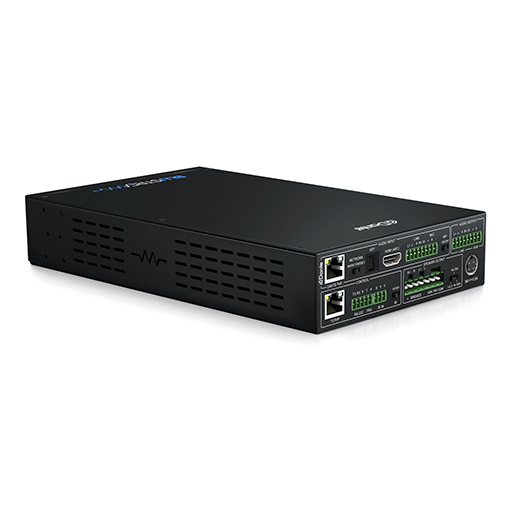

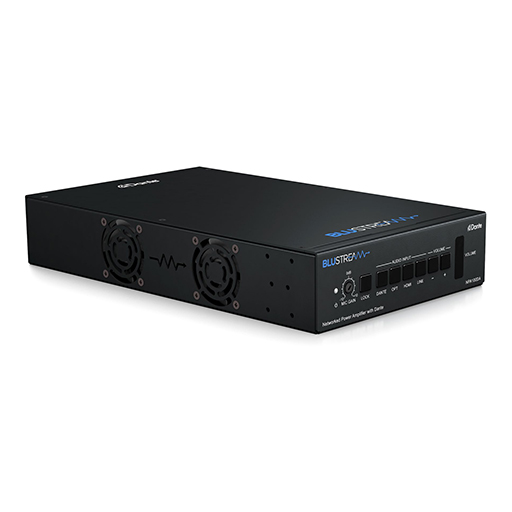

The NPA100DA is a compact networked audio zone amplifier designed to simplify advanced audio distribution in commercial and residential AV systems. Combining flexible power options, extensive input and output support, and full Dante audio integration, it provides a reliable platform for distributed and localized audio control.
The NPA100DA features a 2 x 50W digital amplifier that can also be configured as a single 100W mono output. It additionally supports 70V and 100V constant voltage speaker systems, making it suitable for both short and long cable runs across multiple speaker zones.

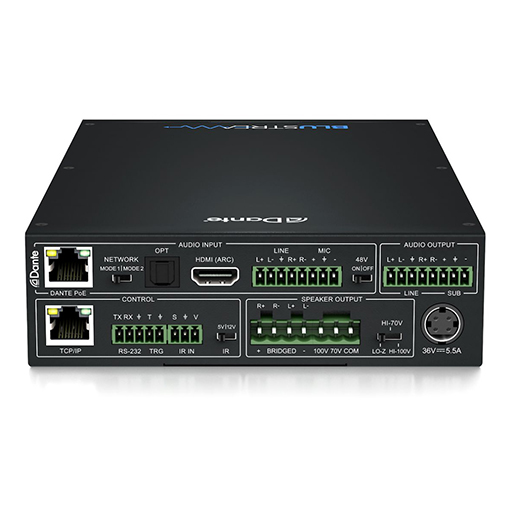

A wide range of audio inputs allows seamless integration into modern AV environments. Supported sources include 2-channel Dante/AES67 audio, HDMI ARC with CEC volume control, microphone input with 48V phantom power and auto-ducking, optical S/PDIF audio, and 2-channel balanced or unbalanced analogue audio.
The unit provides multiple output options including 2-channel Dante/AES67 audio output, variable or fixed analogue audio outputs in both balanced and unbalanced formats, and a dedicated LFE subwoofer output for enhanced low-frequency performance.
The NPA100DA supports PoE++ power delivery directly from a compatible network switch, with the option for local power when required. It also allows amplifier power scaling based on available PoE capacity and supports either combined or independent LAN and Dante network connections.
Built-in DSP provides precise audio control through a 31-band equalizer with ±10dB gain adjustment, audio delay for lip-sync correction, and independent gain control across all input channels.

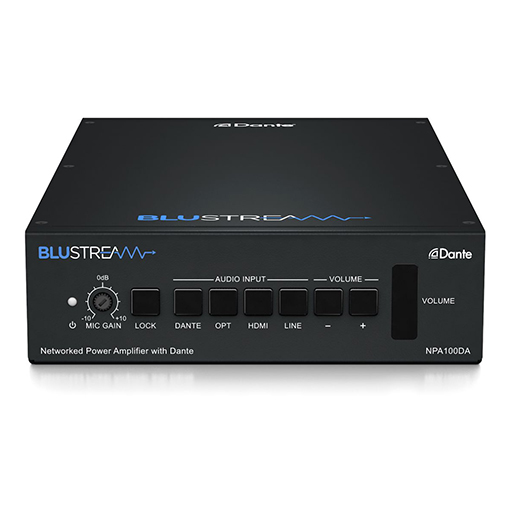

System control is available via the front panel, IR, RS-232, TCP/IP, web-based GUI, and a local 12V trigger input. Additional features such as auto standby with signal sensing support efficient and automated operation within integrated AV systems.
The NPA100DA is a compact networked audio zone amplifier designed to simplify advanced audio distribution in commercial and residential AV systems. Combining flexible power options, extensive input and output support, and full Dante audio integration, it provides a reliable platform for distributed and localized audio control.
The NPA100DA features a 2 x 50W digital amplifier that can also be configured as a single 100W mono output. It additionally supports 70V and 100V constant voltage speaker systems, making it suitable for both short and long cable runs across multiple speaker zones.
A wide range of audio inputs allows seamless integration into modern AV environments. Supported sources include 2-channel Dante/AES67 audio, HDMI ARC with CEC volume control, microphone input with 48V phantom power and auto-ducking, optical S/PDIF audio, and 2-channel balanced or unbalanced analogue audio.
The unit provides multiple output options including 2-channel Dante/AES67 audio output, variable or fixed analogue audio outputs in both balanced and unbalanced formats, and a dedicated LFE subwoofer output for enhanced low-frequency performance.
The NPA100DA supports PoE++ power delivery directly from a compatible network switch, with the option for local power when required. It also allows amplifier power scaling based on available PoE capacity and supports either combined or independent LAN and Dante network connections.
Built-in DSP provides precise audio control through a 31-band equalizer with ±10dB gain adjustment, audio delay for lip-sync correction, and independent gain control across all input channels.
System control is available via the front panel, IR, RS-232, TCP/IP, web-based GUI, and a local 12V trigger input. Additional features such as auto standby with signal sensing support efficient and automated operation within integrated AV systems.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
